4315 IP65 4000 SERIES INDUSTRIAL CABLE REEL, 14+1 M, CABLE CROSS-SECTION 1.5 MM2 ZECA

Professional energy and safety with Zeca 4315 IP65

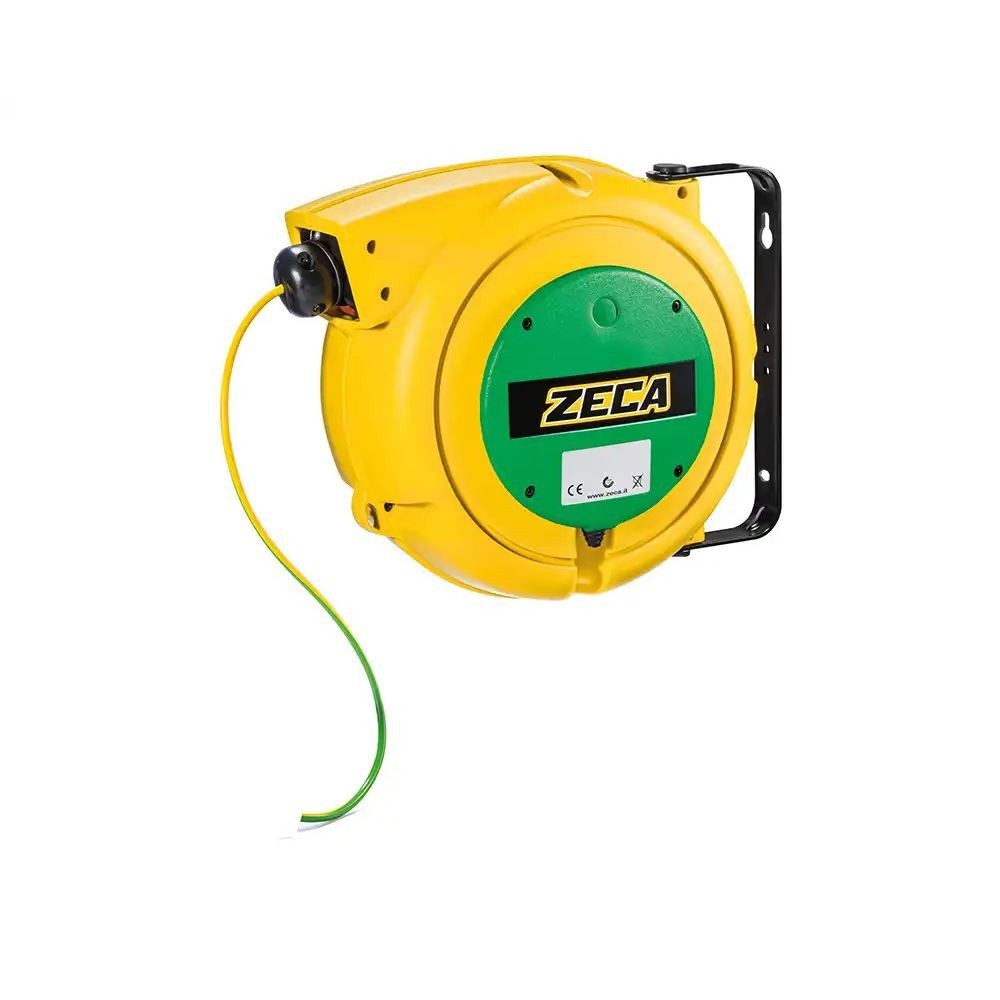

The Zeca 4315 IP65 cable reel is the ideal companion for those seeking robustness and versatility in industrial environments. With 15 meters of 3G1.5 PVC cable and an IP65 rating, it ensures consistent performance and total protection against dust and water jets. Designed for intensive use, it combines a shock-resistant plastic structure with high-level technical components to ensure always-ready and safe power.

Shipping cost: Free for
217,96 €
Tax included

178,65 € Tax excluded

Quantity
Available product, order it now.

Uncompromising Reliability: The Industrial 4000 Series

The Zeca 4315 IP65 model represents excellence in professional electrical cable management. Made with shock-resistant plastic structural elements, this reel is designed to withstand the mechanical stresses typical of workshops and production departments.

Advantages and innovative features

  • Superior Protection: The IP65 rating certifies complete protection against dust ingress and resistance to water jets, making it suitable even for humid or dirty environments.
  • Operational Efficiency: Includes a roller cable guide mouth for smooth sliding and a rack-and-pinion stop device (insertable every 50 cm), which allows you to work at the desired length without unnecessary tension.
  • Quality Components: Equipped with double ground contact and sliding contacts with collector ring and brushes for stable electrical transmission.
  • Built-in Safety: Features a thermal protector and a collector isolation voltage of 2.5KV.

Applications and Contexts of Use

Thanks to the 1.5 mm² cable section and the presence of earthing (3G), the Art. 4315 is perfect for:

  • Mechanical Workshops: Power supply for drills, grinders, and medium-power power tools.
  • Construction Sites and Industry: Safe movement over large radiuses thanks to the 15-meter extension.
  • Fixed or Mobile Installations: It can be wall mounted or, using the optional accessory Art. 949/804-4000 , fixed to the ceiling to maximise floor space.

Technical Data

Specifications Value
Total cable length 15 meters (14m + 1m section)
Number of conductors and cross-section 3 G 1.5 mm²
Cable type PVC
Wrapped cable capacity (@20°C) 1.2 KW @ 230V
Unwound cable capacity (@20°C) 1.8 KW @ 230V
Ambient temperature of use -5°C / +50°C
Total weight 5.0 kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
