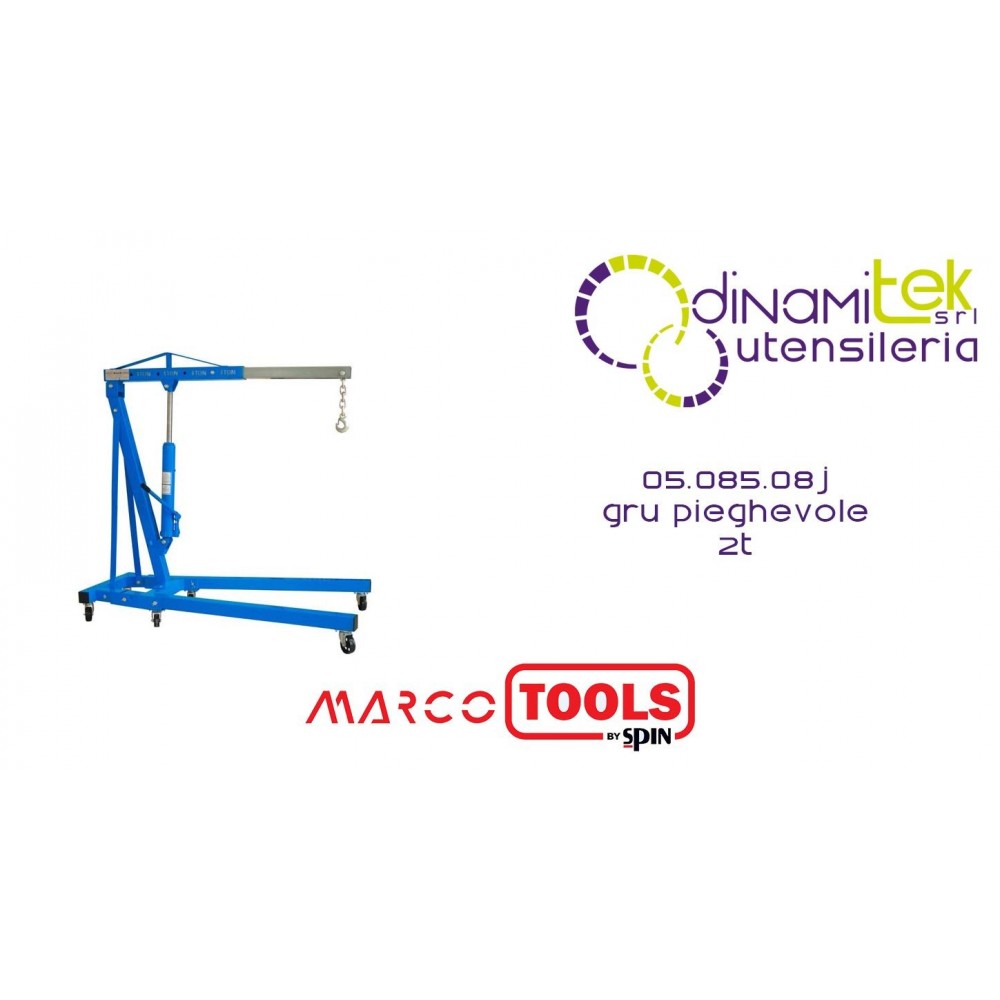

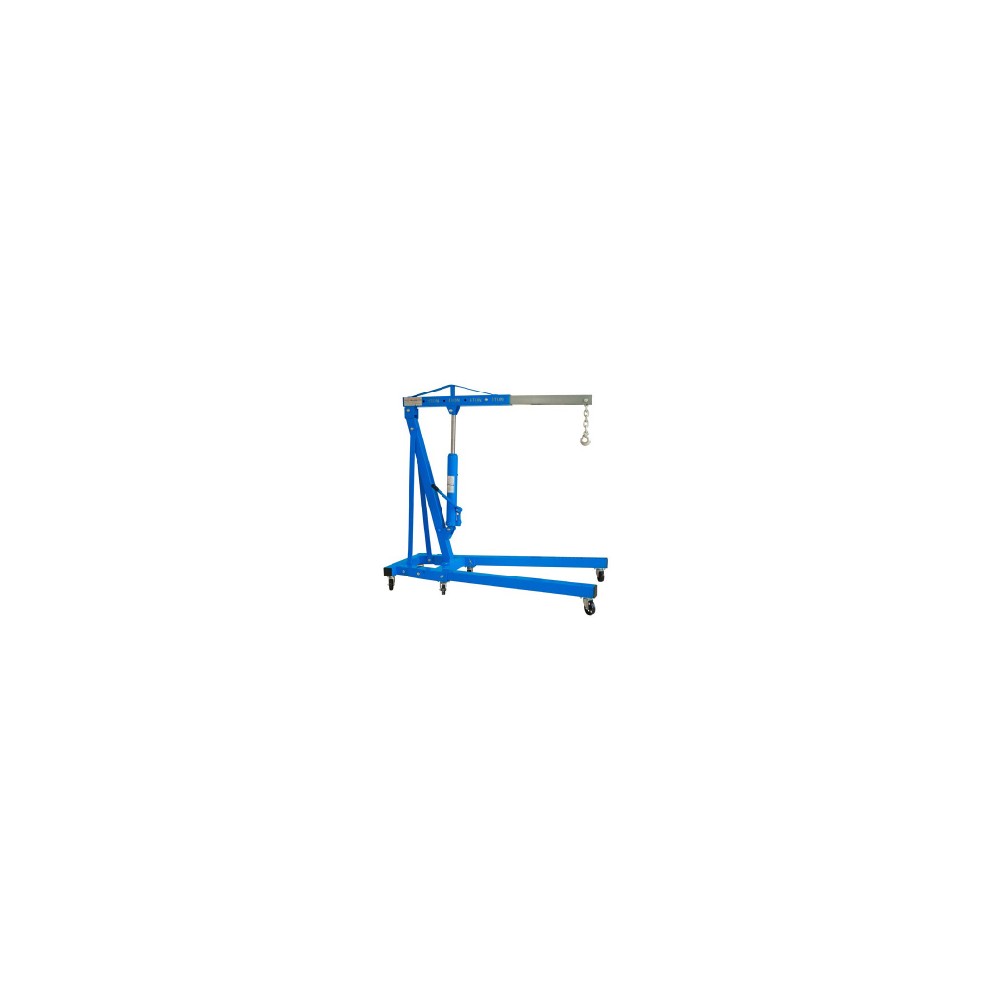

05.085.08J 2T FOLDING WORKSHOP CRANE MARCO TOOLS SPIN
Professional lifting power combined with maximum storage convenience. The Spin workshop crane (Code 05.085.08J) is a robust tool with a load capacity of up to 2 tons , designed to handle the most demanding lifting operations in complete safety. Equipped with an efficient double-acting piston for quick and smooth lifting, this crane is the ideal solution for assembling and disassembling engines or for unloading heavy lithium battery packs of electric vehicles from lifting platforms. Thanks to its fully foldable design, it allows you to optimize workshop space when not in use.
Shipping cost: €25.00
for
Power and Precision for the Modern Workshop and E-Mobility
The 05.085.08J model represents a standard of excellence in the Marcotools Lifting and Anchoring line. Developed to meet the needs of technicians working with traditional engines and new electric propulsion systems, this crane combines a reinforced steel structure with superior operational versatility.
Operational Features and Strengths
- Double-Acting Piston: Allows for faster, more effective lifting with less effort on the lever, dramatically improving productivity during mechanical interventions.
- High Lifting Capacity: With a load range of up to 2000 kg, it easily handles industrial engines, gearboxes and heavy structural components.
- Electric Vehicle Setup: Sources call this the “ideal tool for offloading electric car lithium battery packs from lifting platforms,” making it a key asset for EV repair shops.
- Space-Saving Design: Once the job is done, the crane can be folded to a compact size (800x680x1600 mm), making it easy to store even in spaces with limited space.
- Mobility and Accessibility: The 185mm high front wheels ensure stability when moving the load, while allowing the base to be positioned under most vehicles and work platforms.
Areas of Use
Essential for:
- Extraction and positioning of internal combustion engines.
- Handling of high voltage battery packs (EV/Hybrid).
- Loading and unloading heavy components from workbenches or shelves.
Technical Specifications
- Product Code: 05.085.08J
- Brand: Spin (Marcotools Line)
- Load Capacity: 2 T (1 or 2 T depending on the arm position)
- Maximum Lifting Height: 2200 mm
- Front Wheel Height: 185 mm
- Overall Dimensions: 800 x 680 x 1600h mm
- Piston: Double acting
- Net / Gross Weight: 85 kg / 88 kg
Professional equipment for car and motorcycle repair and maintenance
05.085.08J
Professional lifting power combined with maximum storage convenience. The Spin workshop crane (Code 05.085.08J) is a robust tool with a load capacity of up to 2 tons , designed to handle the most demanding lifting operations in complete safety. Equipped with an efficient double-acting piston for quick and smooth lifting, this crane is the ideal solution for assembling and disassembling engines or for unloading heavy lithium battery packs of electric vehicles from lifting platforms. Thanks to its fully foldable design, it allows you to optimize workshop space when not in use.
