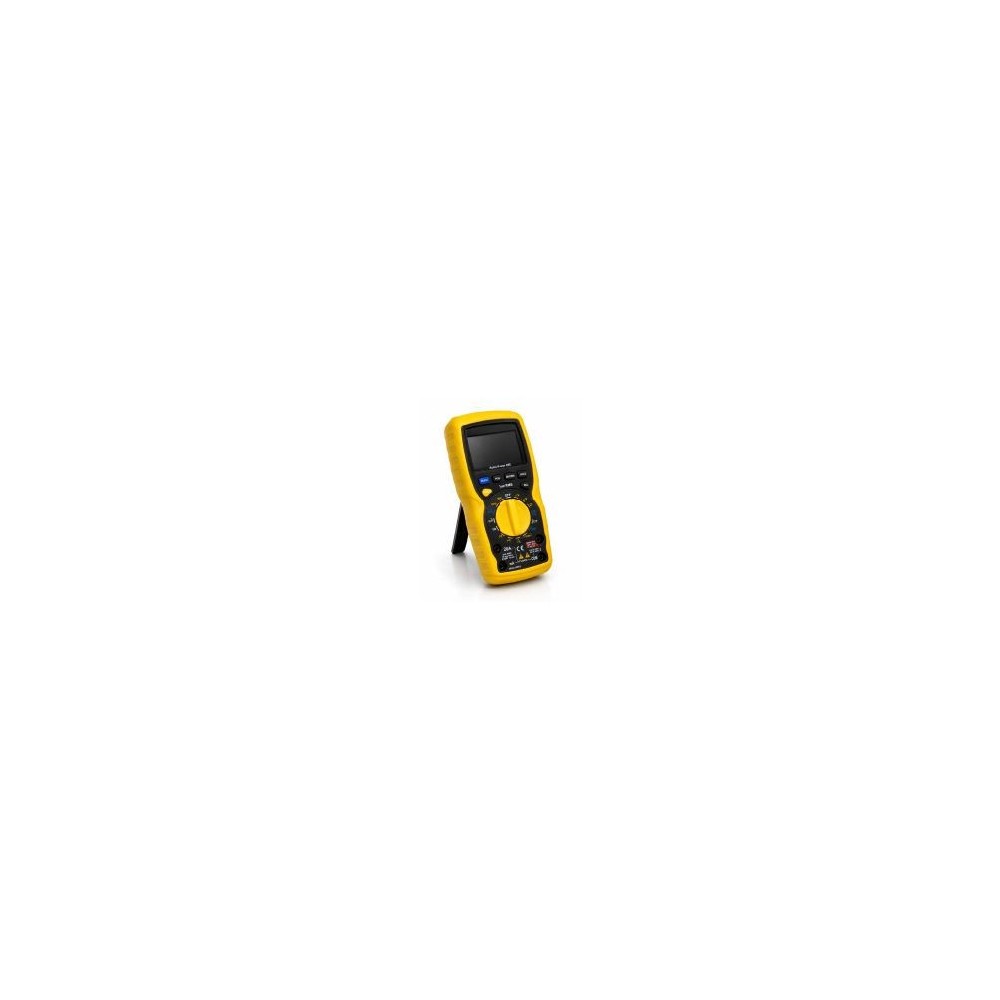

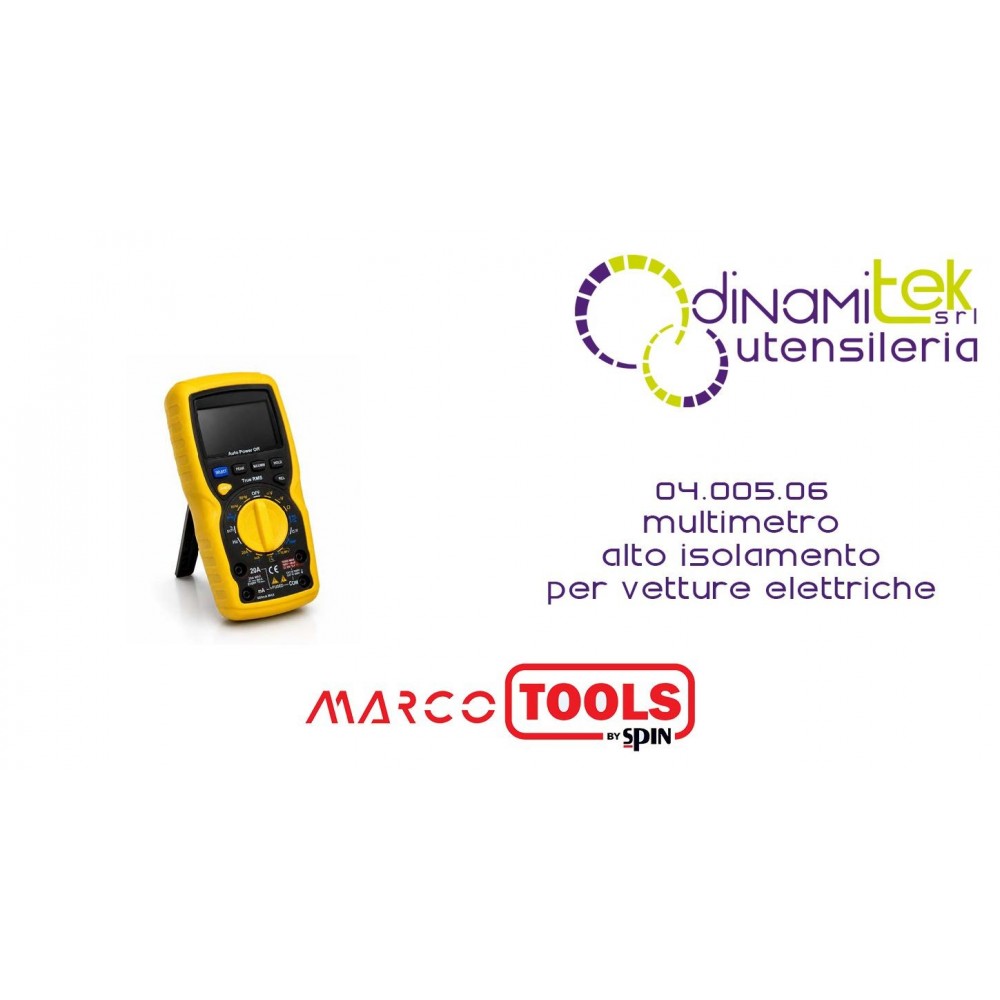

04.005.06 MARCO TOOLS HIGH-INSULATION MULTIMETER FOR ELECTRIC VEHICLES SPIN
The essential measuring tool for safety in high-voltage systems. The Spin high-insulation multimeter (Code 04.005.06) is a professional device designed specifically for technicians working on electric and hybrid vehicles . Featuring a high level of protection and precision, it allows measurements on power circuits in complete safety, while integrating advanced diagnostic functions for traditional mechanics, such as engine speed (RPM) and dwell angle detection.
Shipping cost: €25.00
for
Certified Safety for E-Mobility and the Workshop
The 04.005.06 model represents the benchmark in Marcotools' line of accessories for servicing electric vehicles (EVs) . In a work environment where high voltages pose a constant risk, this multimeter ensures operator protection thanks to its compliance with the most stringent international electronic insulation standards.
Electrical Measurement Parameters
- Voltage: Supports up to 1000V direct current (DC) and 750V alternating current (AC), ideal for electric vehicle battery packs and inverters.
- Current: Direct measurement via test leads up to 20A (AC/DC). It is also designed for the use of optional probes for high currents (up to 1500A).
- Resistance and Continuity: Essential for checking the integrity of the wiring and the insulation of the components towards ground.
Advanced Diagnostic Functions
In addition to the standard electrical parameters, the tool offers specific features for the automotive sector:
- RPM (Engine Revolutions): Measurement of rotational speed for 2-stroke (60-20,000 RPM) and 4-stroke (120-20,000 RPM) engines.
- Dwell Angle: Precise analysis for 4, 5, 6 and 8 cylinder systems.
- Temperature: Wide measurement range from -20°C to +1000°C, essential for monitoring the overheating of battery cells or electric motors.
- Duty Cycle and Pulse Width: For the analysis of pulse width modulated (PWM) signals common in modern control units.
Safety and Construction Standards
- CAT III/IV Protection: Designed according to IEC 61010 with measurement categories CAT III 1000V and CAT IV 600V, ensuring resistance to transient voltage spikes.
- Pollution Degree 2: Suitable for use in protected workshop environments.
- Ergonomic Design: Compact size (190x89x62 mm) and low weight (423g) with battery included for easy maneuverability during vehicle testing.
Technical Specifications
- Product Code: 04.005.06
- Brand: Spin (Marcotools Line)
- AC Voltage: 6V/60V/600V/750V
- DC Voltage: 600mV/6V/60V/600V/1000V
- Frequency: 9.999Hz - 9.999MHz
- Dimensions: 190 x 89 x 62 mm
Professional equipment for car and motorcycle repair and maintenance
