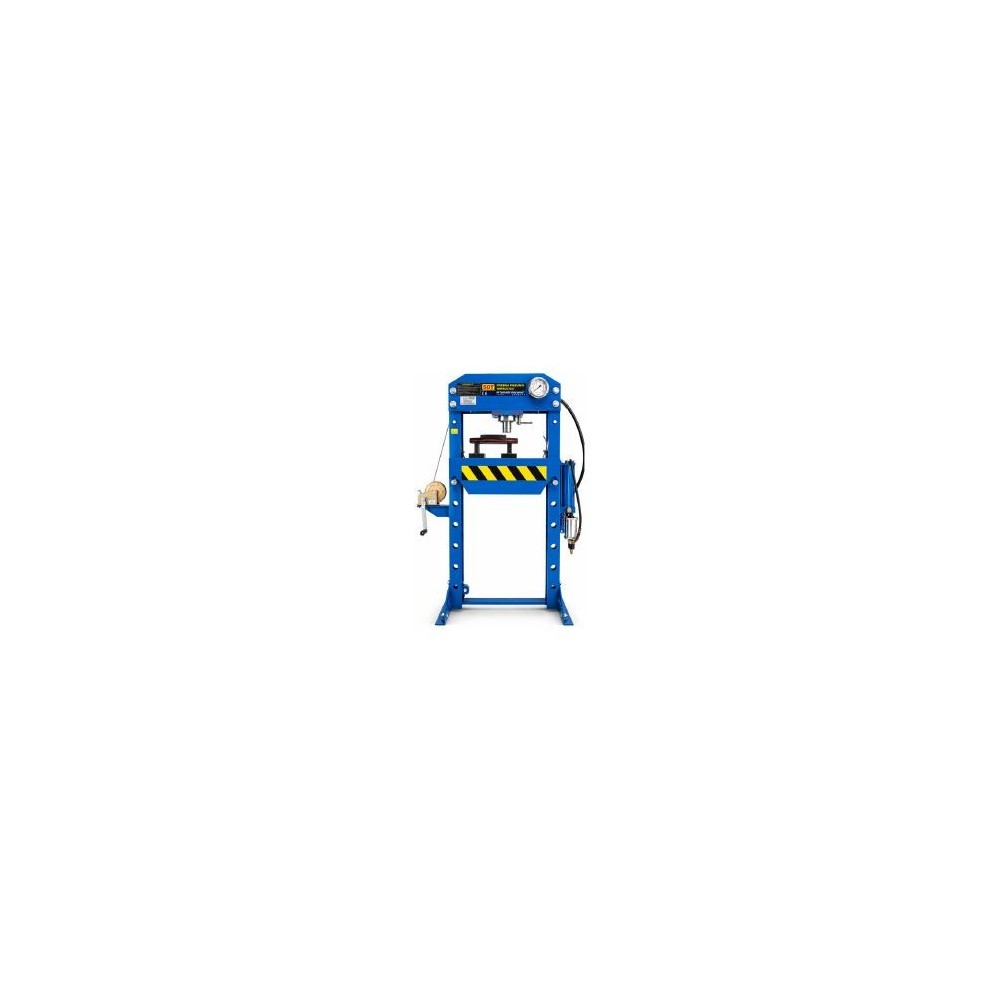

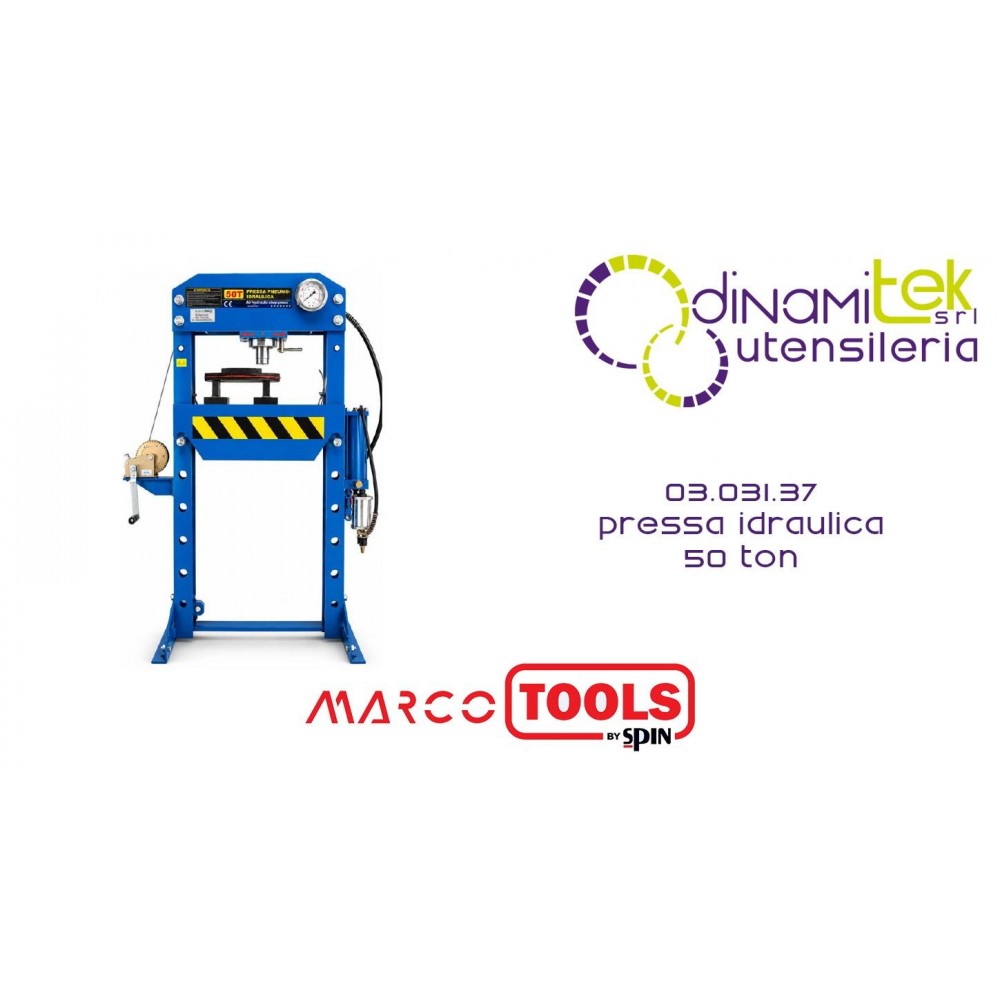

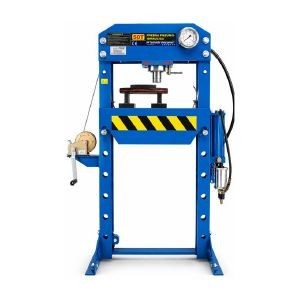

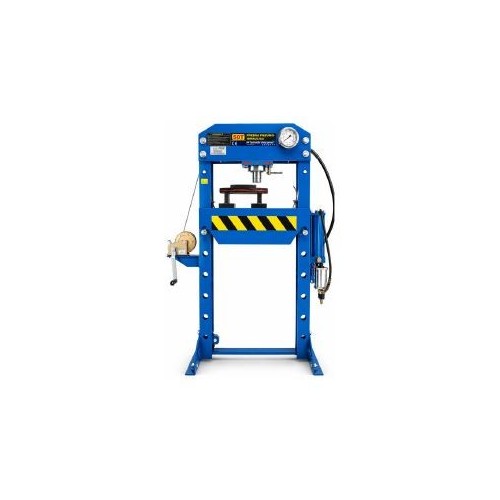

SPIN MARCO TOOLS 03.031.37 PRESSA IDRAULICA 50 TON Dinamitek 1

03.031.37 50 TON HYDRAULIC PRESS MARCO TOOLS SPIN

The ultimate in strength and precision for heavy-duty workshop applications. The Marcotools pneumatic-hydraulic press (Code 03.031.37) is a professional 50-ton machine designed to handle the most demanding tasks with ease. Ideal for servicing industrial vehicles, agricultural machinery, and complex mechanical components , it combines the power of a pneumatic-hydraulic pump with the sensitivity of manual control. Thanks to its mobile piston and winch for easy adjustment of the work surface, it offers unparalleled operational versatility for automotive repair and industrial applications.

Shipping cost: Free for

1295 €

Tax included

1.295,00 € Tax excluded

Quantity

Available product, order it now.

Industrial Power and Precision Engineering

The 03.031.37 model represents the top of the Spin workshop press range. Developed to deliver consistent performance in intensive work environments, this press is the go-to tool for automotive and motorcycle workshops, industrial maintenance departments, and agricultural machinery service centers.

Technical Features and Strengths

Superior Load Capacity: With a force of 50 tons, it allows you to perform bearing extractions, straightening and shrinking on large components with extreme ease.
Dual Drive System: Equipped with a pneumatic-hydraulic pump for fast and powerful advancement (up to 6 mm per stroke), it still maintains the manual lever control for phases that require millimetric sensitivity.
Ergonomics and Adjustments: It integrates a practical mechanical winch that allows the heavy work surface to be lifted and positioned at the desired height without effort for the operator.
Mobile Piston: The cylinder is able to slide laterally along the upper crosspiece, allowing the load to be centered precisely without having to move the component being machined on the bench.
Safety and Monitoring: The large pressure gauge is recessed directly into the upper structure to protect it from accidental impacts, allowing constant monitoring of the pressure exerted (up to 8 bar max supply).
Structural Strength: With 20cm thick load-bearing columns and a net weight of 241kg, the machine guarantees absolute stability and the absence of flexing under maximum load.

The Details That Make the Difference

Winch: For quick lifting of the work surface.
Steel Plates: Includes a pair of “V” notched plates for secure positioning of shafts and bushings.
Operating Distance: Offers a wide working range with a minimum distance of 280 mm and a maximum of 1100 mm.

Technical Specifications

Product Code: 03.031.37
Brand: Spin (Marcotools Line)
Capacity: 50 t
Piston stroke: 180 mm
Max feed: 6 mm per stroke
External Dimensions: 90 cm (Width) x 175 cm (Height)
Cylinder Diameter: 13 cm
Net Weight: 241 kg

Optional Accessories (Available on request)

Foot pedal control for hands-free operation (Code 03.031.40).
Set of punches and specific plate for 50T press (Cod. 03.031.36).

Professional equipment for car and motorcycle repair and maintenance

MARCO TOOLS: UTENSILI E ATTREZZATURE PROFESSIONALI PER OFFICINA E MANUTENZIONE

Marco Tools è un marchio specializzato in utensili manuali, attrezzature da officina e soluzioni per manutenzione professionale, pensato per meccanici, manutentori, carrozzerie, artigiani e reparti industriali.

La gamma comprende chiavi, bussole, cricchetti, pinze, cacciaviti, set assortiti, avviatori, attrezzature per sollevamento, strumenti per meccanica, carrelli portautensili e soluzioni dedicate alla manutenzione quotidiana. Ogni prodotto si distingue per materiali resistenti, ergonomia, accuratezza dimensionale e rapporto qualità/prezzo competitivo.

La nuova linea Marco Tools per auto elettriche include utensili isolati, attrezzature per interventi su sistemi ad alta tensione, strumenti per diagnosi EV e soluzioni specifiche per la manutenzione dei veicoli elettrici e ibridi. Prodotti progettati per garantire sicurezza, precisione e conformità alle normative tecniche dei moderni powertrain elettrici.

I meccanici scelgono Marco Tools per la robustezza, versatilità e convenienza delle attrezzature per auto, moto e truck.

Reference 03.031.37

Accessories

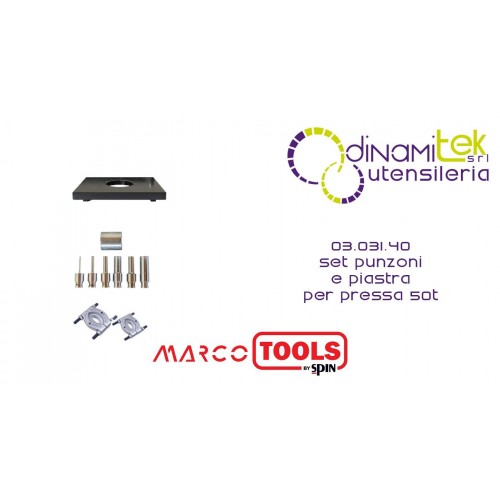

SPIN MARCO TOOLS 03.031.40 SET PUNZONI E PIASTRA PER PRESSA 50T Dinamitek 1
