01.000.336 HIGH INSULATION CARPET BY THE METER MARCO TOOLS SPIN
Passive protection essential for electrical safety in the workshop. The Marcotools high-insulation mat (Code 01.000.336) is a collective protection device designed to isolate the operator from the ground during work on hybrid and electric vehicles (EVs) . Made with a special dielectric compound, it prevents the passage of current to ground, ensuring the technician's safety even in the event of accidental contact with high-voltage components. Sold by the meter , it allows you to cover customized work areas according to the needs of the service department.
Shipping cost: €25.00
for
Dielectric Safety and Performance Standards
Model 01.000.336 is part of the mandatory equipment for securing the workplace on new-generation vehicles. The use of insulated surfaces is a fundamental regulatory requirement for creating a work environment protected from the risk of electric shock.
Technical Features and Certifications
- High Insulation Potential: The mat is tested for voltage resistance up to 20,000V (Withstand voltage), with a maximum operating voltage in AC of 7,500V.

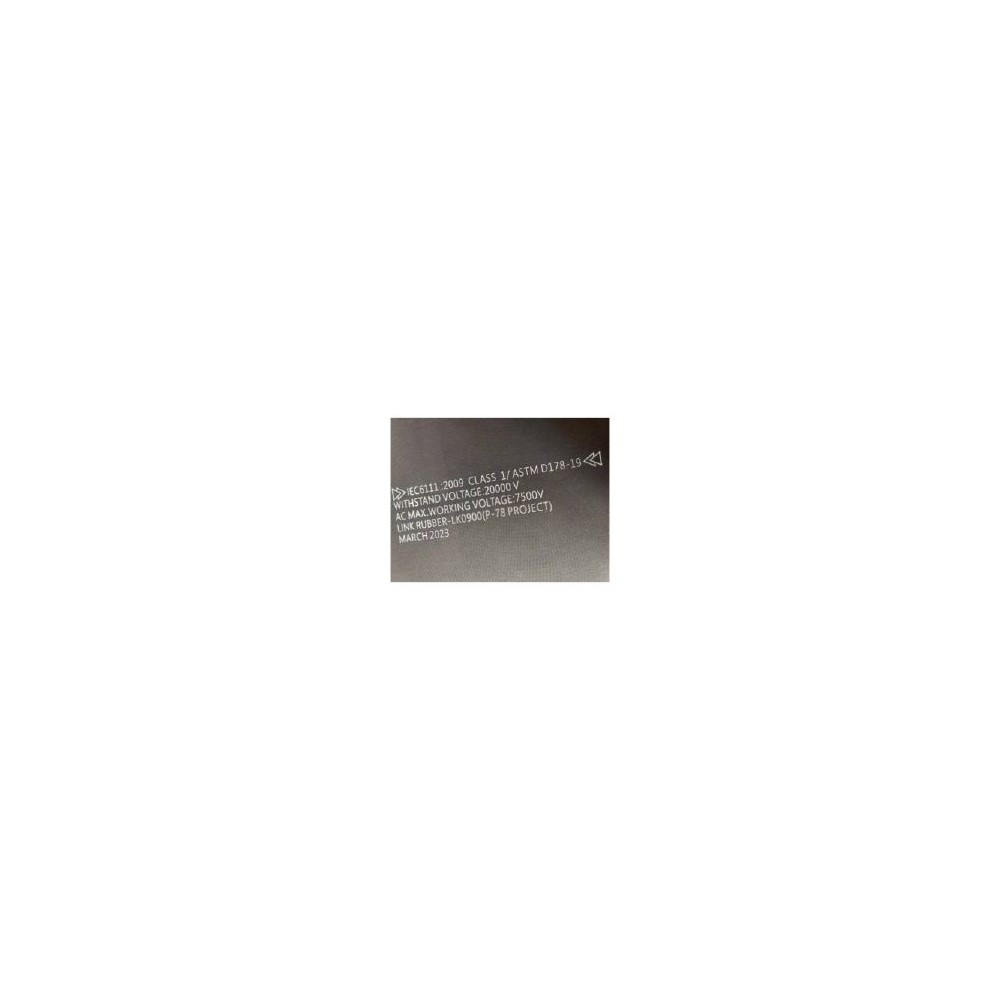

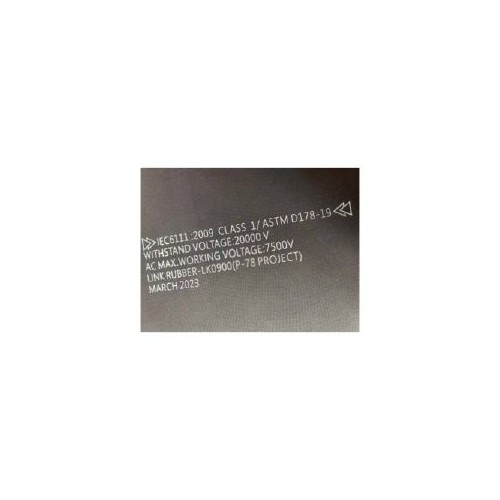

- Regulatory Compliance: Produced in compliance with the international standard IEC 61111:2009 CLASS 1 (and ASTM D178-19), the reference standard for insulating mats intended for electrical work.
- Industrial Quality Material: Made from a specific blend of butadiene and natural benzene, which ensures elasticity, durability and consistent insulating properties over time.
- Non-slip Design: The surface is textured to ensure a secure grip for the operator, preventing accidental falls or slips during mechanical operations.
Modularity and Practicality
The mat is supplied in rolls and sold by the meter , allowing the workshop to order the exact length needed to set up rest areas or test benches. The minimum order is 1 meter. The quantity will be the reference for the length of the mat ordered. For different needs, contact us at info@dinamitek.com
Technical Specifications
- Product Code: 01.000.336
- Brand: Spin (Marcotools Line)
- Unit Dimensions: 1 x 0.6 meters (per linear meter)
- Thickness: 4 mm
- Weight: 4 - 4.2 kg (per unit)
- Voltage resistance: 20,000 V
- Max AC voltage: 7,500 V
Professional equipment for car and motorcycle repair and maintenance
