Mechanical Precision and borletti Handling

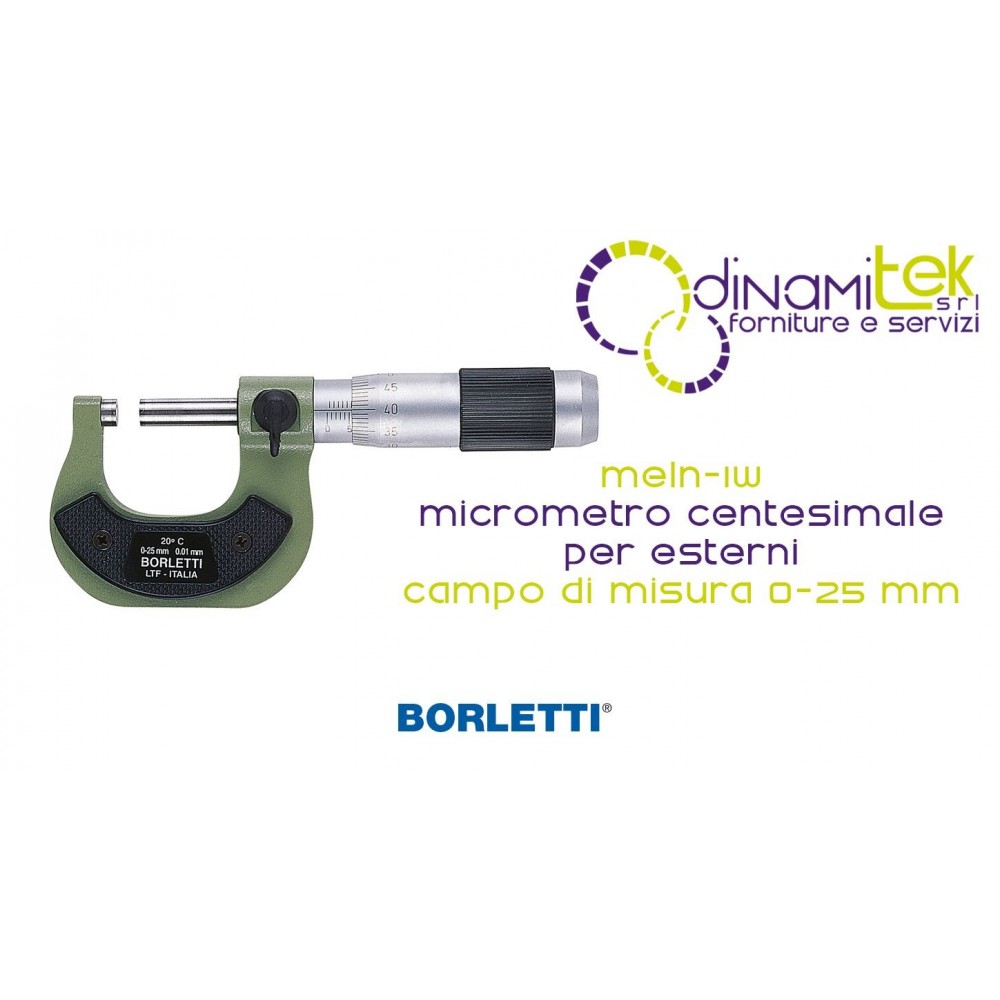

The MELN-1W (BORMELN-1W) belongs to a line of micrometers designed to combine high-quality construction with ease of use. Its structure is designed to minimize measurement errors resulting from external factors, making it an indispensable tool for inspection operators and workshop technicians who require consistent results.
Construction Features and Advantages
- Sturdy Structure: The bow is made of alloy steel , forged and minted, painted and complete with insulating plates that protect the instrument from the heat of the hands, preventing thermal expansion.
- High Quality Mechanics: The micrometric screw is hardened and stabilized to ensure smooth movement and long operating life.
- Precision Contacts: The contact surfaces are made of hard metal , ground and lapped with a high degree of flatness and parallelism (roughness Ra = 0.03 µm ).
- Force Control: The graduated drum (Ø 17 mm) is equipped with a friction ring that allows a constant measuring force to be applied to the workpiece.
- Reading Safety: Includes an easy-to-use lever locking system to secure the vernier position after taking readings.
Areas of Application
Ideal for measuring thicknesses, external diameters, and small mechanical components in industrial environments, repair shops, and technical assistance laboratories. Its accuracy complies with the most stringent international industry standards.
Technical Reference Data
| Characteristic | Detail |
|---|
| Product Code | MELN-1W (BORMELN-1W) |
| Measuring Field | 0 – 25 mm |
| Nonius Resolution | 0.01 mm |
| Screw Rod Diameter | 6.5 mm |
| Step Screw | 0.5 mm |
| Ø Graduated Drum | 17 mm |
| Regulations | DIN 863 - UNI 5708 - ISO 3611 |
Additional Equipment and Services:
- Supplied in a sturdy protective case.
- Complete with resetting checks and warranty certificate.
- Certification Option: Available in kit with ACCREDIA TYPE S2 certification. Request a quote.
