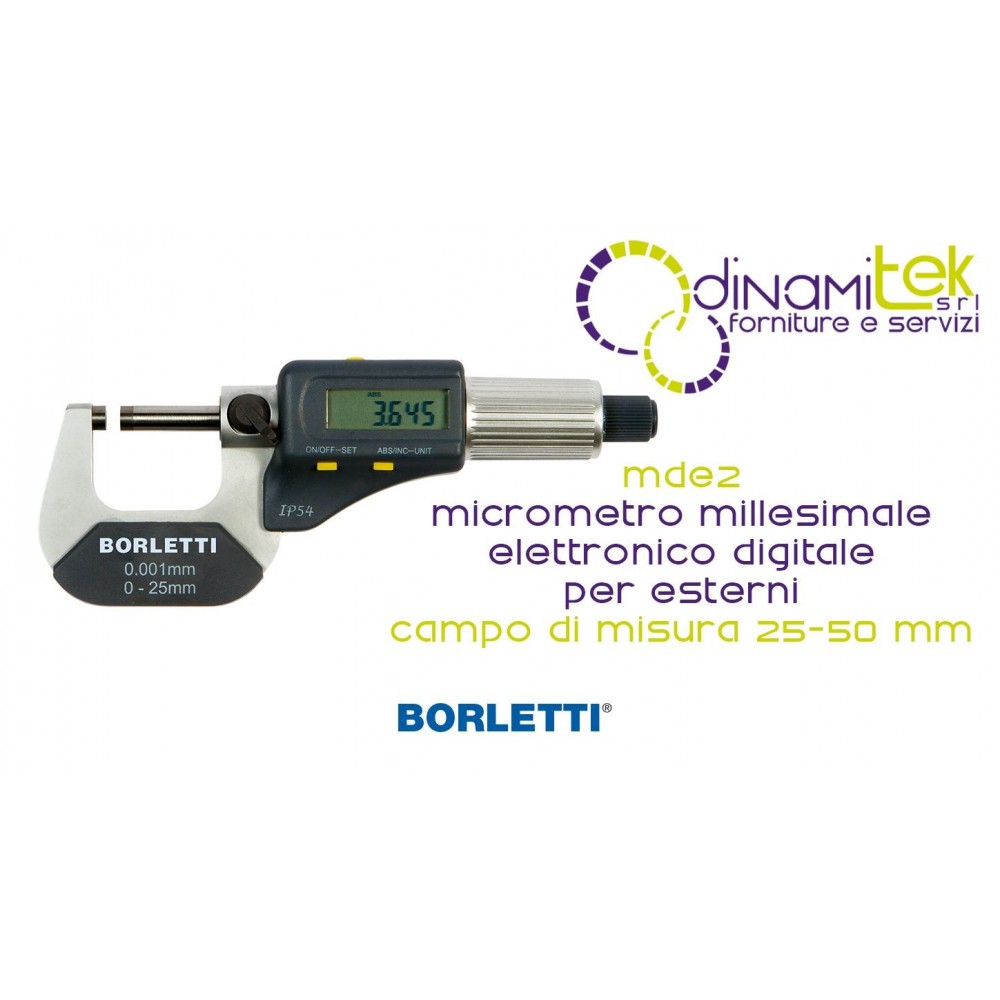

BORLETTI MDE2 DIGITAL ELECTRONIC EXTERNAL MICROMETER, MEASURING RANGE 25-50 MM

High Precision and Quality Control for the Modern Workshop

The MDE2 (BORMDE2) is designed for technicians who require fast, readable, and repeatable micrometer measurements. Compared to traditional models, the MDE series integrates sophisticated electronics that simplify data management and reduce the margin of human error in reading values.

Technical Features and Operational Benefits

• Advanced LCD Display: The liquid crystal display is designed with a wide viewing angle, allowing clear readings of 0.001mm resolution even at angled positions.
• Metrology Features: Includes a "Go - No Go" gauge function by setting tolerances and allows for simultaneous absolute and relative measurements.
• Robust Mechanics: It features a screw shaft with a diameter of 6.5 mm and an arch with a depth of 32 mm for easy handling of the test piece.
• Efficiency and Durability: The hard metal contact surfaces are wear-resistant, while the automatic shut-off system after 5 minutes of inactivity preserves battery charge.
• Data Integration: Equipped with a data output for connection to computers or printers, facilitating traceability and quality control documentation.
• Measuring Versatility: Supports instant mm/inch conversion, preset, zeroing at any position and storage of the measurement taken.

Areas of Application

Perfect for precision machine shops, testing laboratories, and the micromechanical industry. Its IP54 rating makes it splash-proof and dustproof, ensuring long-lasting operation.

Technical Reference Data

Standard equipment: The instrument comes complete with battery and user manual.
