Millesimal Excellence and Operational Versatility

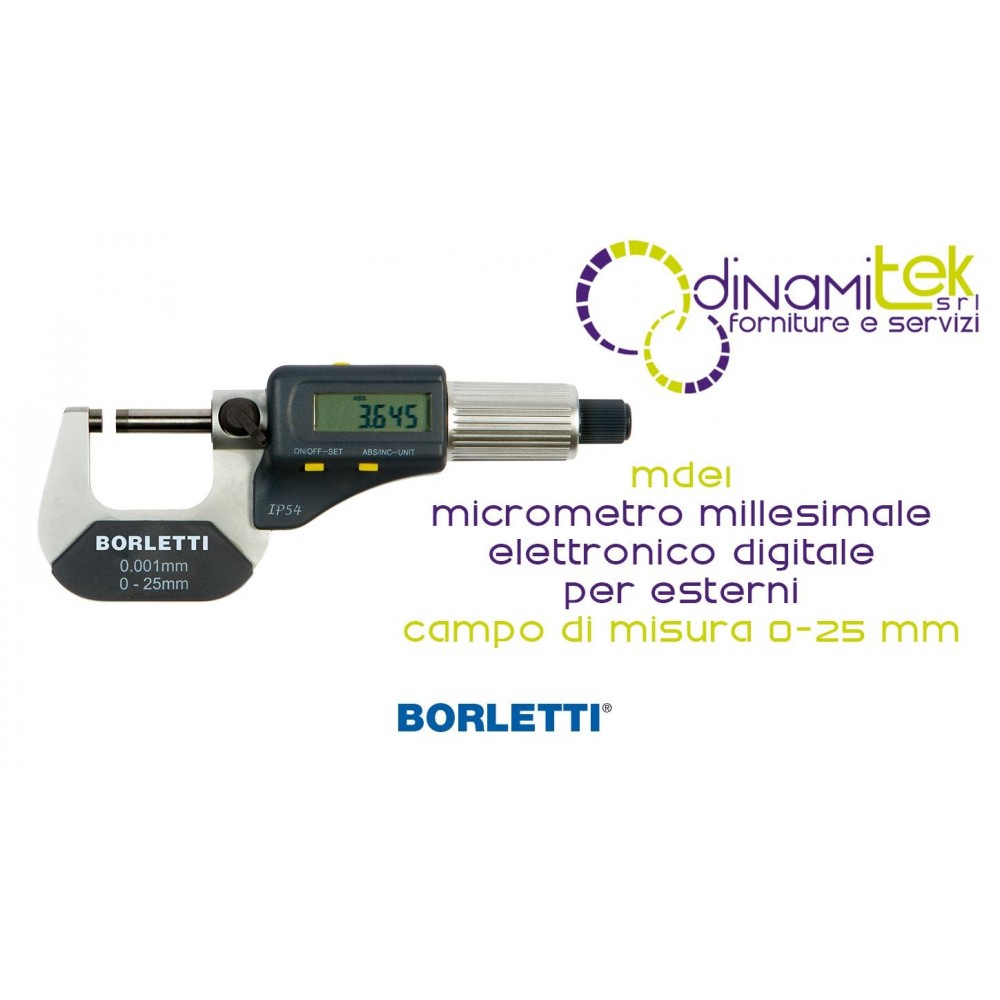

The MDE1 (BORMDE1) represents an advanced metrology solution for quality control. Thanks to its digital technology, it overcomes the reading limitations of analog vernier scales, providing clear and immediate data that can be transferred directly to computer systems for statistical processing.
Technical Features and Functionality
- Precision Reading: The liquid crystal display features a wide viewing angle, making it easy to read thousandths of a millimeter (0.001 mm) with a claimed accuracy of 0.0012 mm .
- Advanced Quality Control: Integrates the "Pass - No Pass" gauge function through the setting of tolerances, ideal for the rapid control of series of pieces.
- Robust Mechanics: The screw shaft has a diameter of 6.5 mm and the contact surfaces are made of hard metal to resist wear and maintain constant accuracy over time.
- Measurement Flexibility: Supports instant conversion between millimeters and inches (mm/inch), zeroing in any position and storage of the measurement taken.
- Connectivity: It has a data output for connection to printers or computers, optimizing industrial documentation processes.
- Energy Efficient: Designed with an auto-off system after 5 minutes of inactivity to extend battery life.
Areas of Application
Indispensable for micromechanics, toolmaking, precision workshops, and testing laboratories. Its 23 mm arc depth makes it easy to handle for measurements on a wide variety of small components.
Technical Reference Data
| Characteristic | Detail |
|---|
| Product Code | MDE1 (BORMDE1) |
| Measuring Field | 0 – 25 mm |
| Resolution | 0.001 mm |
| Precision | 0.0012 mm |
| Ø Screw Rod | 6.5 mm |
| Arch Depth | 23 mm |
| Degree of Protection | IP54 |
| Diet | SR44 Battery - 1x1.5V |
Note: The instrument comes in a sturdy case complete with battery and manual.
