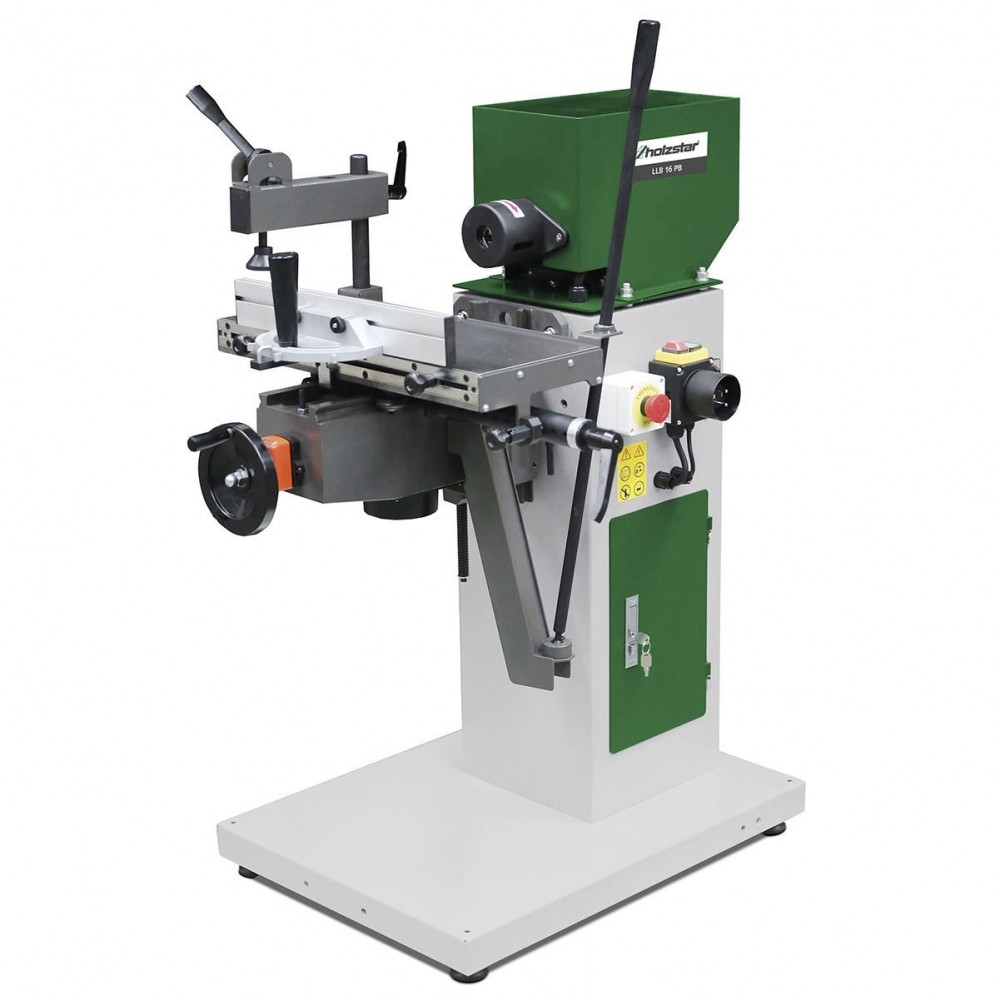

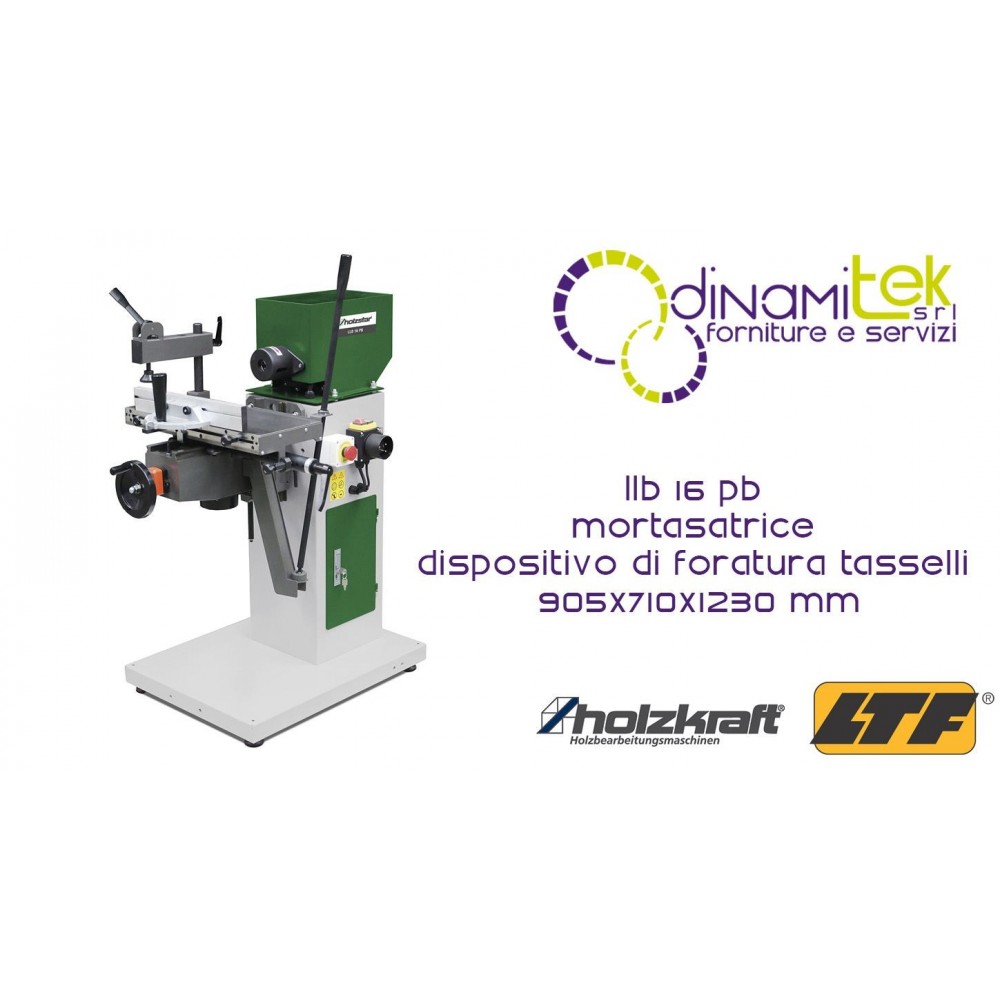

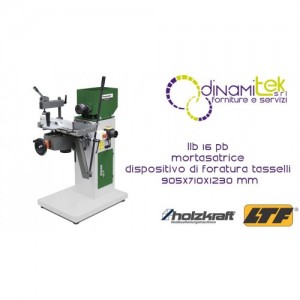

5906016 LLB 16 PB MORTISING MACHINE WITH DOWEL DRILLING DEVICE 905X710X1230 MM HOLZKRAFT

The wood-fired Model LLB 16 PB Mortising Machine (Code 5906016) is a professional 230 V unit designed for the simple and precise creation of slots, mortises, and joints. Featuring a built-in dowel drilling device with a predefined grid, it allows for flawless batch production. Thanks to the roller guide and one-hand lever operation, the operator can handle holes up to 300 mm wide with maximum control and minimal physical effort.

Shipping cost: €100.00 for
2118,26 €
Tax included

1.736,28 € Tax excluded

Quantity
Available product, order it now.

Efficiency and Versatility for the Professional Carpenter

Item 590 6016 (HOL5906016) represents a complete solution for those who require precision in dowel joints and creating buttonholes. The solid structure and powerful 2.2 kW motor ensure stability even during the most demanding jobs, maintaining a constant rotation speed of 2,850 rpm .

Technical Features and Operational Benefits

  • Dowel Drilling Device: Allows serial drilling thanks to a grid with predefined steps of 16, 22, 25 and 32 mm, optimising production times.
  • Advanced Guide System: The worktable slides on a high-precision roller guide, ensuring smooth, backlash-free movements.
  • Micrometric Adjustments: The height of the drilling head is easily adjustable via a handwheel, with values readable both on a graduated scale and on a convenient numeric display.
  • Cutting Flexibility: Supports both right and left rotation, adapting to different types of tools and drilling needs.
  • Secure Fixing: The included eccentric clamp allows you to lock the workpiece in various configurations, ensuring safety and stability during the entry of the tip.
  • Tool Compartment: The base features a large, lockable compartment, ideal for protecting and organizing bits and chisels.

Areas of Application

An essential tool for producing frames, doors, and panel furniture. Its ability to drill holes up to 140 mm deep at 90° angles makes it suitable for even medium-sized structural components.

Technical Reference Data

Characteristic Detail
Product Code 590 6016 (HOL5906016)
Drilling width 300 mm
Max drilling depth (90°) 140 mm
Head height adjustment 150 mm
Work table dimensions 500 x 207 mm
Wescott Chuck 0 - 16 mm
Power supply / Engine power 230 V - 50 Hz / 2.2 kW (2,200 W)
Speed 2,850 rpm
Ø Suction nozzle 100 mm
Dimensions (L x W x H) 905 x 710 x 1,230 mm
Net weight 108 kg

Standard Equipment Included:

  • Eccentric clamp.
  • Dowel drilling device (16/22/25/32 mm pitches).
  • Angle stop ±60° with ruler on both sides.
  • Wescott Chuck 0 - 16 mm.

Recommended Optional Accessories:

  • 5-piece mortising bit set (left or right rotation).
  • Hollow Mortise Chisels (available sizes from 6.35mm to 12.7mm).
  • Worktop extension (Art. 591 6020).
  • Universal mobile base UF 231 for easy movement (Art. 619 0231).
