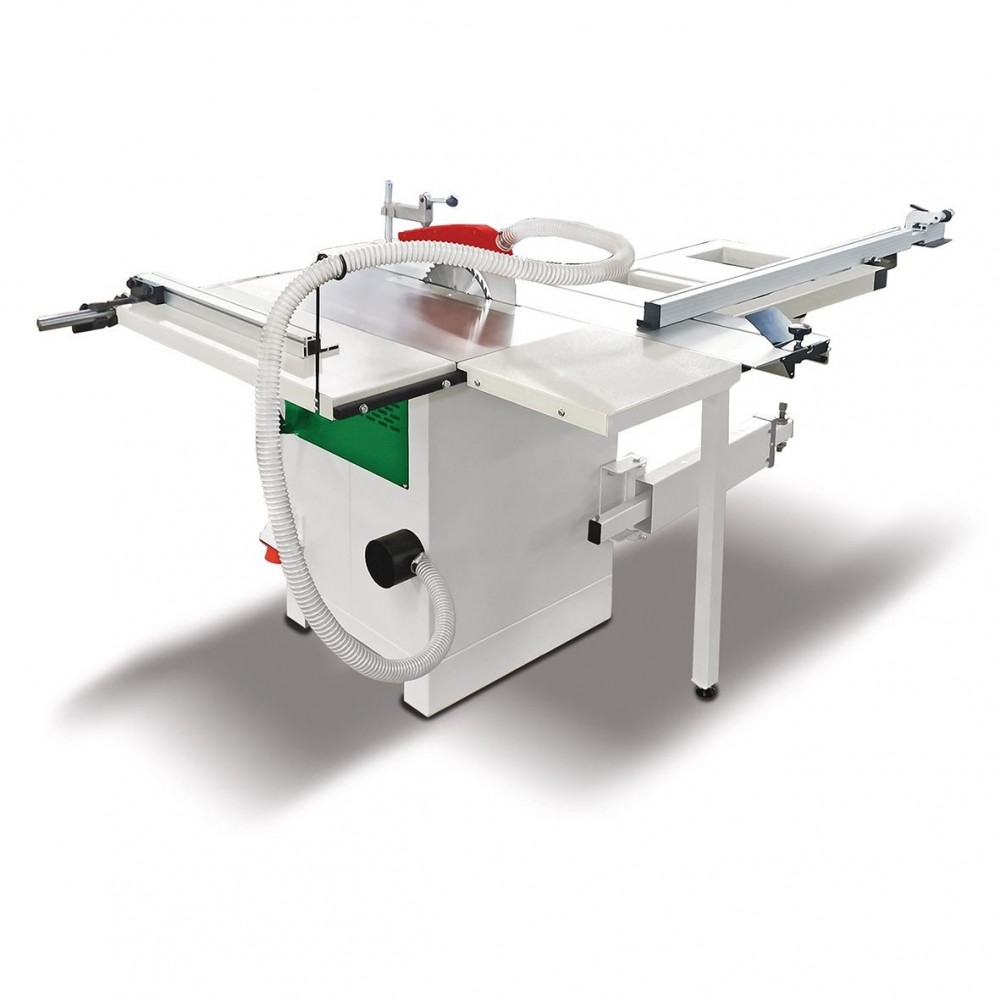

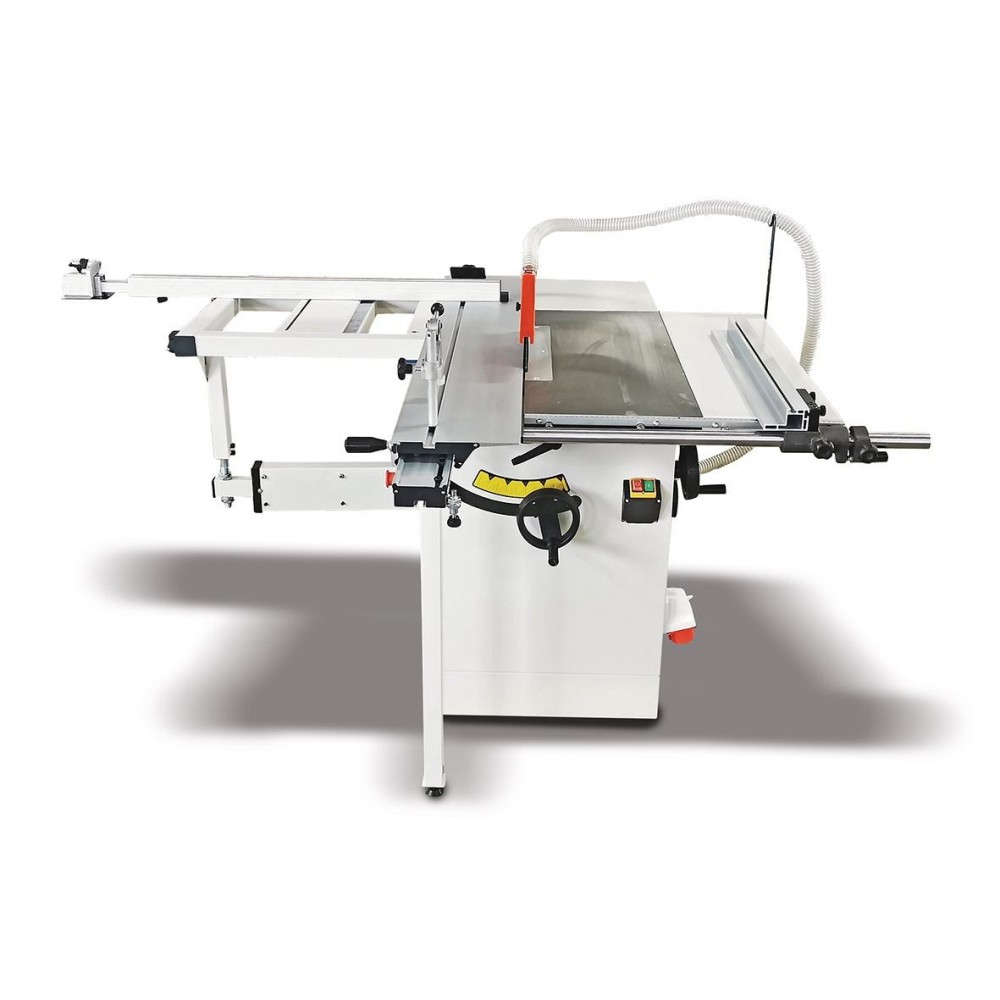

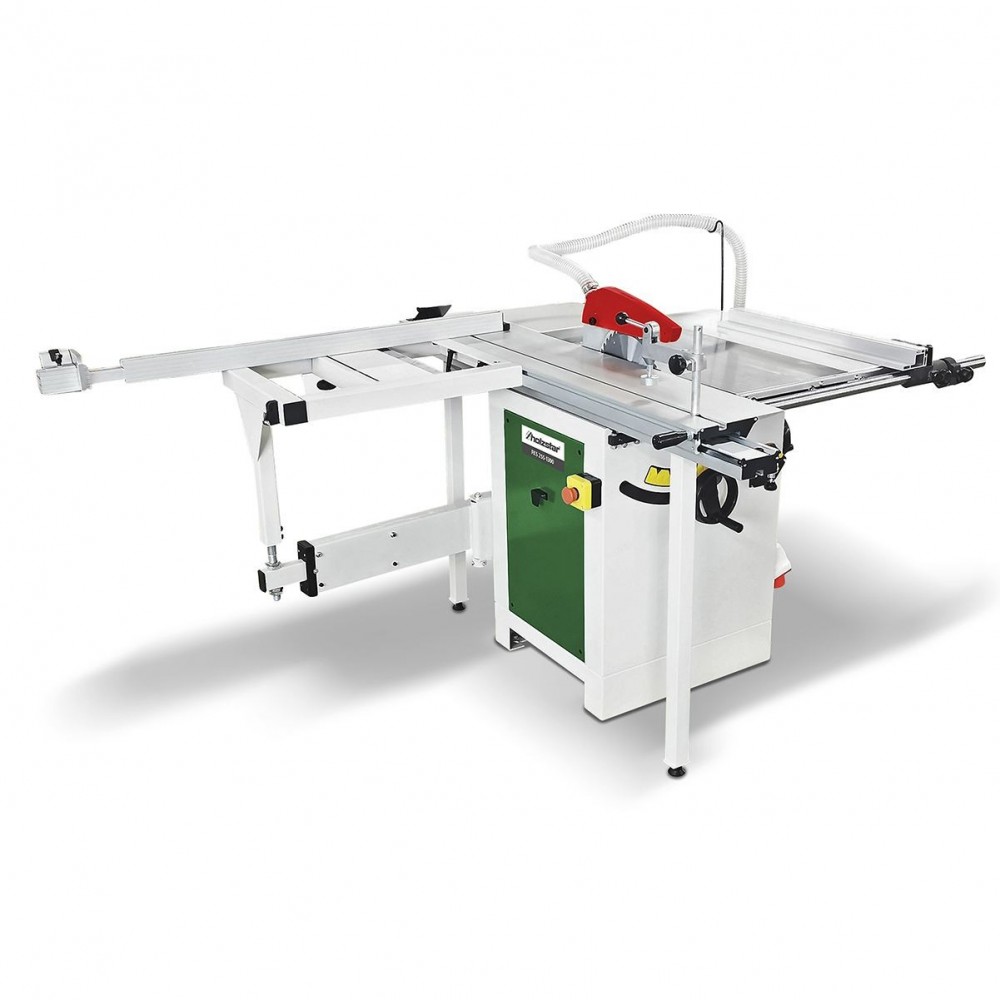

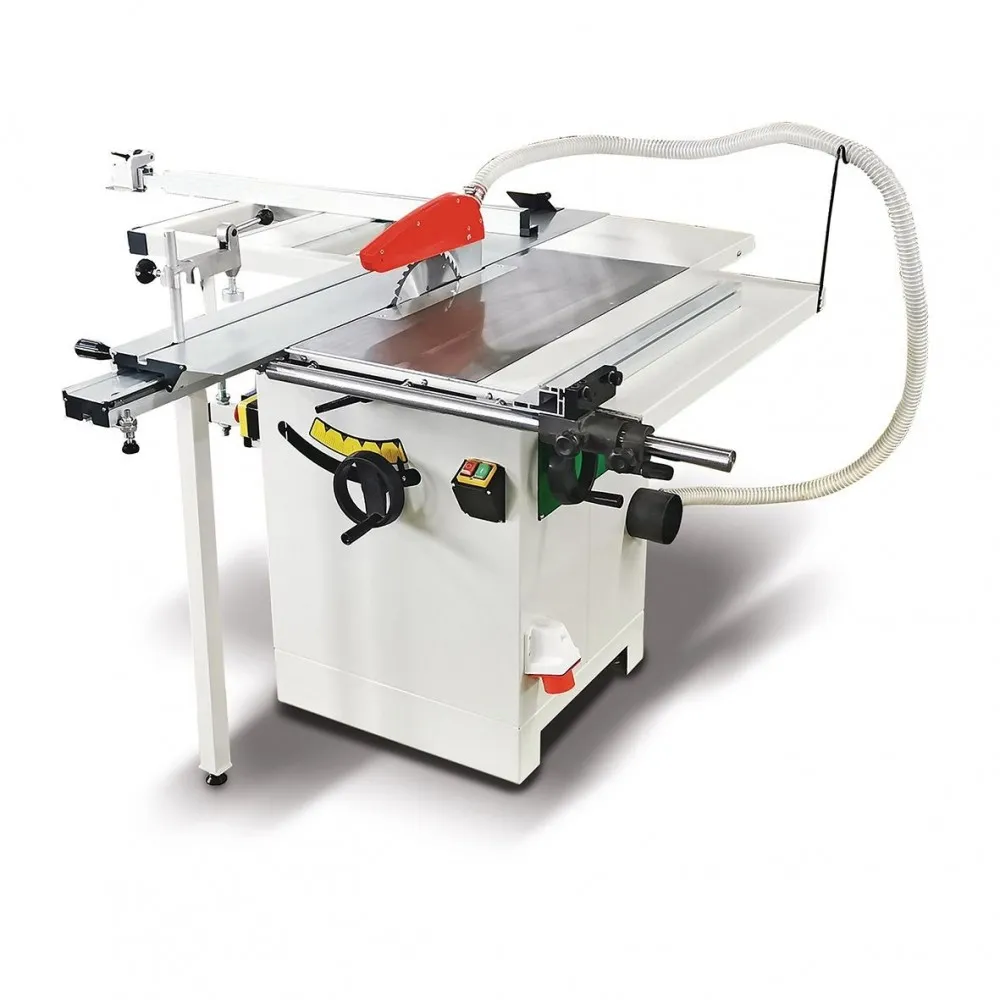

5902036 FKS 255-1300 CIRCULAR SAW 400V MAX BLADE DIAMETER 254 MM HOLZKRAFT

Stability and Precision for Woodworking

Item 590 2036 (HOL5902036) is a high-precision squaring circular saw. Its structure is designed for intensive use, combining a ground cast iron worktable that promotes smooth workpiece movement with an advanced guiding system that eliminates any inaccuracies during longitudinal and cross-cutting.

Technical Features and Strengths

• Superior Mechanics: The heavy cast iron table acts as a solid base, absorbing vibrations and ensuring perfectly straight cuts.

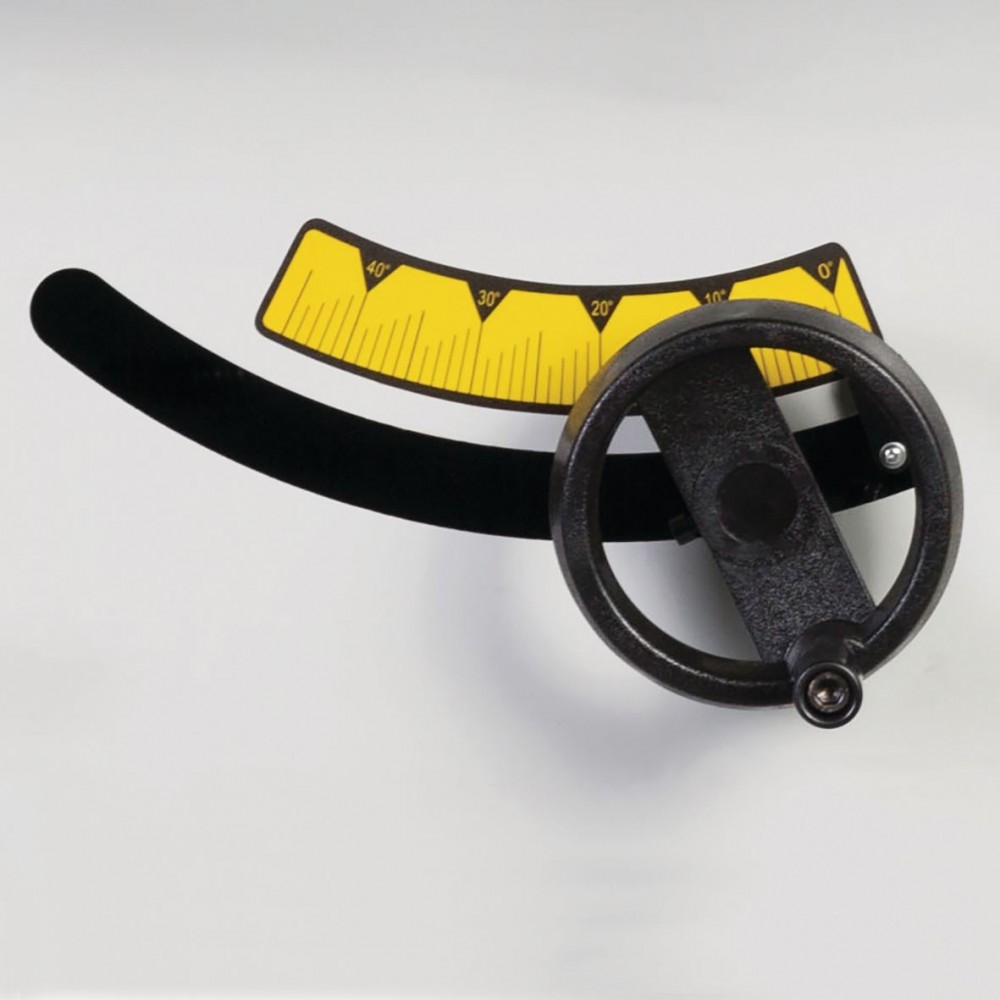

• Ergonomic Control: The height and inclination of the blade (up to 45°) are adjusted via front handwheels, with an exact reading of the angles on a graduated scale.

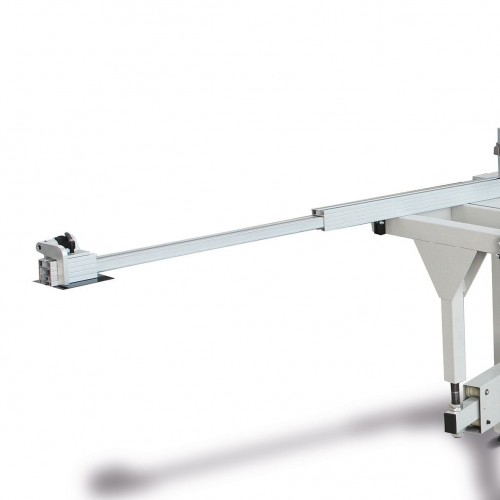

• Squaring System: Equipped with a 1,300 mm anodized aluminum carriage and a table arm with extendable telescopic stop (1,100 - 1,900 mm), rotatable 45° on both sides for precision mitre cuts.
• Professional Parallel Guide: The aluminum guide slides on a sturdy round bar and is equipped with eccentric locking and fine adjustment for quick and stable setups.
• Large Piece Handling: The standard table widening and extension allow you to easily work even on large panels and boards.
• Cleaning the Work Area: Includes a large 100mm central suction nozzle and a blade guard connected to an additional suction tube.

Areas of Application

Ideal for carpentry shops, furniture workshops and furniture production that require a high-performance three-phase machine for trimming and squaring panels, solid wood and similar materials.

Technical Reference Data

Standard Equipment Included:

• Sliding table with extension.
• Parallel guide with fine adjustment.
• Circular blade Ø 254 mm / 40 T.
• Blade guard with suction tube.
• Angle guide (from -45° to +45°).
• Telescopic stop (1,100 - 1,900 mm).

Recommended Optional Accessories:

• Replacement circular blade 254x30x3 mm, 40 T (Art. 591 2026).
• Stop protractor for oblique cuts (Art. 591 2027).
