5900473 HBS 473 BAND SAW FOR WOOD 1500 W CUTTING 285 MM TABLE 535X485 MM HOLZKRAFT

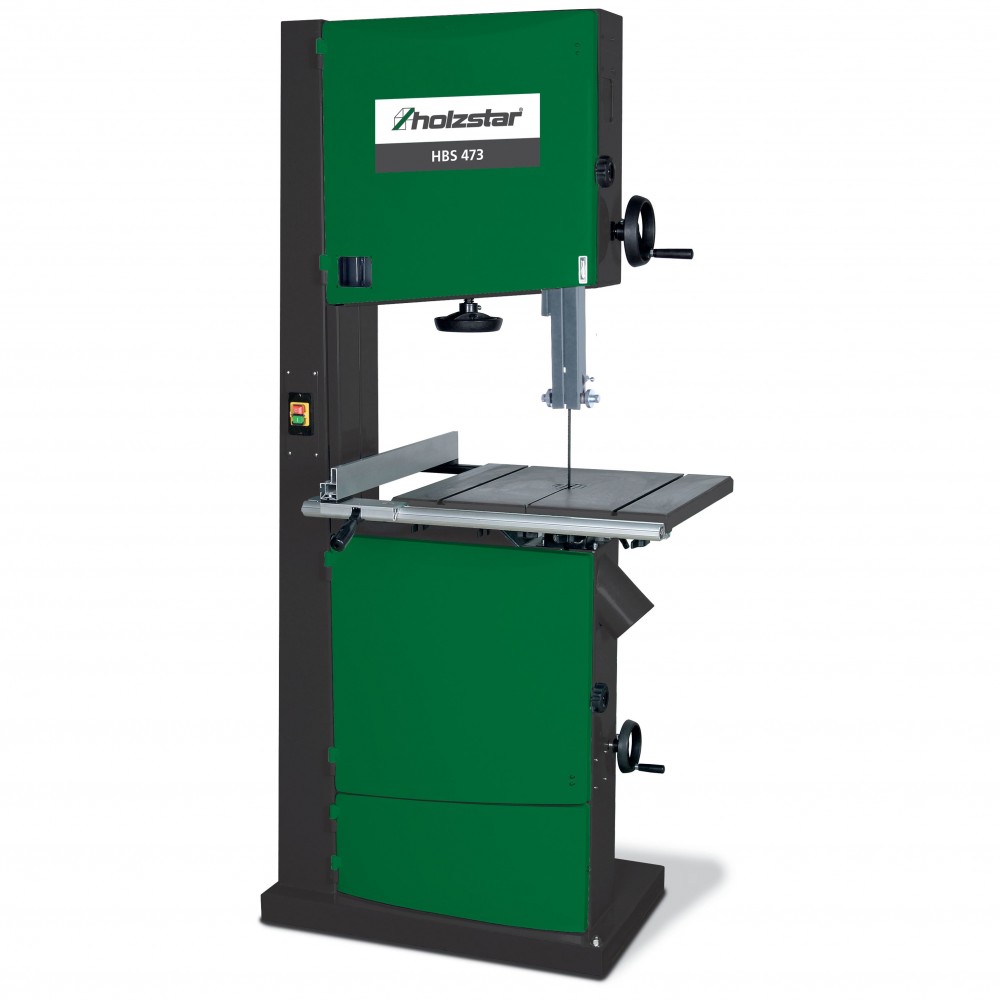

The wood-fired Model HBS 473 Wood Band Saw (Code 5900473) is a professional 400V machine designed to ensure clean and safe cuts on wood, plastic, and non-ferrous metals . Featuring great stability and a sturdy steel structure, it offers a maximum cutting height of 285 mm . Equipped with a heavy cast iron table that can tilt up to 45°, cast iron flywheels, and an advanced quick-tensioning blade system, it is the ideal tool for the craftsman seeking precision and long-lasting reliability.

Shipping cost: €100.00 for
2649,24 €
Tax included

2.171,51 € Tax excluded

Quantity
Available product, order it now.

Strength and Control for Thick Cuts

Item 590 0473 (HOL5900473) is the premium model of stationary band saws for professional workshops. Thanks to its powerful 1.5 kW motor and refined mechanics, the HBS 473 model can tackle even the most demanding tasks with ease, maintaining a quiet and precise work environment.

Technical Features and Innovations

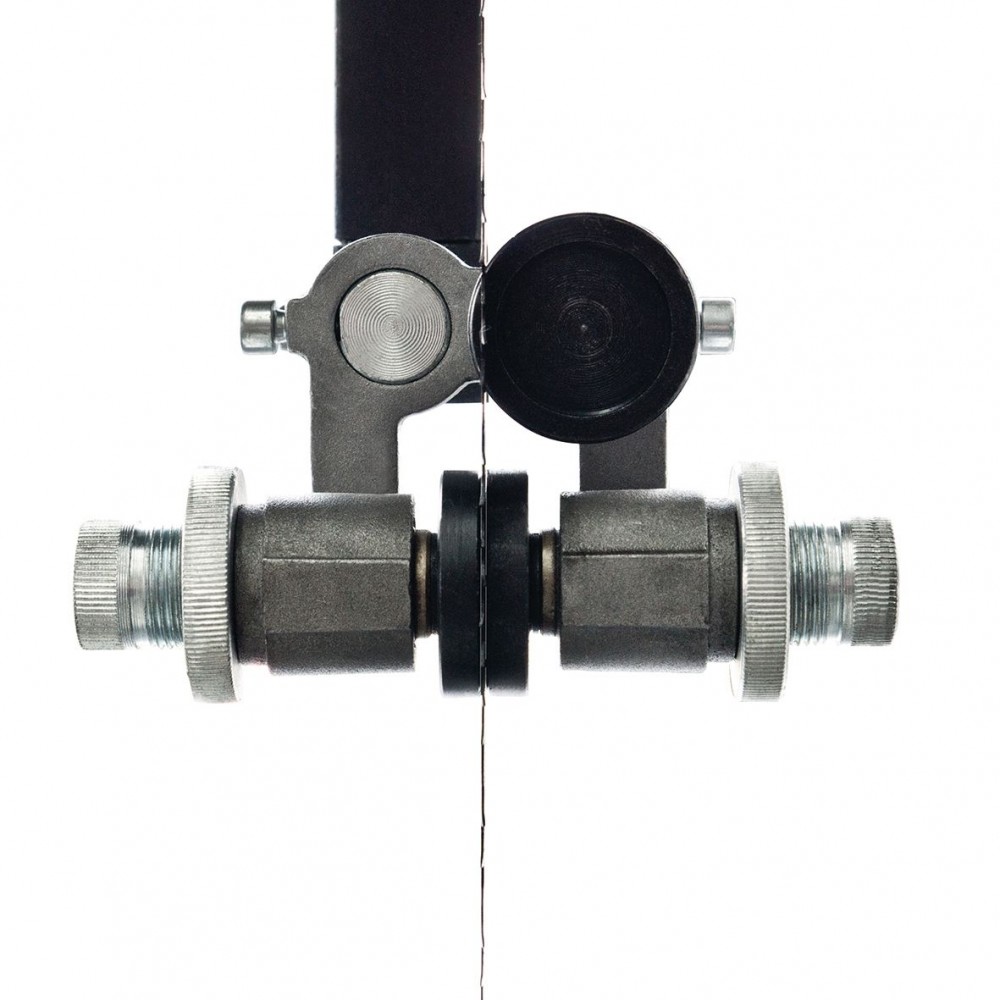

  • Precision Mechanics: The machine features a 3-ball bearing blade guide both above and below the table, ensuring maximum linearity of the blade during cutting.

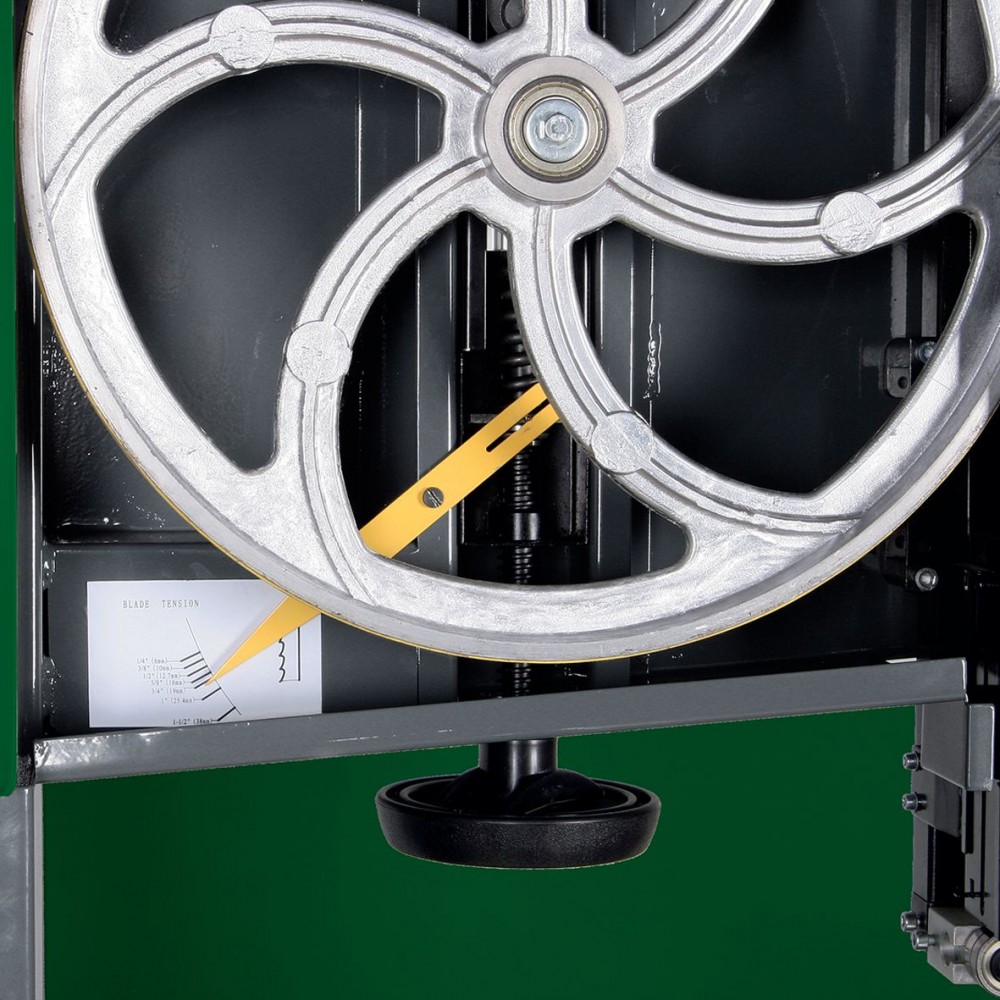

  • Advanced Tensioning System: Blade tensioning is quick and easy using a lever and eccentric, allowing for constant base tension. An integrated display, readable through a dedicated slot, shows the correct tension for different cutting heights.
  • Professional Worktop: The heavy cast iron table with ground surface rests on a balanced support and can be tilted from 0° to 45° for precise mitre cuts.
  • Speed Versatility: Offers two adjustable speeds (380/820 m/min) via a V-belt system, allowing you to adapt the blade action to the material being worked.
  • Integrated Safety: The closing covers are equipped with safety micro switches that prevent accidental starting with the doors open, ensuring total operator protection.
  • Advanced Parallel Guide: Made of aluminum, it features a quick and eccentric locking system for instant and stable positioning.

Areas of Application

Designed for advanced carpentry workshops and carpenters. Its ability to accommodate blades from 6 to 25 mm wide makes it extremely versatile, from precision curved cuts to slicing very thick boards.

Technical Reference Data

Characteristic Detail
Product Code 590 0473 (HOL5900473)
Ø Flywheel 470 mm
Max cutting height 90° 285 mm
Max cutting width (with/without guide) 390 mm / 465 mm
Blade speed 380 / 820 m/min (2 speeds)
Blade length 3,455 mm
Table dimensions 535 x 485 mm
Power supply / Engine power 400V - 50Hz / 1.5kW (1,500W)
Ø Suction nozzle 100 mm
Dimensions (L x W x H) 800 x 490 x 2,000 mm
Net weight 157 kg

Standard Equipment Included:

  • Aluminum parallel guide.
  • Blade (3455 x 16 x 0.5 mm).
For carpenters and woodworking professionals, professional machines made in Germany. Holzkraft is an industry leader, distributed in Italy by LTF.

HOLZKRAFT: PROFESSIONAL WOODWORKING MACHINES

Holzkraft is a German brand specialising in professional woodworking machines, designed to ensure precision, stability and continuous operation in joinery workshops, craft workshops and industrial production facilities. Its solutions are designed for intensive use, featuring robust construction and highly reliable components.

The range includes circular saws, band saws, planers, combination machines, sanders, industrial dust extractors, workbenches and specialised machines for cutting, milling, planing and finishing wood. Each product line stands out for high-performance motors, stable work surfaces, precision guides, advanced safety systems and the build quality typical of German manufacturing.

Holzkraft is distributed in Italy by LTF, offering a comprehensive range dedicated to joiners, craftspeople, carpenters and woodworking professionals. The brand is renowned for reliability, durability and consistent performance, essential qualities for those who work with wood to the highest standards.

Professionals choose Holzkraft for precision, robustness and versatility, characteristics that make these machines ideal for complex machining, continuous production and high-quality finishes.
