5902323 TKS 316 PRO CIRCULAR SAW 400V MAX BLADE DIAMETER 315 MM HOLZKRAFT

The wood-fired Model TKS 316 PRO Circular Saw (Code 5902323) is a 400V three-phase unit designed for those who require maximum power and stability when working with wood. Featuring a powerful 2.8 kW industrial motor with brake and a large galvanized steel table , this saw guarantees precise cuts up to 90 mm deep . The saw unit's stable double suspension and the sliding table mounted on bearings make it the ideal tool for easily handling even the hardest wood species, while maintaining excellent portability thanks to the foldable legs and integrated frame.

Shipping cost: €50.00 for
948,94 €
Tax included

777,82 € Tax excluded

Quantity
Available product, order it now.

Three-phase power and professional mechanics

Item 590 2323 (HOL5902323) represents the high-performance professional variant of the TKS range. Designed to withstand intense work cycles, this circular saw combines the solidity of an industrial structure with the versatility of a portable machine, ensuring pinpoint finishes on any type of panel or board.

Technical Features and Ergonomics

  • Durable Structure: The large work table is made of galvanized steel to prevent corrosion. The double suspension of the saw unit eliminates flexing, ensuring straight and stable cuts over time.
  • Cutting Control: The sliding table is mounted on precision bearings and includes an adjustable angle guide from -45° to +45°, equipped with a quick release lever for immediate setup.
  • Micrometric Adjustments: The blade height and inclination (up to 45°) are easily managed via front handwheels equipped with legible graduated scales.
  • Advanced Mobility: Ideal for transport on site thanks to the frame with integrated wheels, foldable handles and foldable feet with quick-release screws.
  • Clean Environment: The blade guard includes a suction tube which, together with the 100 mm main nozzle, ensures effective removal of chips and sawdust.

Areas of Application

Specifically designed for joinery, carpentry and assembly workshops requiring a 400V powered machine for longitudinal and cross-sectional cuts on solid hardwood, panels and composite materials.

Technical Reference Data

Characteristic Detail
Product Code 590 2323 (HOL5902323)
Ø Max blade / Hole 315 mm / 30 mm
Max cutting height 90° / 45° 90 mm / 50 mm
Blade tilt 90° – 45°
Cutting width with stop 200 mm
Table dimensions 800 x 550 mm
Blade speed 2,800 rpm
Diet 400 V - 3~ 50 Hz
Engine power 2.8 kW (2,800 W)
Ø Suction nozzle 30 mm (top) / 100 mm (bottom)
Net weight 60 kg

Standard Equipment Included:

  • Base and trolley with wheels.
  • Sliding table.
  • Table extension (mountable at the rear or side).
  • Parallel guide.
  • Hard metal (MD) blade Ø 315 mm / 36 T.
  • Blade guard with suction tube.
  • Pusher.
For carpenters and woodworking professionals, professional machines made in Germany. Holzkraft is an industry leader, distributed in Italy by LTF.

HOLZKRAFT: PROFESSIONAL WOODWORKING MACHINES

Holzkraft is a German brand specialising in professional woodworking machines, designed to ensure precision, stability and continuous operation in joinery workshops, craft workshops and industrial production facilities. Its solutions are designed for intensive use, featuring robust construction and highly reliable components.

The range includes circular saws, band saws, planers, combination machines, sanders, industrial dust extractors, workbenches and specialised machines for cutting, milling, planing and finishing wood. Each product line stands out for high-performance motors, stable work surfaces, precision guides, advanced safety systems and the build quality typical of German manufacturing.

Holzkraft is distributed in Italy by LTF, offering a comprehensive range dedicated to joiners, craftspeople, carpenters and woodworking professionals. The brand is renowned for reliability, durability and consistent performance, essential qualities for those who work with wood to the highest standards.

Professionals choose Holzkraft for precision, robustness and versatility, characteristics that make these machines ideal for complex machining, continuous production and high-quality finishes.



5902323

You might also like

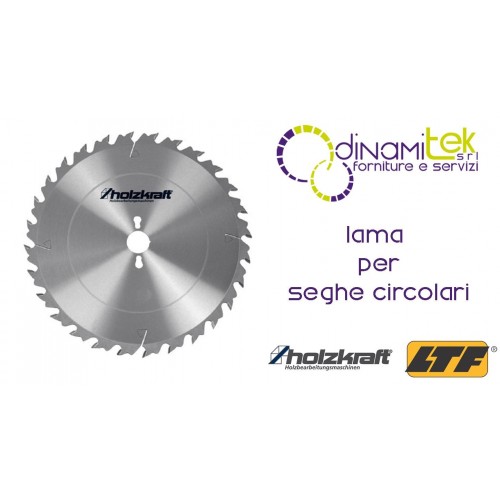

HOLZKRAFT - HOL5263128 - REPLACEMENT BLADE FOR CIRCULAR SAWS 28 T - DIAMETER 315 MM Dinamitek 1
