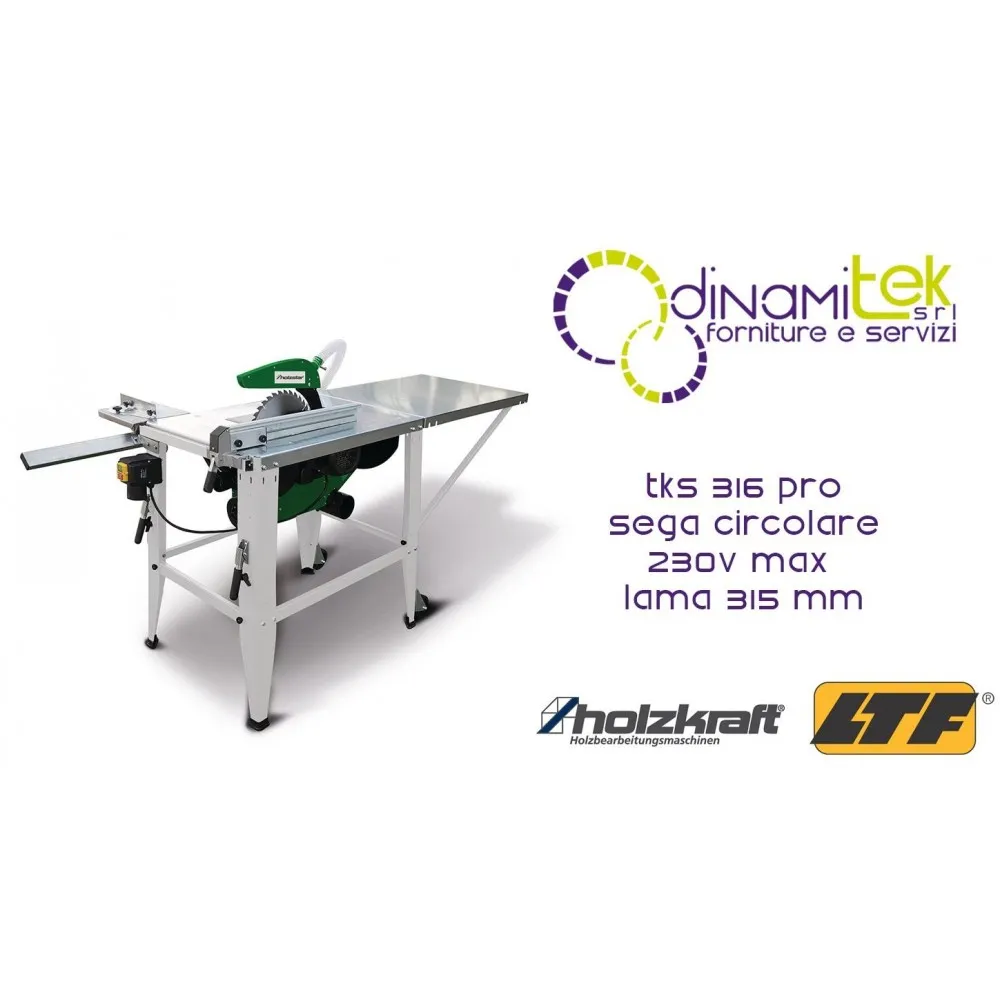

5902321 TKS 316 PRO CIRCULAR SAW 230V MAX BLADE DIAMETER 315 MM HOLZKRAFT

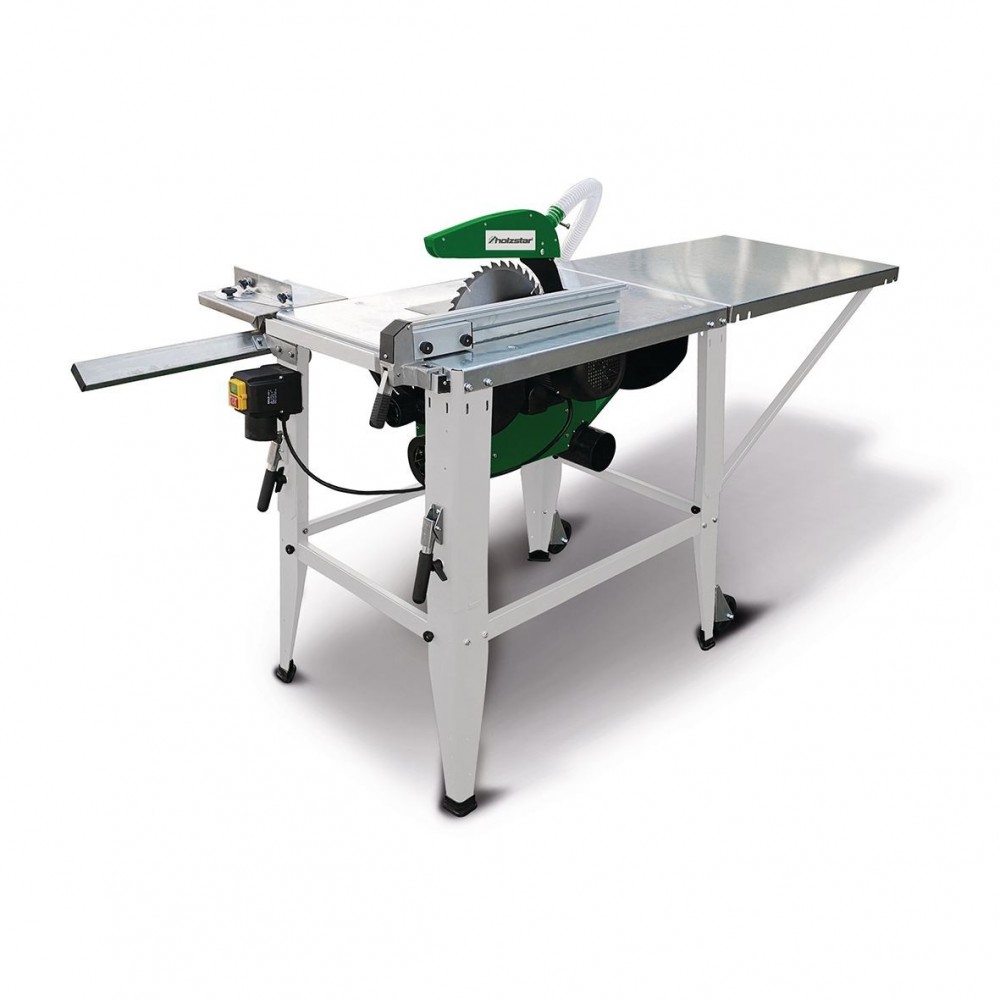

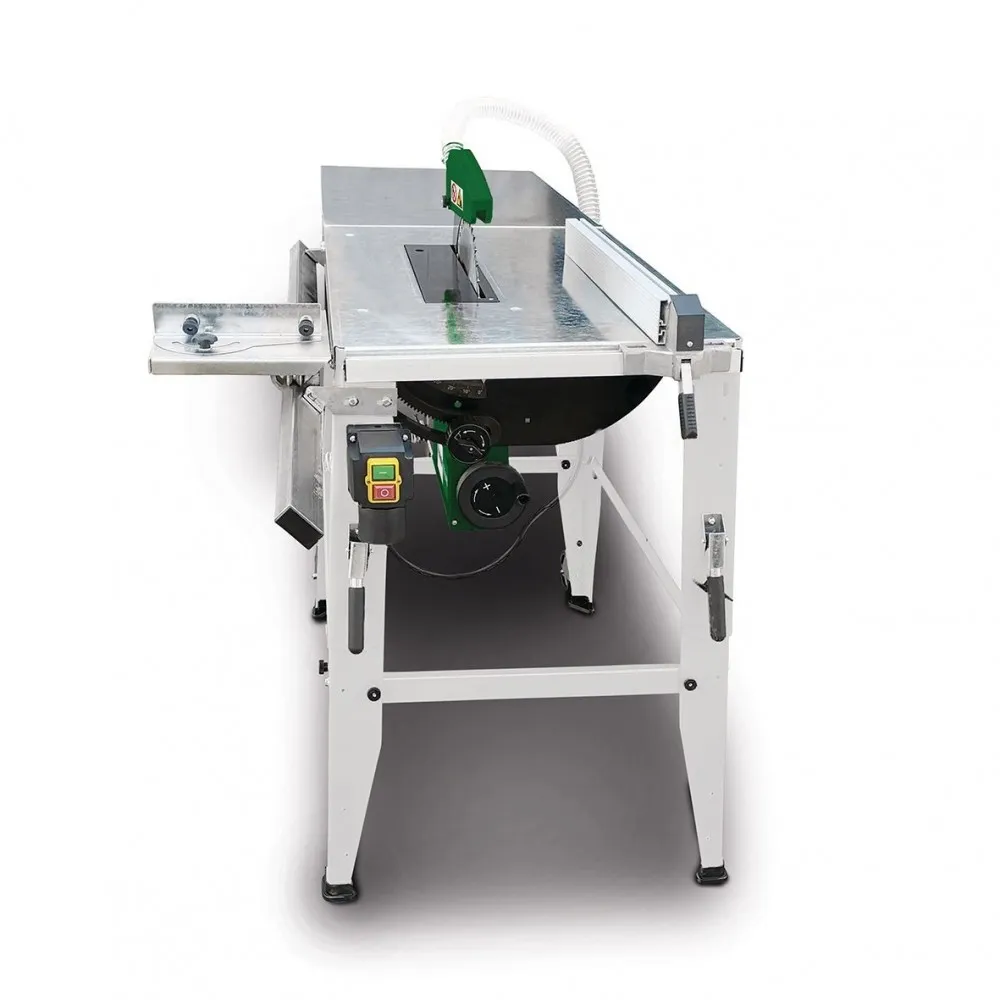

The wood-fired Model TKS 316 PRO Circular Saw (Code 5902321) is a professional 230V tool designed to ensure precise and safe cuts even on hardwoods. Featuring a large, corrosion-resistant galvanized steel table and a ball-bearing sliding table, this saw offers a cutting depth of up to 90 mm . Thanks to the powerful 2.2 kW industrial motor with brake and the frame with integrated wheels, it represents the perfect balance between stationary performance and mobility for the demanding craftsman.

Shipping cost: €50.00 for
948,94 €
Tax included

777,82 € Tax excluded

Quantity
Available product, order it now.

Industrial Precision and Maximum Versatility

Item 590 2321 (HOL5902321) is the ideal solution for those who need a robust and reliable circular saw for long work sessions. Its structure stands out for the stable double suspension of the saw unit, which eliminates flexing and ensures precise cuts both longitudinally and angularly.

Technical Features and Strengths

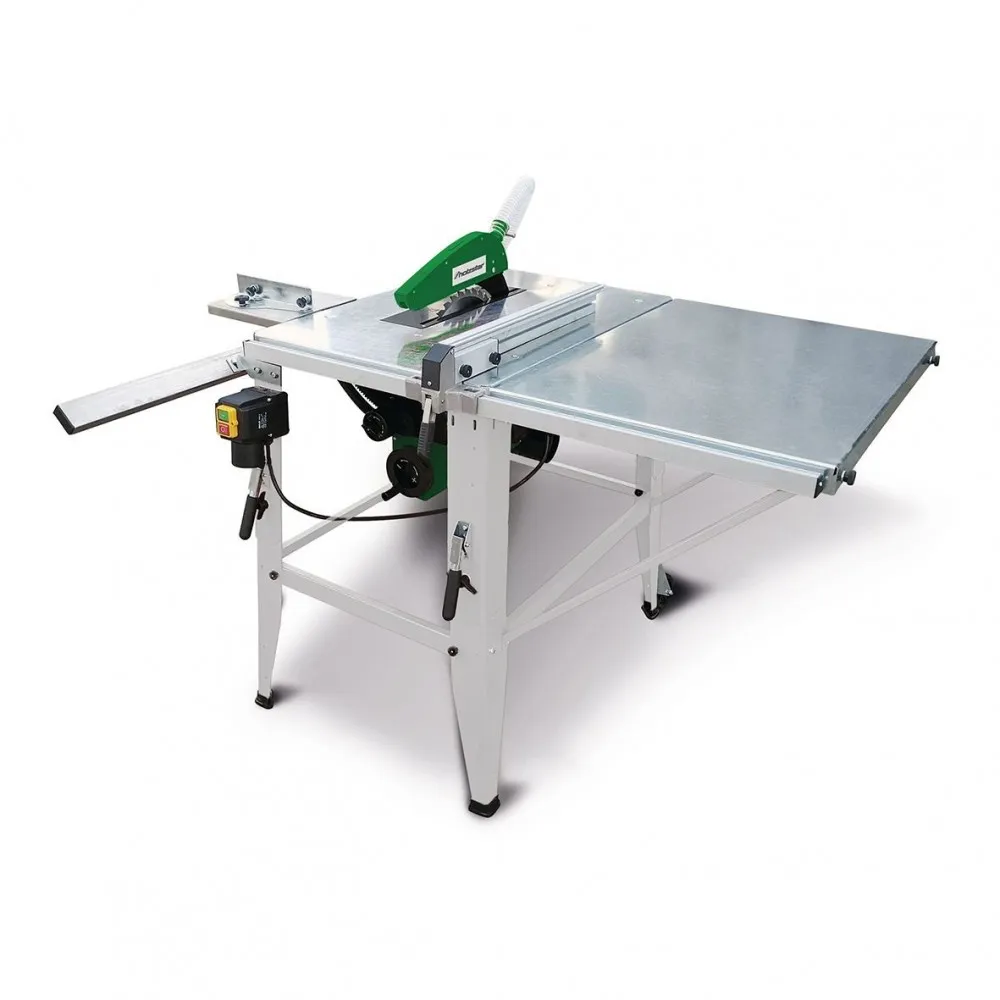

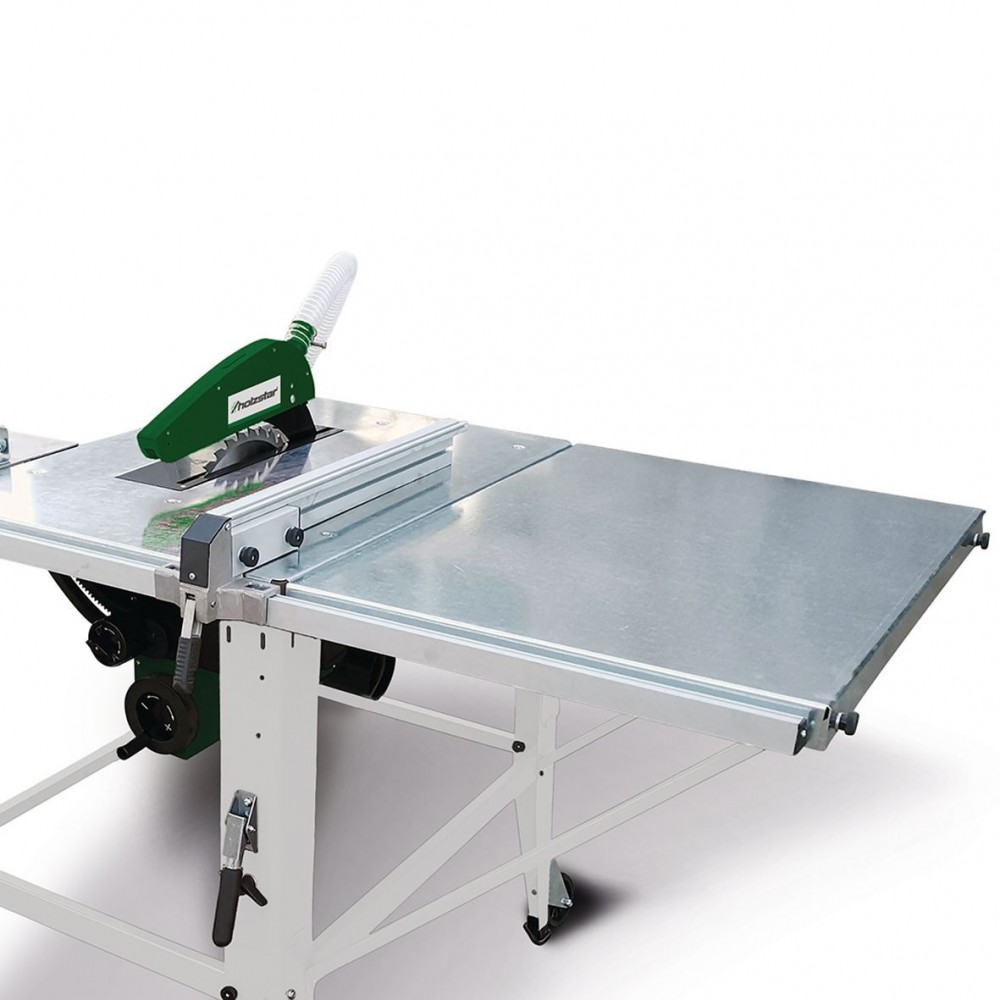

  • Advanced Work Table: Made of heavy-duty steel and galvanized to resist corrosion, it includes an extension that can be mounted either on the rear or side to handle large workpieces.

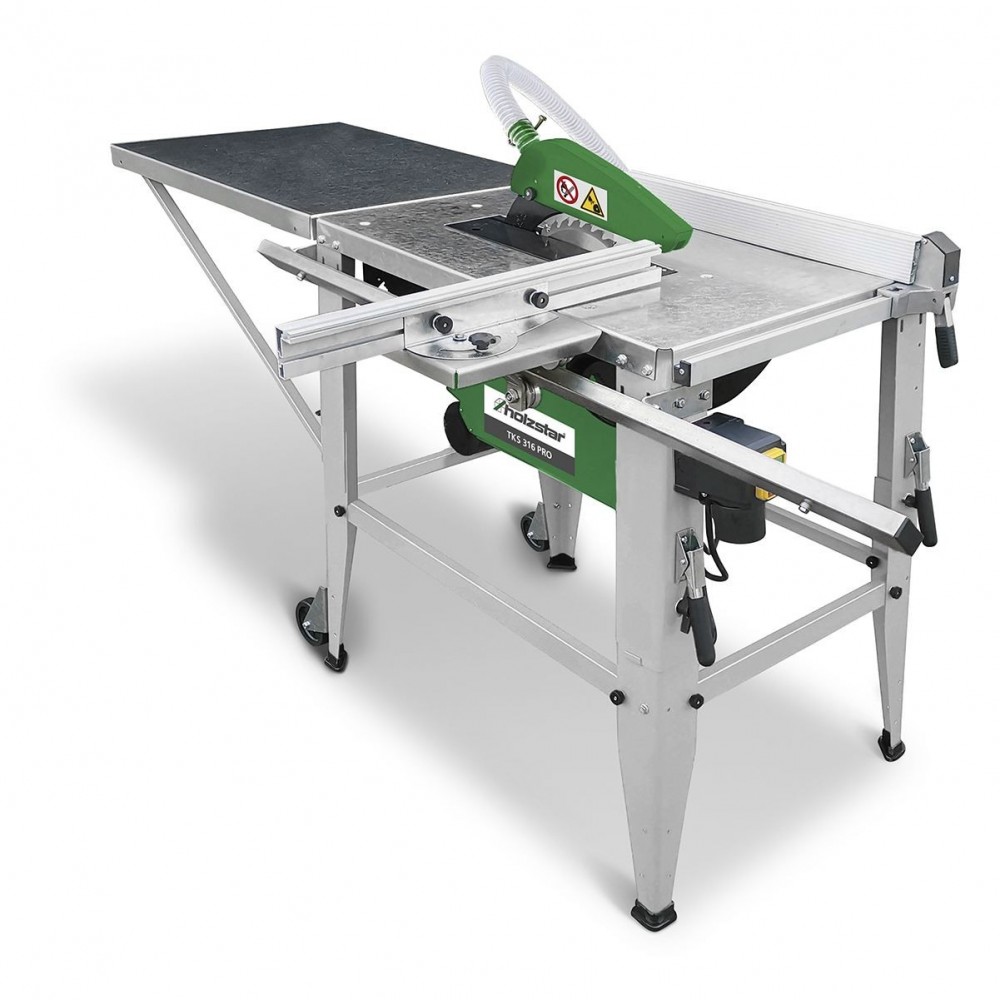

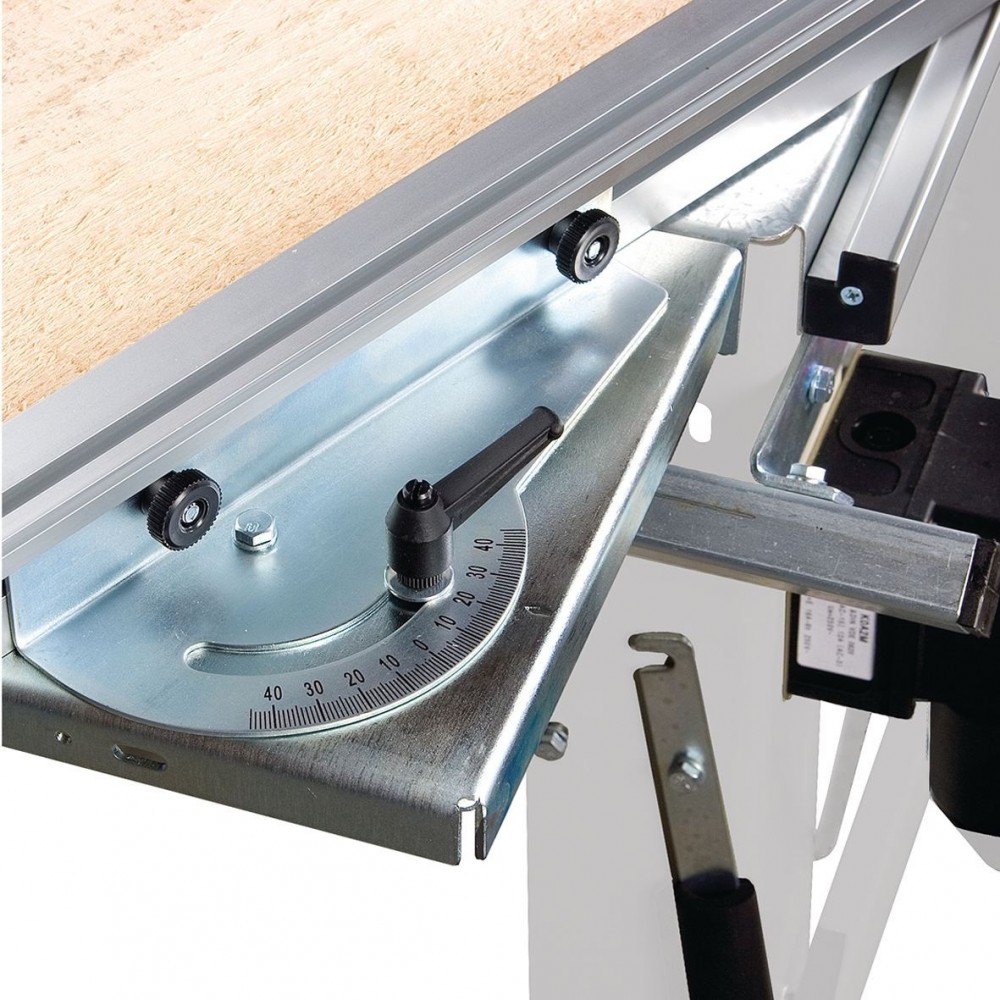

  • Sliding Cutting System: The sliding table is mounted on high-quality bearings and equipped with an adjustable angle guide from -45° to +45° with a quick-release lever, facilitating serial processing.

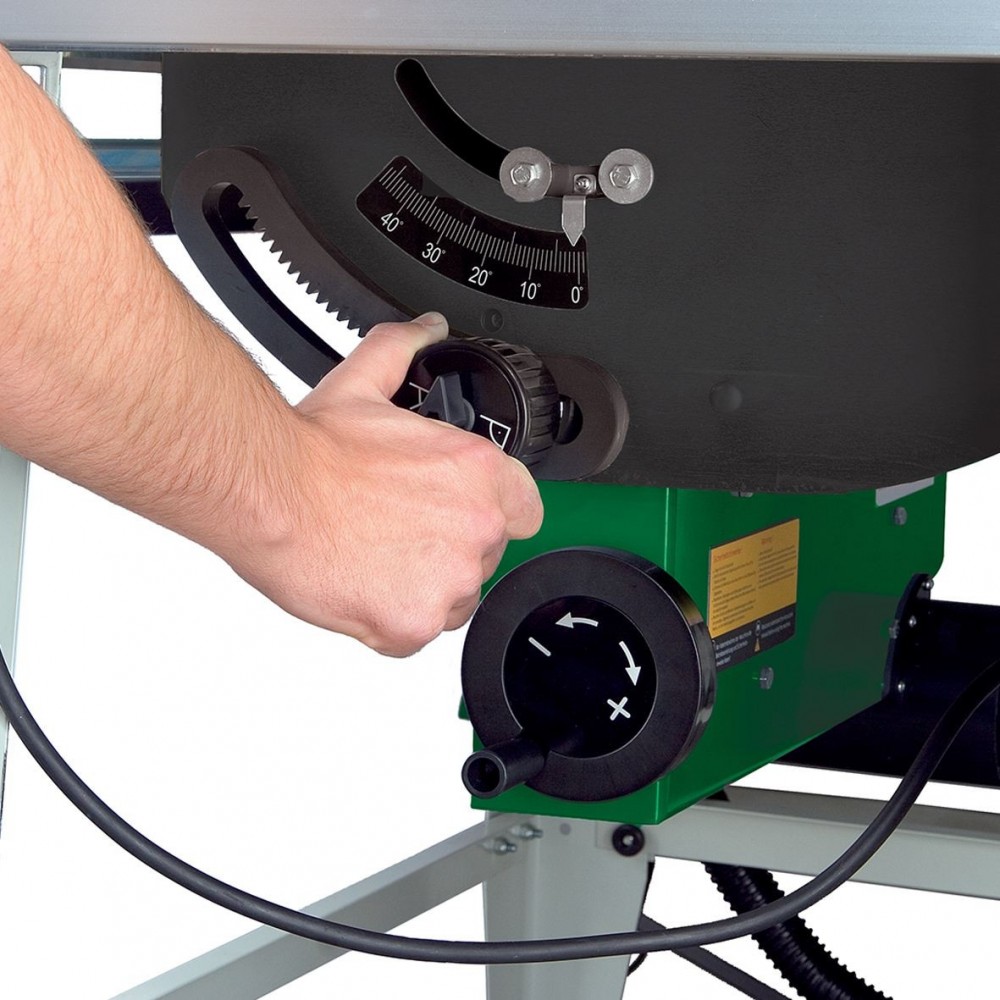

  • Total Control: The blade height and tilt (up to 45°) are adjustable via front-mounted handwheels, complete with easy-to-read graduated scales for instant setup.
  • Industrial Motor: Equipped with a 2.2 kW single-phase motor with electric brake, it provides the power needed to penetrate hardwood without speed drops, while maintaining high safety standards.

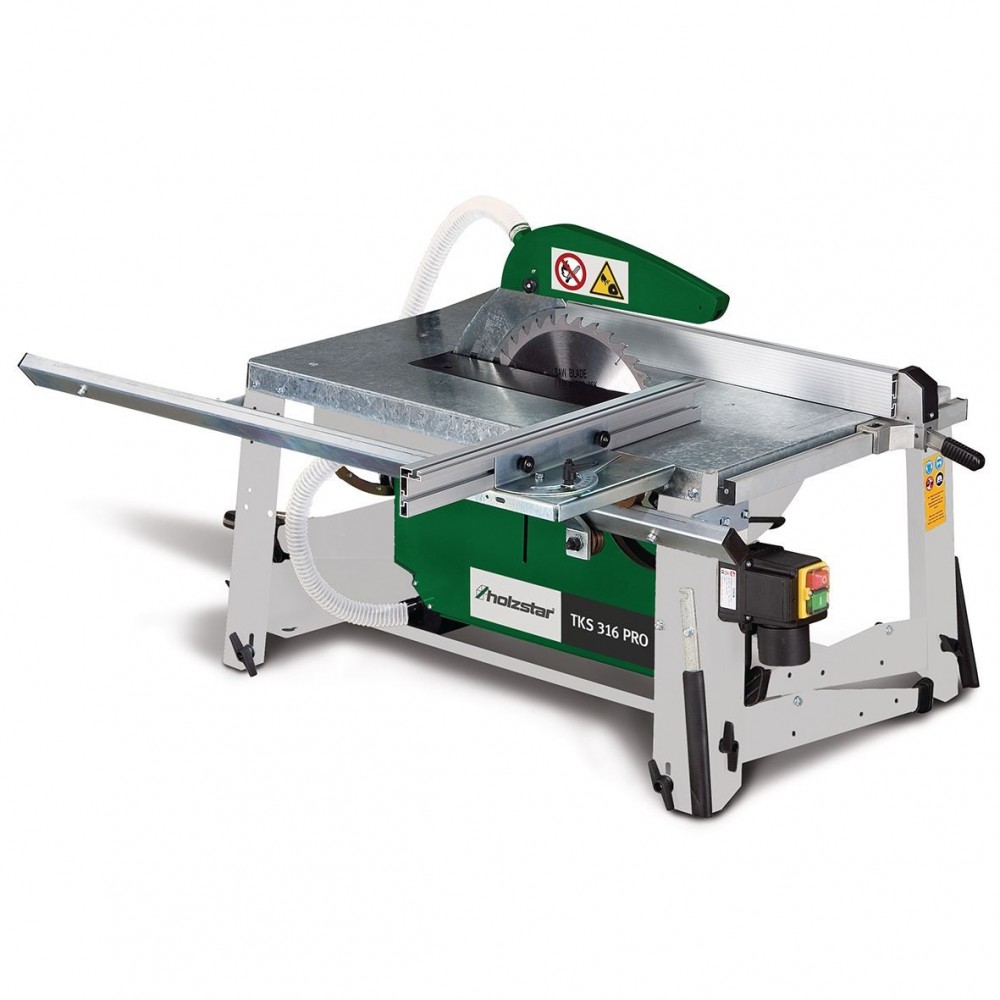

  • Portable Design: Despite its sturdiness, the machine is easy to move and store thanks to the integrated frame with wheels, foldable handles and foldable legs with quick-release screws.

Cleaning and Safety

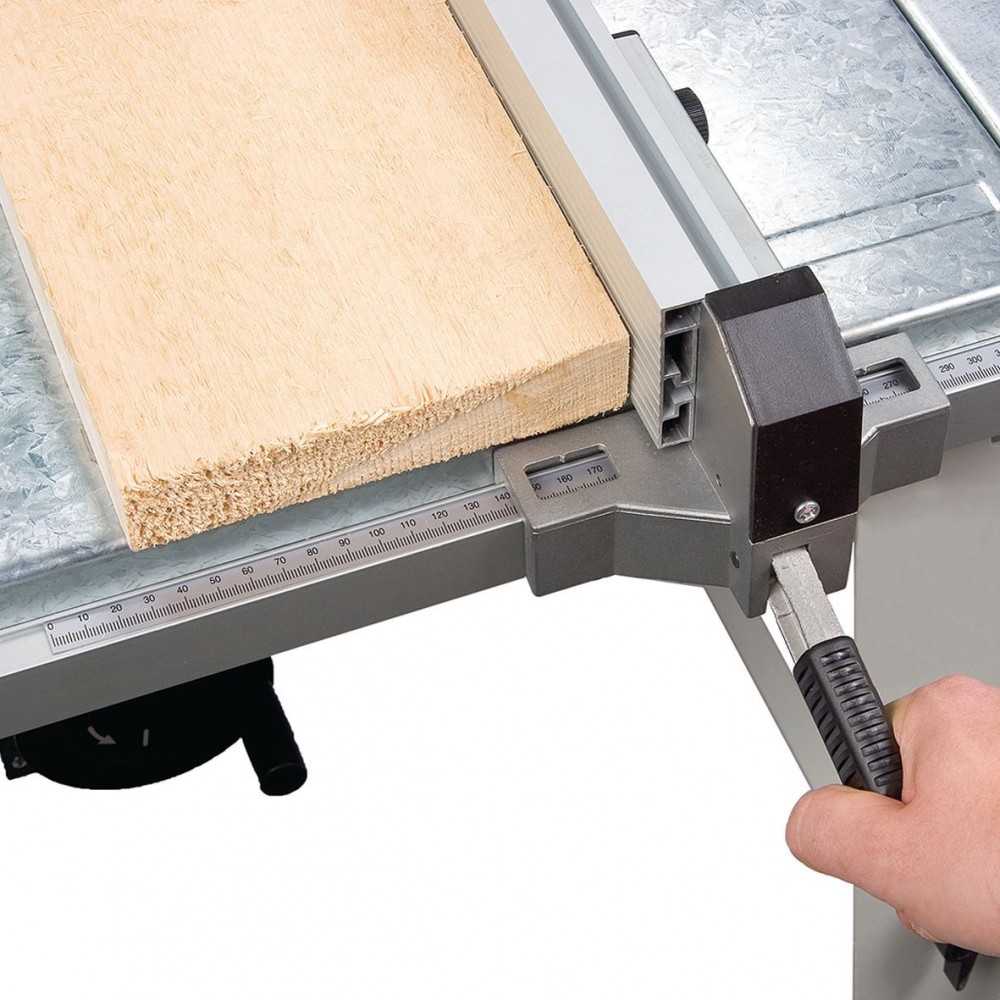

The machine features a double suction nozzle (30 mm upper and 100 mm lower) to keep the work area clean. The rip fence with eccentric stop and the included blade guard complete a system designed for maximum operator protection.

Technical Reference Data

Characteristic Detail
Product Code 590 2321 (HOL5902321)
Ø Max blade / Hole 315 mm / 30 mm
Max cutting height 90° / 45° 90 mm / 50 mm
Blade tilt 90° – 45°
Cutting width with stop 200 mm
Table dimensions 800 x 550 mm
Table height 850 mm
Blade speed 2,800 rpm
Power Supply / Power 230 V - 50 Hz / 2.2 kW
Ø Suction nozzle 30 mm (top) / 100 mm (bottom)
Dimensions (L x W x H) 1,350 x 1,250 x 1,000 mm
Net weight 60 kg

Standard Equipment Included:

  • Base and trolley with wheels.
  • Sliding table.
  • Table extension.
  • Parallel guide.
  • Hard metal (MD) blade Ø 315 mm / 36 T.
  • Blade guard.

Recommended Optional Accessories:

  • Replacement circular blade Ø 315x30x3.2 mm, 28 T (Art. 5263128).
  • Right side extension 800x550 mm (Art. 5912321).
  • Additional angle guide (Art. 5912323).
Per falegnami e artigiani della lavorazione del legno, macchine professionali di produzione tedesca. Holzkraft è un leader del settore commercializzato in Italia da LTF
