HOLZKRAFT HSE 5-520 KH SPACCALEGNA ORIZZONTALE MAX FORZA DI FENDITURA 5 T Dinamitek 1
  • HOLZKRAFT HSE 5-520 KH SPACCALEGNA ORIZZONTALE MAX FORZA DI FENDITURA 5 T Dinamitek 1
  • HOLZKRAFT HSE 5-520 KH SPACCALEGNA ORIZZONTALE MAX FORZA DI FENDITURA 5 T Dinamitek 2

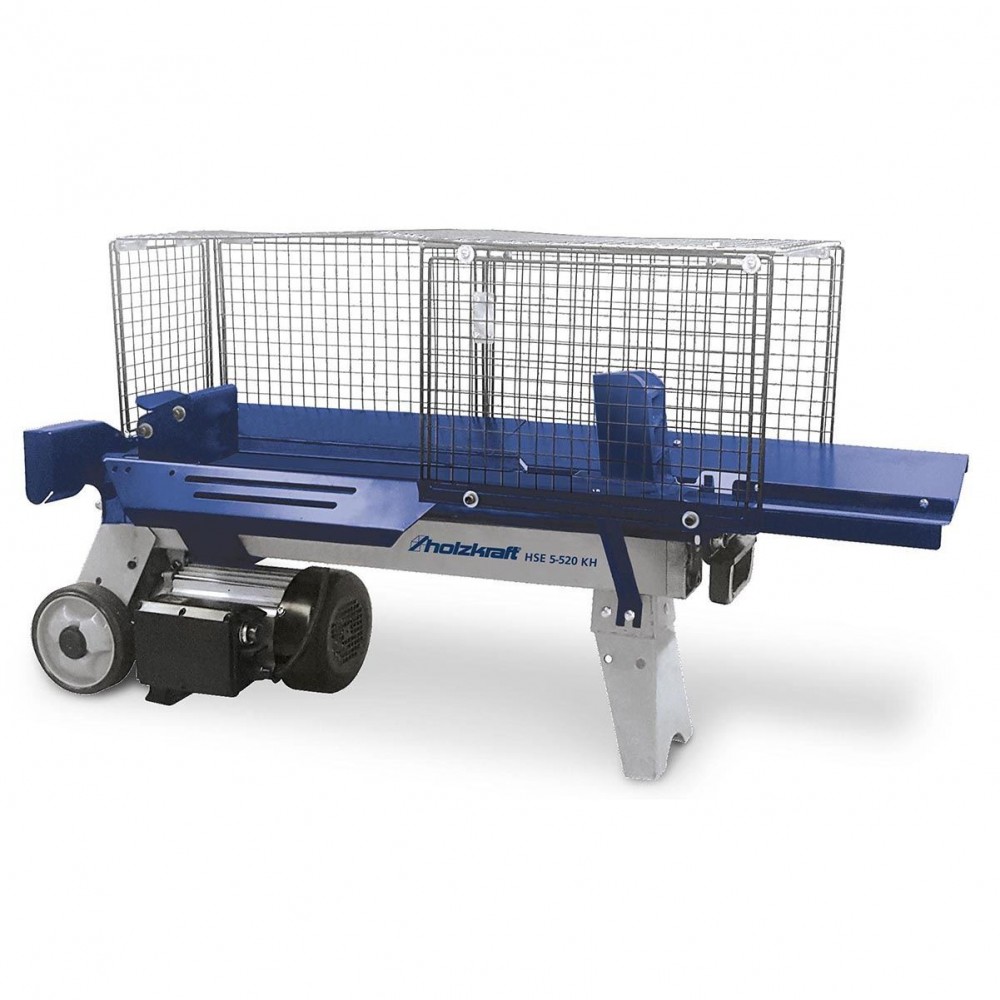

5981005 HSE 5-520 KH HORIZONTAL LOG SPLITTER MAX SPLITTING FORCE 5 T HOLZKRAFT

The wood-fired HSE 5-520 KH Horizontal Log Splitter (Code 5981005) is the ideal solution for those seeking a high-performance and safe tool for preparing firewood. With a splitting force of 5 tons and a powerful 2.2 kW motor, this machine can process logs up to 520 mm in length. Thanks to its horizontal design and integral safety cage , it offers an ergonomic and protected working experience, perfect for both simple and prolonged use on a workbench.

Shipping cost: €50.00 for
566,31 €
Tax included

464,19 € Tax excluded

Quantity
Available product, order it now.

Certified Efficiency and Safety for Your Laboratory

Item 598 1005 (HOL5981005) stands out among wood processing machines for its robustness and attention to technical details. The HSE 5-520 KH log splitter is constructed with a torsion-resistant steel frame, ensuring long-lasting durability and precision.

Main Features and Benefits

  • Advanced Safety System: Equipped with a fully enclosed work area and a two-hand safety switch, it ensures the operator can work in complete peace of mind, preventing accidental activation.
  • Ergonomic Horizontal Design: Its compact shape allows for placement on work tables, reducing back strain during prolonged slicing sessions.
  • Transportability: Despite its solid construction, the machine is easy to move around the work area or into storage thanks to the integrated wheels and practical carrying handles.
  • High Performance: The work cycle is optimised by a descent speed of 37 mm/s and a rapid ascent of 61.7 mm/s, maximising hourly productivity.
  • Compact Size: Thanks to its compact size, it is the perfect choice for those with limited space in the workshop or garage.

Areas of Application

Perfect for home firewood preparation, small workshops, and garden maintenance. It easily handles logs of various types, ensuring clean splitting thanks to the constant thrust of the hydraulic system.

Technical Reference Data

Characteristic Detail
Product Code 598 1005 (HOL5981005)
Max splitting force 5 tons
Max cutting length 520 mm
Max cylinder stroke 375 mm
Diet 230 V - 50 Hz
Engine power 2.2 kW
Speed (Downhill / Uphill) 37 mm/s / 61.7 mm/s
Dimensions (L x W x H) 1160 x 425 x 610 mm
Net weight 50 kg

Standard Equipment Included:

  • Full protective cage for the work area.

Note: The image of the machine is to be considered indicative.
Per falegnami e artigiani della lavorazione del legno, macchine professionali di produzione tedesca. Holzkraft è un leader del settore commercializzato in Italia da LTF

HOLZKRAFT: MACCHINE PROFESSIONALI PER LA LAVORAZIONE DEL LEGNO

Holzkraft è un marchio tedesco specializzato in macchine professionali per la lavorazione del legno, progettate per garantire precisione, stabilità e continuità operativa nelle falegnamerie, nei laboratori artigianali e nelle produzioni industriali. Le sue soluzioni sono pensate per utilizzi intensivi, con strutture robuste e componenti ad alta affidabilità.

La gamma comprende seghe circolari, seghe a nastro, pialle, combinati, levigatrici, aspiratori industriali, banchi da lavoro e macchine speciali per taglio, fresatura, piallatura e finitura del legno. Ogni linea si distingue per motori performanti, piani di lavoro stabili, guide di precisione, sistemi di sicurezza avanzati e qualità costruttiva tipica della produzione tedesca.

Holzkraft è distribuita in Italia da LTF, con un’offerta completa dedicata a falegnami, artigiani, carpentieri e professionisti del woodworking. Il marchio è riconosciuto per affidabilità, durata nel tempo e prestazioni costanti, elementi fondamentali per chi lavora il legno con elevati standard di qualità.

I professionisti scelgono Holzkraft per precisione, robustezza e versatilità, caratteristiche che rendono queste macchine ideali per lavorazioni complesse, produzioni continuative e finiture di alto livello.



5981005
