HSWH 20 TOP PRO BOTTLE JACK CAPACITY 20 T MAX HEIGHT 459 MM UNICRAFT
The unicraft HSWH 20 TOP hydraulic bottle jack (Code 621 1020) is the ultimate tool for professional use, designed to lift heavy loads of up to 20 tons with extreme precision. Featuring a reinforced body and a chrome-plated piston, this model offers the unique flexibility of being able to also be used in a horizontal position . The stable, anti-tip base and rotating lever ensure safe and easy maneuvering from any angle, making it indispensable for industrial maintenance and heavy vehicle servicing.
Shipping cost: €15.00
for
Efficiency and Robustness for Professional Use
The HSWH 20 TOP model from unicraft represents the pinnacle of bottle lifting systems in terms of reliability and durability. Designed to withstand intense work cycles, it integrates advanced construction solutions such as the tilting and rotating column , which facilitates positioning and adaptation of the push point under the load.
Technical Features and Operational Safety

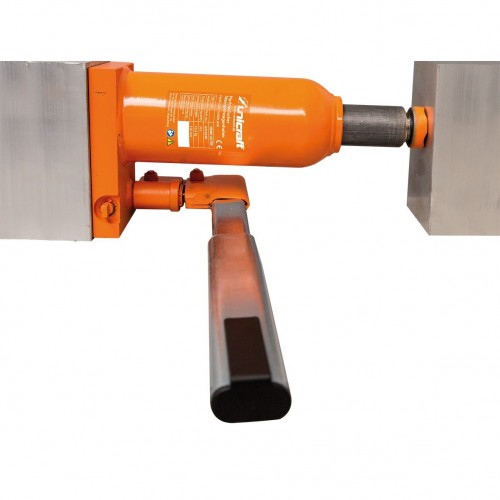

- Lifting Versatility: Thanks to the specific internal design, this jack can operate not only vertically but also horizontally , expanding the possibilities of use in mounting or lateral pushing situations.

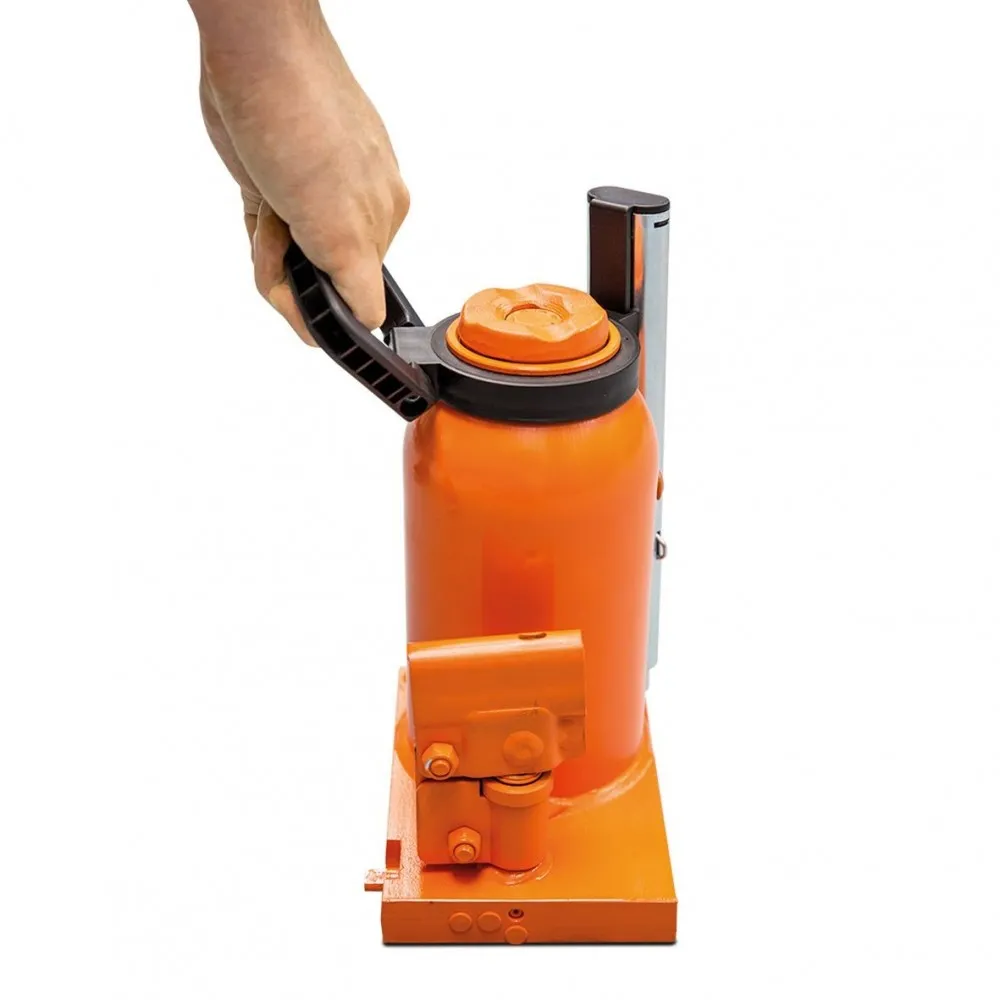

- Ergonomic Rotating Lever: The operating lever rotates and can be used from any position. It is supported by a double telescopic handle and a rotating handle for easy transport and operation.
- High-Quality Materials: The frame features a chrome-plated piston and adjustment screws to prevent rust and ensure consistent smoothness. The welding and screw connections are made to superior industrial standards.
- Integrated Protections: It has a safety valve that prevents overloading of the cylinder and a stop device that prevents accidental blocking of the piston at the end of its stroke.
Millimetric Precision
The lifting height can be increased and precisely adjusted thanks to a dedicated 75 mm threaded screw, allowing a maximum height of 459 mm to be reached starting from an entry profile of 234 mm.
Technical Reference Data
| Characteristic | Detail |
|---|---|
| Product Code | 621 1020 (UNI6211020) |
| Maximum capacity | 20 tons |
| Minimum height | 234 mm |
| Hydraulic lift | 150 mm |
| Screw adjustment | 75 mm |
| Maximum height | 459 mm |
| Basic dimensions | 120 x 172 mm |
| Net weight | 10.6 kg |
The reliability of German production: machine tools and equipment for safe load handling
HSWH 20 TOP
The unicraft HSWH 20 TOP hydraulic bottle jack (Code 621 1020) is the ultimate tool for professional use, designed to lift heavy loads of up to 20 tons with extreme precision. Featuring a reinforced body and a chrome-plated piston, this model offers the unique flexibility of being able to also be used in a horizontal position . The stable, anti-tip base and rotating lever ensure safe and easy maneuvering from any angle, making it indispensable for industrial maintenance and heavy vehicle servicing.
