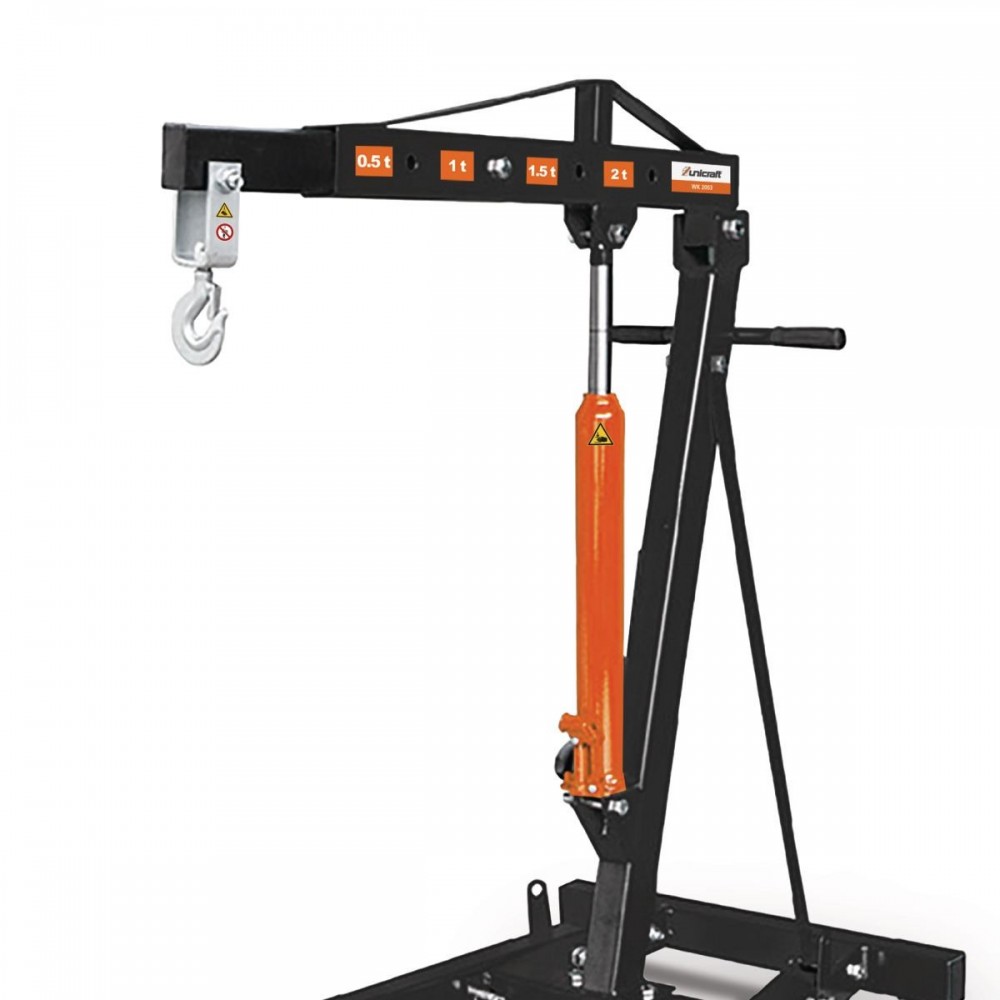

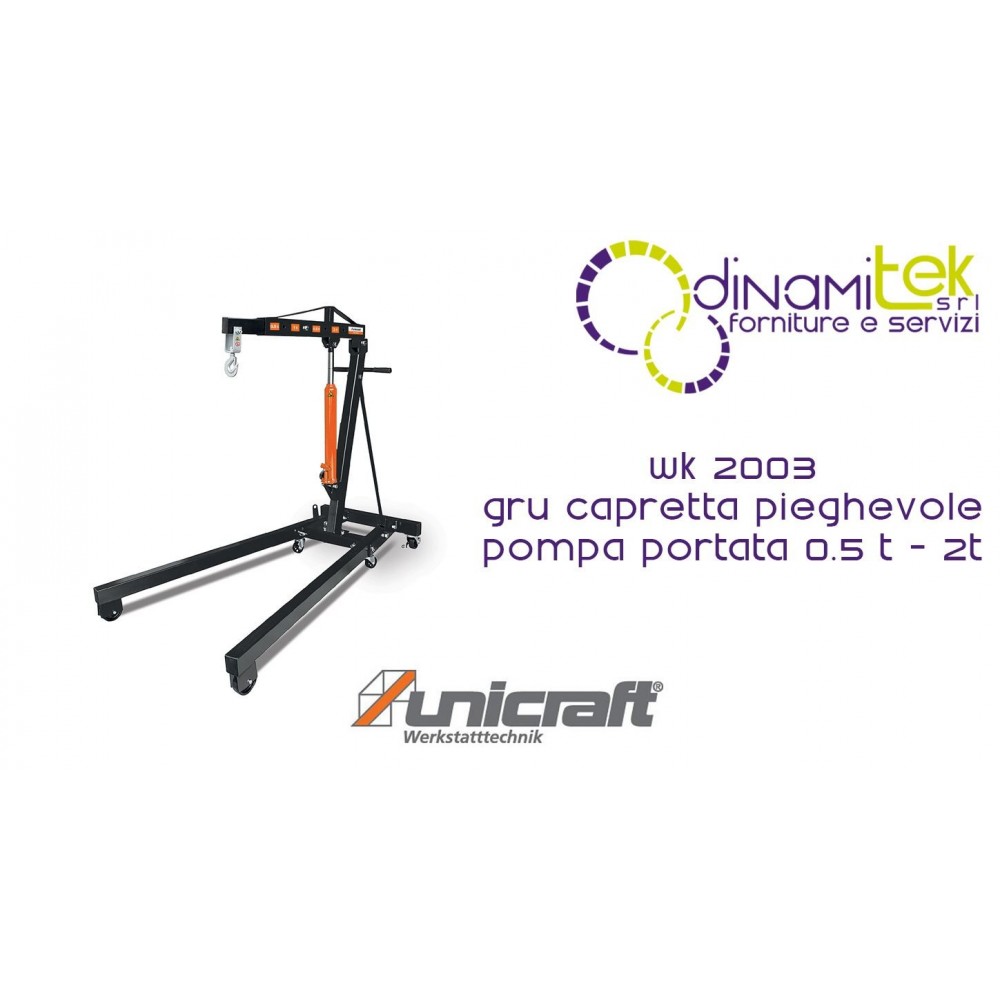

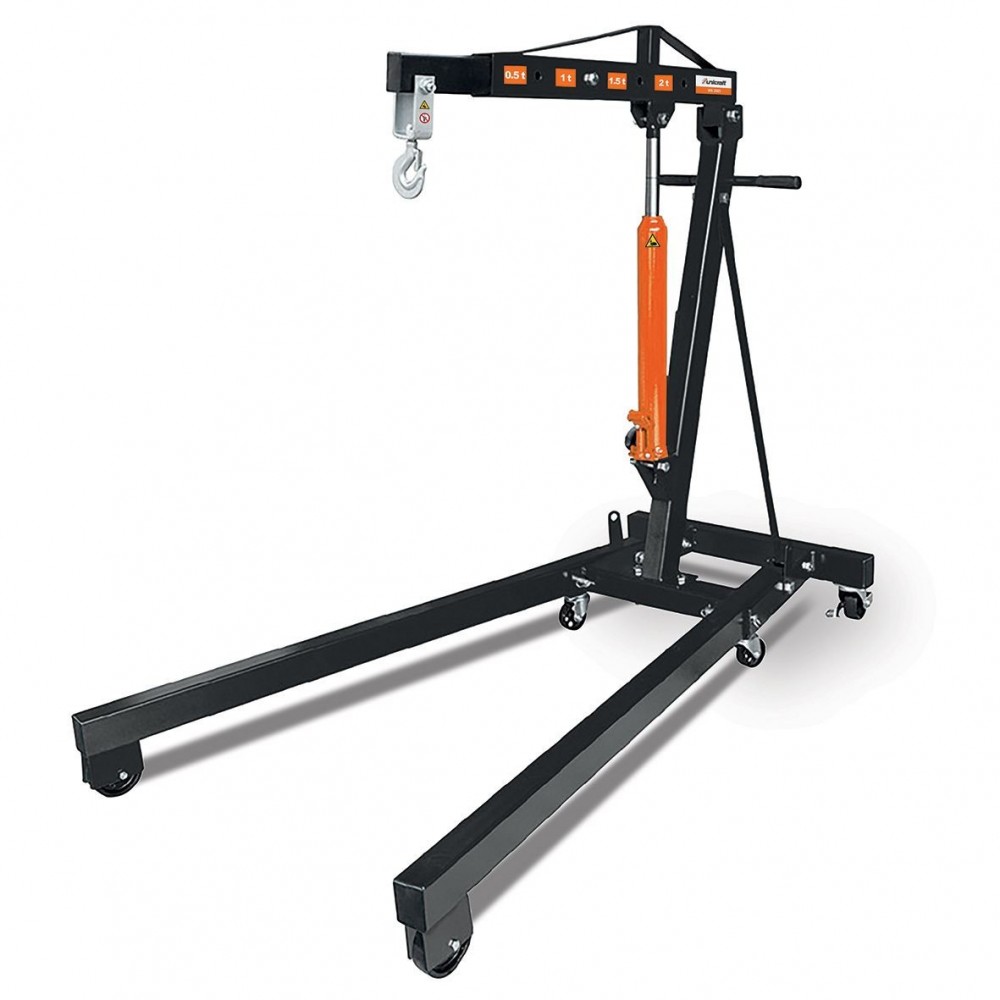

WK 2003 FOLDING GOAT CRANE WITH PUMP CAPACITY 0.5 T - 2T UNICRAFT
The unicraft WK 2003 foldable pump-operated crane (Code 620 1420) is the ideal professional solution for lifting and moving heavy loads in the workshop, such as engines and industrial components. Featuring an adjustable capacity of up to 2 tons depending on the boom outreach, this crane offers maximum operational flexibility. Thanks to its foldable base , it can be stored in a compact size when not in use, while ensuring exceptional stability and maneuverability thanks to its six steering wheels.
Shipping cost: €50.00
for
Power and Space-Saving Design for the Workshop
The unicraft WK 2003 model sets a standard for reliability in heavy-duty lifting operations. Designed to combine robustness and practicality, this hydraulic crane features an adjustable telescopic boom that allows the load capacity to be adapted to specific outreach requirements, reaching a maximum lifting height of over 2.5 meters.
Technical and Operational Features
- Load Flexibility: The arm can be set to four different lengths (975, 1,155, 1,335, 1,515 mm), varying the capacity from 2.0 t to 0.5 t to always operate in total safety.
- Superior Mobility: Equipped with six steel steering wheels , the crane ensures smooth maneuverability even when fully loaded. Two of these wheels are equipped with parking brakes to ensure a safe static position during operations.
- Efficient Hydraulic System: The integrated pump allows for smooth and controlled lifting, while the swivel safety hook prevents accidental release of the load.
- Practicality and Storage: The structure is designed for quick assembly and disassembly; once folded, its dimensions are reduced to just 850x558x1600 mm, optimizing space in the warehouse or workshop.
Applications
The WK 2003 is the indispensable tool for removing automotive engines, positioning loads on machine tools or moving heavy pallets and crates in environments with uniform flooring.
Technical Reference Data
| Characteristic | Detail |
|---|---|
| Product Code | 620 1420 (UNI6201420) |
| Capacity (based on reach) | 0.5 / 1.0 / 1.5 / 2.0 t |
| Lifting height (Min/Max) | 25 - 2,535 mm |
| Arm length (positions) | 1,515 / 1,335 / 1,155 / 975 mm |
| Ground clearance (base) | 190 mm |
| Operating dimensions (L x W x H) | 1,710 x 1,000 x 1,490 mm |
| Folded dimensions (L x W x H) | 850 x 558 x 1,600 mm |
| Net weight | 90.5 kg / 100.5 kg* |
*Note: Weight may vary slightly depending on the production run.
Main Benefits:
- High load capacity up to 2 tons.
- Foldable design for maximum space saving.
- Six steering wheels for precise movement in any direction.
The reliability of German production: machine tools and equipment for safe load handling
WK 2003
The unicraft WK 2003 foldable pump-operated crane (Code 620 1420) is the ideal professional solution for lifting and moving heavy loads in the workshop, such as engines and industrial components. Featuring an adjustable capacity of up to 2 tons depending on the boom outreach, this crane offers maximum operational flexibility. Thanks to its foldable base , it can be stored in a compact size when not in use, while ensuring exceptional stability and maneuverability thanks to its six steering wheels.
