GH 505 HYDRAULIC LIFT FOR UNDERBRIDGES AND PITS, CAPACITY 0.5 T UNICRAFT

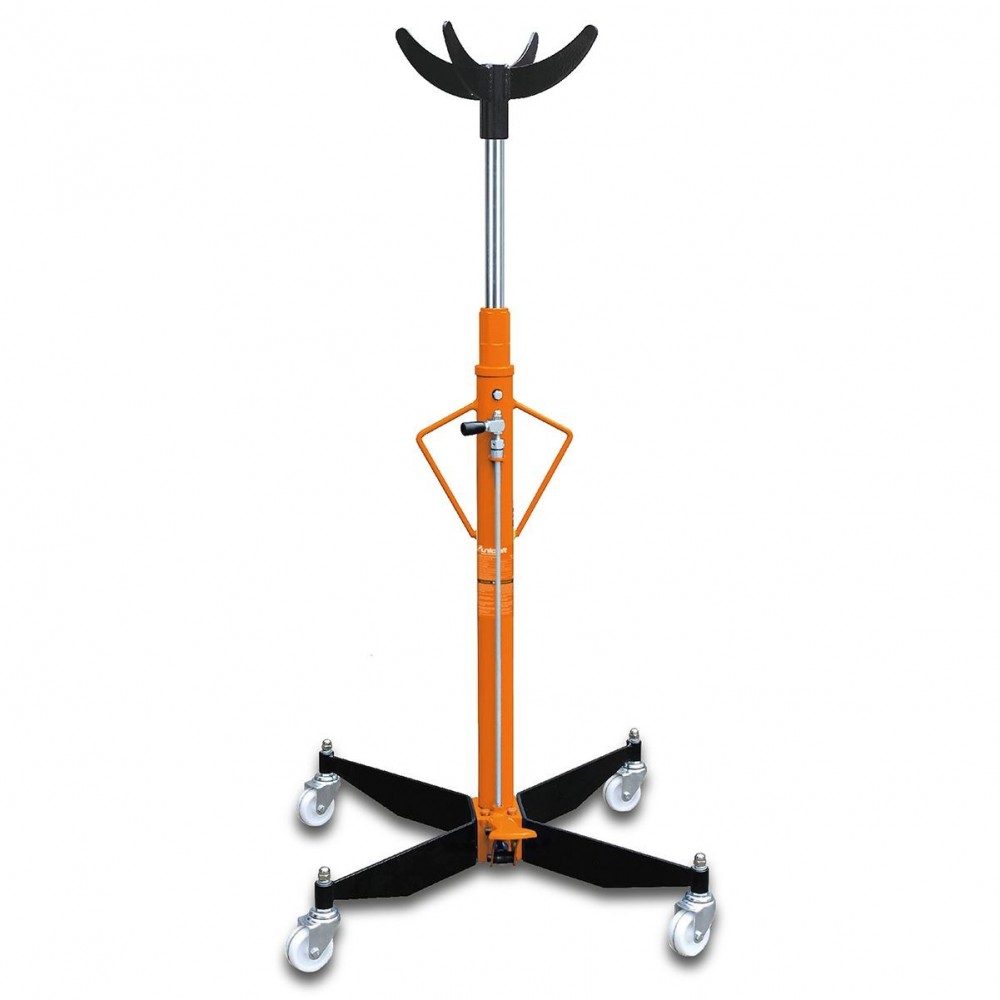

The unicraft GH 505 hydraulic lift (Code 620 1410) is a professional piece of equipment designed to support and handle heavy loads such as gearboxes, transmissions, and engines during operations in pits or under lifts. Featuring a capacity of 0.5 tons and an exceptional height range (up to 2,050 mm ), this lift ensures stability and ease of use thanks to its four swivel wheels, which allow for quick and precise positioning under the vehicle.
Shipping cost: €140.00
for
Professional Support for Underbridges and Pits
The unicraft GH 505 model represents a reliable solution for the modern workshop. This hydraulic column lift was developed to facilitate the assembly and disassembly of bulky mechanical components, offering the operator adjustable support that significantly reduces physical effort and increases workplace safety.
Functional and Construction Features
- Wide Working Range: Thanks to a minimum height of 1,240 mm and a maximum of 2,050 mm, the GH 505 adapts perfectly to different types of vehicles and pit depths, allowing you to always operate at the most ergonomic height.
- Mobility and Maneuverability: The base is equipped with four swivel wheels that ensure smooth maneuverability on flat floors, making it easy to fit the tool into tight spaces.
- Hydraulic Precision: The hydraulic pump lift system allows for millimetric control of the lift, essential for coupling engines and transmissions to the chassis.
- Guaranteed Stability: The 610x610 mm square base offers a low centre of gravity and a large support surface, ensuring maximum stability even with the load at maximum extension.
Applications
Indispensable for garages and MOT centres, the GH 505 is ideal for supporting exhaust systems, fuel tanks, gearboxes and other underbody components that require assisted positioning.
Technical Reference Data
| Characteristic | Detail |
|---|---|
| Product Code | 620 1410 (UNI6201410) |
| Carrying capacity | 0.5 tonnes (500 kg) |
| Minimum height (C) | 1,240 mm |
| Maximum height (D) | 2,050 mm |
| Base length (A) | 610 mm |
| Base width (B) | 610 mm |
| Net weight | 40 kg |
The reliability of German production: machine tools and equipment for safe load handling
