USZ 1601 ARGANO A FUNE CARICO DI TRAZIONE 1.6 T UNICRAFT Dinamitek 1
  • USZ 1601 ARGANO A FUNE CARICO DI TRAZIONE 1.6 T UNICRAFT Dinamitek 1
  • USZ 1601 ARGANO A FUNE CARICO DI TRAZIONE 1.6 T UNICRAFT Dinamitek 2

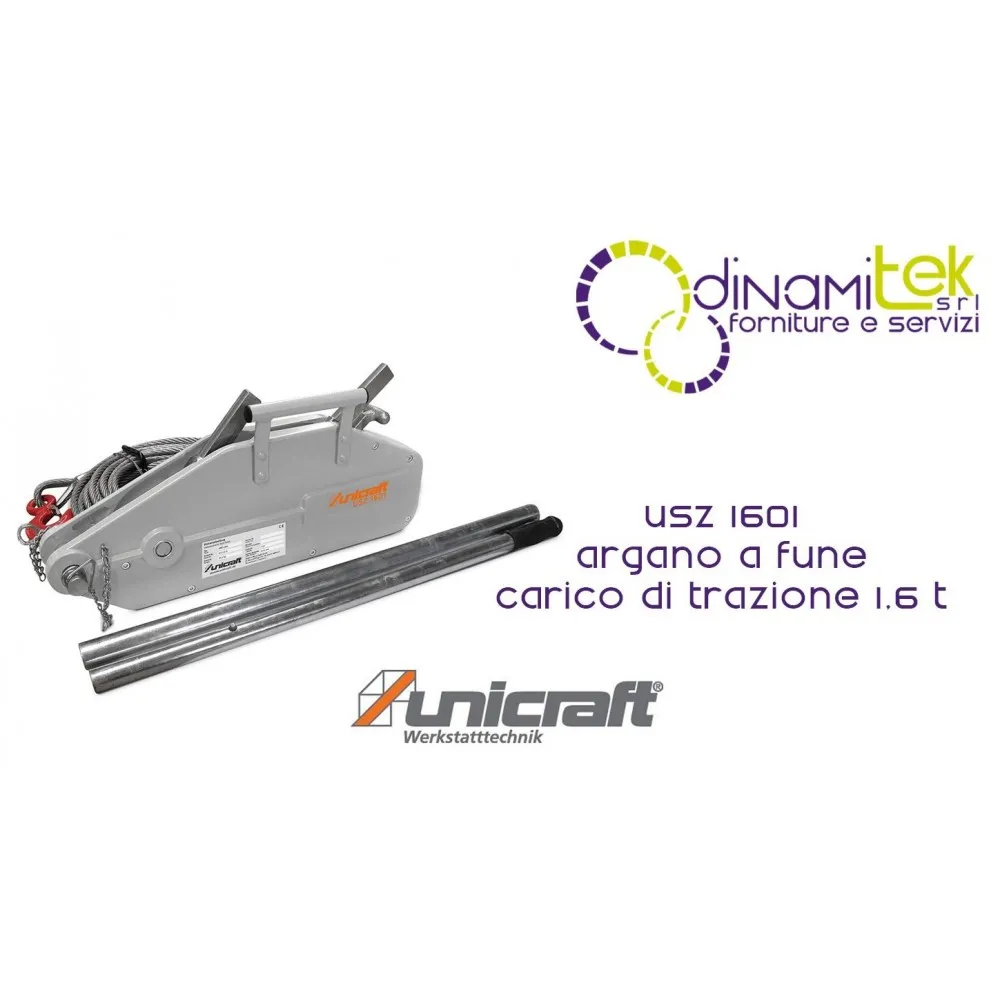

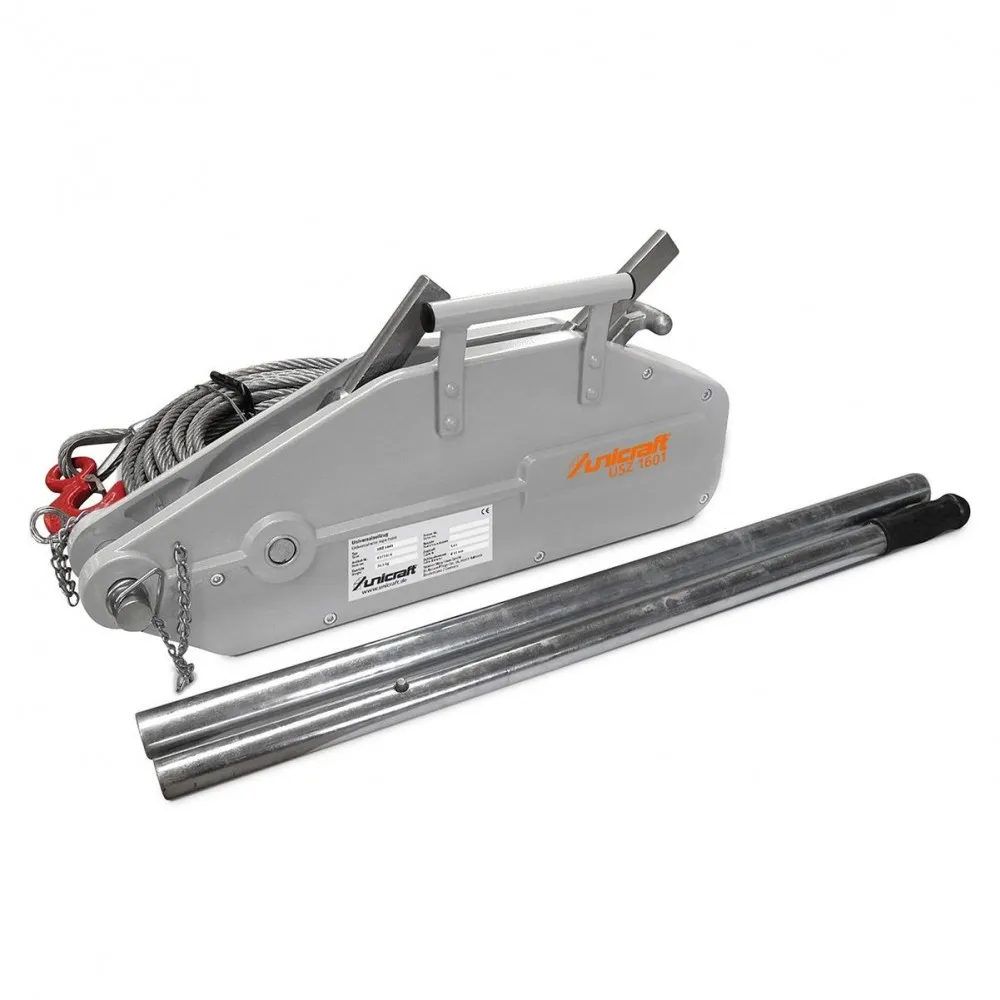

USZ 1601 CABLE WINCH TENSILE LOAD 1.6 T UNICRAFT

The unicraft USZ 1601 wire rope winch (Code 617 1616) is the ideal multifunctional tool for lifting, pulling and anchoring loads with maximum efficiency. Thanks to its aluminum body , it is extremely light and easy to handle without sacrificing strength. Designed for flexible use in both vertical and horizontal positions, it guarantees a pulling capacity of 1.6 tons , making it indispensable in workshops, construction sites and heavy logistics operations.

Shipping cost: €15.00 for
307,48 €
Tax included

252,03 € Tax excluded

Quantity
Available product, order it now.

Versatility and Handling in Lifting

The unicraft USZ 1601 manual winch stands out among lifting systems for its exceptional combination of power and portability. The high-quality aluminum alloy exterior protects the internal mechanisms while ensuring a lightweight design, making it easy to transport and install even in challenging working conditions.

Technical and Operational Features

  • Guaranteed Multifunctionality: Designed to meet three primary needs: vertical lifting, horizontal traction and the safe anchoring of static loads.
  • Lever Efficiency: The mechanical system is calibrated for a nominal load on the lever of 400 N , allowing the operator to manage significant weights with reduced physical effort and constant control of the movement.
  • Positioning Flexibility: Can be used in any orientation (vertical, horizontal or inclined), offering operational solutions where traditional hoists encounter structural limitations.
  • Professional Rope System: Comes with an 11mm diameter steel rope, equipped with a tip and safety hook, mounted on a handy reel for neat storage.

Fields of Application

Thanks to its compliance with safety directives and its robust construction, the USZ 1601 model is suitable for the construction sector, industrial maintenance, agriculture and roadside or forestry rescue operations.

Technical Reference Data

Characteristic Detail
Product Code 617 1616 (UNI6171616)
Traction Capacity 1.6 tons
Maximum supported weight load 2,400 kg
Nominal load on the lever 400 N
Lever length 200 mm
Rope diameter 11 mm
Rope length about 20 meters
Dimensions (L x W x H) 556 x 120 x 270 mm
Net weight (without rope) 26.5 kg

Equipment Included:

  • Manual operating lever.
  • 20m steel rope on reel.
  • Integrated safety tip and hook.
The reliability of German production: machine tools and equipment for safe load handling


USZ 1601
