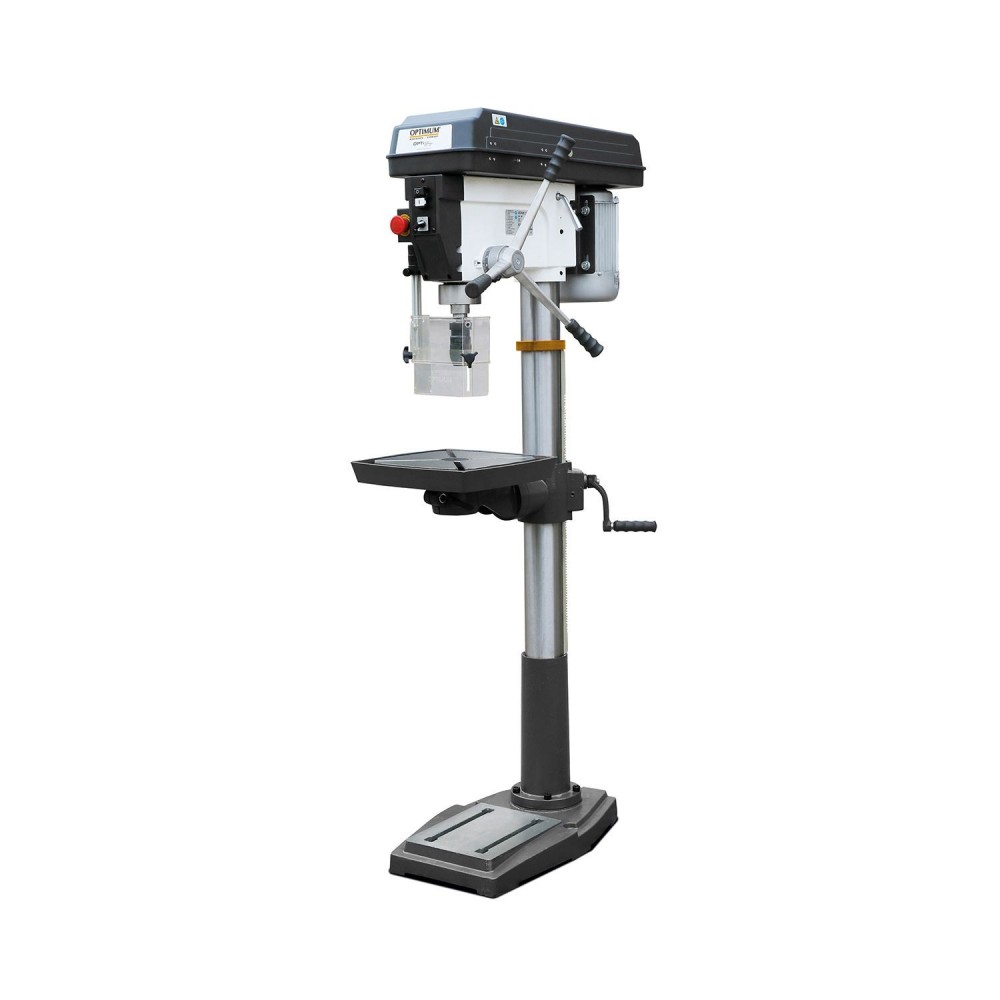

3191049 COLUMN DRILL MODEL DQ 32 MAX DRILLING D 30 MM 1.1KW OPTIMUM

Construction Solidity and High Professional Performance

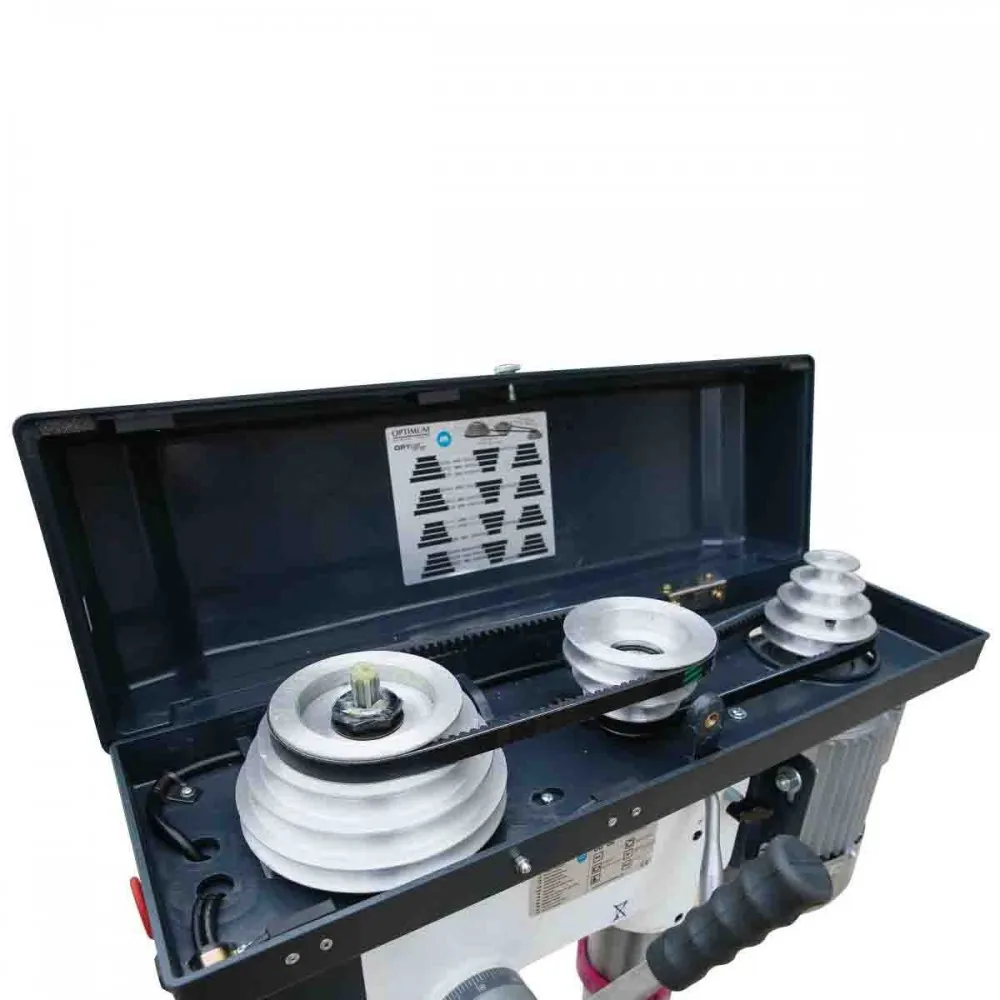

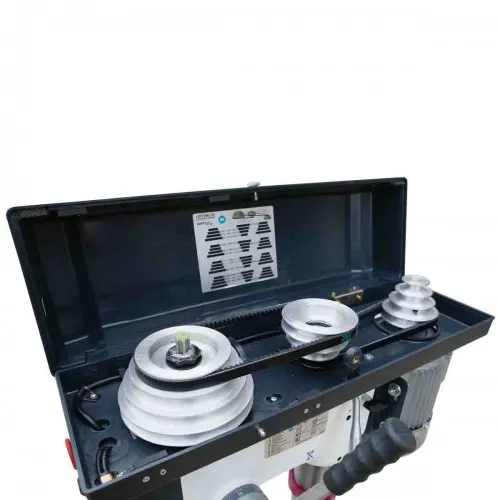

The optimum DQ 32 model (Code 3191049) represents the pinnacle of the DQ series in terms of power and cutting capacity. Designed for intensive use, it integrates excellent mechanical components, such as the spindle shaft mounted on precision ball bearings and aluminum pulleys which, combined with GATES timing belts, ensure smooth, loss-free power transmission, minimizing vibration.

Excellent Technical Features

• Certified Precision: Concentricity is measured to within 0.03mm of the spindle mount, ensuring perfectly calibrated holes.

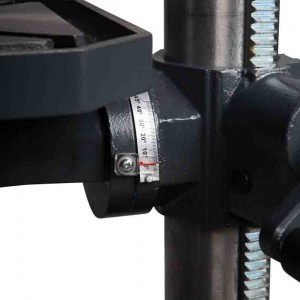

• Work Versatility: The generous work surface (355x355 mm) is precision machined and can be tilted ± 45° and rotated 360° , allowing you to tackle complex geometries with ease.
• Reinforced Base: The machine rests on a solid base equipped with T-slots and heavily reinforced with ribs at the rear to ensure maximum structural rigidity.
• Operational Control: The DQ 32 model includes a right-left rotation function as standard, making tapping operations and the use of different types of tools easier.

Safety First

In compliance with industrial safety standards, the drill features an IP54 compliant control switch, a separate emergency stop button and a safety microswitch on the V-belt cover, protecting the operator at every stage of the job.

Technical Reference Data

Standard Equipment Included:

• Self-tightening chuck 1-16 mm.
• Cone connection CM 4 / B 16.
• T-nuts for locking.
• User manual and CE certification.
