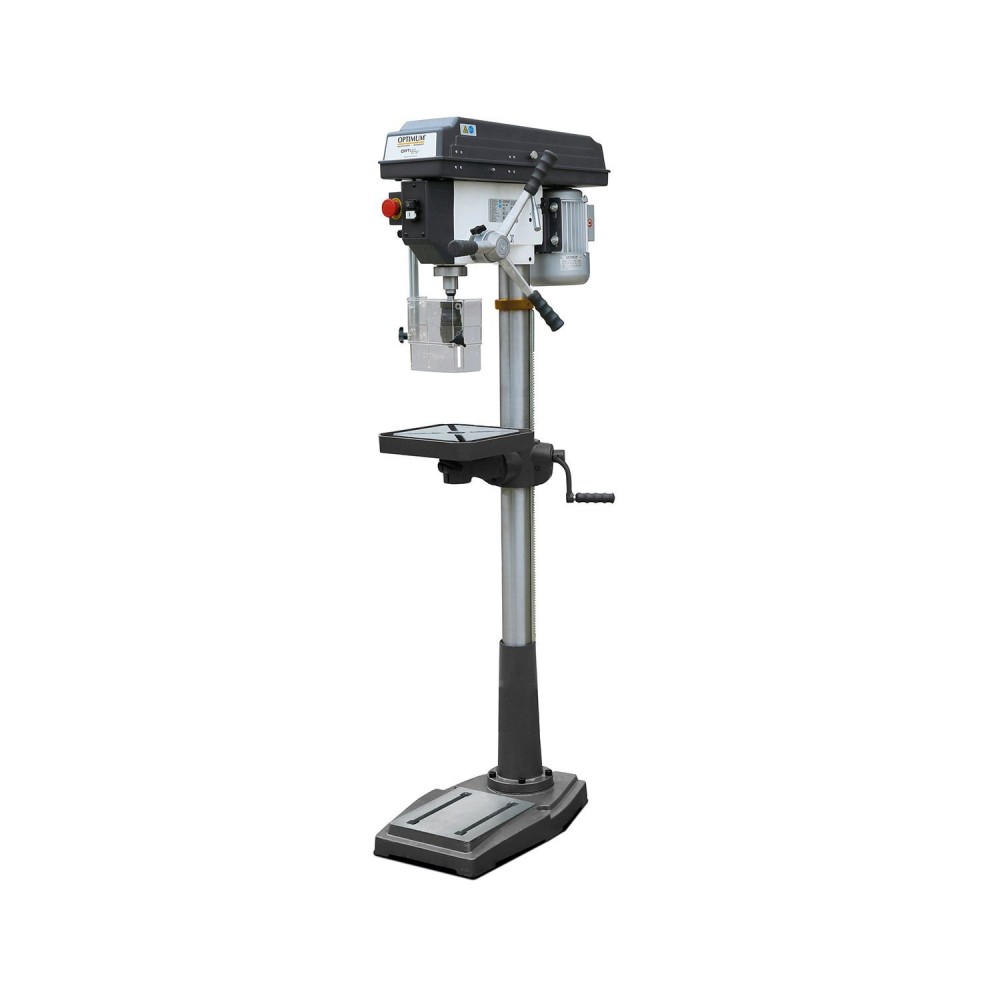

3191047 COLUMN DRILL MODEL DQ 25 MAX DRILLING D 25 MM 750W OPTIMUM

The optimum DQ 25 pillar drill press is a high-quality machine tool designed to ensure precision drilling in a professional setting. Featuring a powerful 750 W three-phase motor and a GATES V-belt transmission, this model offers high concentricity accuracy ( ≤ 0.03 mm ) and the ability to drill steel up to Ø 25 mm. The robust construction with a solid base and the tilting worktable make it a reliable and versatile tool for any workshop.

Shipping cost: €50.00 for
1186,45 €
Tax included

972,50 € Tax excluded

Quantity
Available product, order it now.

Power and Rigidity for Professional Drilling

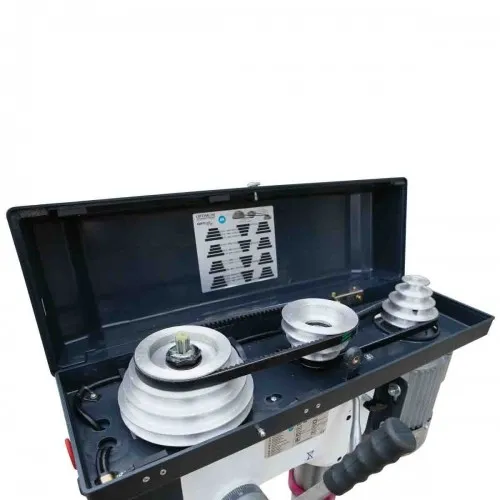

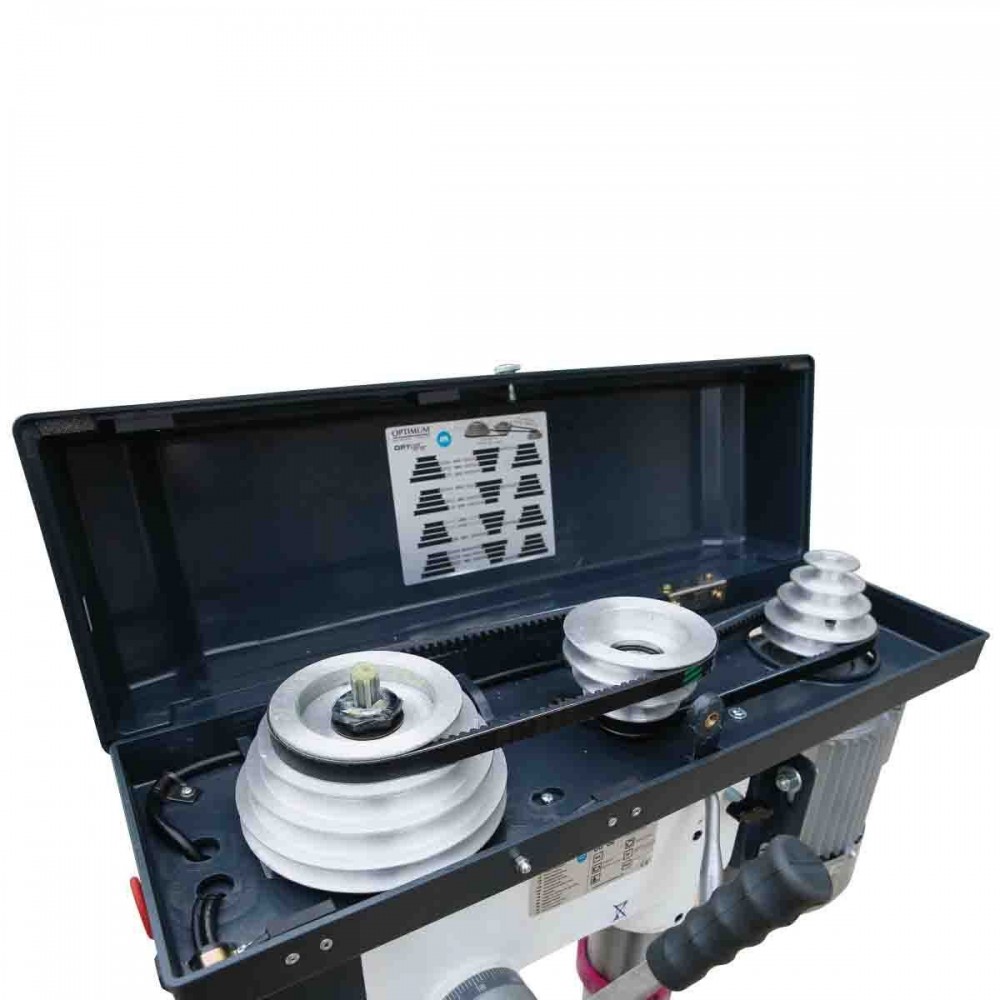

The optimum DQ 25 model (Code 3191047) is designed for those who need a robust and precise machine. The heart of the system is the spindle shaft mounted on precision ball bearings, which ensures excellent operational stability. Power transmission is optimized thanks to the use of aluminum pulleys and quality GATES toothed V-belts, which reduce vibration and ensure smooth operation.

Mechanical Construction of Excellence

  • Certified Precision: The spindle mount seat guarantees a measured concentric rotation accuracy of less than 0.03 mm.

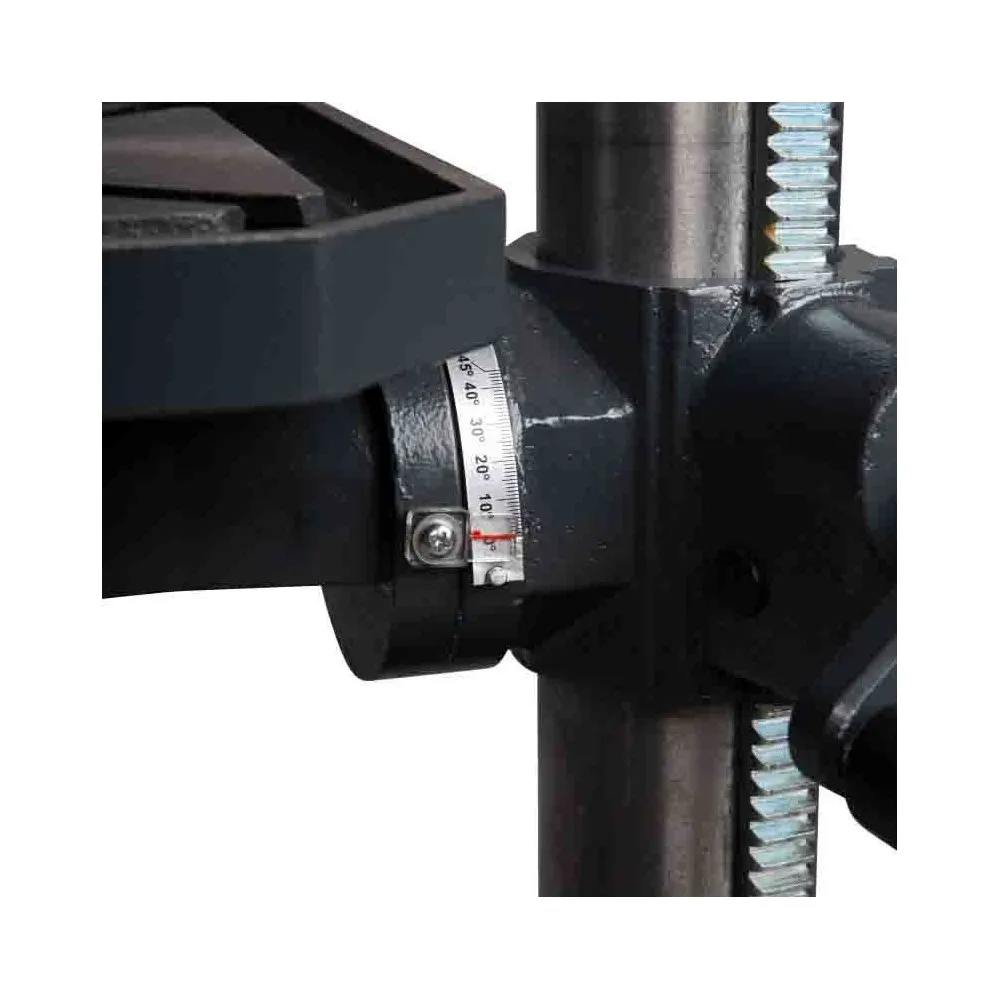

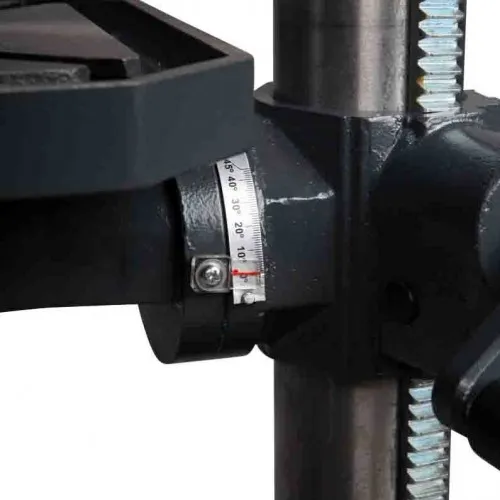

  • Versatile Worktable: The table (280x280 mm) is precisely machined, can be tilted ± 45° and rotated 360°, allowing complex angled machining with extreme ease.
  • Solid Base: The structure rests on a large base (500x300 mm), strongly reinforced by ribs in the rear part to minimize deflection under load
  • Wide Speed Range: Equipped with 12 adjustable speeds from 200 to 2,440 rpm, it perfectly adapts to different types of materials and drill diameters.

Safety and Ease of Use

The drill meets the highest safety standards with an IP54- compliant control switch, a separate emergency stop button, and a safety microswitch on the belt cover. The chuck descent levers are ergonomic, facilitating control during deep drilling operations.

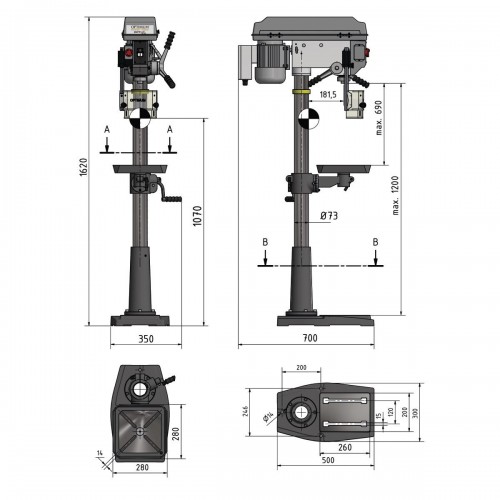

Technical Reference Data

Characteristic Detail
Engine power 400 V ~ 50 Hz - 750 W (Three Phase) /td>
Max drilling capacity steel (S235JR) Ø 25 mm (continuous Ø 20 mm)
Spindle attachment CM 3
Steerer tube race 80 mm
Spindle/column distance 181 mm
Max distance spindle/table 690 mm
Max distance spindle/base 1,200 mm
Dimensions / Net Weight 700x350x1.620 mm / 71 kg

Standard Equipment Included:

  • Self-tightening chuck 1-16 mm.
  • Cone connection CM 3 / B16.
  • T-nuts for fixing.
  • User manual and CE certification.
Qualità, precisione, longevità e stabilità di valore caratterizzano le macchine per la lavorazione dei metalli, garanzia tedesca


3191047
