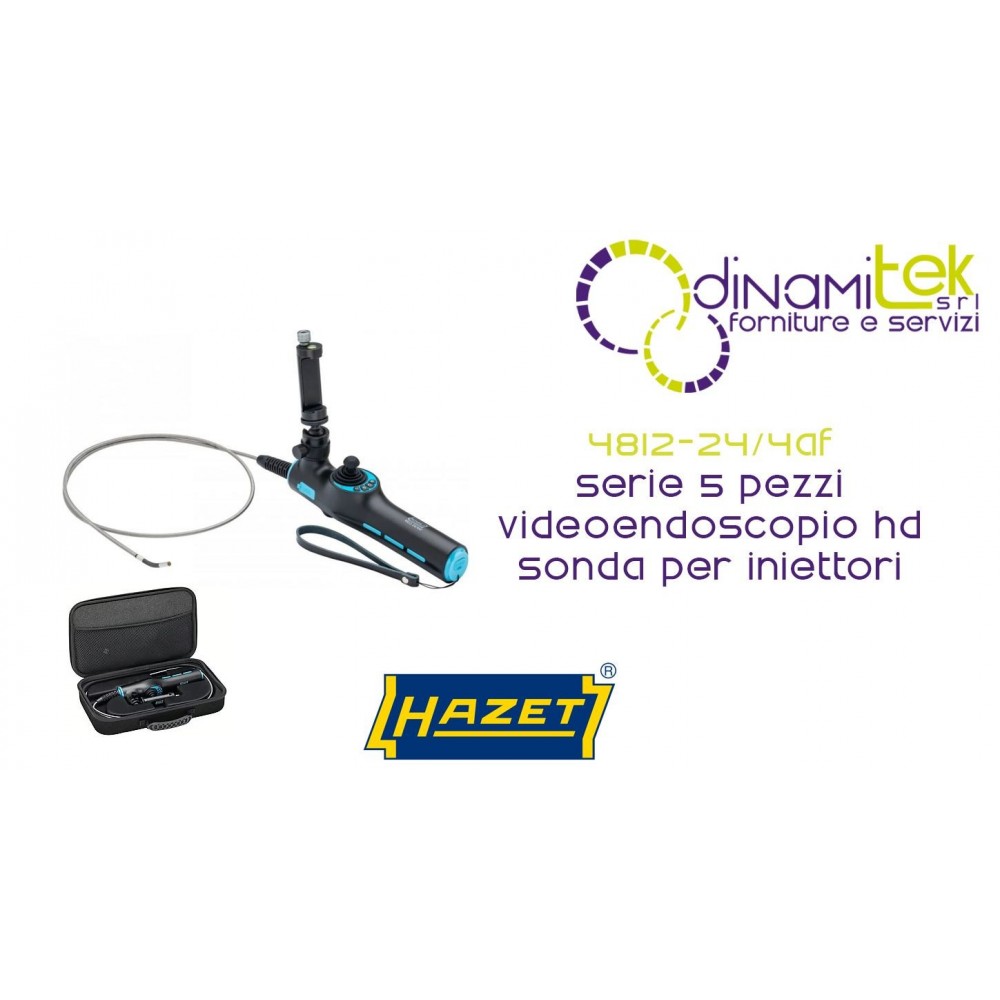

4812-24/4AF 5-PIECE SERIES HD VIDEO ENDOSCOPE WITH 360-DEGREE ROTATABLE PROBE D3.9MM HAZET
The Hazet 4812-24/4AF HD video endoscope is the professional tool of choice for automotive and industrial diagnostics. Its ultra-thin 3.9 mm probe , fully articulated 360° via joystick, allows you to explore extremely narrow cavities such as diesel injector chambers , cylinders, and valves with pinpoint precision. Thanks to smart smartphone integration and a dedicated app, every inspection becomes a documentable, fast, and accurate HD analysis , ideal for identifying wear, deposits, and damage without complex disassembly.
Shipping cost: Free
for
High Precision HD Diagnostics: Hazet 4812-24/4AF with 3.9 mm Probe

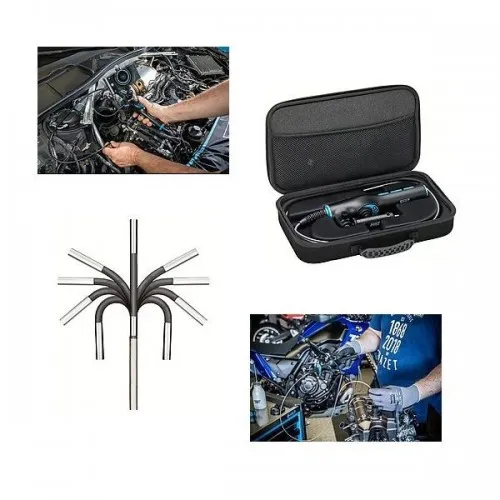

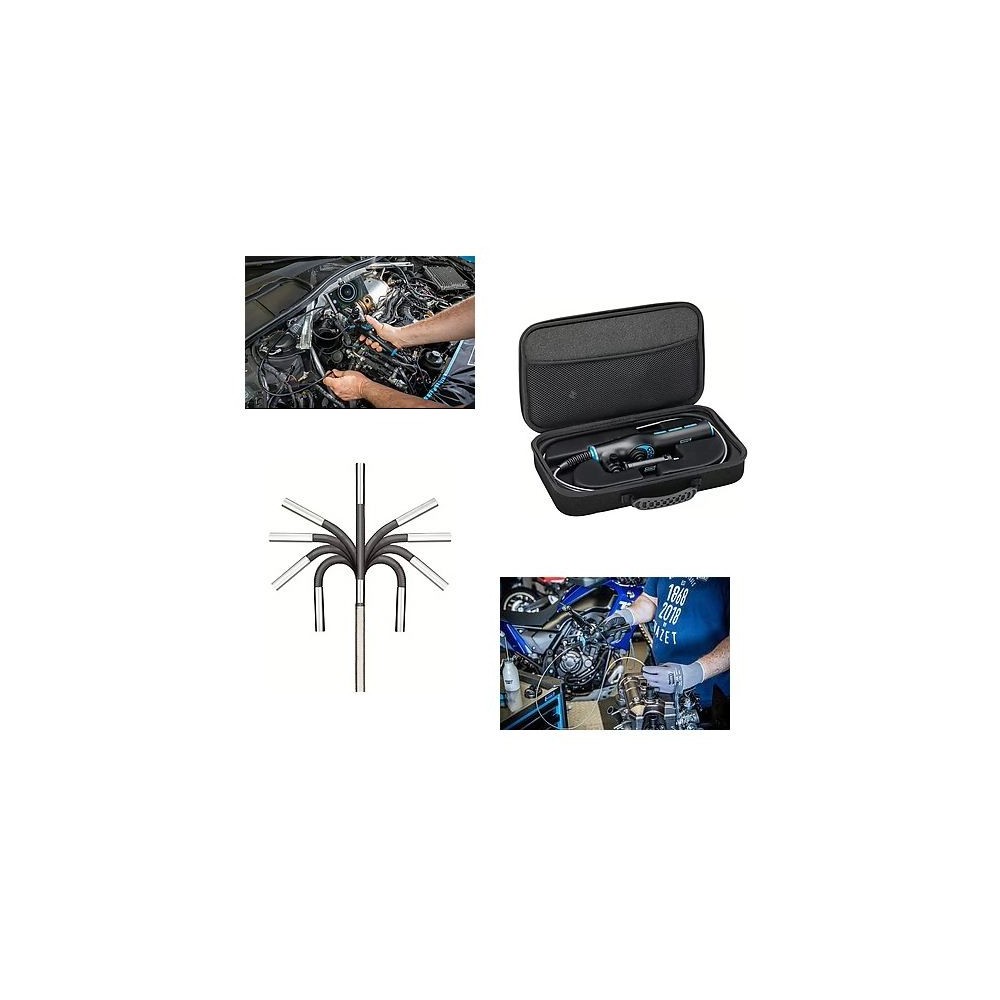

The Hazet 4812-24/4AF system is designed for professionals who require clear, detailed vision in extremely small spaces. The 1-meter HD probe , protected by a spring-loaded steel tube, offers 180° axial and 360° radial articulation, allowing the camera to be pointed in any direction with smooth joystick control.
Advanced Automotive Applications
- Diesel Injector Inspection: The diameter of only 3.9 mm allows direct insertion into the injector ducts to evaluate the combustion chamber, cylinder head and carbon deposits.
- Cylinder Analysis: Viewing the walls, piston crown and any scoring or anomalies.
- Valve Inspection: The orientable probe allows you to inspect seats, guides and levers without invasive disassembly.
Technology and Smart Functions

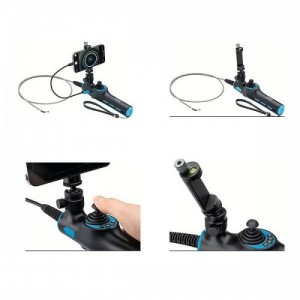

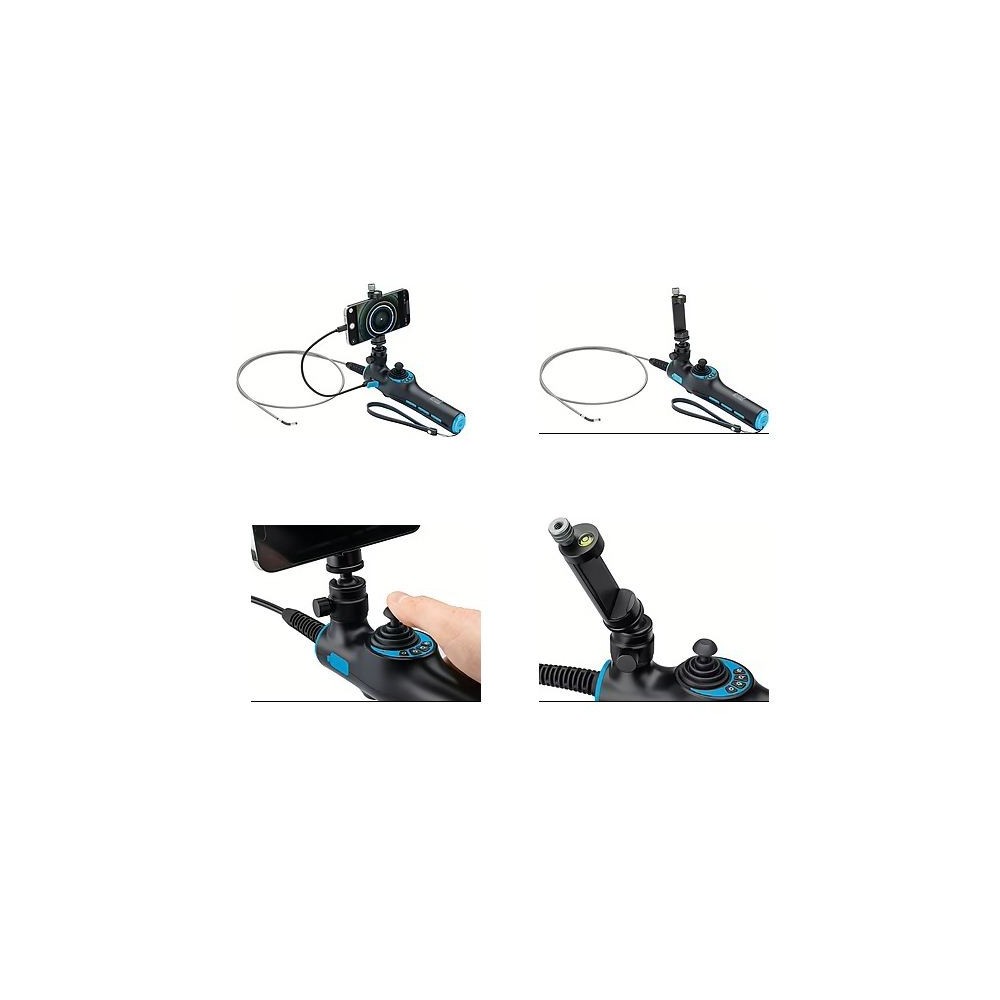

- Smartphone Viewing: Adjustable stand (58–100mm) to use your phone’s display as an HD monitor via Lightning, USB-C, or Micro-USB cable.
- LED lighting: High-power white LEDs (6000–8000 Lux) adjustable in 3 levels to eliminate glare and illuminate interior metal surfaces.
- Dedicated App: 5x zoom, image rotation, temperature monitoring and complete probe management (Android/iOS).
- Built-in Security: Thermal sensor with alarm and auto power off to protect the camera from excessive heat.
- Professional Documentation: JPEG photos and MP4 videos up to 1280×720 pixels saved directly to your smartphone.
Areas of Application
- Mechanics and Automotive: Diagnosis of cylinders, valves, injectors and internal engine components.
- Industry and Plant Engineering: Inspection of pipes, exchangers, structural cavities and complex systems.
- Professional Maintenance: Quick and precise inspections in any hard-to-reach area.
Technical Specifications
- Probe diameter: 3.9 mm
- Probe length: 1 meter
- Articulation: 180° axial, 360° radial
- Resolution: 1280 × 720 pixels (HD)
- Illumination: White LEDs 6000–8000 Lux
- Degree of protection: IP67 (probe), IP54 (handle)
- Battery: Replaceable Li‑ion 3350 mAh, battery life ≥ 2 hours
The set includes: base unit with probe, charging cable, data cables (Lightning, USB-C, Micro-USB) and professional soft case.
4812-24/4AF
The Hazet 4812-24/4AF HD video endoscope is the professional tool of choice for automotive and industrial diagnostics. Its ultra-thin 3.9 mm probe , fully articulated 360° via joystick, allows you to explore extremely narrow cavities such as diesel injector chambers , cylinders, and valves with pinpoint precision. Thanks to smart smartphone integration and a dedicated app, every inspection becomes a documentable, fast, and accurate HD analysis , ideal for identifying wear, deposits, and damage without complex disassembly.
