150 MM X 22.23 MM 3M™ CUBITRON™ 3 VARIOUS GRITS (CF 20 PCS) 1169F T29 CONICAL FLAP DISC

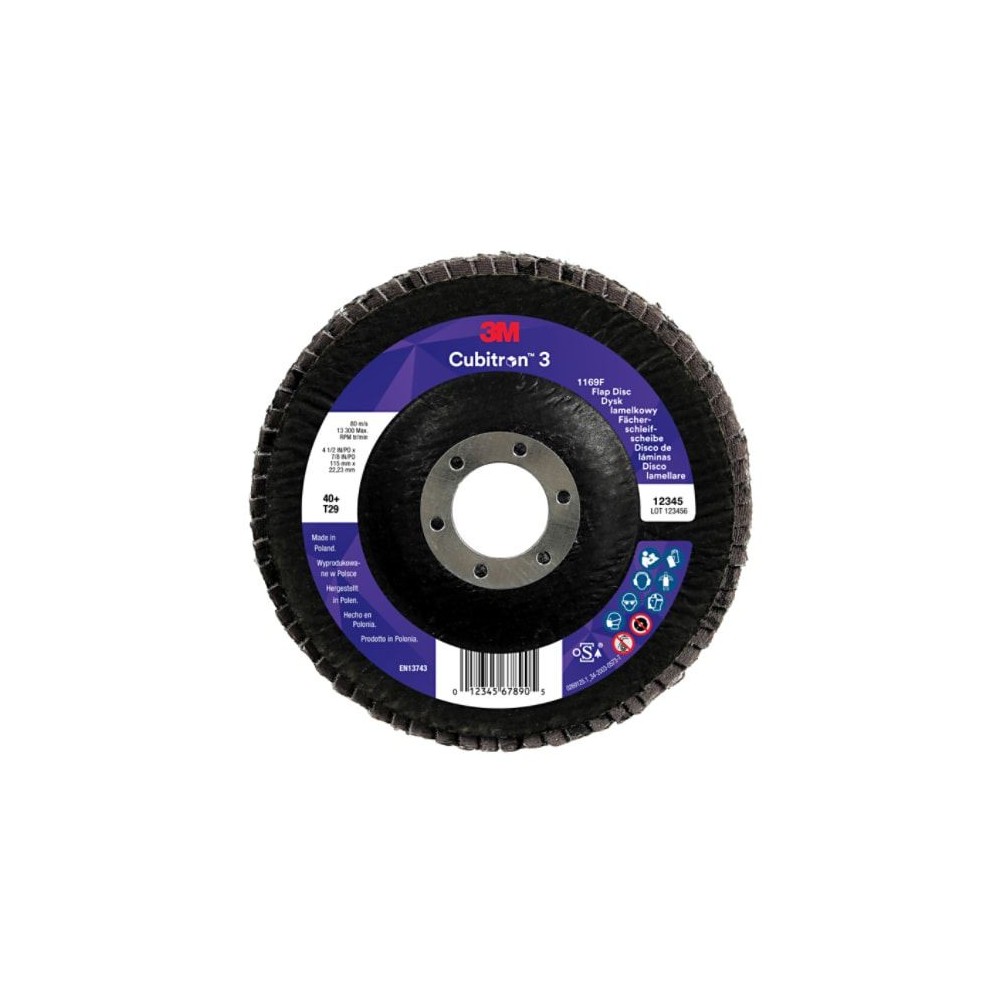

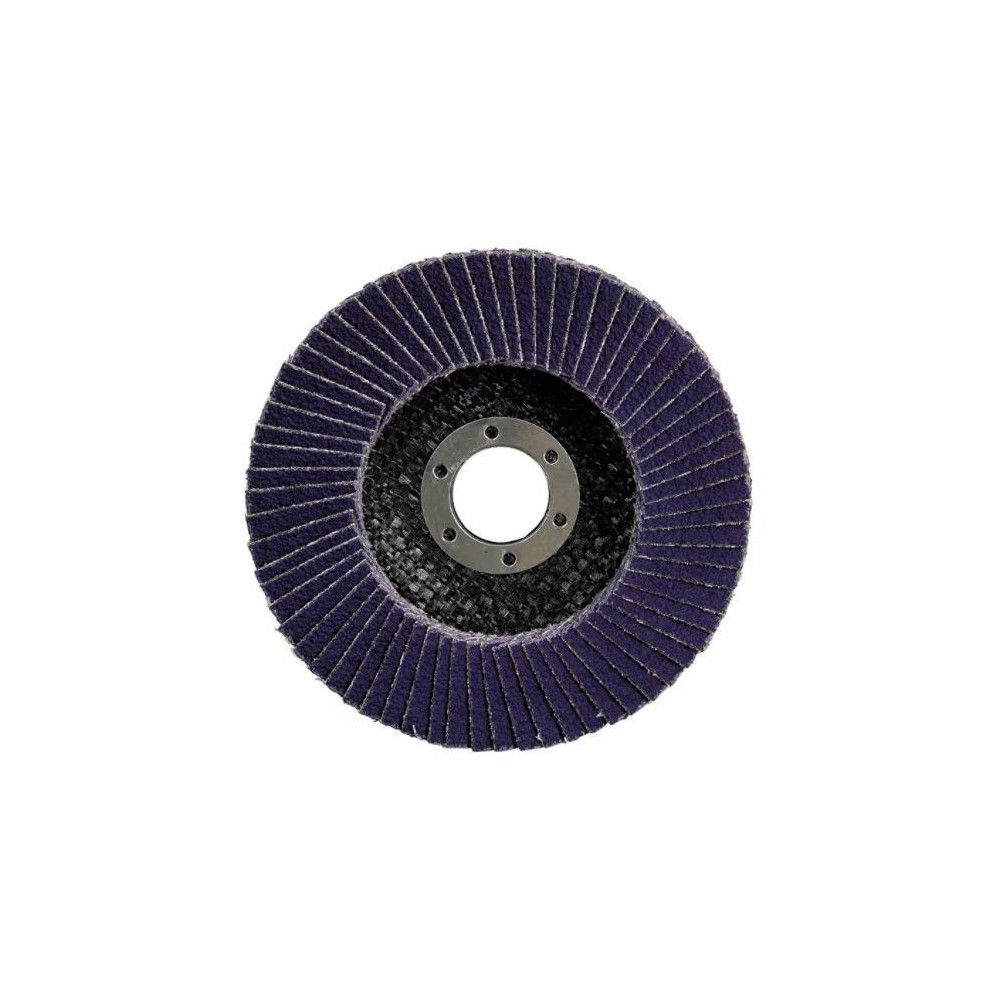

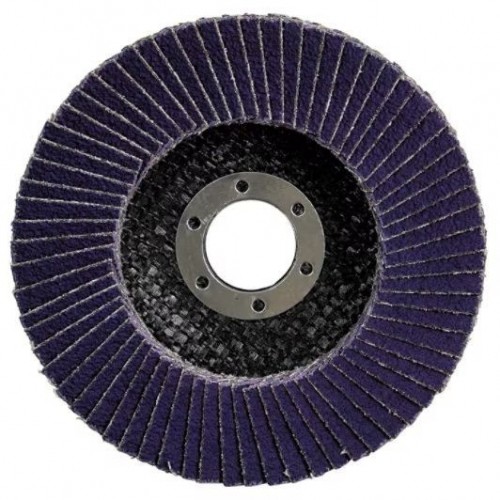

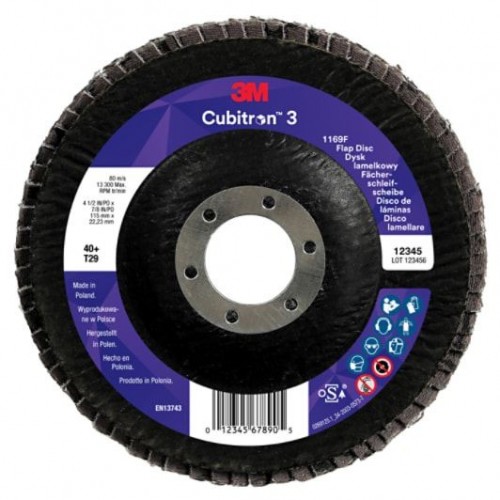

3M™ Cubitron™ Flap Disc 3 1169F – Ø 150 mm, Conical (T29)

The 3M™ Cubitron™ 3 Disc 1169F in the 150 mm format is a professional, ultra-high-performance abrasive, specifically developed for medium- and high-pressure industrial applications. Its advanced design combines the versatility of a flap disc with the removal power of next-generation Cubitron™ technology.

Technological Innovation and Performance

• Re-engineered Precision-Shaped Grain: The patented ceramic grain features curved edges that continuously fracture into sharp points. This allows for clean cuts into metal rather than plowing through it, reducing friction and heat buildup.
• Class-leading stock removal: Tests show this disc removes up to 49% more material than the Cubitron™ II 969F and up to 66% more than the 769F series (based on grit 40+).
• Consistent Cutting and Extended Life: The blades gradually wear down, always exposing new sharp mineral, ensuring a high cutting speed for the entire life of the disc, which can be up to 10 years from the date of manufacture.
• Conical Design (Type 29): Optimized to maximize surface contact in angled machining, facilitating chamfering and grinding of complex weld seams on large plates.

Technical Specifications

• Overall Diameter: 150 mm.
• Center Hole Diameter: 22.23 mm.
• Disc Profile: Type 29 (Conical).
• Abrasive Material: Precision Shaped Ceramic (PSG).
• Backing: Ultra-strong Y-weight polyester.
• Maximum Speed: 10,000 rpm (RPM).

Grana Variants and Identification Data

The 1169F 150 mm model is available in the following grits to cover every production need:

• Grit 40+: For heavy grinding and fast stock removal (3M ID: 7100379505 | EAN: 00068060117472).
• Grit 60+: For deburring and surface preparation (3M ID: 7100379770 | UPC: 00068060117687).
• Grit 80+: For finishing, masking and removing imperfections (3M ID: 7100401211 | EAN: 04064035201661).

Recommended Applications

Designed for industries such as shipbuilding, railways, aerospace and heavy metal fabrication:

• Grinding of large welds and grinding of plates;
• Edge chamfering and heavy deburring;
• Removal of scale and preparation for painting;
• Machining of stainless steel, carbon steel and heat-sensitive alloys.

Technical Tip: The 1169F disc produces a finer finish than a fibre disc of the same grit, often eliminating intermediate steps and completing the grinding and finishing in one operation.
