180 MM X 22.23 MM 3M™ CUBITRON™ 3 VARIOUS GRITS (CF 20 PCS) 1169F T27 FLAT FLAP DISC

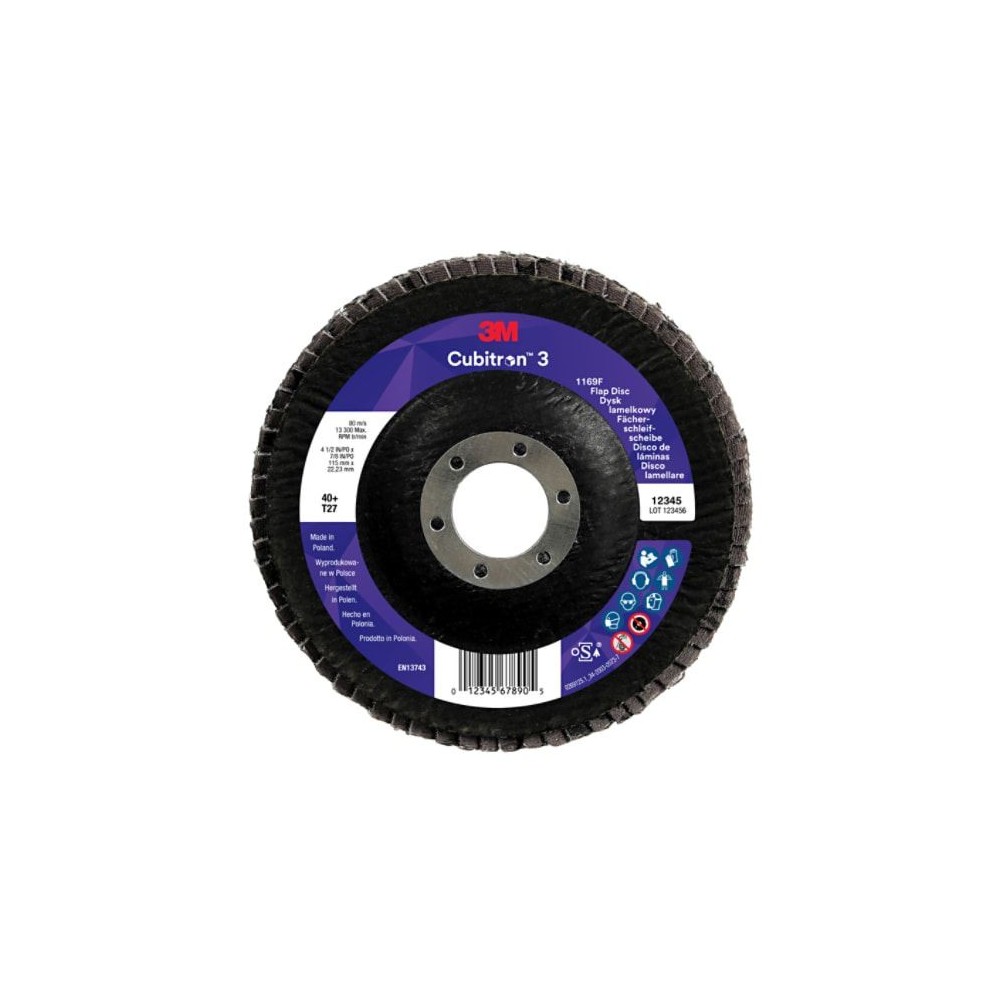

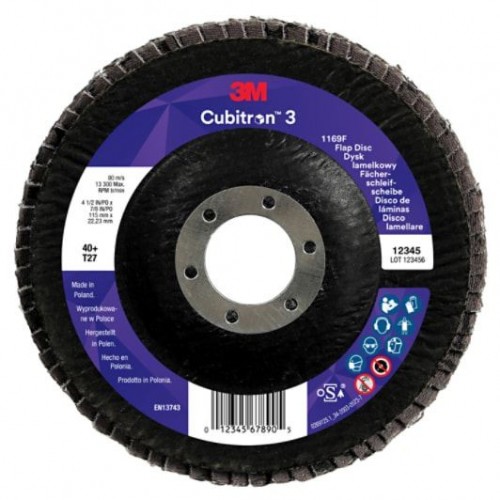

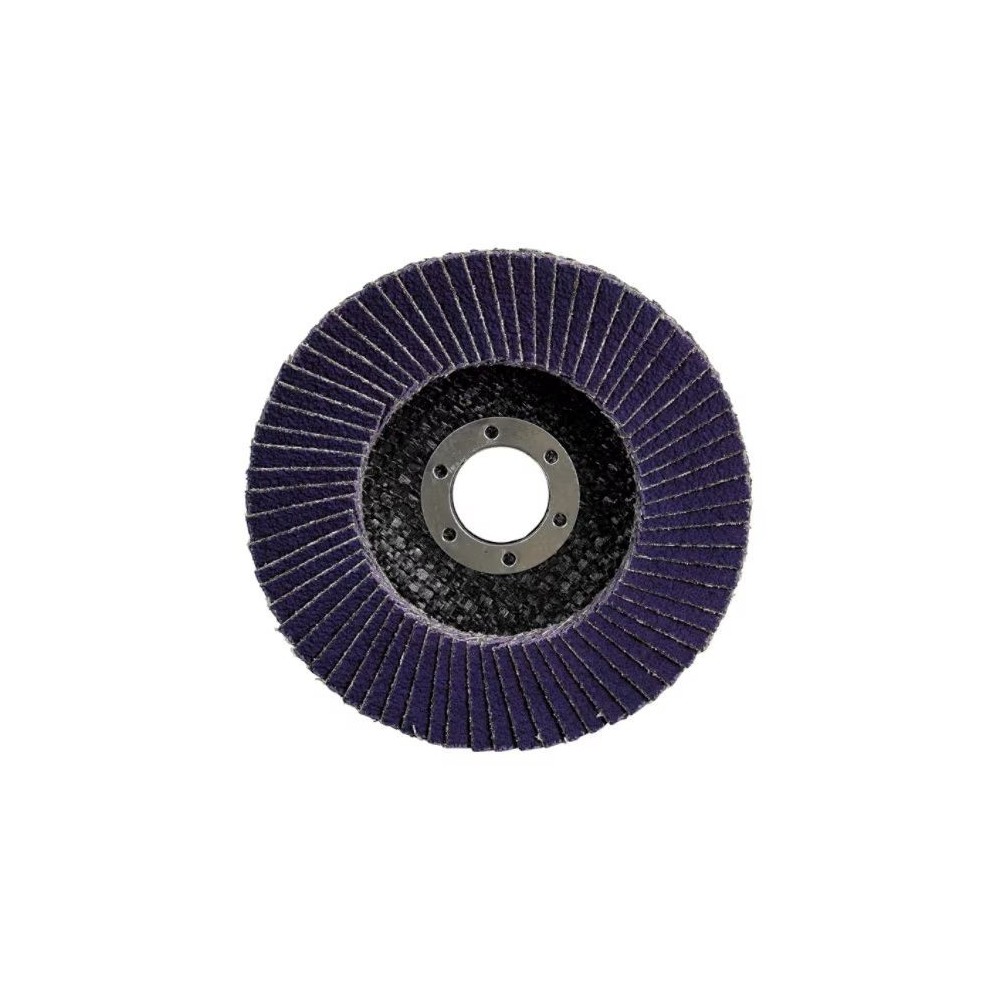

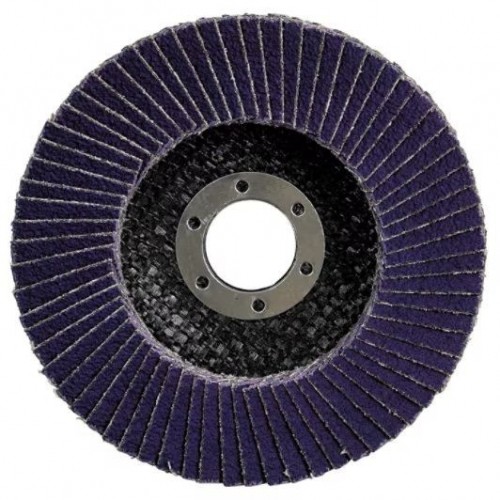

3M™ Cubitron™ Flap Disc 3 1169F – Ø 180 mm x 22.23 mm

The 3M™ Cubitron™ 3 Disc 1169F (180 mm format) is a professional, ultra-high-performance abrasive, designed for heavy-duty removal on high-powered angle grinders. Its Y-type heavy-duty polyester backing ensures maximum mechanical strength even under high pressure.

Next Generation Abrasive Technology

• Re-engineered Precision-Shaped Grain: Patented curved-sided ceramic grain fractures in a controlled manner, creating consistently sharp tips that cleanly cut metal instead of tearing it.
• Record Stock Removal: Removes up to 49% more material than the Cubitron™ II 969F series and up to 66% more than the 769F model (based on grit 40+).
• Cool and Constant Cutting: The blades gradually fragment exposing new mineral, maintaining a high and constant cutting speed throughout the life of the disc, reducing thermal stress on the workpiece.
• Optimal Finish: Despite its aggressiveness, it generates a finer finish than a fibre disc of the same grit, ideal for preparing for painting.

Technical Specifications

• Overall Diameter: 180 mm.
• Center Hole Diameter: 22.23 mm.
• Profile: Type 27 (Flat).
• Abrasive Material: Precision Shaped Ceramic (PSG).
• Backing: Y-Weight Polyester.
• Maximum Speed: Optimized for angle and vertical grinders.
• Technical Expiry: 3650 days (10 years) from the date of production.

Available Variants (Identification Data)

The 180mm 1169F model is available in the following grits:

• Grit 40+: For heavy grinding and fast weld removal (3M ID 7100379357 | EAN 00068060117496).
• Grit 60+: For deburring and surface preparation (3M ID 7100402424 | EAN 04064035201685).
• Grit 80+: For finishing, masking and removing imperfections (3M ID 7100402444 | EAN 04064035201692).

Recommended Applications

Designed for the shipbuilding, railway, aerospace and large container manufacturing industries:

• Grinding and grinding of large welds;
• Edge chamfering and heavy deburring;
• Removal of scale and preparation for painting;
• Work on edges, contours and large flat areas.

Technical Tip: Using the 180mm format maximizes the contact surface, making the 1169F exceptionally efficient in face milling large sheets and metal structures.
