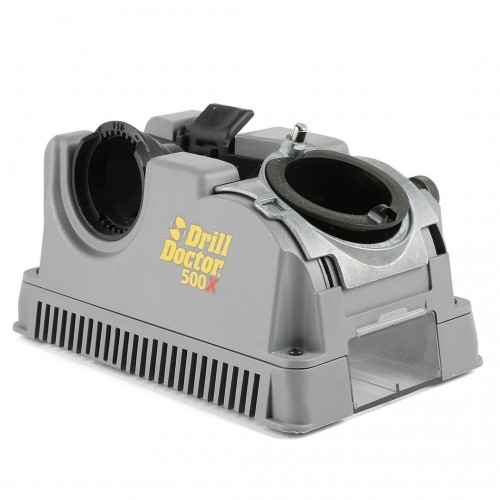

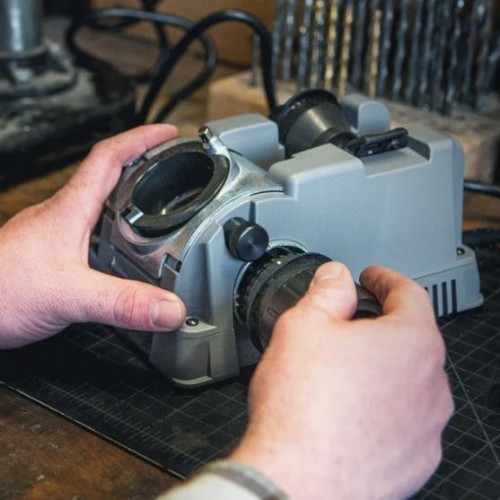

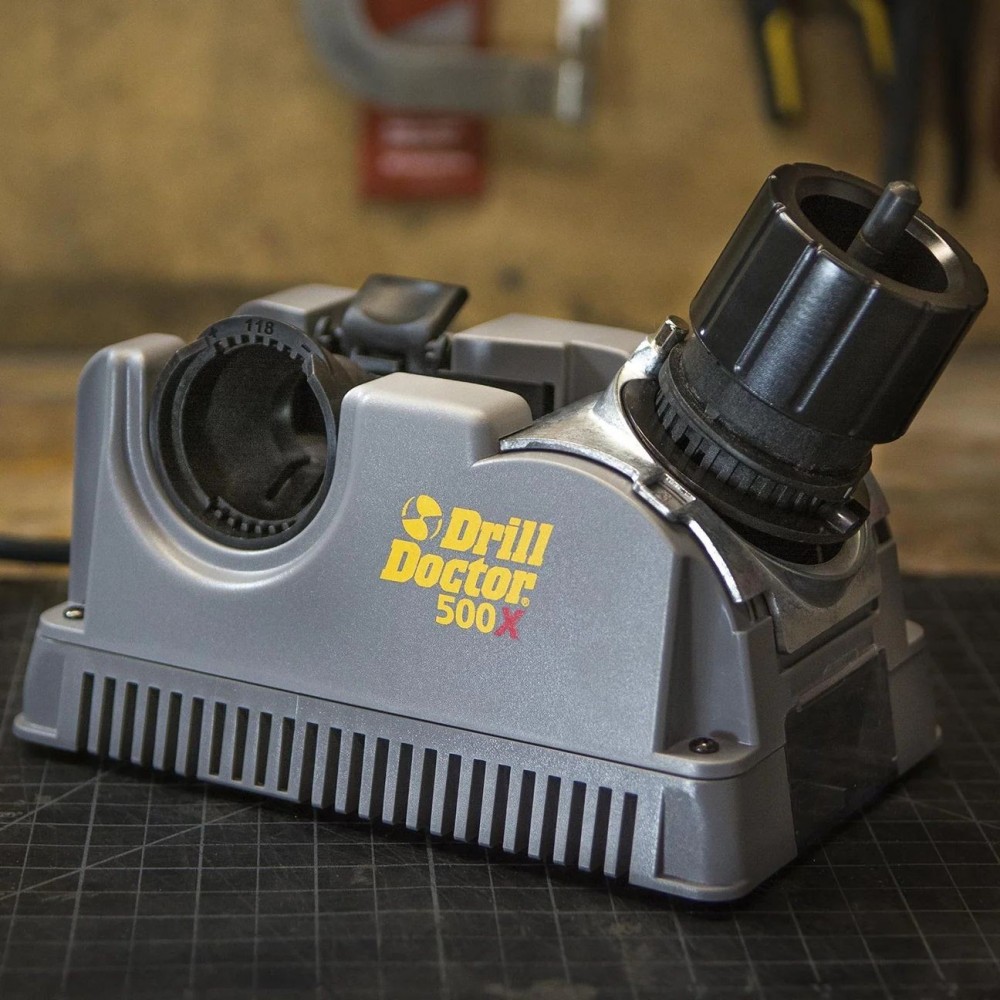

500X SEMI-PROFESSIONAL DRILL SHARPENER DRILL DOCTOR

The Drill Doctor 500X (Art. DD500XIBMD) is the ideal drill sharpener for semi-professional use and the advanced hobbyist. Designed to precisely sharpen metal and wood drill bits, it allows you to set the sharpening angle to 118° or 135° . Robust and reliable, it allows you to create self-centering split point drill bits for slip-free drilling even in hard materials.

Here you can find the in-depth video on DRILL DOCTOR DRILL SHARPENER

Shipping cost: Free for
€275.00
224 € Save €51.00
Tax included

224,00 € Tax excluded

Quantity
Last items in stock

Advanced Performance for the Modern Workshop

The 500X model represents the perfect balance between power, precision and ease of use. Designed for semi-professional use , it integrates durable components such as the die-cast aluminum tip angle shuttle, ensuring stability and reliability over time.

Applications and Versatility of Use

  • Standard Applications (118°): Ideal for bits intended for soft metals, wood and general applications.
  • Hard Metals (135°): Optimized angle for tips dedicated to hard metals and resistant steels.
  • Split Point Function: Creates self-centering tips, preventing initial slippage and improving drilling accuracy.

Exclusive Technical Advantages

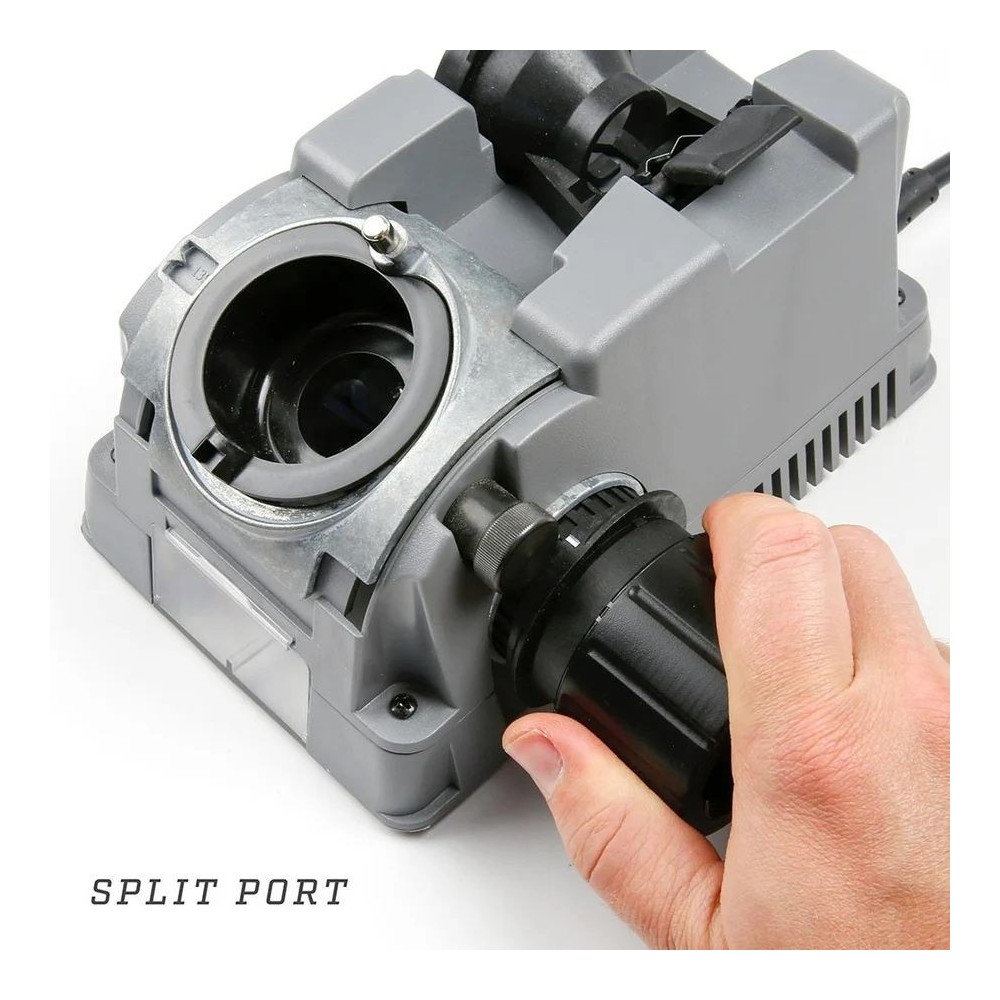

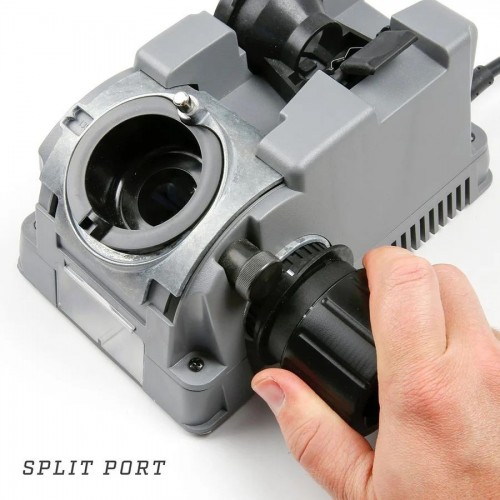

  • Split Point "Push to Stop" Door: System that automatically limits material removal.
  • Permanent Magnet Motor: Ensures constant power even under load.
  • Extended Chuck Jaws: Improves clamping and reduces twisting on small diameter bits.
  • Continuous Adjustment: Allows you to optimize the rake angle and tip relief.

Compatibility and Materials

The Drill Doctor 500X is compatible with a wide range of tools:

  • Materials: HSS, Cobalt, Carbide, TiN-coated, Black Oxide and masonry bits.
  • Dimensions: Sharpens bits from 2.5mm to 13mm (expandable to 19mm with optional DA70100PF chuck).
  • Reverse Twist Drill Bits: Compatible with left-hand drill bits from 2.5 to 13 mm via optional DA02105PF chuck.

Product Specifications

  • Sharpening angles: 118° or 135°.
  • Grinding wheel: 180 grit diamond, replaceable.
  • Power supply: 1.8 meter cable.
  • Warranty: 3 years against manufacturing defects.

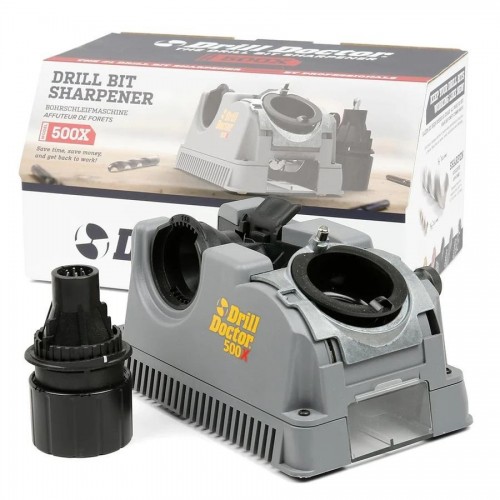

Package Contents

  • Drill Doctor 500X Drill Bit Sharpener
  • 1/2" Chuck (for 2.5mm to 13mm bits)
  • 180 grit diamond wheel (pre-installed)
  • Grinding wheel hub key
  • User Guide

Spare Parts and Optional Accessories

Maximize the performance of your Drill Doctor with original accessories:

  • Standard diamond grinding wheel (180 grit) - Item DA31320GF : Fine-grain precision grinding wheel, ideal for daily sharpening on HSS, Cobalt and Carbide.
  • Chuck for large drill bits (up to 19 mm) - Art. DA70100PF : Accessory included as standard in the 750X, allows you to sharpen drill bits from 13 to 19 mm.
  • Aggressive diamond wheel (Grain 100) - Art. DA31325GF : Ideal for heavy-duty restoration of very blunt or chipped tips.
  • Left-hand chuck for reverse drill bits - Item DA02105PF : For sharpening left-hand twist drill bits from 2.5 to 13 mm.
Drill Doctor is the world leader in drill sharpeners: precision, durability and Split Point technology to restore drill bits with professional quality.
