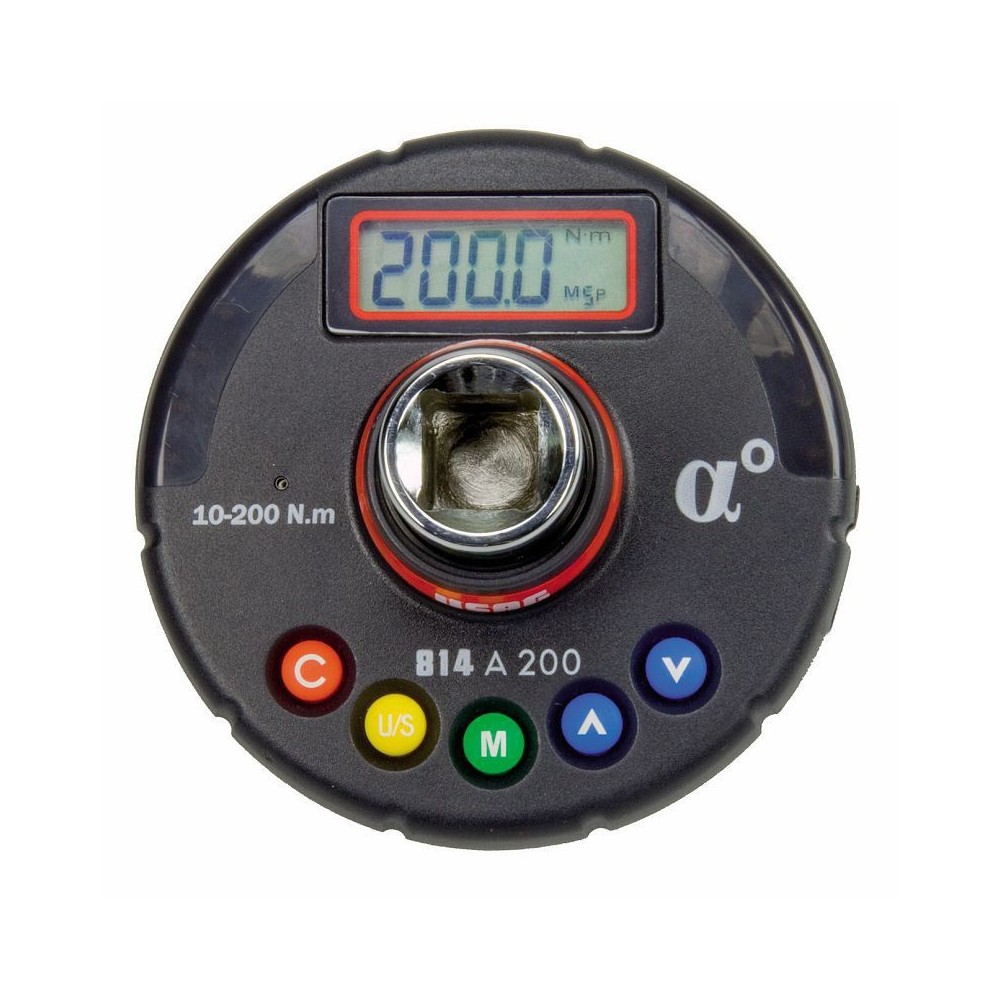

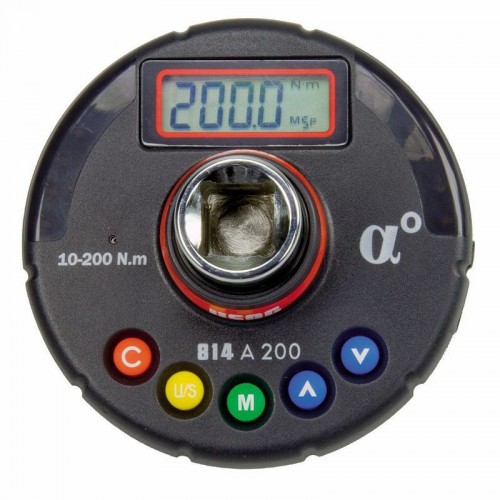

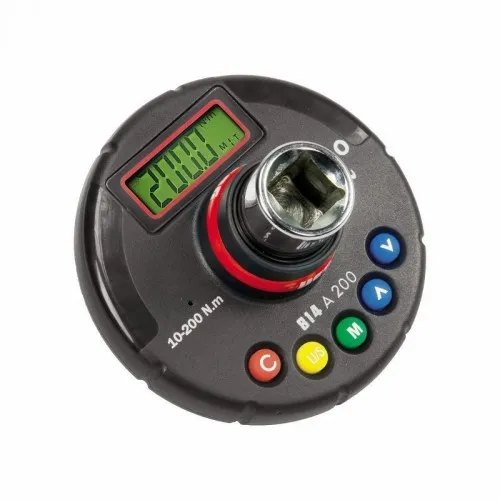

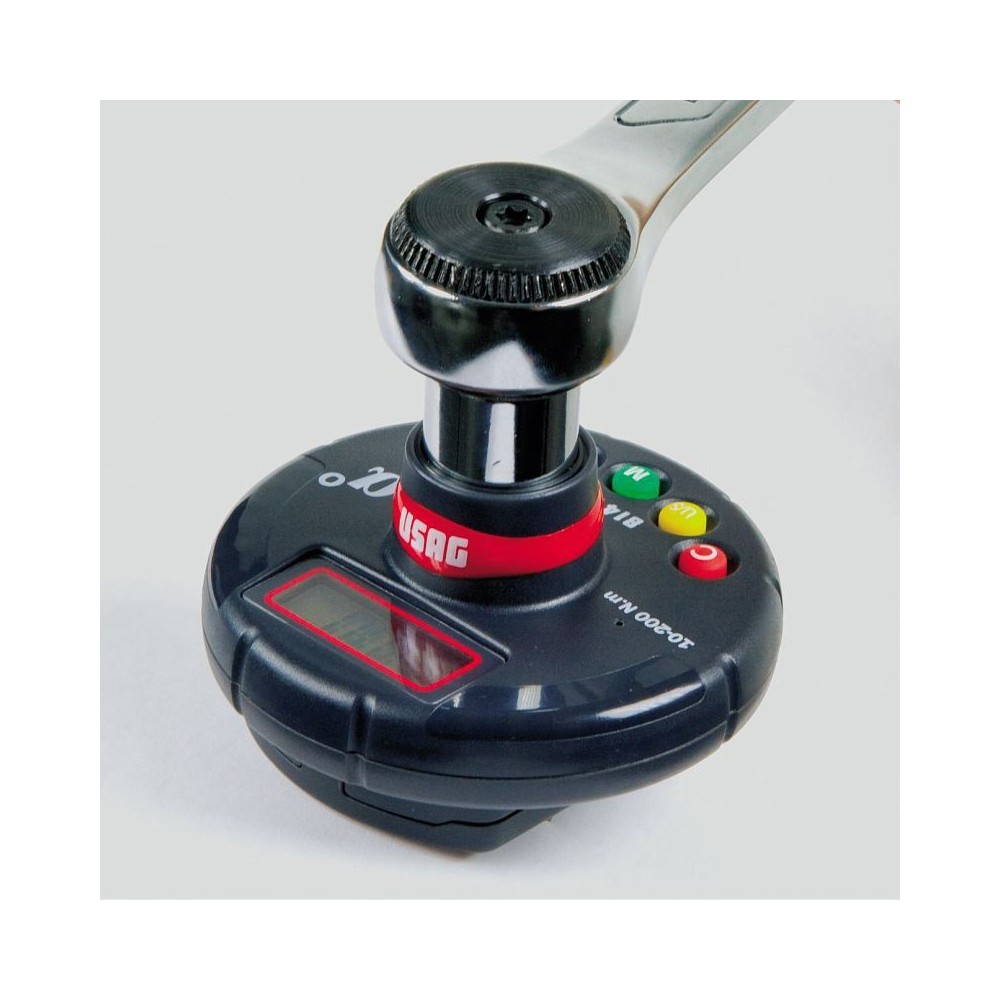

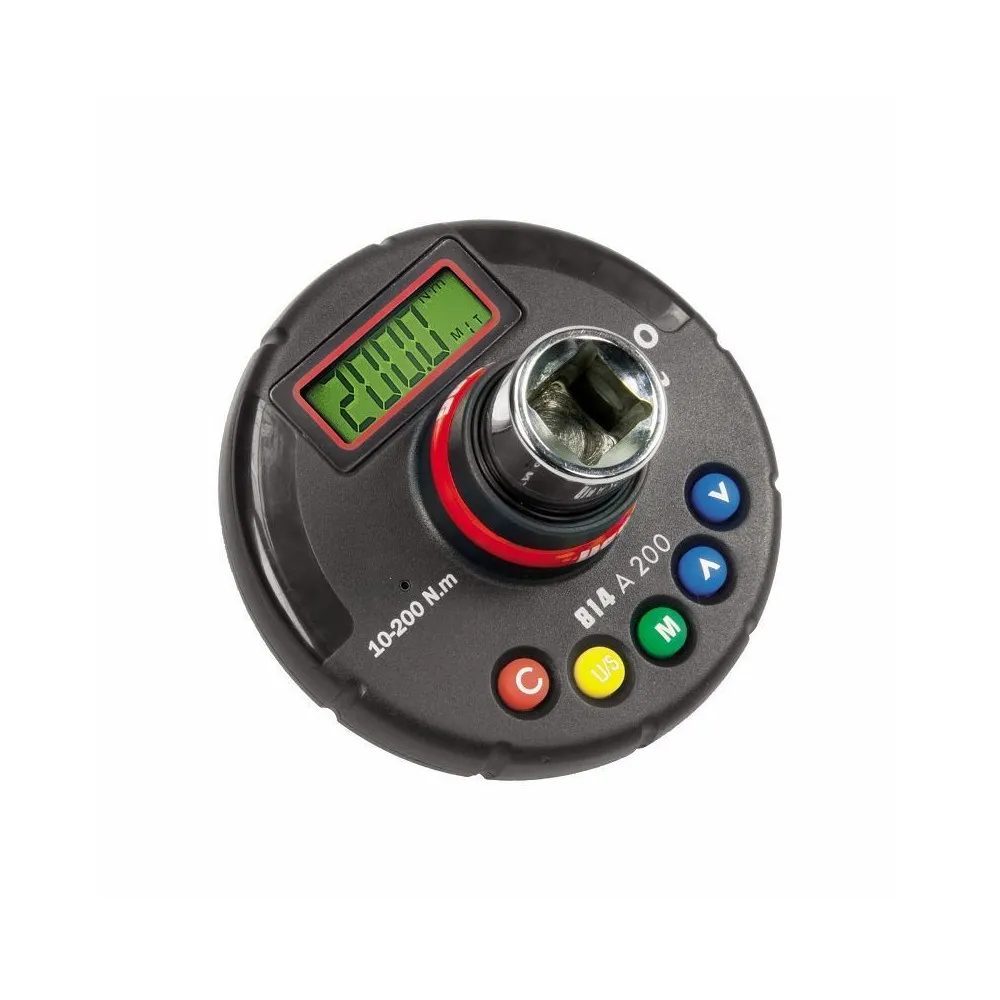

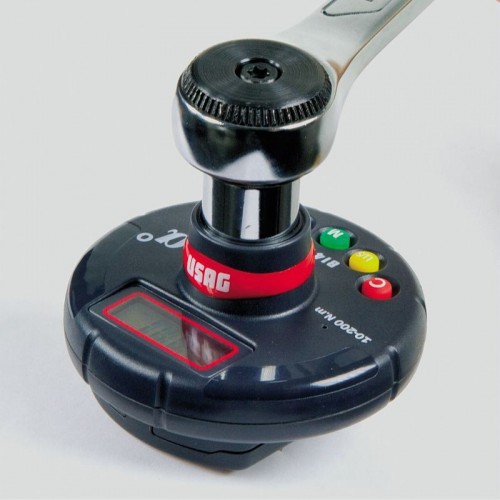

814 A DIGITAL TORQUE-ANGLE DEVICE 10÷200 NM USAG
Transform your traditional tools into precision instruments with the USAG 814 A Digital Torque-Angle Device . Designed for tightening ranges from 40 to 200 Nm and angle control, this digital adapter offers extreme precision (+/- 4% torque, +/- 2% angle). Equipped with a memory for 50 measurements and dual light and sound signals, it is supplied in an ABS case with a calibration certificate for certified professional results.
Shipping cost: Free
for
Digital Precision for Every Tool: USAG 814 A
The USAG 814 A device (code U08140004) is an advanced electronic adapter that allows you to perform torque and angle tightening with digital precision using traditional hand tools. With an operating capacity ranging from 40 to 200 Nm , it represents the ideal solution for those who require high accuracy without having to invest in multiple specialized torque wrenches.
Control and Measurement Technology
- Dual Torque Mode: Monitors both torque and rotation angle, ensuring compliance with the most stringent specifications.
- Certified Accuracy: Offers torque accuracy of +/- 4% of set value and angular accuracy of +/- 2% .
- Immediate Feedback: Reaching the target value is signaled by a double indication : a bright LED and an acoustic signal (buzzer).
- Unit Versatility: Allows you to display readings in multiple units of measurement, including Nm, ft.lb, in-lb, kg.cm, and degrees.
Advanced Features and Convenience
The device is designed to optimize the workflow in the workshop thanks to integrated data management functions:
- Built-in Memory: Can store up to 50 measurements for later reference.
- Preset Values: Up to 9 torque or angle values can be configured for quick recall during repetitive operations.
- Reading Mode: Supports "peak" mode to display the maximum value reached and "track" mode for real-time monitoring.
Construction and Equipment
The device is housed in a sturdy ABS case that protects it from accidental bumps and falls. It comes complete with everything needed for immediate use:
- Calibration Certificate: Document certifying the instrument's accuracy according to international standards.
- Power supply: Works with 2 AAA batteries included in the package.
- Compact Design: With a diameter of 80 mm, it integrates perfectly into the maneuver line without taking up excessive space.
Technical Data
- Tightening capacity: 10 ÷ 200 Nm.
- Male square drive: 1/2".
- Resolution: 0.1 Nm.
- Diameter (Ø): 80 mm.
