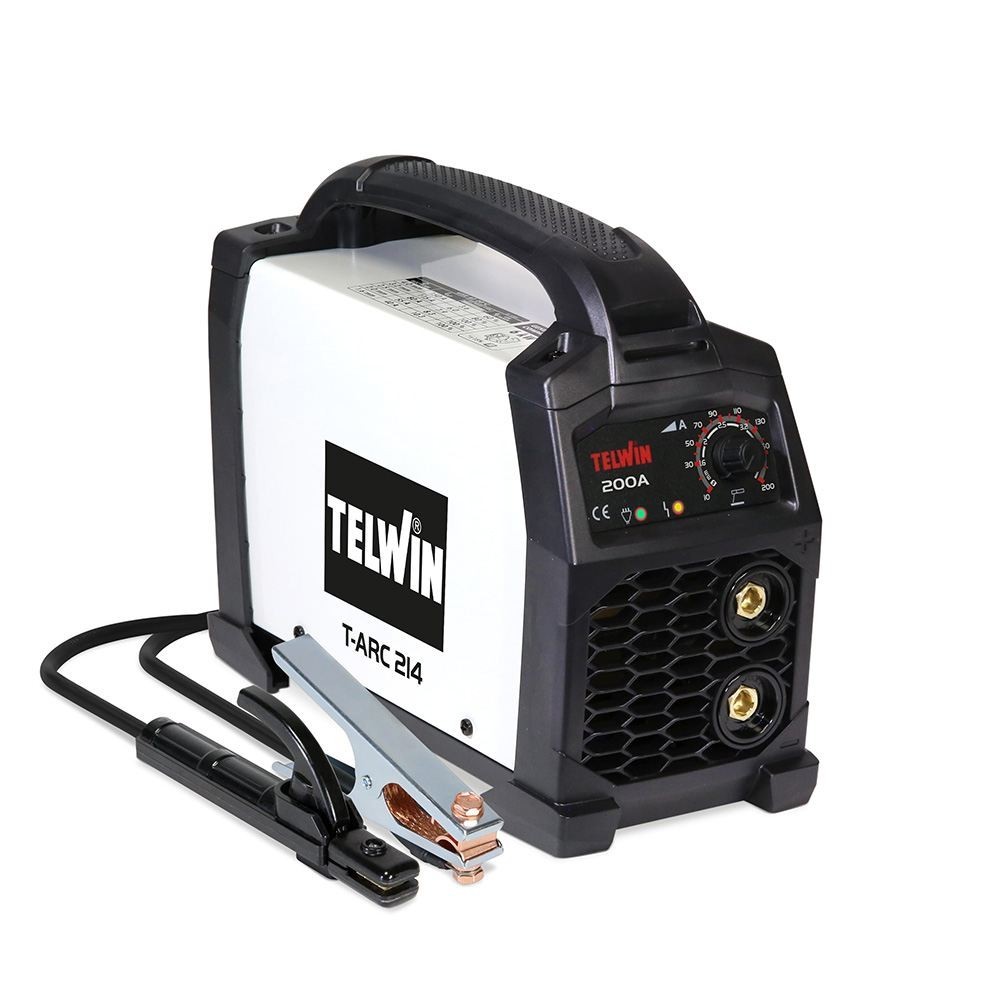

816993 TELWIN T-ARC 214 230V AND ACC ELECTRODE WELDING MACHINE

The maximum power of the Elements line for your most ambitious projects! The Telwin T-ARC 214 (code 816993) is the ultimate 200A inverter welder for DIY experts who don't want compromises. Lightweight and incredibly high-performance, it allows welding with electrodes up to 4 mm and offers the flexibility of the TIG process in direct current . Weighing just 4 kg , it contains all the technology necessary to guarantee a stable arc and professional results on steel, stainless steel, and cast iron, making even the most demanding maintenance simple.

Shipping cost: Free for
252,65 €
Tax included

207,09 € Tax excluded

Quantity
Available product, order it now.

Telwin T-ARC 214: Top Performance and Multiprocess Versatility

The T-ARC 214 model represents the top of the Telwin Elements range, offering exceptional power reserves for an advanced hobby-class machine. It is a direct current (DC) inverter generator designed for MMA electrode welding and the TIG process with scratch striking, guaranteeing high flexibility of use with rutile, basic, stainless steel, and cast iron electrodes.

Advanced Arc Control and Intelligent Electronics

Thanks to the integration of advanced electronic devices, the T-ARC 214 facilitates every phase of welding:

  • Arc Force and Hot Start: Systems that optimize arc dynamics and facilitate ignition, ensuring a smooth and uniform bead.
  • Anti-Stick Device: Automatically intervenes to prevent the electrode from sticking to the piece, preserving the integrity of the work and the accessory.
  • Current Stability: The high stability of the welding current allows for precise operation even in the presence of variations in the mains voltage.

Ultra-Compact Design and Reliability

Despite its 200A output capacity, the machine maintains an extremely compact size and weighs only 4 kg , making it easily transportable wherever it is needed. It features comprehensive internal protection (thermostatic, overvoltage, undervoltage, overcurrent) and is fully compatible with motor generators , supporting voltage variations of +/- 15%.

Main Technical Specifications

  • Product code: 816993.
  • Current regulation range: 10 - 200 A.
  • Duty cycle (%USE at 20°C): 75% @ 200A.
  • Usable electrode diameter: from 1.6 to 4 mm.
  • Energy efficiency: 84%.
  • Compact size: 29.8 x 12.8 x 23.5 cm.

Equipment Included

The welder is supplied ready for use, complete with an accessory kit for MMA welding.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
