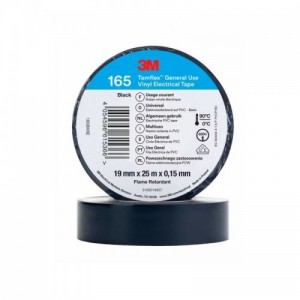

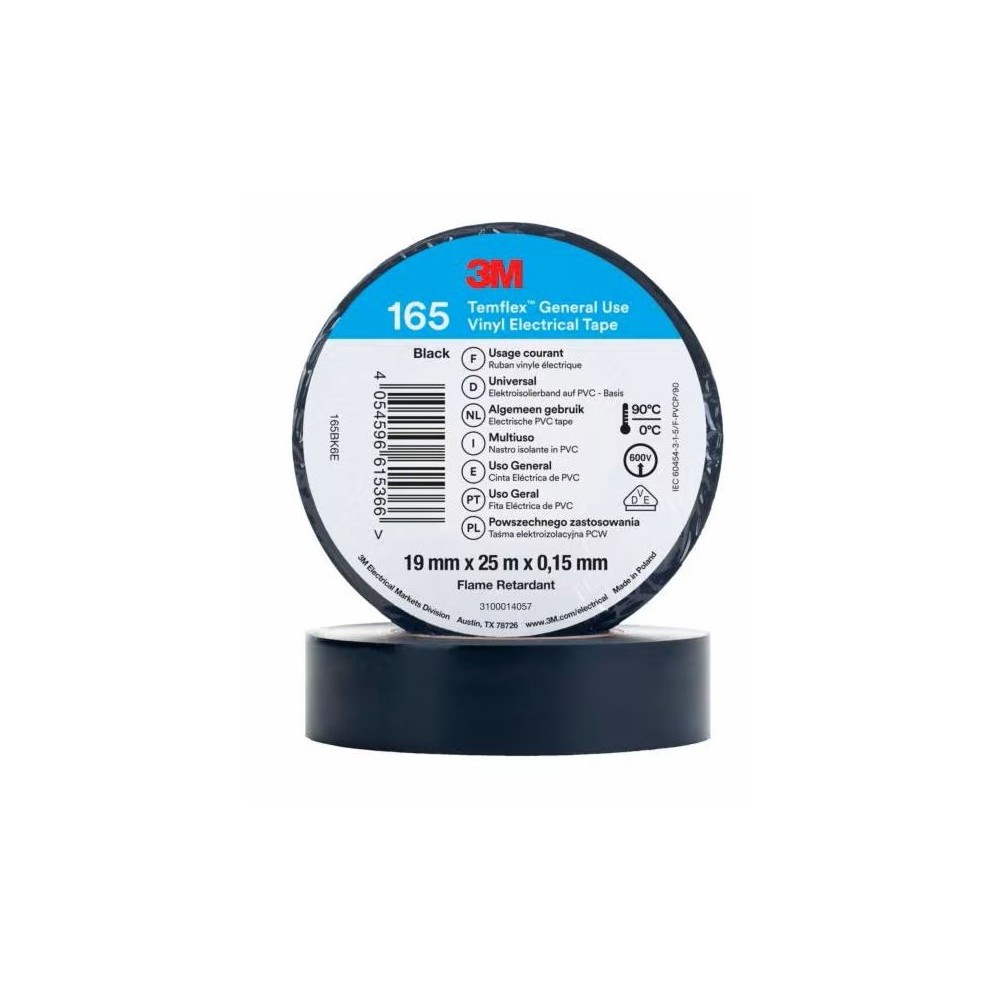

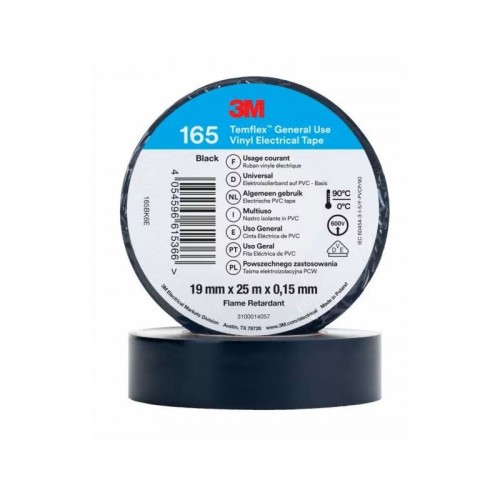

165 BLACK VINYL ELECTRICAL TAPE 19 MM X 25 M TEMFLEX 3M CF 10 PCS

Protection and Reliability for Electrical Installations

3M™ Temflex™ Tape 165 (3M ID 7100184810) is a high-quality, multipurpose tape with a thickness of 0.15 mm . Designed to offer consistent performance in sealing and protecting conductors, this product stands out for its ability to operate effectively over a wide temperature range, from 0°C to 90°C . Its advanced formulation is designed to inhibit corrosion of electrical conductors, ensuring safe and long-lasting insulation.

Multidimensional Resistance

This electrical tape is engineered to withstand the most common challenges in the workplace:

• Chemical Agents: Resistant to acids, alkalis and common solvents, as well as mechanical abrasion.
• Environmental Factors: Designed to maintain an excellent seal even in the presence of humidity.
• Fire Safety: PVC support with flame retardant properties for greater protection of the systems.

Technical Advantages and Sustainability

• Eco-Friendly Production: Made with an innovative 100% solvent-free process, which allows for reduced emissions compared to standard production methods.
• High Flexibility: With a 200% elongation at break, it easily conforms to irregularly shaped joints.
• International Certifications: Product compliant and certified according to UL, CSA and VDE standards, ensuring compliance with global safety standards.
• Mechanical Performance: Offers excellent mechanical protection with the use of minimal quantities of product.

Technical Specifications

• Dimensions: Width 19 mm, Length 25 m.
• Total thickness: 0.15 mm.
• Backing material: Polyvinyl chloride (PVC).
• Dielectric strength: 40 kV/mm.
• Insulation resistance: > 10^11 ohms.

Examples of use

Thanks to its increased 19 mm width and 25-meter roll length, Temflex 165 is perfect for primary insulation of cables up to 600V, for repairing damaged outer sheaths, or for wrapping and protecting connectors. Its excellent conformability also makes it excellent for wrapping components subject to vibration or mechanical stress, while maintaining a compact and clean profile. It is the essential component for any medium- to large-scale professional electrical work.
