PROXXON GRINDING WHEELS AND DISCS – CORUNDUM FOR STEEL, CAST IRON AND HSS

The Proxxon aluminum oxide (corundum) grinding wheels and discs are designed for grinding, deburring and finishing steel , cast iron and non-ferrous metals . Thanks to their hardness and stability, they are also suitable for small operations on high-speed steels (HSS) .

The range includes variously shaped grinding wheels and reinforced abrasive discs for light cutting, as well as non-woven discs for fine deburring. All tools have a 2.35 mm shank , compatible with Micromot rotary tools.

Shipping cost: €10.00 for
2,92 €
Tax included

2,39 € Tax excluded

Choose
Quantity
Available product, order it now.

Corundum Grinding Wheels and Discs for Steel, Cast Iron and HSS

The Proxxon series of aluminum oxide grinding wheels and discs offers complete solutions for grinding, sharpening, deburring and finishing steel , cast iron and non-ferrous metals . Corundum ensures controlled material removal and good wear resistance, making these tools also suitable for light operations on high-speed steels (HSS) .

Abrasive Wheels – 2.35 mm Shank

For grinding, sharpening and shaping metal surfaces.

Code Form Dimensions Applications
28772 (5 pcs) Spherical Ø 5 mm For deburring and precision machining.

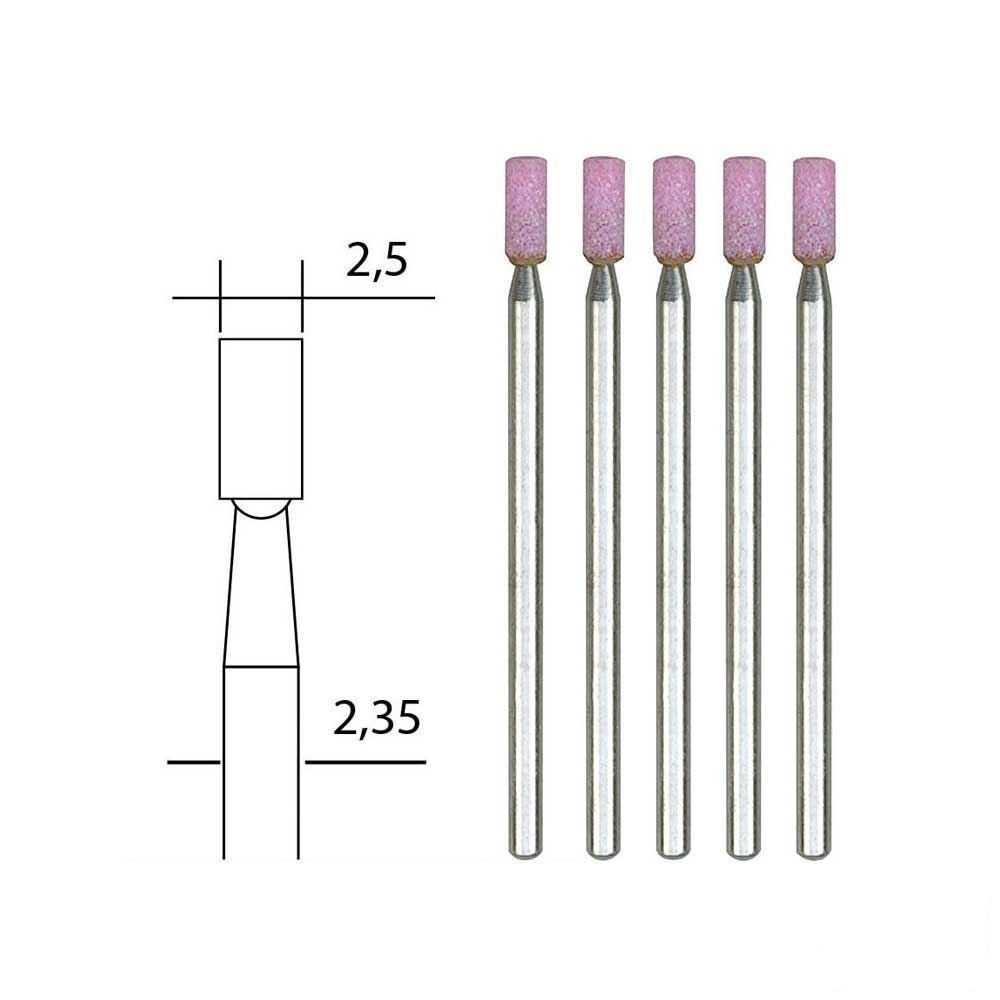

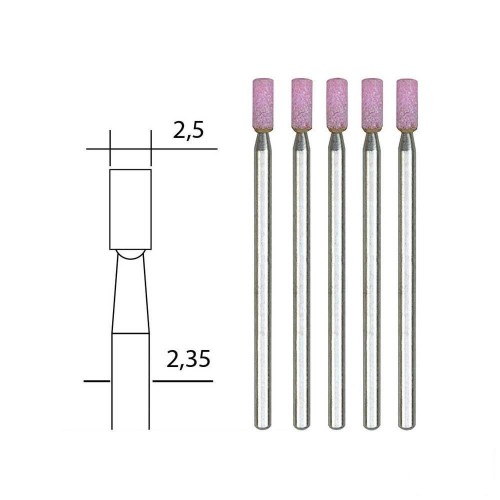

28774 (5 pcs) Conical Ø 2.5 mm For corners, edges and holes.
28776 (5 pcs) Cylindrical wheel Ø 6 mm For flat surfaces and grooves.
28778 (5 pcs) Rounded edge wheel Ø 7 mm For curved connections and modeling.

Reinforced Cutting Discs – 2.35 mm Shank

Proxxon abrasive discs are fiber-reinforced to ensure stability and precision when cutting steel, cast iron, and non-ferrous metals. The range includes three different geometries, designed to adapt to specific cutting and deburring needs.

Code Geometry Dimensions Applications
28781 (3 pcs) Conical Ø 13 mm For fine cuts and light deburring, ideal for getting into difficult places.
28783 (3 pcs) Dish Ø 13 mm For deeper and more linear cuts thanks to the flat surface.
28782 (3 pcs) Spherical Ø 9 mm For precision cutting and micro-deburring on small components.

Deburring Disc – 2.35 mm Shank

Code Type Dimensions Applications
28302 (10 pcs) Non-woven disc Ø 22 mm Removal of light burrs and oxidation.

Directions for Use

  • Use high speeds for good abrasive performance.
  • Apply light pressure: it is the abrasive that has to do the work.
  • Wear eye protection when cutting.
  • For maximum precision, use Micromot 28940 collets .
Proxxon offers professional tools for micro-machining: MICROMOT system, lathes, milling machines, bench saws and precision accessories. European quality for workshops, laboratories and fine mechanics.

PROXXON: PRECISIONE PER MODELLISMO, MICROMECCANICA ED ELETTRONICA

Proxxon è un marchio specializzato in utensili di precisione per modellismo, micromeccanica, elettronica, laboratorio e tutte le lavorazioni di dettaglio che richiedono accuratezza millimetrica. I suoi strumenti sono progettati per artigiani, tecnici, modellisti e professionisti che operano su componenti piccoli e delicati.

La gamma comprende mini trapani, fresatrici, torni da banco, seghe da precisione, utensili rotativi e sistemi completi per micro-lavorazione. Le diverse linee si distinguono per motori silenziosi, controllo elettronico della velocità, stabilità strutturale e precisione costante, ideali per lavorazioni continue e ad alta accuratezza.

Proxxon è riconosciuta per qualità costruttiva, affidabilità e specializzazione tecnica, con strumenti progettati per garantire risultati impeccabili nelle micro-lavorazioni. I professionisti scelgono Proxxon per la precisione, il controllo e la capacità di eseguire lavori complessi con finitura perfetta.



28774

Specific References

ean13
4006274287747
