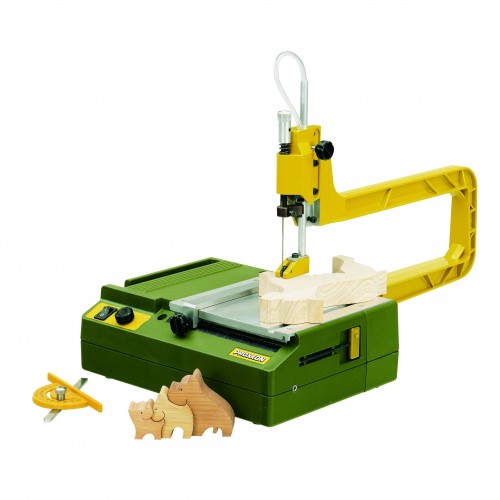

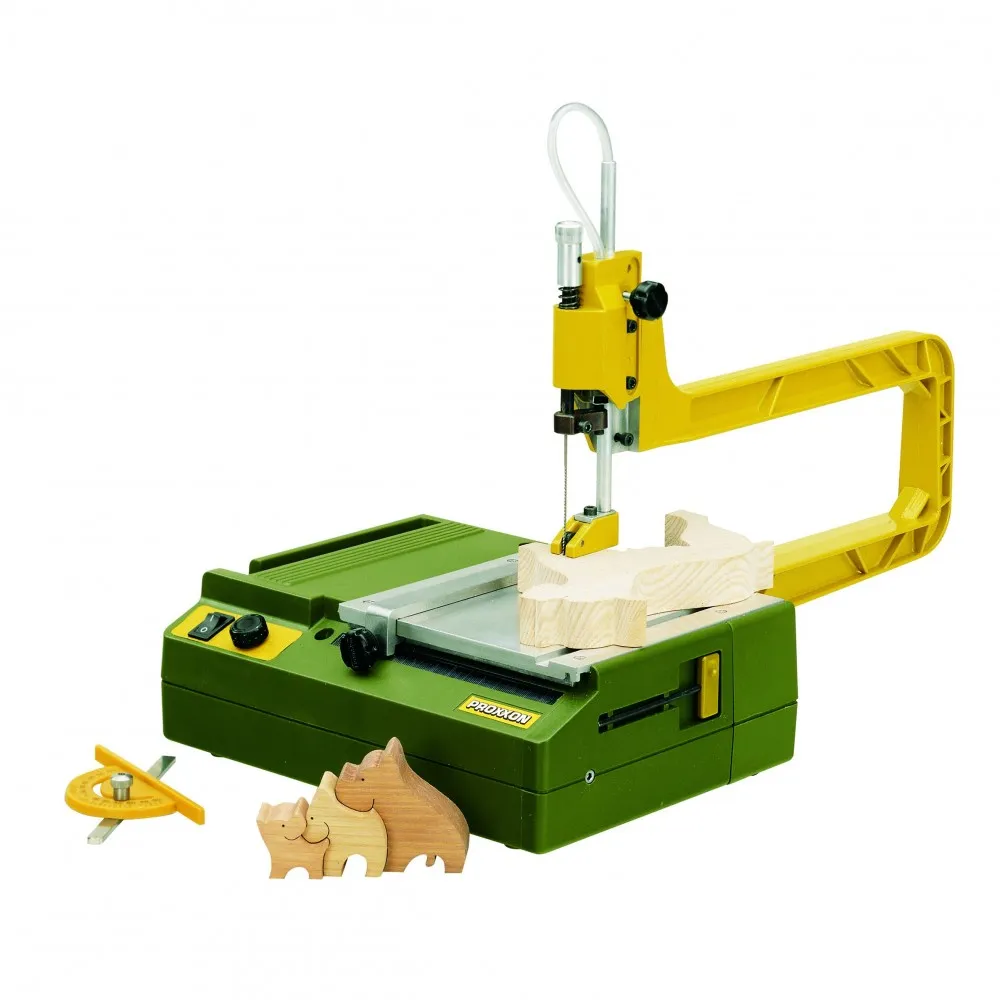

DS 230/E JIGSAW PROXXON

Excellence in Precision Contour Cutting

The DS 230/E scroll saw is the perfect tool for model makers, toy makers, and craftsmen who need to make curved cuts and internal holes with surgical precision. Its structure is designed to ensure stability and quiet operation, minimizing vibrations thanks to the quality of its construction materials.

Technological Innovation and Functionality

• Adjustable Head (Patent Proxxon): The upper part of the blade holder can be adjusted to three positions. This allows you to use different portions of the blade by shortening it, increasing its life by a factor of three, or to work with short blades for even greater precision.
• Motor and Transmission: Equipped with a long-lasting and quiet 85W DC motor with toothed belt transmission for constant torque.
• Full Wave Electronics: Electronic stroke rate adjustment allows you to adapt the cutting speed to the hardness of the material, ensuring clean edges on any surface.
• Worktop: Made of ground die-cast aluminum (160 x 160 mm), it offers a perfectly flat support base for smooth guidance of the workpiece.

Cutting and Cleaning Capacity

The tool boasts a 300 mm reach and excellent performance on various thicknesses:

• Softwood: up to 40 mm; Hardwood: up to 10 mm.
• Plastics and PCBs: up to approximately 4 mm.
• Non-ferrous metals: up to 2 mm.

For a healthy working environment, the DS 230/E is equipped with an integrated air blow duct on the blade guide and a rear nozzle for connecting a vacuum cleaner.

Equipment Included

The machine is supplied ready to use with:

• 5 jigsaw blades (3 coarse and 2 fine).
• Longitudinal guide and goniometer guide with graduated scale.

Technical Data

• Power supply: 230 V, 85 W.
• Reach: 300 mm.
• Top dimensions: 160 x 160 mm.
• Weight: Approximately 2 kg.

Customize your DS 230/E scroll saw with Super-Cut blades made of special hardened steel, designed to ensure high cutting capacity and a long operating life:

• Blades for wood and plastic (codes 28116, 28117, 28118): Standard version without cross pin, ideal for softwood, hardwood, plastics, and plexiglass. Available with coarse (13 teeth), normal (17 teeth), or fine (19 teeth) teeth on 25 mm.
• Blade for hard materials (code 28119): characterised by opposing teeth (11 teeth on 25 mm), it is specific for cutting difficult materials such as iron and Pertinax.
• High precision finishing blades (code 28112, 28113, 28114): designed for extremely thin and clean cuts, they offer dense teeth of 35, 40 or as many as 47 teeth (No. 1) on 25 mm for the most detailed jobs.
