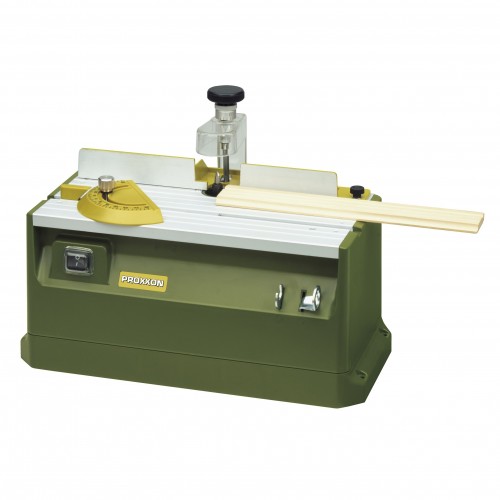

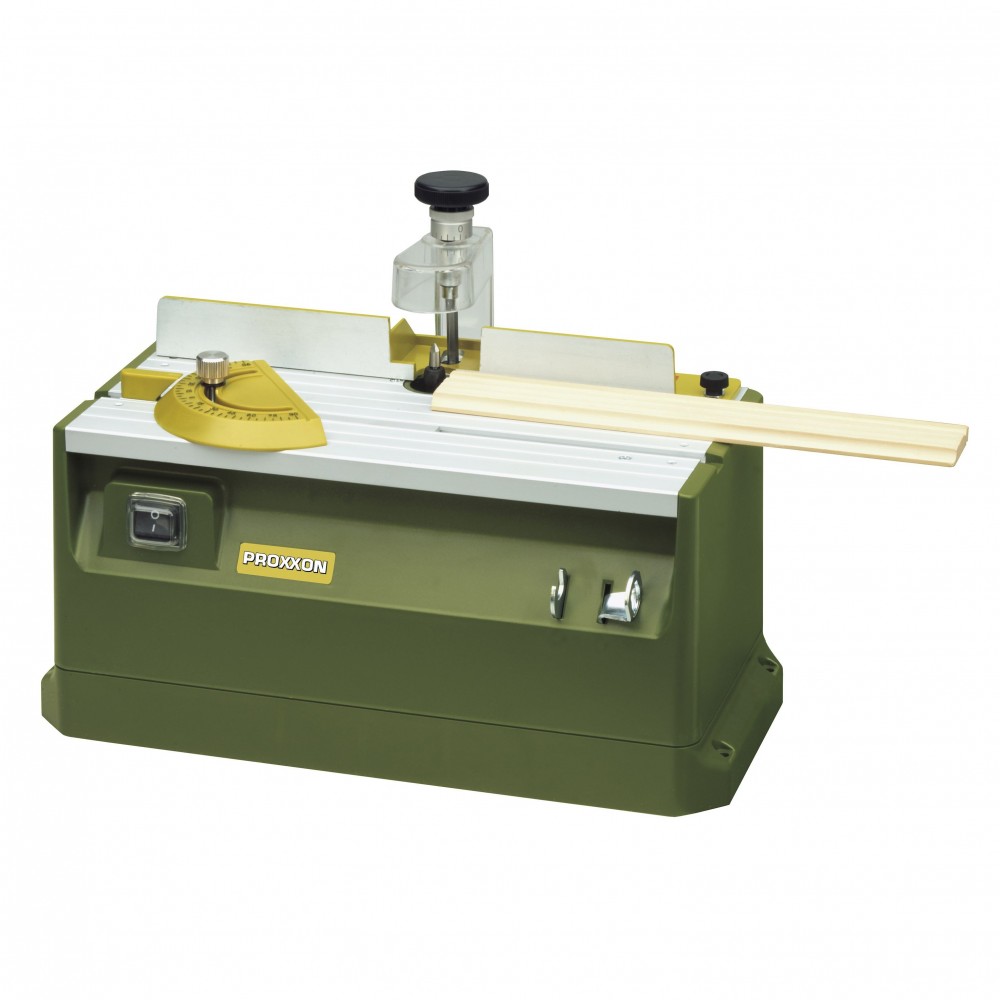

MP 400 MICRO PROFILING MACHINE PROXXON

Create frames, joints, and millimetric finishes with the MP 400 Proxxon MICRO-profiler . This precision tool is the ideal companion for model makers and craftsmen who need to make grooves, tenons, and moldings on wood, fiberboard, and plastics with total control over detail.

Equipped with a stable aluminum table and a powerful motor with toothed belt drive, the MP 400 ensures smooth and quiet operation. Thanks to the micrometric height adjustment and the ability to connect to a household vacuum cleaner, you can achieve professional results while keeping your workshop clean.

German precision for your micro-machining: buy the Proxxon MP 400 on Dinamitek!

Shipping cost: Free for
210,17 €
Tax included

172,27 € Tax excluded

Quantity
Available product, order it now.

Professional Edge and Profile Processing

The MP 400 MICRO-profiler was designed to offer maximum precision in profiling edges and longitudinal cuts. It is the tool of choice for producing frames and finishing model parts, such as doors, hatches, and case components.

High-End Construction Features

  • Powerful and Quiet: The motor is dust-proof and drives the axle via a toothed belt , ensuring consistent power transmission. The axle is mounted on a double ball bearing to eliminate vibration.
  • Micrometric Precision: The height adjustment of the cutter is done via a handwheel with a resettable graduated ring: one complete turn corresponds to 1 mm , while each single notch represents an advancement of 0.05 mm .
  • Worktable: The aluminum table is extremely stable and includes a longitudinal fence and a protractor fence , as well as a safety guard for the cutter.

Cleaning and Accessories

The MP 400 features an integrated suction channel with nozzle, compatible with any household vacuum cleaner, to ensure a working environment free from chips and fine dust.

Equipment Included

  • 3 Clamping pliers: precision with 3 sections (sizes 2.4 – 3.0 and 3.2 mm).
  • 3 Profile cutters: with HSS cutting edges (3.2mm slot cutter, V-cutter and quarter cutter).

Technical Data

  • Power supply: 230 V, 50/60 Hz.
  • Power: 100 W.
  • Speed: 25,000 rpm.
  • Table dimensions: 300 x 150 mm.
  • Weight: Approximately 2 kg.
Proxxon offers professional tools for micro-machining: MICROMOT system, lathes, milling machines, bench saws and precision accessories. European quality for workshops, laboratories and fine mechanics.

PROXXON: PRECISIONE PER MODELLISMO, MICROMECCANICA ED ELETTRONICA

Proxxon è un marchio specializzato in utensili di precisione per modellismo, micromeccanica, elettronica, laboratorio e tutte le lavorazioni di dettaglio che richiedono accuratezza millimetrica. I suoi strumenti sono progettati per artigiani, tecnici, modellisti e professionisti che operano su componenti piccoli e delicati.

La gamma comprende mini trapani, fresatrici, torni da banco, seghe da precisione, utensili rotativi e sistemi completi per micro-lavorazione. Le diverse linee si distinguono per motori silenziosi, controllo elettronico della velocità, stabilità strutturale e precisione costante, ideali per lavorazioni continue e ad alta accuratezza.

Proxxon è riconosciuta per qualità costruttiva, affidabilità e specializzazione tecnica, con strumenti progettati per garantire risultati impeccabili nelle micro-lavorazioni. I professionisti scelgono Proxxon per la precisione, il controllo e la capacità di eseguire lavori complessi con finitura perfetta.
