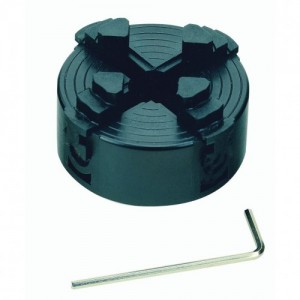

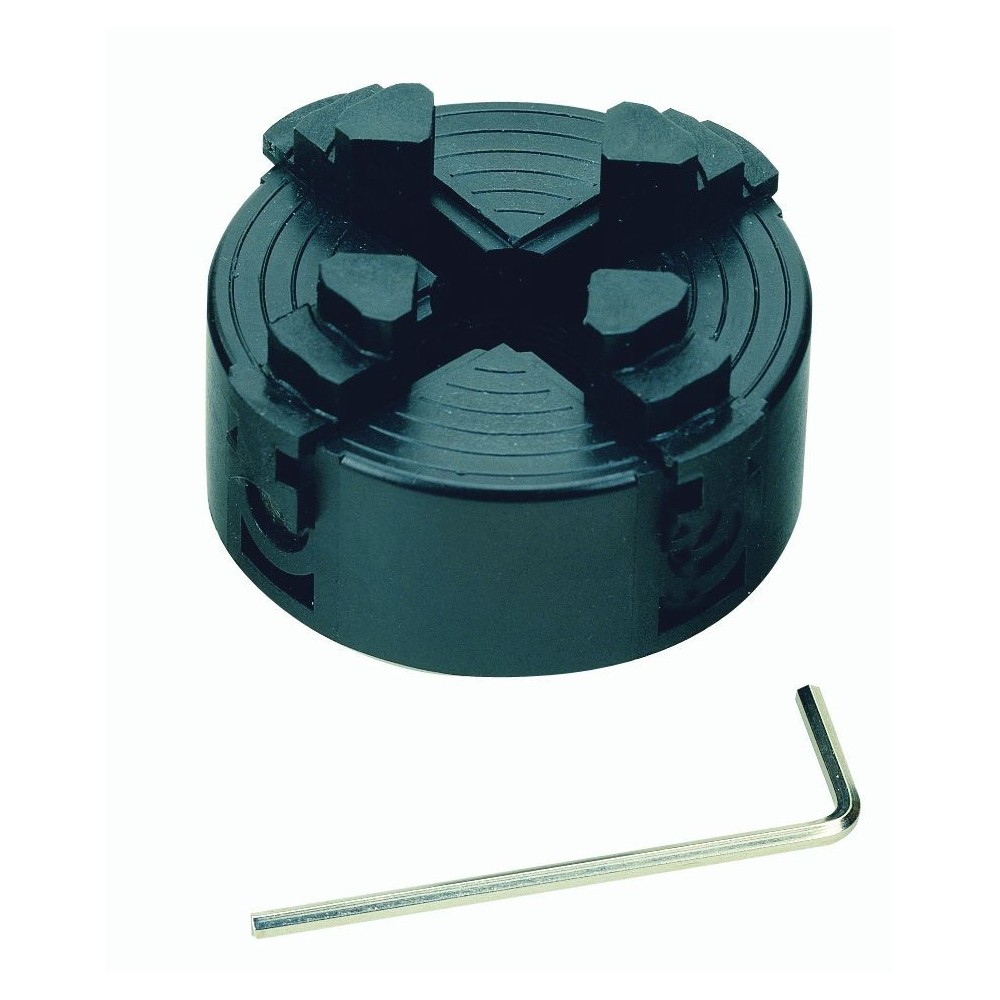

27024 4-JAW CHUCK FOR DB 25O WITH INDIVIDUALLY ADJUSTABLE JAWS PROXXON

Expand the capabilities of your lathe with the Proxxon 27024 4-Jaw Chuck . Designed specifically for the DB 250 micro wood lathe, this accessory is the ultimate tool for anyone who needs to work on asymmetrical, angular or irregularly shaped workpieces.

Thanks to the individually adjustable jaws , you have complete control over the centering of your material, allowing you to securely hold objects that standard self-centering chucks would be unable to handle. The sturdy construction and easy assembly make it indispensable for high-precision model making.

Maximum flexibility and secure hold for your miniatures: discover the Proxxon quality on Dinamitek!

Shipping cost: €5.00 for
32,29 €
Tax included

26,47 € Tax excluded

Quantity
Available product, order it now.

Total Control for Asymmetric Machining

The Proxxon 4-jaw chuck (code 27 024) is a precision accessory designed to complement the MICROMOT system in woodturning. Its main feature is the ability to adjust each jaw independently, making it ideal for clamping asymmetrical or non-cylindrical wooden workpieces.

Technical and Functional Features:

  • Individual Adjustment: Each jaw can be positioned independently to accommodate complex geometries and irregular profiles.
  • Reversible Jaws: The jaws are designed to be reversed, allowing you to quickly switch from an internal to an external clamping configuration.
  • Compatibility and Assembly: The accessory has an M 16 x 1 threaded connection, which allows for immediate and stable attachment to the crankshaft of the DB 250 micro lathe .

Clamping Capacity:

  • Internal Tightening: From a minimum of 1.5 mm to a maximum of 35 mm.
  • External Clamping: From a minimum of 14 mm to a maximum of 67 mm.

This mandrel represents an advanced technical solution for the creation of model railway components, dollhouse accessories or puppet parts, where you often work on non-uniform raw materials.

Safety Note: Due to the nature of the individually adjustable jaws, it is recommended to always manually check the correct centering of the workpiece before starting the lathe motor.
Proxxon offers professional tools for micro-machining: MICROMOT system, lathes, milling machines, bench saws and precision accessories. European quality for workshops, laboratories and fine mechanics.
