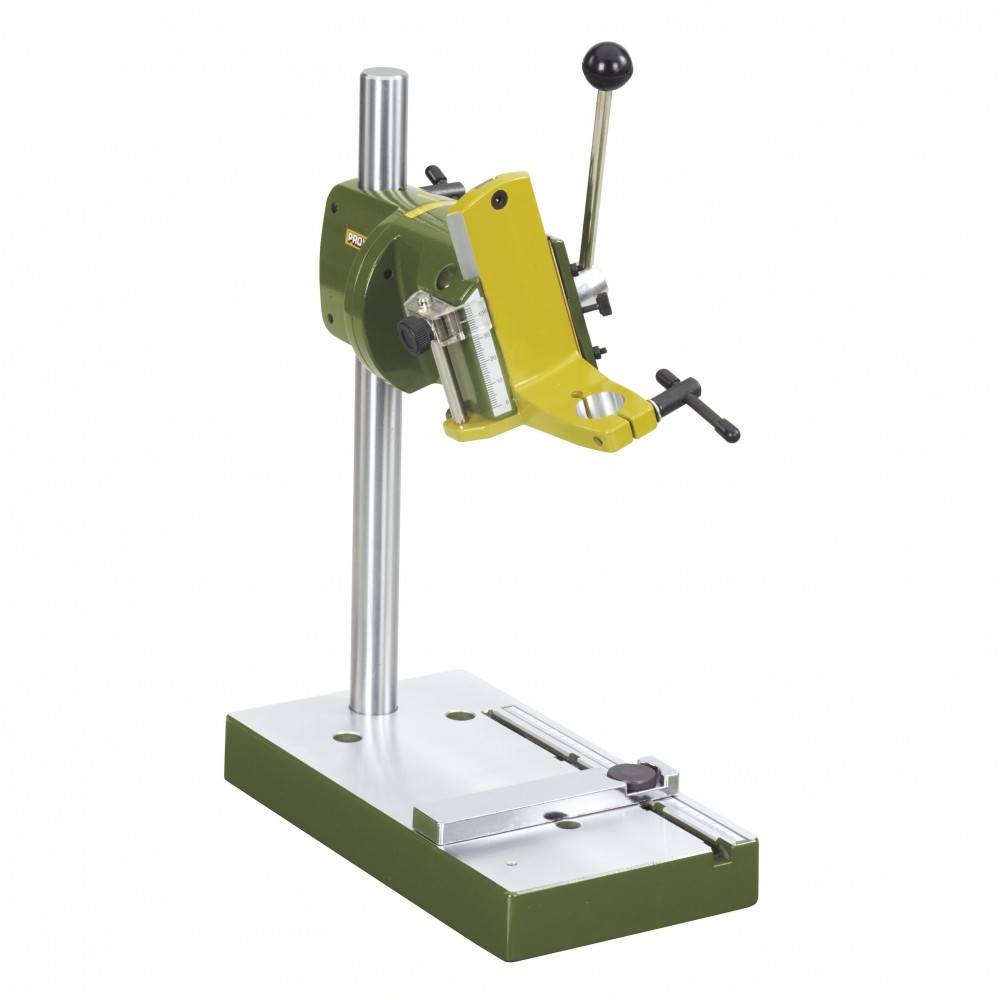

The Proxxon MB 200 column support is the high-precision mechanical accessory designed to transform MICROMOT System power tools into a real stationary drilling and milling station.
Crafted entirely from high-quality components such as die-cast aluminum and solid chrome-plated steel, this stand offers absolute stability and pinpoint adjustment. It's the essential tool for anyone who needs to drill perfectly perpendicular or angled holes with maximum control.
Mechanics of Excellence for Model Making and Fine Mechanics
The Proxxon 28600 item (model MB 200) stands out for its tilting dovetail guide head, which allows for versatile machining not only vertically but also diagonally, facilitating milling and angled drilling operations.
Main Technical Features:
Swivel Head: Made of die-cast aluminum , it can be tilted up to 90 degrees (with graduated ring) for oblique drilling and versatile milling.
Precision Feed: Spring-assisted rack and pinion system, allowing for extreme sensitivity during machining.
Robust Construction:Solid chrome-plated steel column (280 x 20 mm) mounted on a stable die-cast aluminum base with CNC-milled guides.
Rectified Worktop: 220 x 120 mm table with parallel guide and scale, equipped with threaded holes for fixing the MICRO KT 70 cross table or vices such as the MS 4.
Clamping System: Standard 20 mm collar, compatible with all power tools in the MICROMOT system.
Technical Data:
Column height: 280 mm.
Column diameter: 20 mm.
Reach (inner column - tool center): 140 mm.
Maximum stroke (drilling depth): 40 mm.
Top dimensions: 220 x 120 mm.
Weight: 2.2 kg.
Micromot Quality Details:
The MB 200 stand features an adjustable depth stop and clearly legible graduated scales. The control lever ensures consistent and smooth power transmission, making this stand a product of pure precision, far removed from common market standards.
Note: Power tools and vices shown in images are for illustrative purposes only and are sold separately.
Proxxon offers professional tools for micro-machining: MICROMOT system, lathes, milling machines, bench saws and precision accessories. European quality for workshops, laboratories and fine mechanics.
PROXXON: PRECISIONE PER MODELLISMO, MICROMECCANICA ED ELETTRONICA
Proxxon è un marchio specializzato in utensili di precisione per modellismo, micromeccanica, elettronica, laboratorio e tutte le lavorazioni di dettaglio che richiedono accuratezza millimetrica. I suoi strumenti sono progettati per artigiani, tecnici, modellisti e professionisti che operano su componenti piccoli e delicati.
La gamma comprende mini trapani, fresatrici, torni da banco, seghe da precisione, utensili rotativi e sistemi completi per micro-lavorazione. Le diverse linee si distinguono per motori silenziosi, controllo elettronico della velocità, stabilità strutturale e precisione costante, ideali per lavorazioni continue e ad alta accuratezza.
Proxxon è riconosciuta per qualità costruttiva, affidabilità e specializzazione tecnica, con strumenti progettati per garantire risultati impeccabili nelle micro-lavorazioni. I professionisti scelgono Proxxon per la precisione, il controllo e la capacità di eseguire lavori complessi con finitura perfetta.
