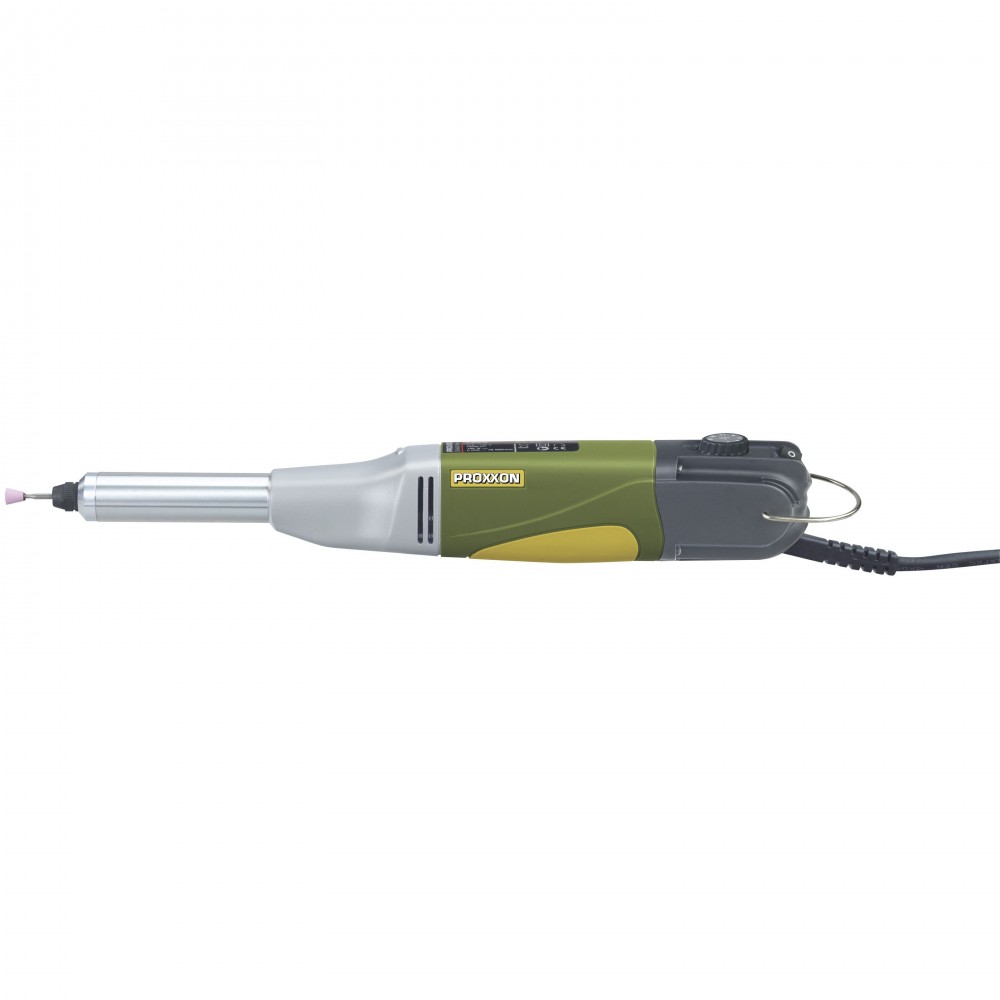

LBS/E LONG-NECKED DRILL GRINDER PROXXON

Efficiency and Robustness for Professional Applications

The proxxon LBS/E (item no. 28485) was developed as a powerful problem solver for craftsmen and industry. The heart of the tool is a specially balanced DC motor with permanent magnet technology, which is extremely quiet, powerful, and durable.

Applications and Examples of Use

The long neck design makes this tool indispensable for:

• Internal grinding of holes, cavities and hollow shapes.
• Precision machining inside narrow slots and channels.
• Drilling, milling and polishing jobs in areas where standard tools have no room to maneuver.
• Restoration and fine mechanics interventions on complex geometries.

Technical Advantages

• Die-Cast Aluminum Headstock: The 75mm neck ensures precise seating for the double-row ball bearings, dramatically reducing vibration.
• Electronic Regulation: Continuous speed control from 5,000 to 22,000 rpm with full-wave management to maintain constant torque even at low revs.
• Industrial Ergonomics: Fiberglass-reinforced polyamide case, designed to be lightweight (630g) and shock-resistant.
• MICROMOT Clamping System: Includes 6 triple-section hardened steel collets, which offer long-lasting concentricity and perfect locking of accessories.

Compatibility and Versatility

The tool is equipped with a standard 20 mm collar , which allows it to be perfectly integrated with the column supports and vices of the MICROMOT system.

Technical Data:

• Voltage: 230 V.
• Power consumption: 100 W.
• Speed: 5,000 - 22,000 rpm.
• Total length: 300 mm.
• Weight: 630 g.
• Insulation: Safety class 2.

Equipment Included:

The LBS/E comes in a high-quality protective polypropylene case and includes:

• Set of 6 steel collets (1.0 - 1.5 - 2.0 - 2.4 - 3.0 and 3.2 mm).
• Tool holder for neatly storing rotary cutters and bits.
