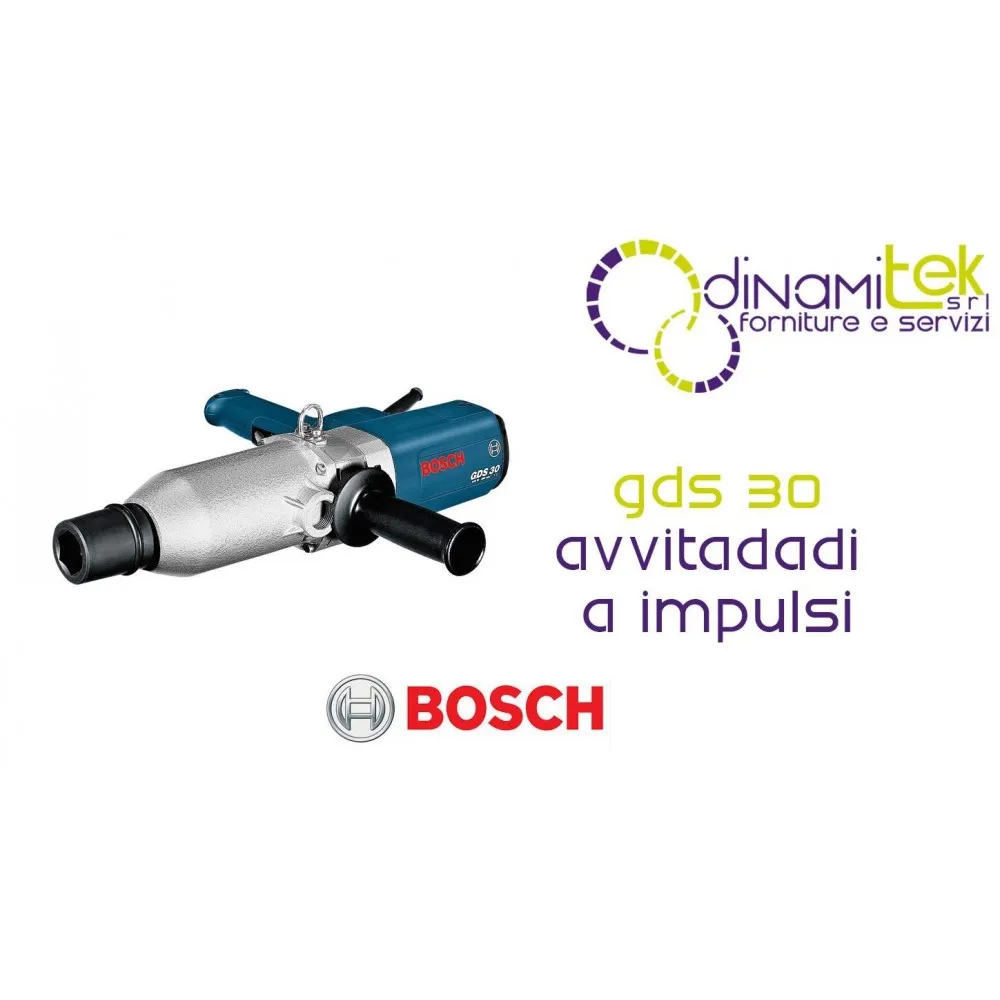

GDS 30 Professional Impact Wrench

The GDS 30 Professional is a high-power corded impact wrench, specially designed for extremely demanding screwdriving applications. This tool belongs to the impact wrench category and features a robust metal construction , making it ideal for plumbing, heating and air conditioning installers and for work in heavy-duty industrial sectors (petrochemicals, commercial vehicle bodies, construction machinery).

Main Technical Data

• Article (Order code): 0 601 435 103
• EAN Code: 3165140922944
• Rated power consumption: 920 W
• Max. tightening torque (hard material): 1,000 Nm
• Max. tightening torque (elastic material): 500 Nm
• Tool holder: 1'' square
• Rated speed: 860 rpm
• Max. Bold Size (Screw-in): M 30
• Voltage, electrical: 230 V
• Weight: 7,300 kg / 7.3 kg

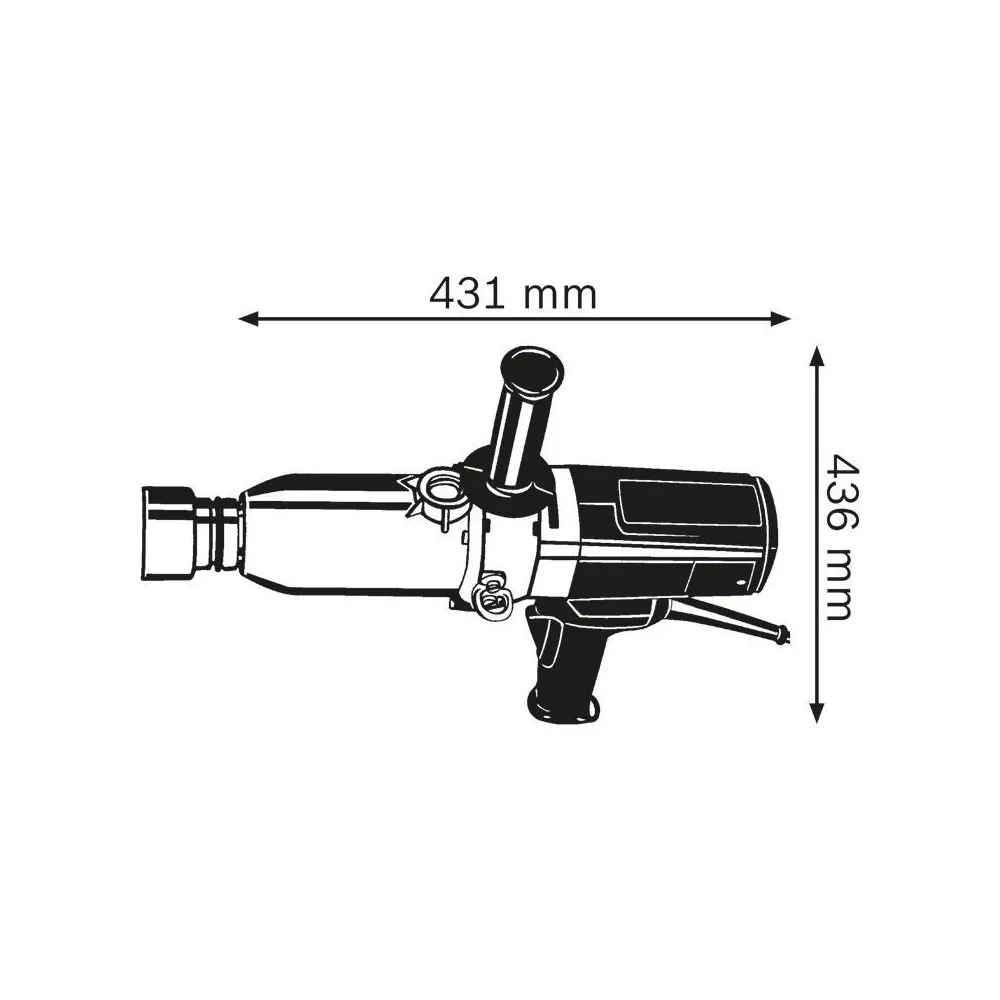

• Tool dimensions (length): 431 mm
• Tool dimensions (height): 436 mm

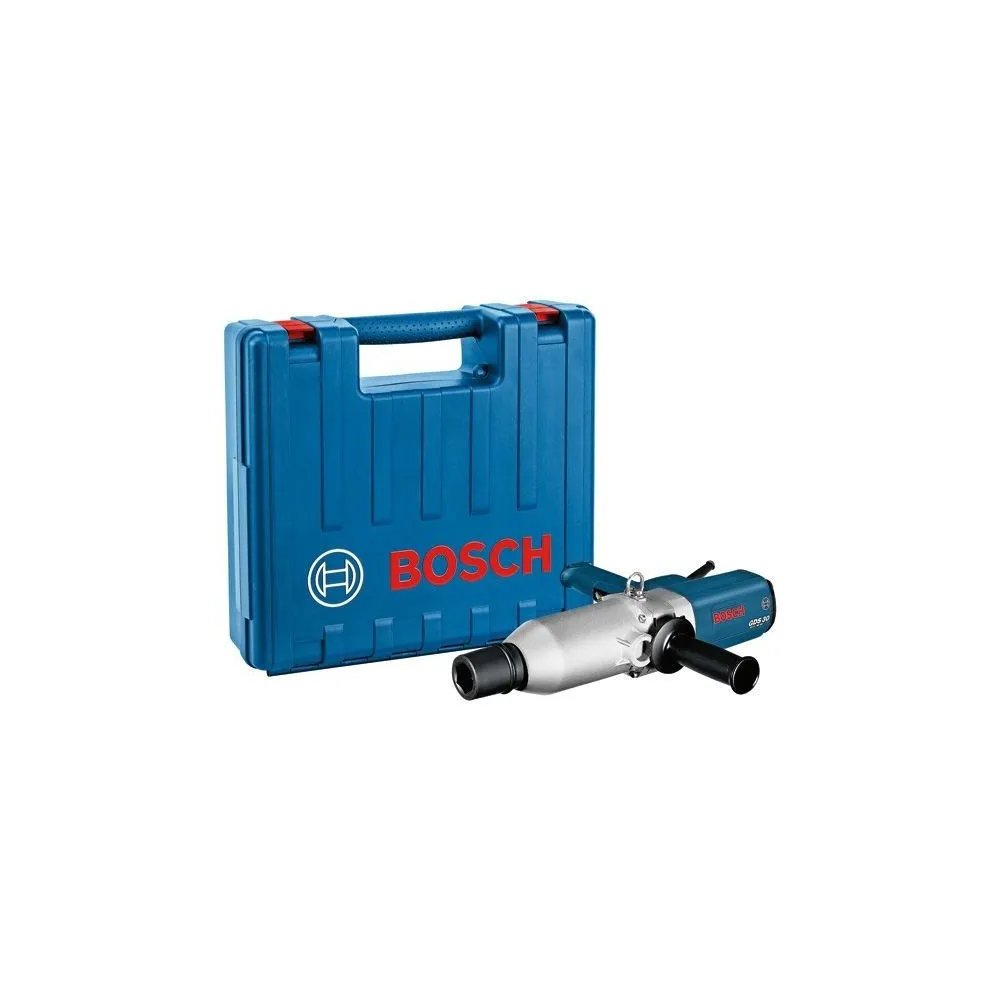

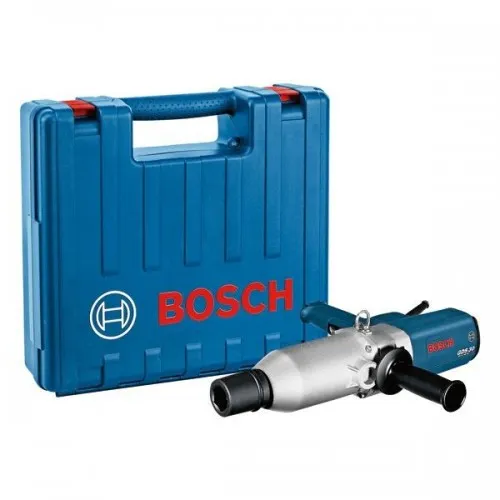

Equipment and Accessories Included

The selected variant (Code 0 601 435 103) includes:

• Additional handle (Order code: 2 602 025 075)
• Suspension bracket (Part number 3 601 310 013)
• An integrated hook is provided for hanging on a swing stand.

Noise and Vibration Information

The noise level of the power tool rated A typically includes:

• Sound pressure level: 100 dB(A)
• Sound power level: 113 dB(A)
• Measurement uncertainty K: 3 dB

Regarding vibrations (Tightening of screws and nuts to the maximum permitted size):

• Vibration emission value: 4 m/s²
• Uncertainty level K: 0.5 m/s²
