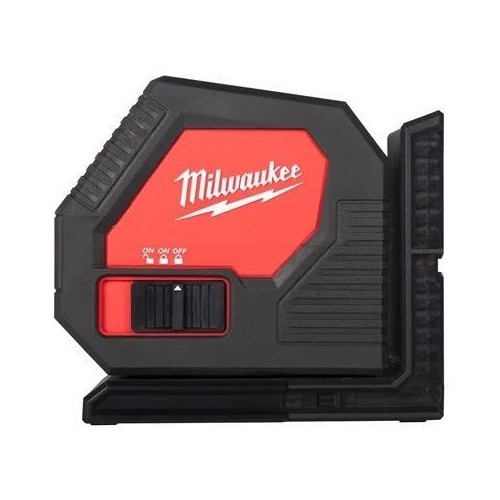

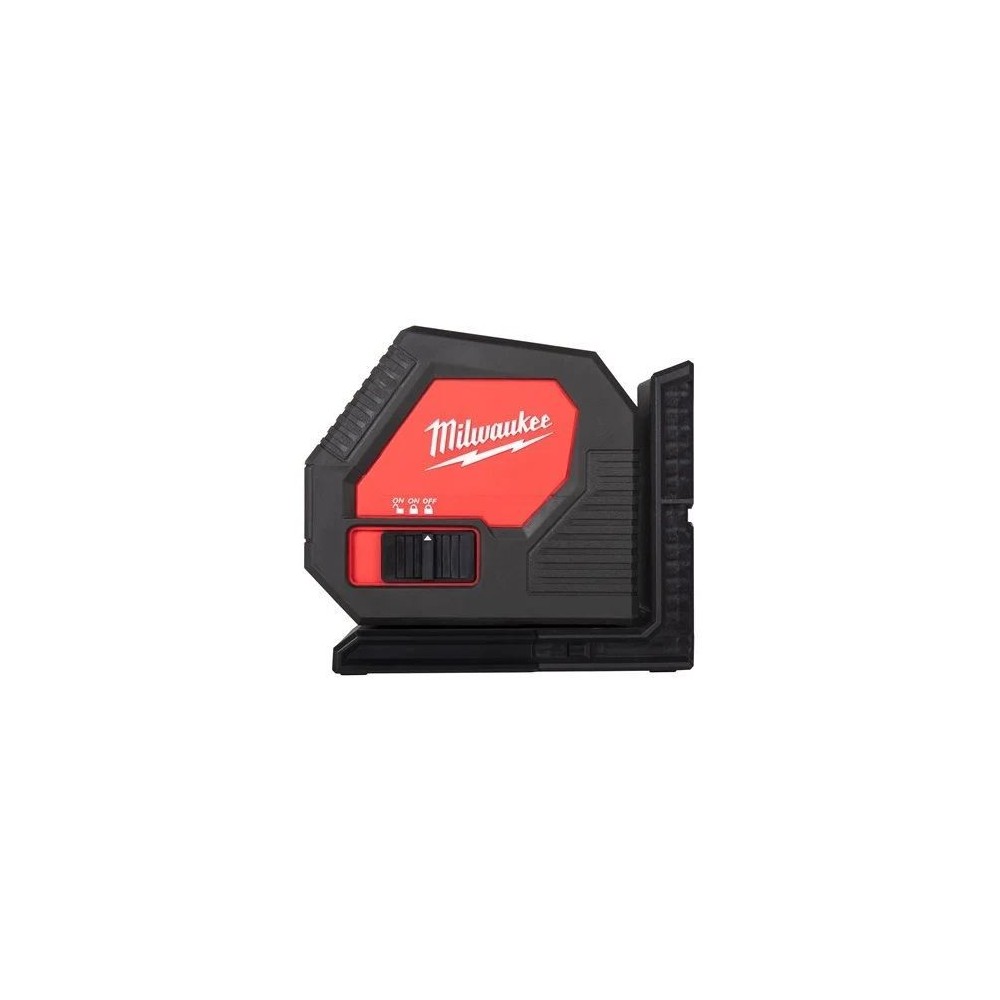

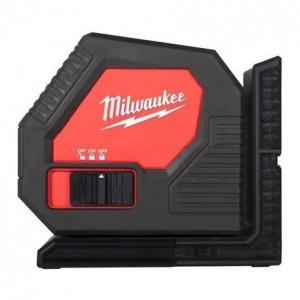

Alkaline Green Two-Line Linear Laser

Model CLL-C (Item Code: 4933478753)

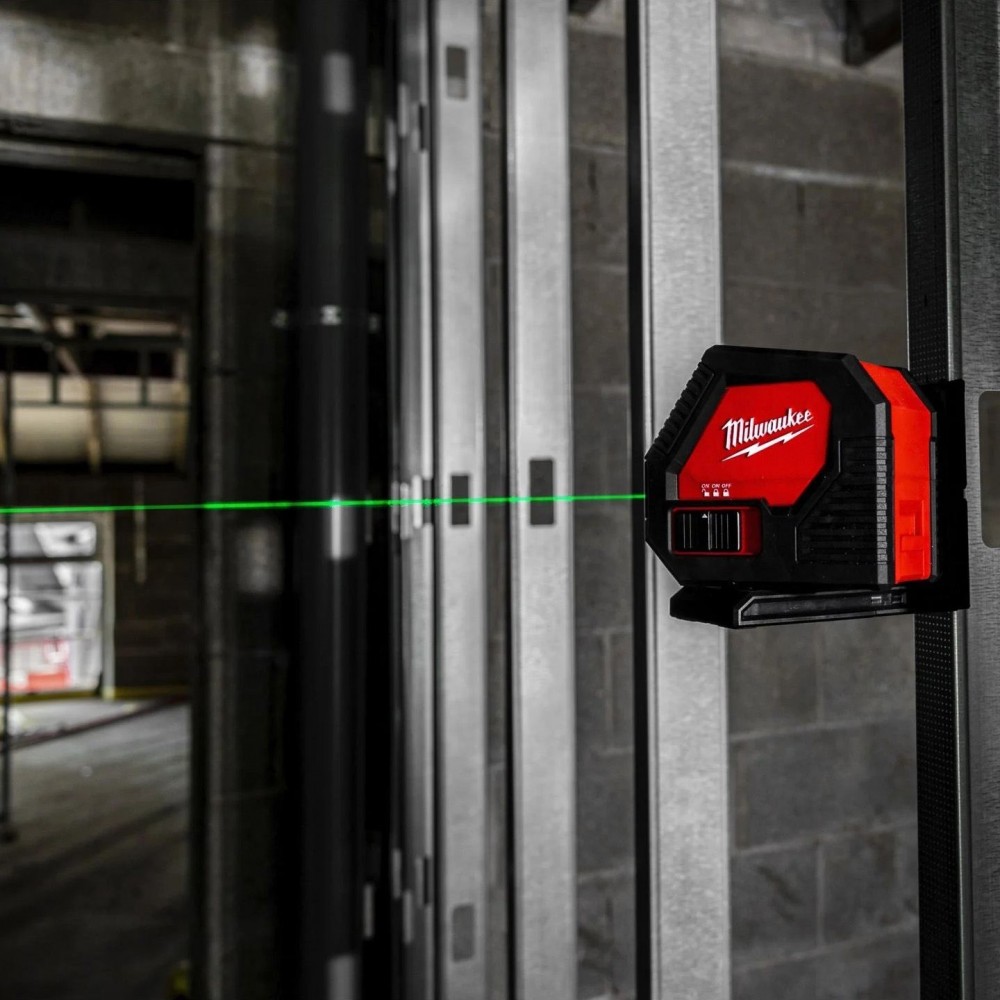

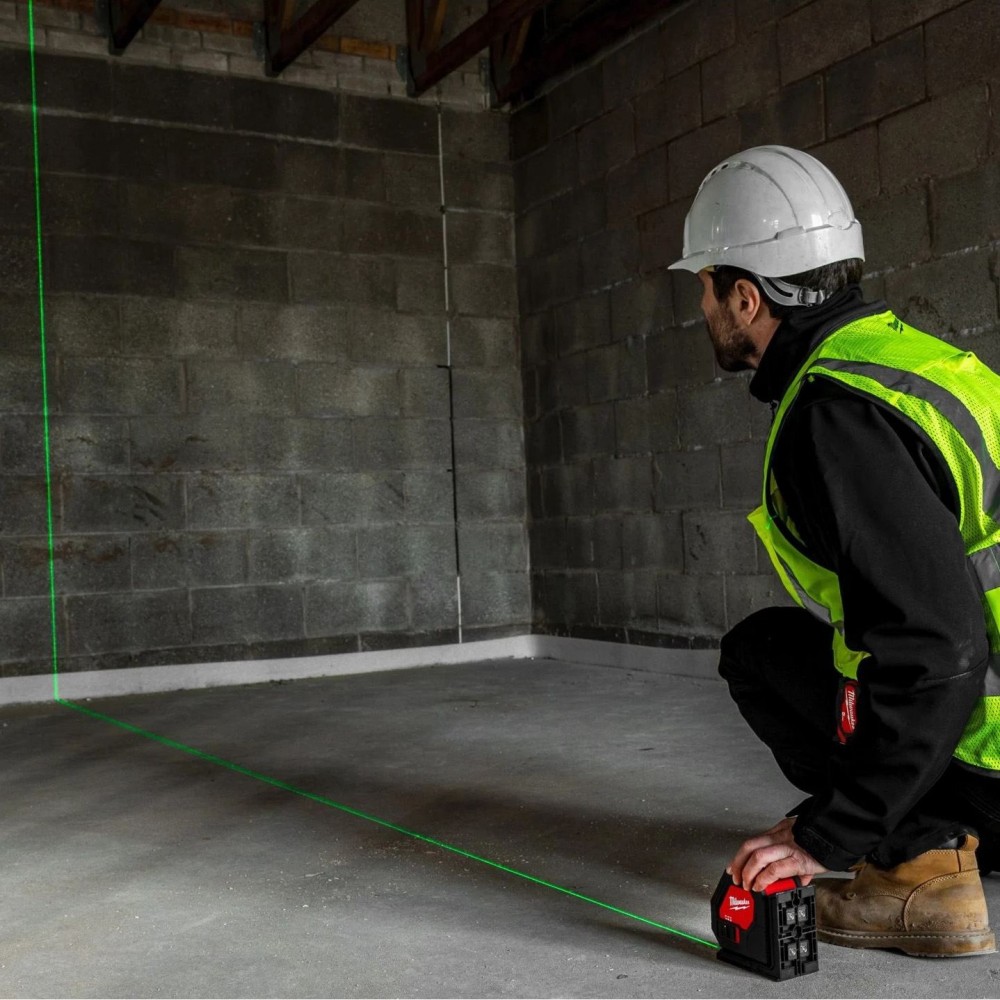

The **Two-Line Alkaline Green Line Laser (CLL-C)** is a precision measuring instrument that uses a green laser beam, providing high visibility for horizontal leveling and vertical alignment applications.

Measurement and Operational Features

• **Range:** The laser range is **30 meters**.

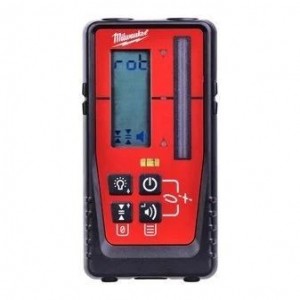

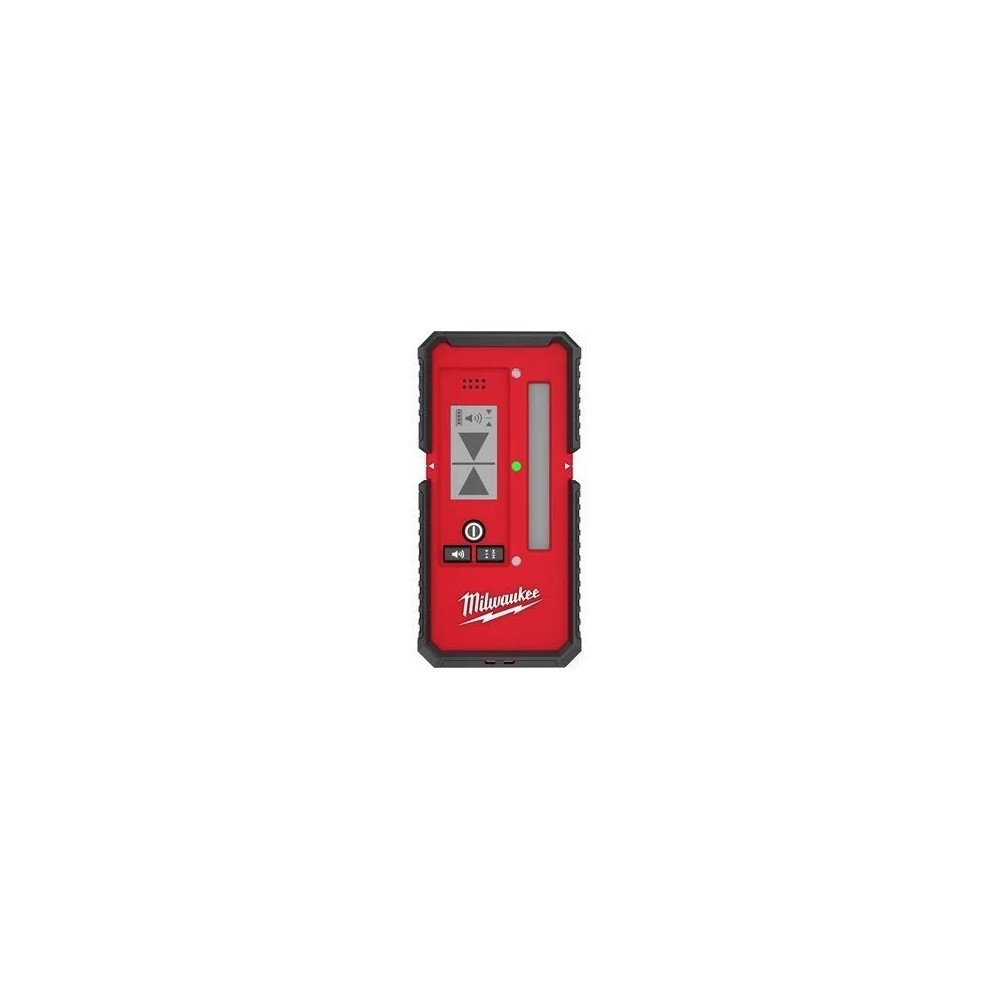

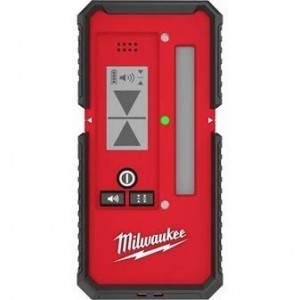

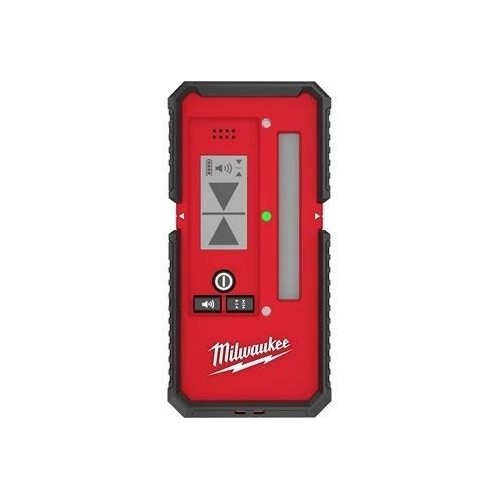

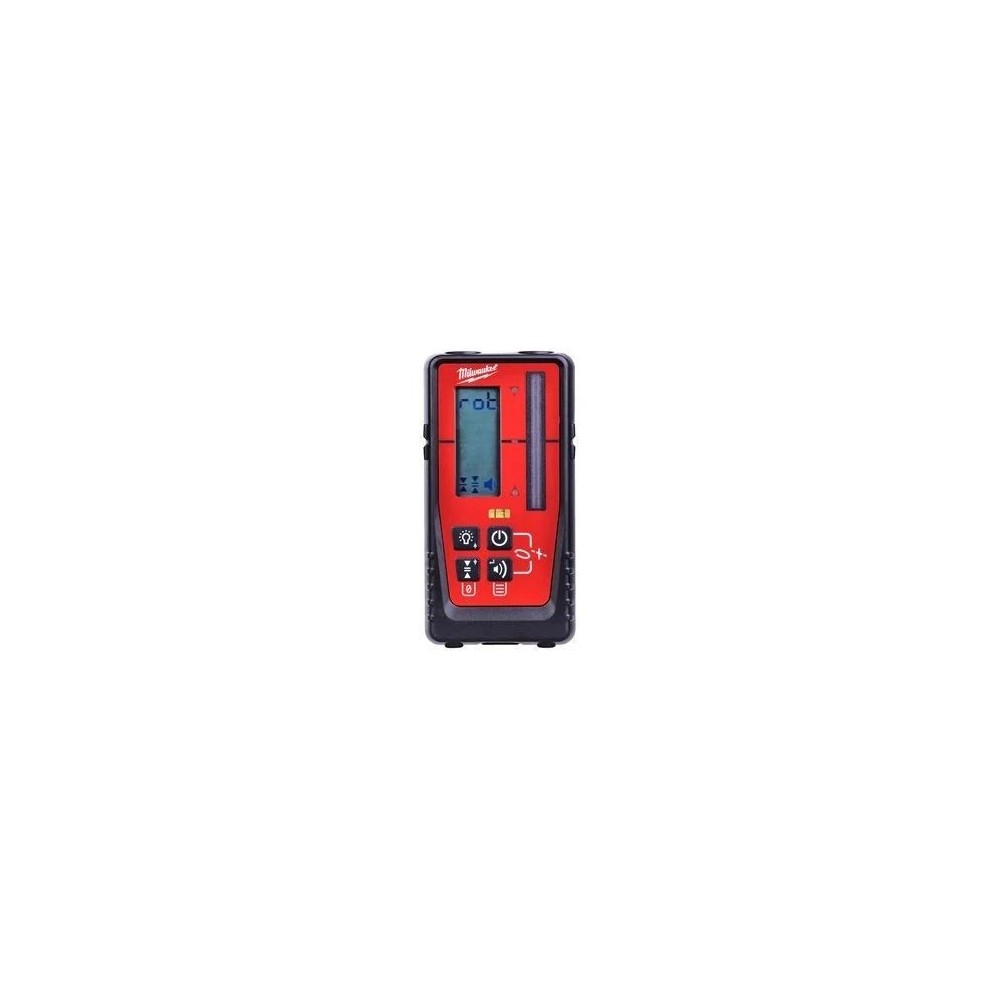

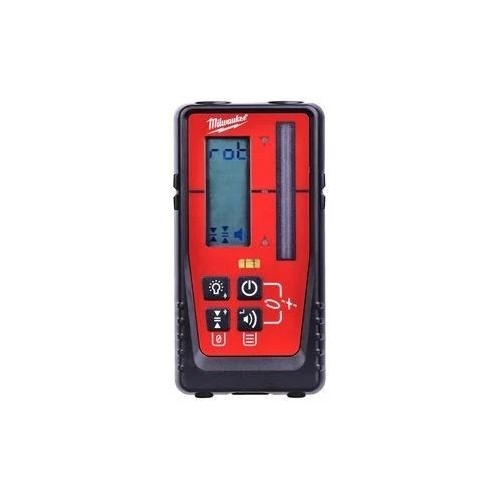

• **Range with Receiver:** The range can be extended up to **50 meters** with the LLD50 laser receiver or up to **100 meters** with the LRD100 laser receiver.
• **Accuracy:** Offers an accuracy of **0.3 mm/m**.

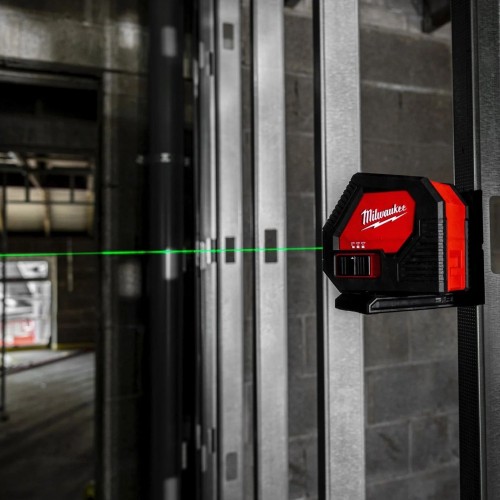

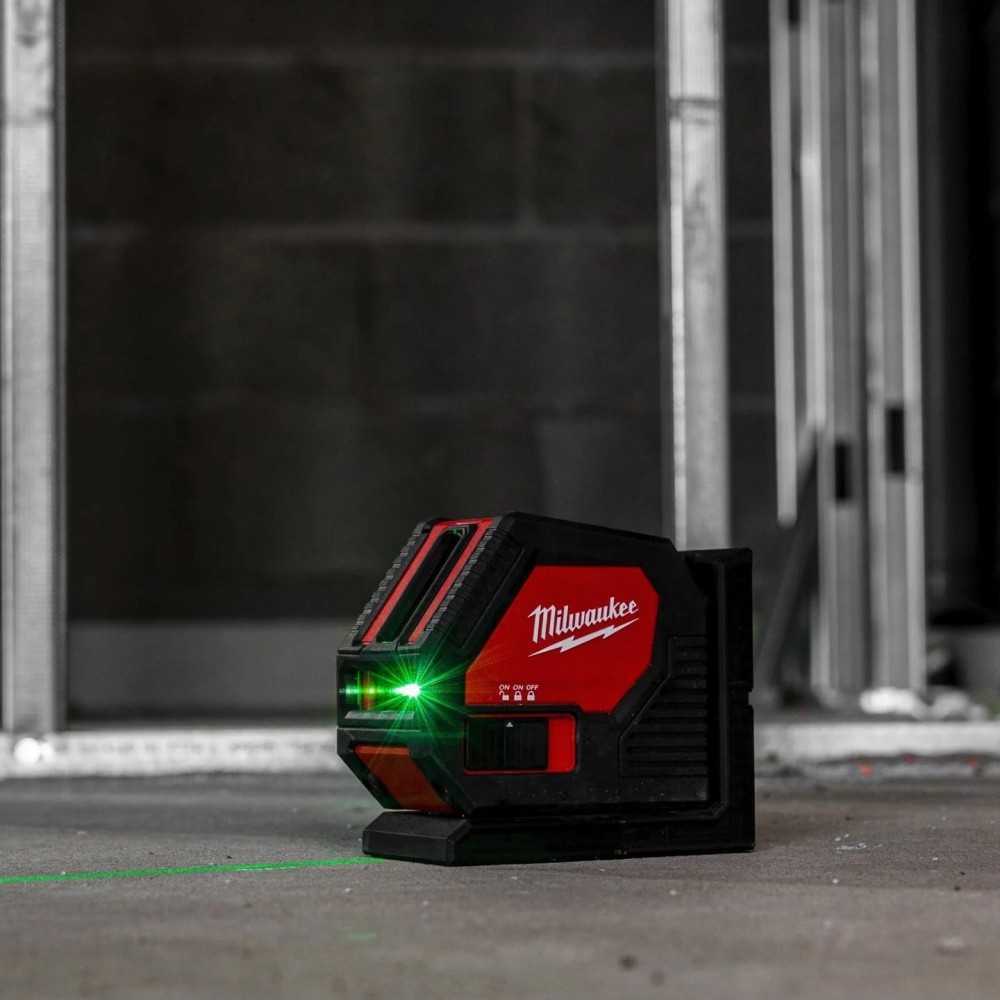

• **Color and Laser Projection:** Uses a **Green Laser** (Class 2) and projects **1 vertical line and 1 horizontal line**.
• **Battery life:** The 4 AA alkaline batteries (included) guarantee battery life of over **8 hours**.
• **Rotation:** Allows the laser to rotate completely **360°**.

Pendulum System and Fixing

The laser features a versatile **3-mode pendulum system**:

1. **Manual Mode:** For use at any angle.
2. **Self-Leveling Mode:** With misalignment indication if the variation is greater than **4°**. Self-leveling time is **3 seconds**.
3. **Locked Pendulum:** Offers added protection to the mechanism during transport.

Mounting options include magnets, **¼″ thread** for use with a tripod or pole, and built-in holes for mounting on steel or wood.

Kit Details (4933478753)

Product code **4933478753** (Model CLL-C) is supplied in a **Case** and includes:

The laser has an **IP 54 protection class** and can withstand falls from **1 meter**. The weight with batteries (4 x AA) is **0.7 kg**.
