Cordless Industrial Power: The ONE-KEY™ 1″ Drive Screwdriver.
The ONE-KEY™ FUEL™ High Torque Impact Wrench 1″ F Drive (Part No. 4933499254) sets new records with a devastating 2033 Nm torque and up to 2400 Nm when unscrewing.
Harnessing the power of the HIGH OUTPUT™ system and M18™ FORGE™ 8.0 Ah batteries (included), this tool offers total control thanks to ONE-KEY™ technology, which allows for torque customization and remote management.

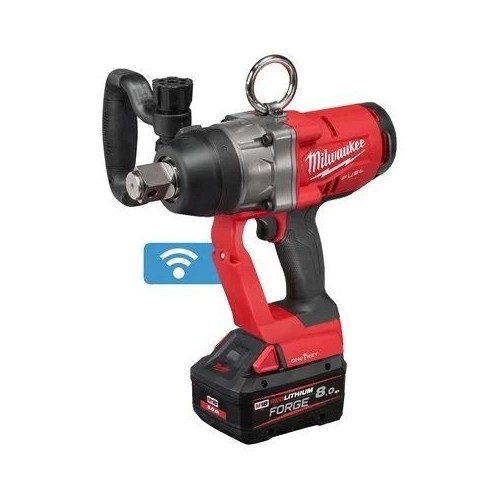

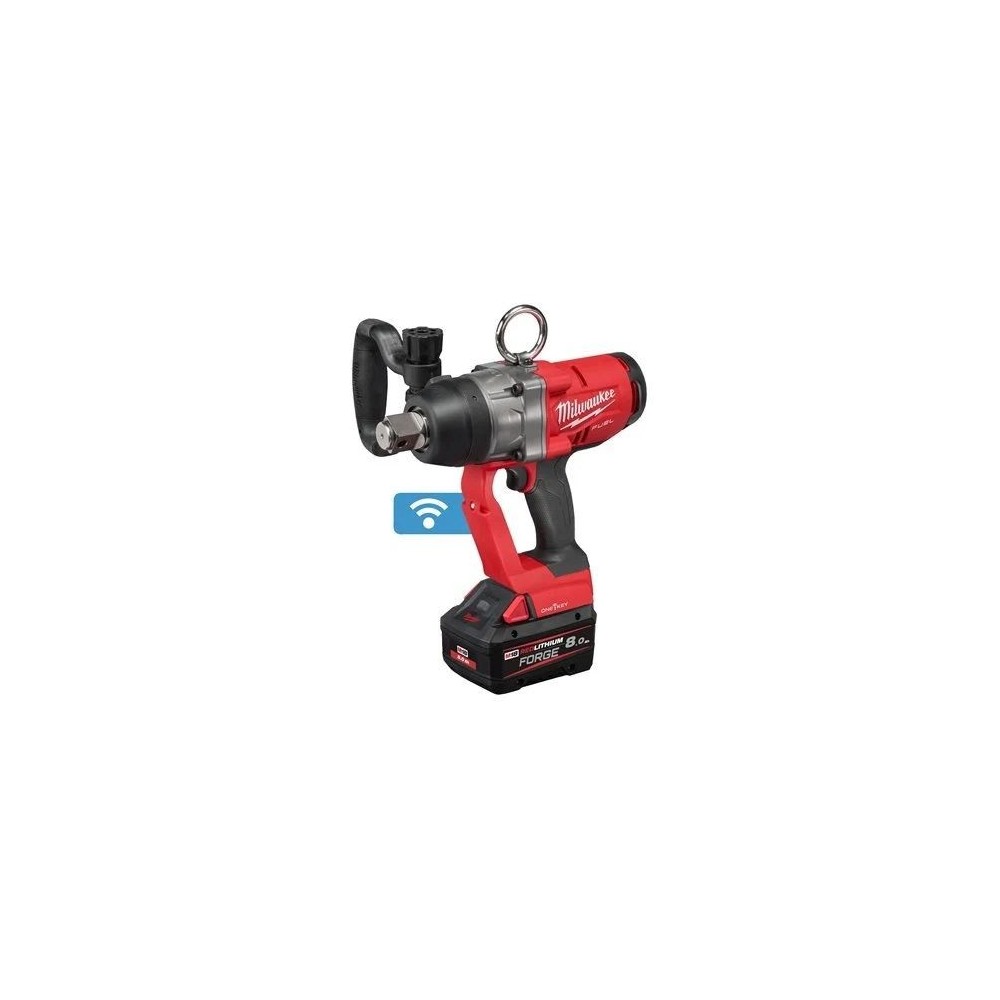

ONE-KEY™ FUEL™ High Torque Impact Wrench 1″ F Drive
Model M18 ONEFHIWF1-802X (Item Code: 4933499254)
The ONE-KEY™ FUEL™ High-Torque Impact Wrench 1″ F Drive (M18 ONEFHIWF1-802X) is the first tool of its kind on the M18™ FUEL™ ONE-KEY™ platform, designed to replace corded, gas-powered or pneumatic tools.
Heavy-Duty Performance and Features
Extreme Power: Delivers a tightening torque of 2033 Nm. The screwdriving torques are 530 / 1,020 / 1,800 / 2,033 Nm.
Unscrewing Torque: The maximum torque during unscrewing is 2400 Nm.
Attachment: Equipped with 1″ square attachment.
Max Bolt Diameter: Can handle a maximum bolt diameter of M42.
Dimensions: The dimensions are 27.5 x 30 x 8.5 cm (13.5 cm with handle).
Weight: The weight with the M18 FB8 (EPTA) battery pack is 5.9 kg.
Vibrations: The vibration level is 19.71 m/s². The vibration uncertainty is 1.5 m/s².
ONE-KEY™ and DRIVE CONTROL technologies
The tool uses a 4-Mode DRIVE CONTROL System that allows you to choose between four different speed and torque settings, for maximum flexibility.
ONE-KEY™ Technology: Enables ONE-KEY™ customization that allows you to adjust the speed and desired torque range (from 1 to 10).

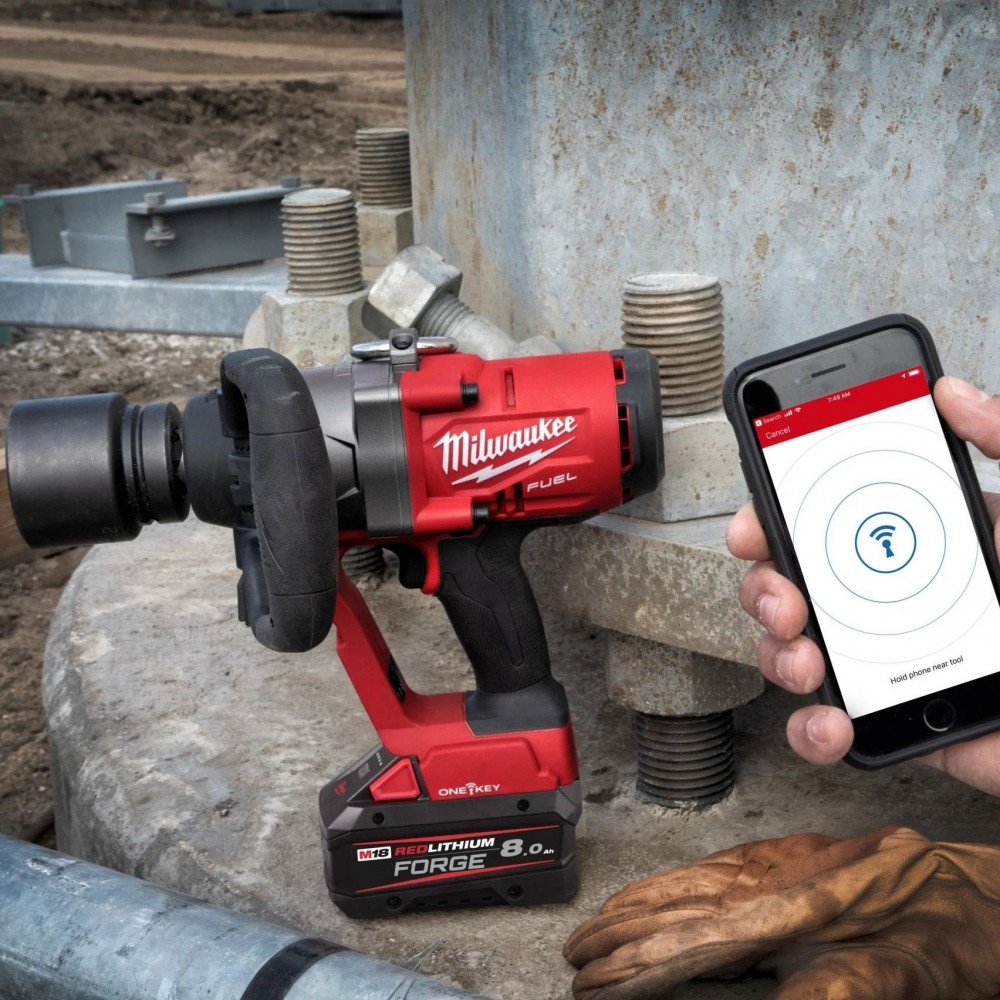

Tracking & Security: The ONE-KEY™ Tracking & Security system offers free cloud-based tracking and inventory management. It includes remote locking functionality and the ability to customize tool performance.
FUEL™ Technology: FUEL™ technology (brushless motor, REDLINK PLUS™ electronics and REDLITHIUM™ battery pack) delivers superior performance and run time.
HIGH OUTPUT™ System: This system enhances the performance and autonomy of the M18 FUEL™ technology.
The screwdriver has a voltage of 18 V and works with all M18™ MILWAUKEE® batteries.
Detailed Operating Specifications
Parameter
Specifications
No-load speed (rpm)
0-950 / 0-1080 / 0-1370 / 0-1670
Stroke rate (strokes/min)
1,350 / 1,650 / 2,100 / 0-2,500
Sound power level (Lwa)
112.79 dB(A)
Sound pressure level (Lpa)
101.79 dB(A)
Uncertainty of sound power level/sound pressure
3 dB(A)

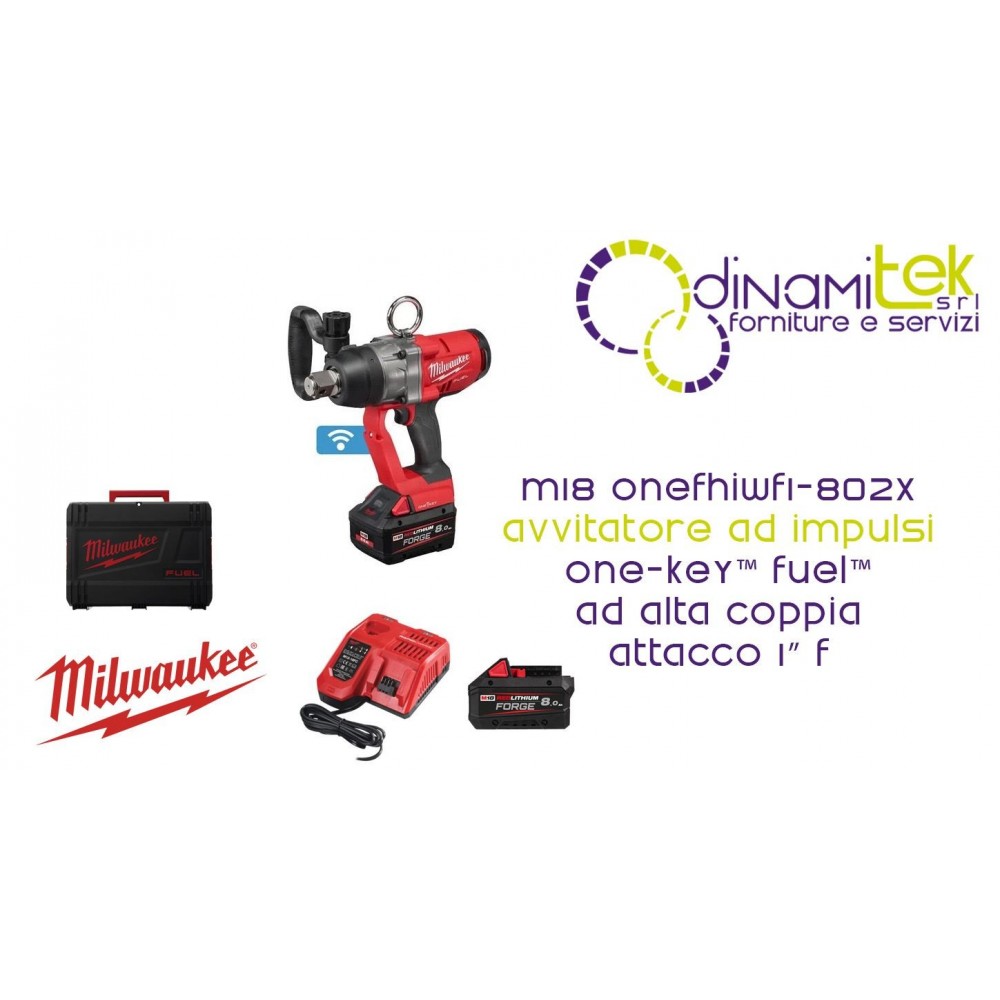

Kit Composition (M18 ONEFHIWF1-802X - 4933499254)
The kit (Code 4933499254) is supplied in a Heavy Duty Case and includes:
Product
Specifications
Amount
ONE-KEY™ FUEL™ High Torque Impact Wrench 1″ F Drive
M18 ONEFHIWF1-802X
1
M18™ FORGE™ 8.0 Ah battery
M18 FB8 (Capacity: 8.0 Ah)
2
M12™ - M14™ - M18™ Quick Charger
M12-18 FC
1(Charging time: 95 min)
Container
Heavy Duty Briefcase
1
Standard equipment
Side handle, metal hook
Included
