EXT A29B 50 CM3 4116028009-EXTENSIVE SINGLE-PHASE PISTON COMPRESSOR3HP10BAR50LT320L/MINLUBRICATED ABAC

Reliability and Value: ABAC Extensive A29B CM3 3 HP.

Model 4116028009 is part of ABAC's EXtensive range, meticulously designed to deliver excellent performance without compromising on value.

This oil-lubricated piston compressor, with a 50-liter tank and 3 HP of power, offers versatile solutions for all users. Equipped with a sturdy single side handle and durable 200 mm wheels for excellent stability, it is the ideal tool for a wide range of applications.

Shipping cost: €15.00 for
658,8 €
Tax included

540,00 € Tax excluded

Quantity
Last items in stock

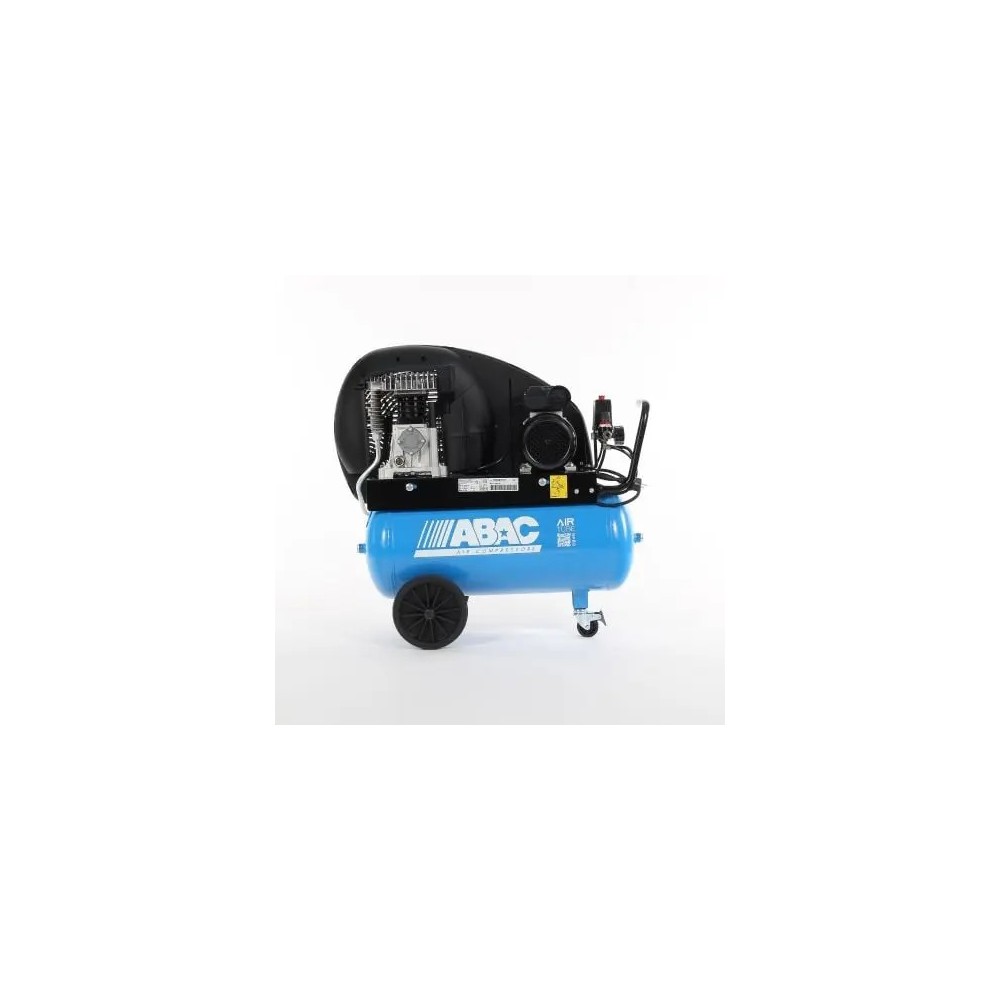

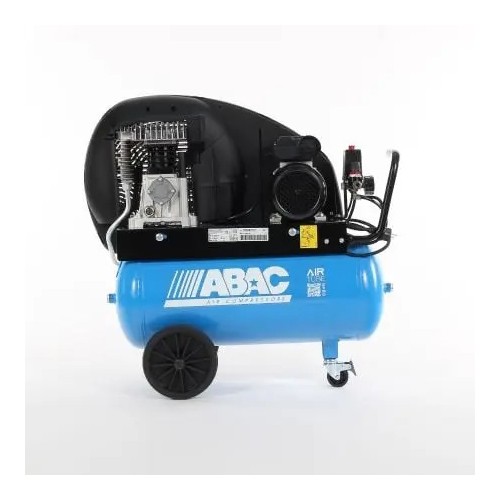

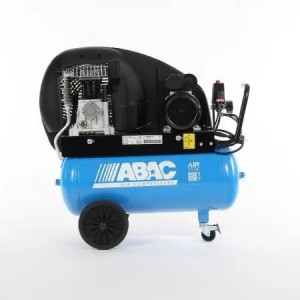

ABAC Extensive A29B CM3 (4116028009) - 50L Single-Phase Piston Compressor

ABAC's EXtensive range is the result of meticulous design , aimed at providing a product that does not compromise on either performance or value. This model is an oil-lubricated piston compressor with a tank-mounted configuration, designed to meet a wide range of needs.

Detailed Technical Features

Specifications Value Unit
Product Code 4116028009
Model EXT A29B 50 CM3
Configuration Tank Mounted
Maximum Pressure 10 (145) Bar (PSI)
Tank Capacity 50 (11) Liters (Gal)
Air Flow 320 (10.9) l/min (Cfm)
Engine Power 3 (2.2) HP (kW)
Pumping Speed 1300 RPM
Diet 230 / Single Phase V / Phase / 50 Hz
Lubrication Oil Lubricated
Pumping element PAT24A
Noise level (LPA) 75 dB(A)
Noise level (LWA) 95 dB(A)
Weight 54 KGM

Design and Construction Details

The design of the EXtensive range is focused on resistance and efficiency:

  • Stability and Transport : The compressor is equipped with 200 mm rear wheels , which are among the sturdiest on the market, ensuring excellent stability. There are also two swivel front wheels with brakes.
  • Ergonomics : Handling is made easier by the presence of a sturdy single side handle .
  • Application Flexibility : The technology supports both single and dual stage pumps with aftercooler.
  • Air Control : The air output is managed by a reliable pressure switch with single outlet reducer .
Discover ABAC compressors on Dinamitek: reliable and technological solutions for compressed air, from portable models to custom industrial systems. Efficiency and quality for professional use.

ABAC: ARIA COMPRESSA PER PROFESSIONISTI

ABAC è un marchio internazionale di riferimento nei compressori d’aria professionali e nei sistemi pneumatici per officine, industria, carrozzerie e artigianato. Le sue soluzioni sono progettate per garantire continuità operativa, efficienza energetica e qualità dell’aria in ogni applicazione tecnica.

La gamma ABAC comprende compressori a pistone, compressori a vite, modelli silenziati, portatili e stazionari, oltre a sistemi completi per il trattamento dell’aria e accessori pneumatici. Ogni linea si distingue per portata, pressione, rumorosità ridotta, stabilità e prestazioni costanti anche in utilizzi intensivi.

ABAC è riconosciuta per affidabilità, innovazione e prestazioni, grazie a tecnologie dedicate alla sicurezza, alla riduzione dei consumi e alla continuità operativa. I professionisti scelgono ABAC per stabilità, durata e qualità dell’aria compressa, elementi fondamentali per garantire efficienza nei processi produttivi.



EXT A29B 50 CM3
