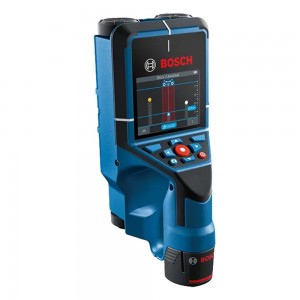

The Wallscanner D-tect 200 C Professional from Bosch is a state-of-the-art detector.

Designed to offer maximum precision and safety on the construction site, this instrument uses sophisticated Bosch radar technology and a modern user interface, which ensure a clear view of the detected objects.

What advantages does it offer on construction sites? Find out here.

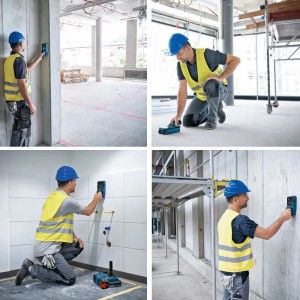

Its exceptional flexibility is guaranteed by the multiple available views : Object View, Detail View, 2D Signal View and Signal View. This allows you to adapt the detection to any situation, achieving the best results even in difficult-to-access places. An innovative feature is the screenshot function , which allows for quick and easy documentation of the detections, with the option of downloading screenshots via USB-C® and SD card. The D-tect 200 C Professional wall scanner detects all common types of objects, displaying them clearly and simplifying documentation, helping to prevent damage from drilling. It can be used both indoors and outdoors and can also measure concrete cover layers. It detects objects up to 20 cm deep, displaying the detection depth.

Here is the demonstration video on leak detection

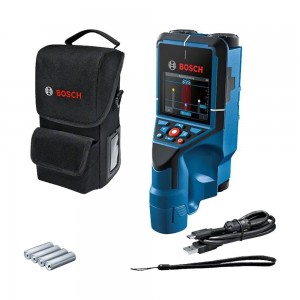

Package contents (code 0.601.081.600 - version without case):

• USB-C® Cable
• Carrying strap
• Battery adapter (Codes 1600A017HF/1600A017HH)
• 4 x 1.5V LR6 (AA) batteries
• Sachet

Main Technical Data:

• Battery voltage: 12.0V
• Bosch radar technology: Yes
• Detectable objects: Magnetic metals (e.g. iron), Non-magnetic metals (e.g. copper), Live wires, Non-live wires, Empty plastic pipes, Plastic pipes filled with water, Wooden substructures.
• Maximum detection depth: 200 mm.
  • Detection depth, dry concrete, max.: 200 mm
  • Detection depth, concrete at the beginning of hardening, max.: 60 mm
  • Detection depth, other wall types, max.: 80 mm
  • Detection depth, wooden substructures, max.: 38 mm
• Accuracy: ± 5 mm
• Available views: Object view, Detail view, 2D signal view, Signal view
• Supported wall types: Brick/Universal, Concrete, Plasterboard, Surface heating, Early curing concrete, Horizontal brick core drilling, Vertically perforated brick.
• Dust and water protection index: IP 5X
• Documentation via: USB-C, SD Card
• Upgradeable: Yes (firmware update is available)
• Material identification: Live wires, Magnetic metal, Non-magnetic metal, Non-metallic material.
• Power supply: 12V lithium battery, 4 x 1.5V LR6 (AA) batteries, 4 x 1.2V HR06 (AA) batteries.
• Weight (approx.): 0.7 kg
• Additional function: Leak detection, distance measurement.

Here is the official Bosch product presentation
