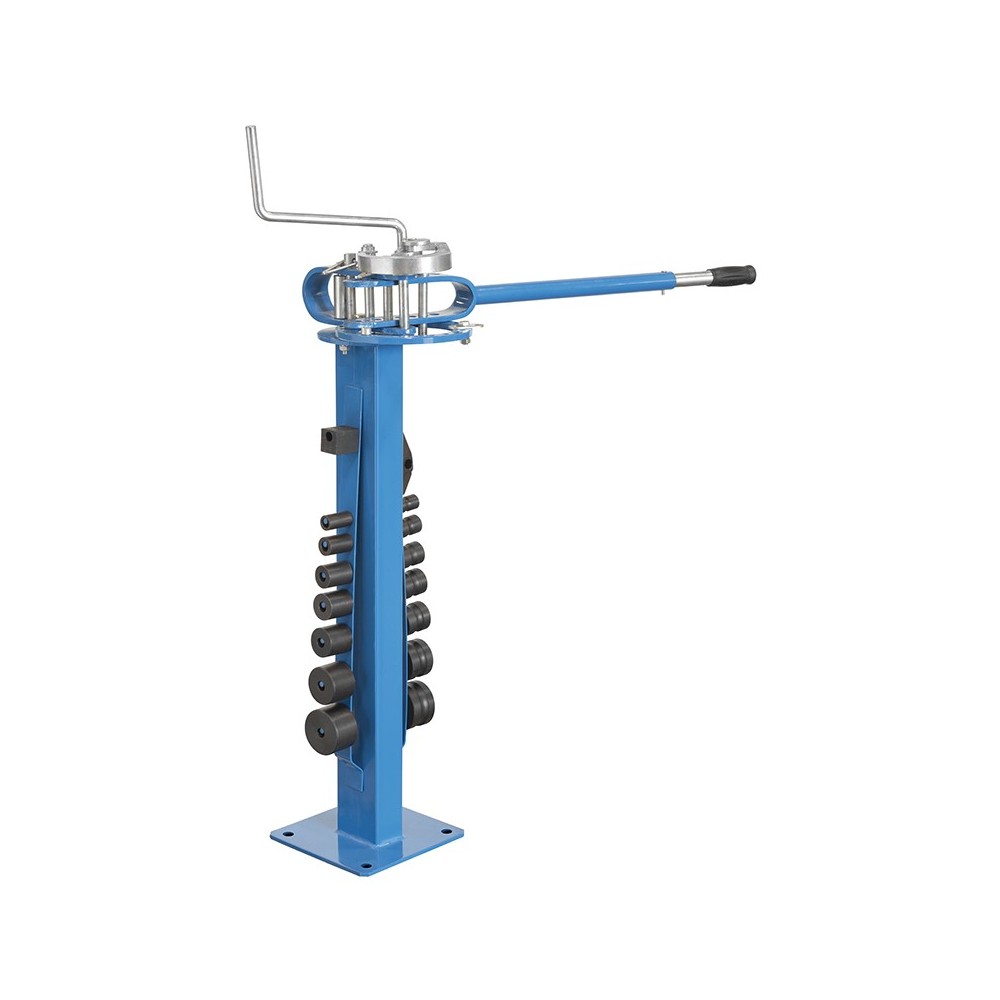

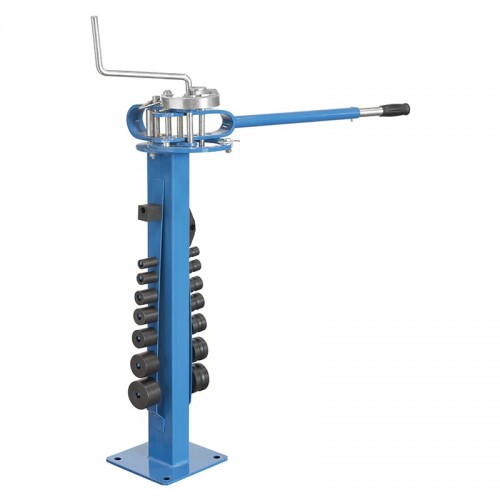

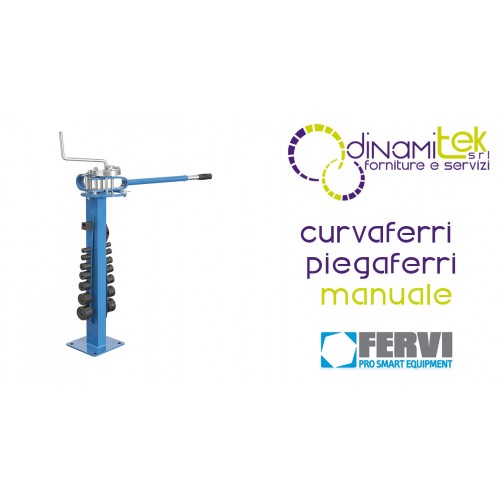

0721 FERVI MANUAL IRON BENDER AND BENDER

The fervent Art. 0721 MANUAL IRON BENDING AND BENDING MACHINE is a robust and versatile machine tool, designed for professionals who require precision and reliability when working with iron and pipes.

This tool is specifically designed for cold bending , ensuring that the mechanical properties of the material are not altered during the process. A key feature is its limit switch , which allows for speeding up and standardizing series processing , ensuring high repeatability and optimizing production times.

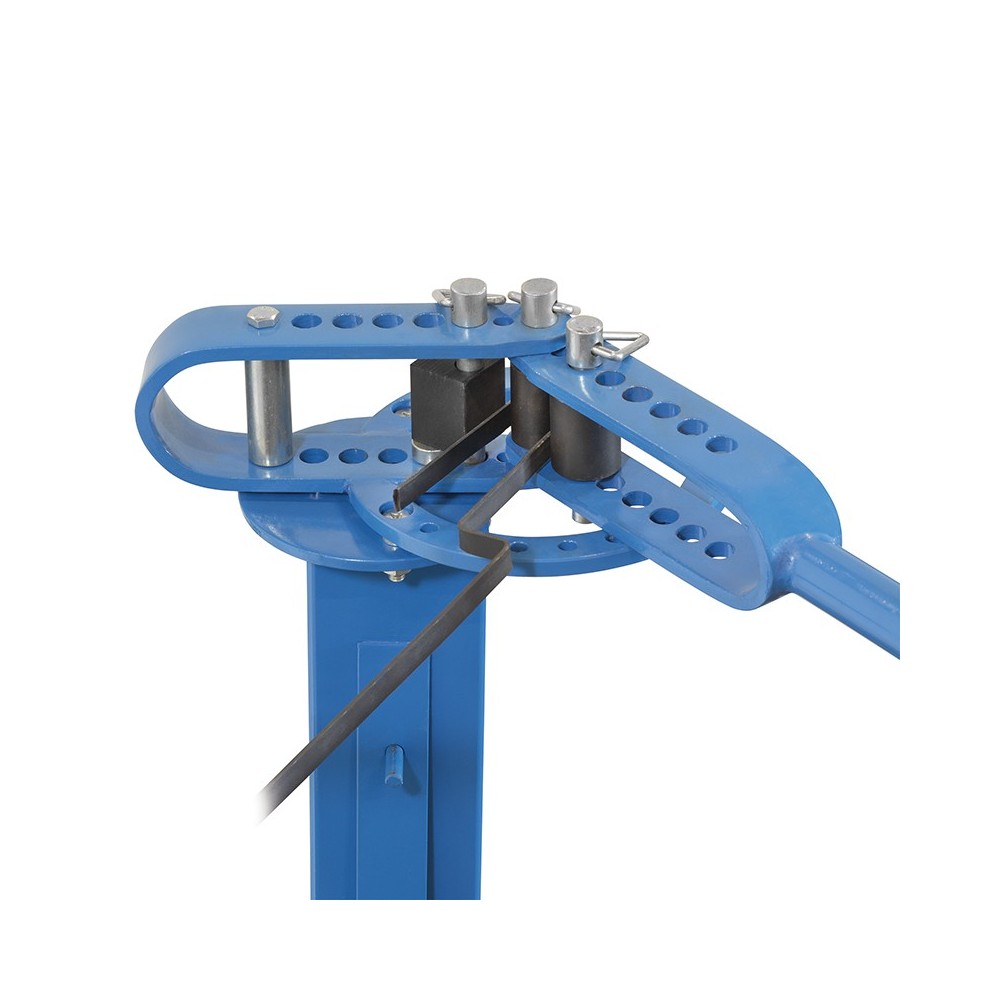

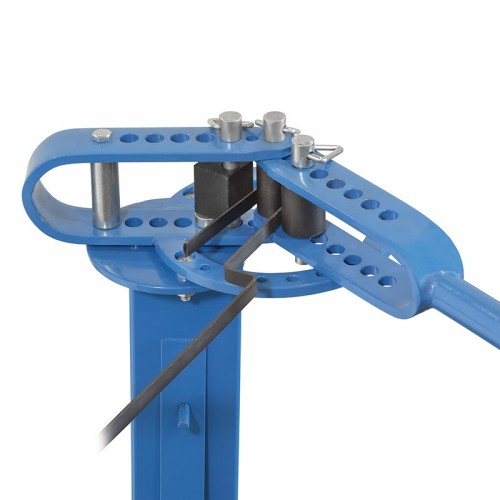

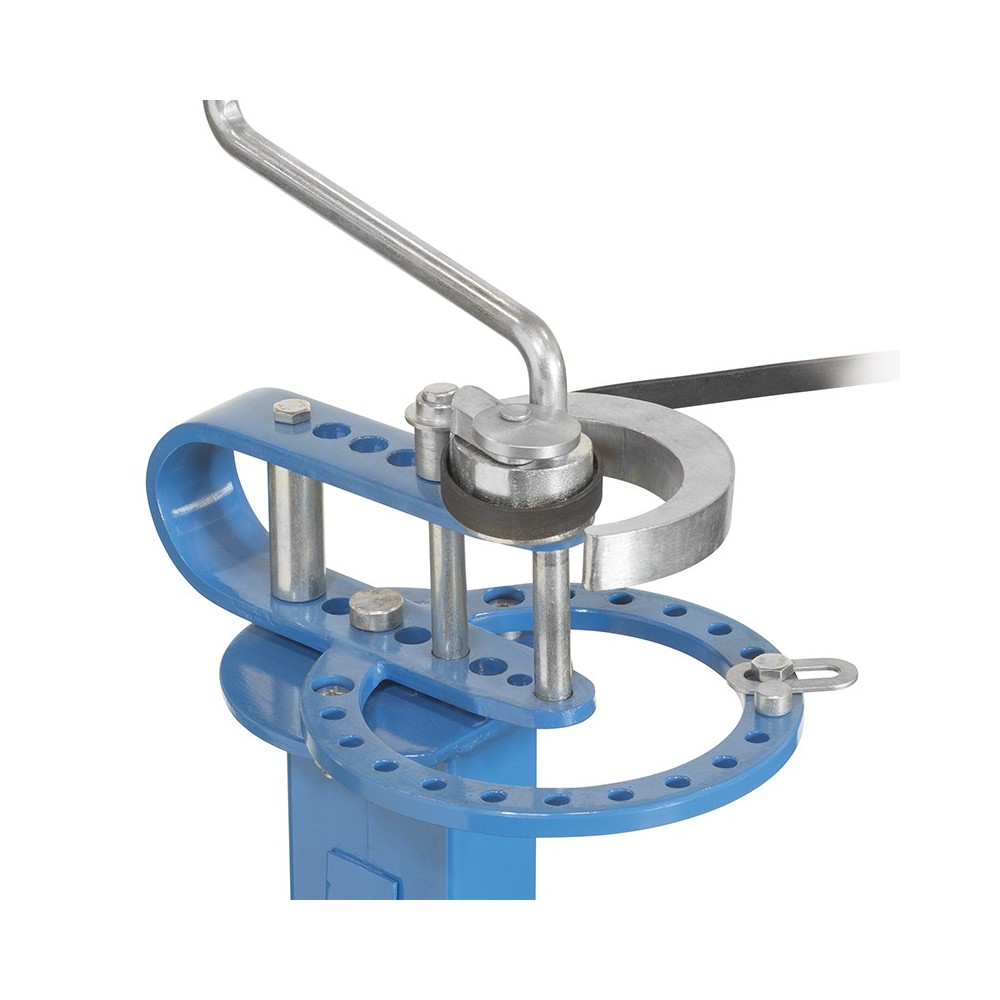

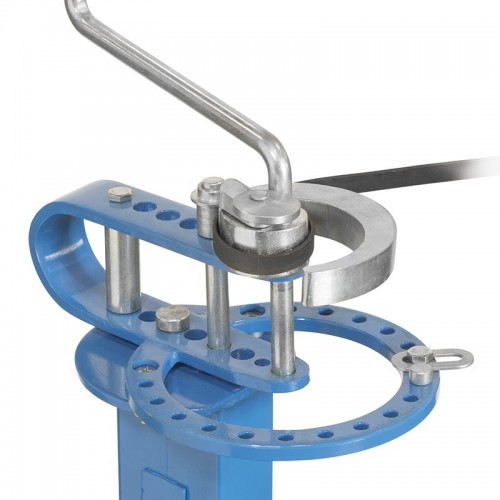

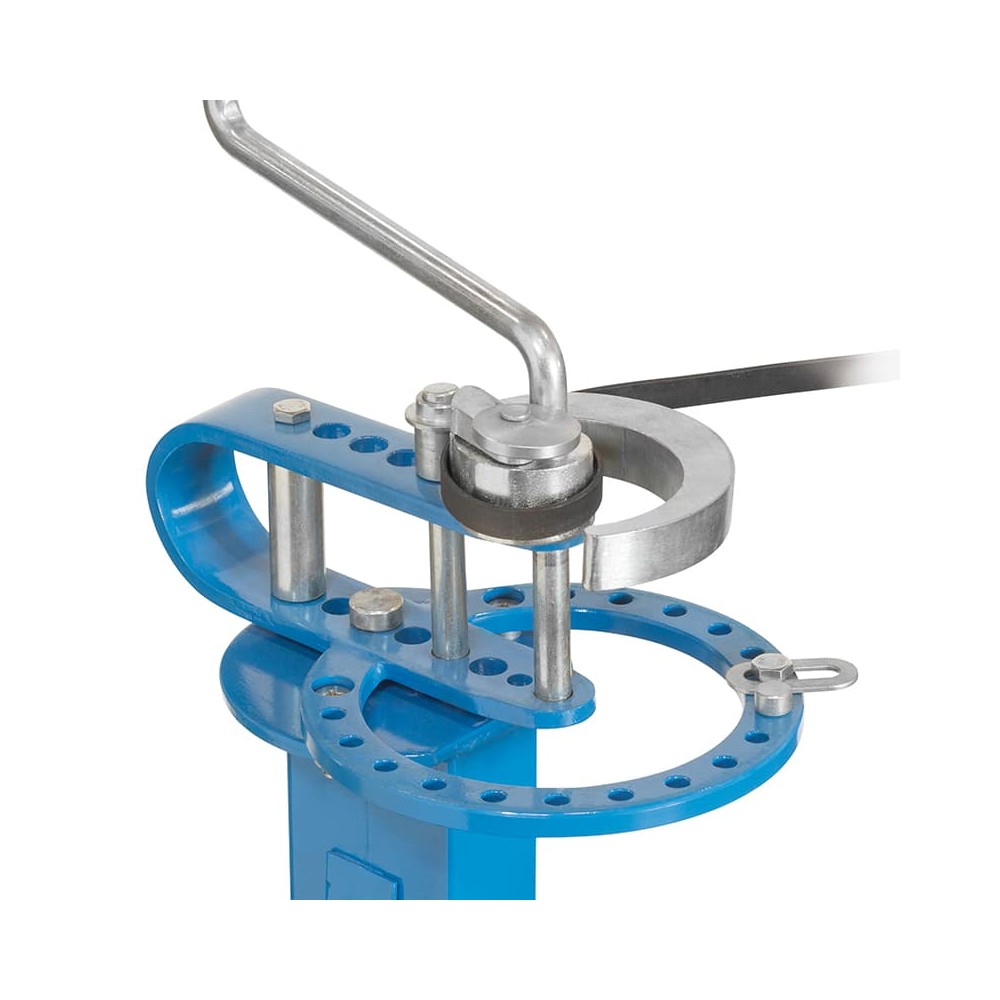

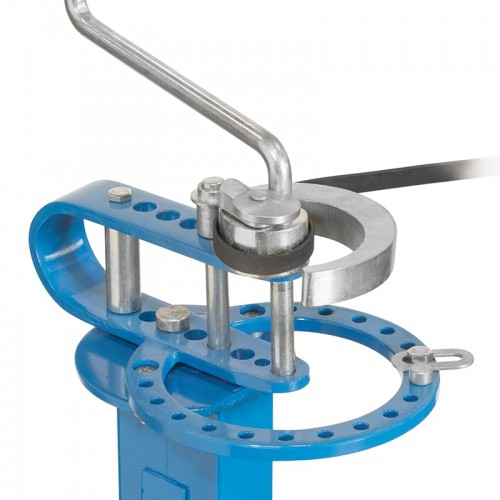

The lever is adjustable in length up to a maximum of 1000 mm, offering the operator the flexibility needed to adapt the force and maneuverability based on the type of bending and the material. The fervent 0721 already includes rollers for rods and flat bars , allowing for different bending radii and obtaining both "dry" bends and softer curves . Its versatility also extends to use with pipes .

Detailed Technical Specifications:

• Diameter of the included rollers: 2x Ø 24, 30, 37, 43, 49, 62, 75 mm
• Bending Capacity (Rod):
  • Steel, Aluminum, Copper: Ø 16 mm
  • Stainless steel: Ø 14 mm
• Folding Capacity (Flat):
  • Standard: 10 x 50 mm
  • On Edge: 6 x 50 mm
• Folding capacity (Square): 14 x 14 mm
• Bending capacity (Round tube): G 3/4"
• Maximum lever length: 1000 mm
• Net weight: 30 kg
