ZECA 142405 DATAFLUX CABLE REEL - IP65 MULTI-CHANNEL Dinamitek 1
  • ZECA 142405 DATAFLUX CABLE REEL - IP65 MULTI-CHANNEL Dinamitek 1
  • ZECA 142405 DATAFLUX CABLE REEL - IP65 MULTI-CHANNEL Dinamitek 2
  • ZECA 142405 DATAFLUX CABLE REEL - IP65 MULTI-CHANNEL Dinamitek 3

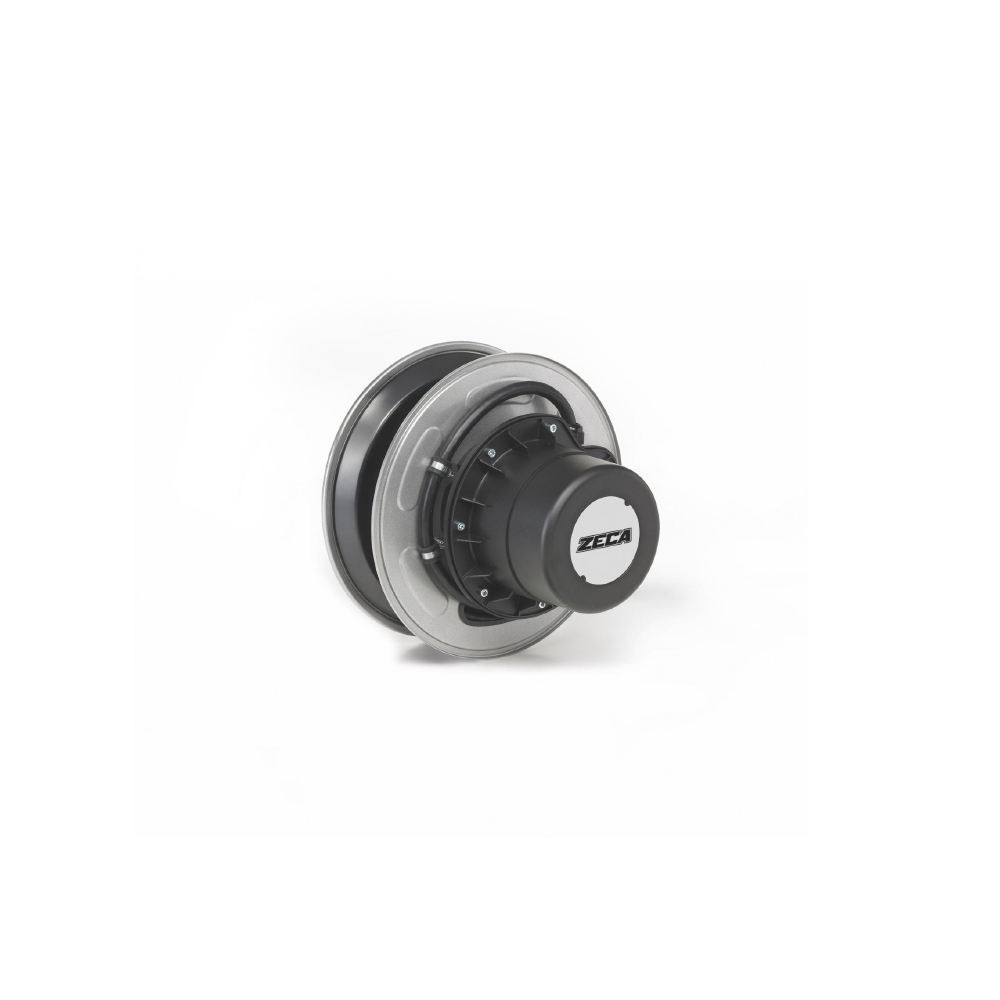

142405 DATAFLUX ZECA CABLE REEL

The mint Dataflux 142405 Cable Reel is a premium solution for transmitting a high number of signals in demanding industrial environments.

With a TPE cable (24x0.5) and an exceptional IP65 protection rating, it guarantees uninterrupted performance and maximum safety, even in the most demanding conditions, ensuring data connection stability.

Shipping cost: Gratis for
2376,7 €
Tax included

1.948,12 € Tax excluded

Quantity
Available product, order it now.

mint 142405 Dataflux Cable Reel

The Dataflux 142405 cable reel is a high-performance mint product, specifically designed for transmitting a large number of signals in complex and demanding industrial environments. This cable reel is designed to create a work environment optimized for safety and productivity, eliminating the dangers of cumbersome cables and reducing damage.

Main Technical Features:

  • Cable Composition: Cable with 24 conductors of 0.5 mm² each.
  • Cable Length: 15 meters, with 2 meters of input cable.
  • Cable Type: Made of TPE (thermoplastic elastomer). The cable is sheathed with a highly flexible PUR/TPE compound, resistant to abrasion, oils, and coolants. It is free of silicone, halogens (compliant with EN 50267-2-1), and lead (compliant with 2011/65/EU ROHS-II). The conductors are bundled and stranded with short pitches, optimized for excellent torsional strength, ideal for dynamic installations.
  • Degree of Protection (IP): IP65 , which ensures complete protection against dust ingress and against powerful jets of water from any direction.
  • Dataflux Collector: Equipped with a special collector with 6, 12, or 24 tracks, a maximum current rating of 2A, and a maximum voltage of 48V. The gold alloy rings and brushes ensure extremely high reliability and durability with very low friction. The dielectric strength is 500 VAC at 60 Hz, the insulation resistance is >1000 MΩ/500 VDC, and the noise is less than 100 mΩ. 1 GHz bandwidth.
  • Atex: This model is not Atex.
  • Cable Diameter: 13mm.

Advantages and Applications:

The 142405 is ideal for demanding industrial applications that require handling large numbers of signals and maximum environmental protection, such as advanced robotics, data-intensive automation machinery, and control systems in critical environments.
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



142405
