671105C DATAFLUX CABLE REEL SERIES 67 ZECA

The Zeca Dataflux 671105C cable reel, from the 67 Series, is the ideal solution for transmitting signals that require large conductor cross-sections in harsh environments.

With a TPE cable (11x0.5C) and exceptional IP65 protection, it offers unparalleled performance and maximum safety, always ensuring a stable connection.

Shipping cost: Free for
1182,88 €
Tax included

969,57 € Tax excluded

Quantity
Available product, order it now.

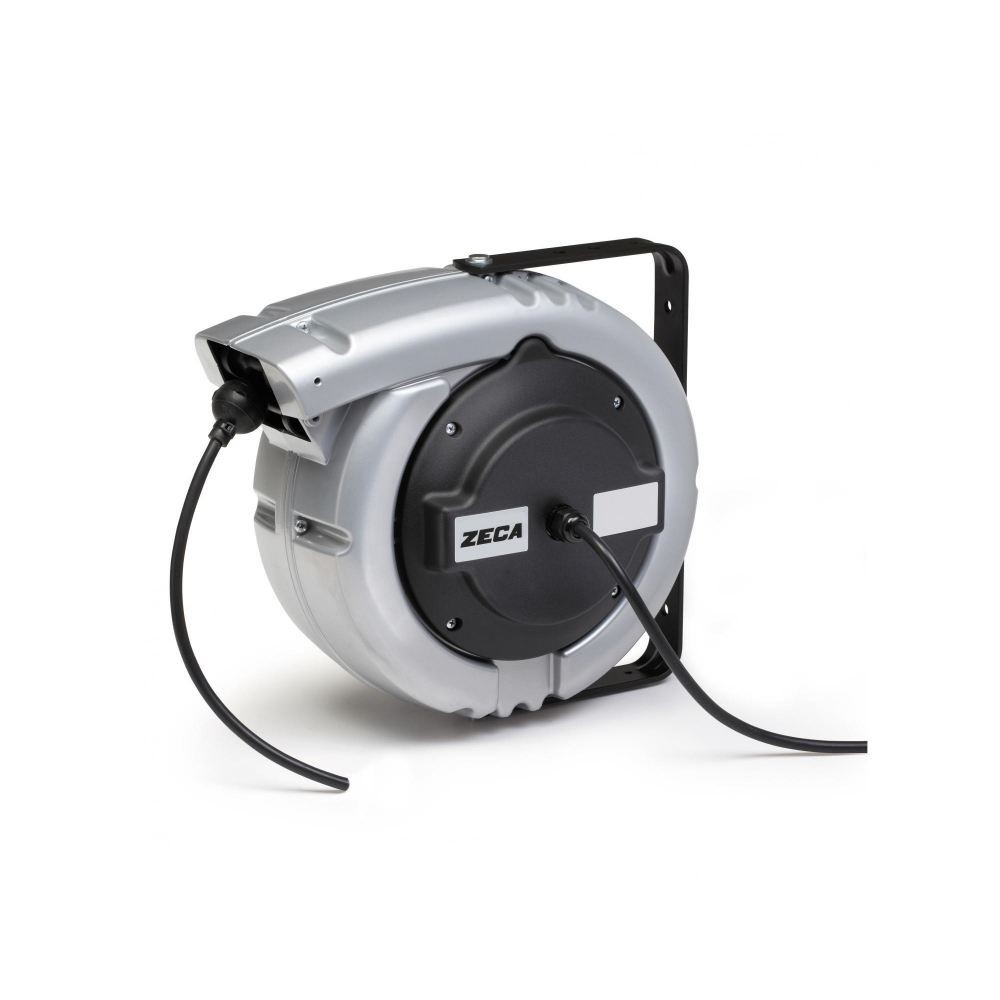

Zeca 671105C Dataflux Series 67 Cable Reel

The Dataflux 671105C cable reel , part of Zeca's 67 Series , was specifically designed for signal transmission in applications requiring larger conductor cross-sections and maximum environmental resistance. This cable reel significantly contributes to a tidier, safer, and more efficient work environment.

Main Technical Features:

  • Series: Dataflux Series 67.
  • Cable Composition: Cable with (11 x 0.5) conductors.
  • Cable Length: 10 meters, with 2 meters of input cable.
  • Cable Type: Made of TPE (thermoplastic elastomer). The cable features a PUR/TPE blend outer jacket, making it highly flexible and resistant to abrasion, oils, and coolants. It is free of silicone, halogens (compliant with EN 50267-2-1), and lead (compliant with 2011/65/EU ROHS-II). The conductors are bundled and stranded with short pitches, optimized for excellent torsional strength, ideal for dynamic installation.
  • Degree of Protection (IP): IP65 , ensuring complete protection against dust and against powerful jets of water from any direction.
  • Dataflux Collector: Includes a special collector with 6, 12, or 24 tracks, a maximum current rating of 2A, and a maximum voltage of 48V. Gold alloy rings and brushes ensure extremely high reliability and durability with very low friction. The dielectric strength is 500 VAC at 60 Hz, the insulation resistance is >1000 MΩ/500 VDC, and the noise is less than 100 mΩ. 1 GHz bandwidth.
  • Atex: This model is not Atex.
  • Cable Diameter: 11.5mm.

Advantages and Applications:

The 671105C is the ideal choice for applications requiring both high conductor density and maximum environmental protection, such as in advanced robotics, process automation, and measurement systems in harsh industrial environments.
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
