671102C DATAFLUX CABLE REEL SERIES 67 ZECA

The mint Dataflux 671102C Cable Reel, part of the 67 Series, is designed for the transmission of complex signals in harsh industrial environments.

With a TPE cable (11x0.25C) and a robust IP65 protection rating, it ensures stable and secure connections even in the presence of dust and water jets, maximizing operational efficiency.

Shipping cost: Free for
1314,31 €
Tax included

1.077,30 € Tax excluded

Quantity
Available product, order it now.

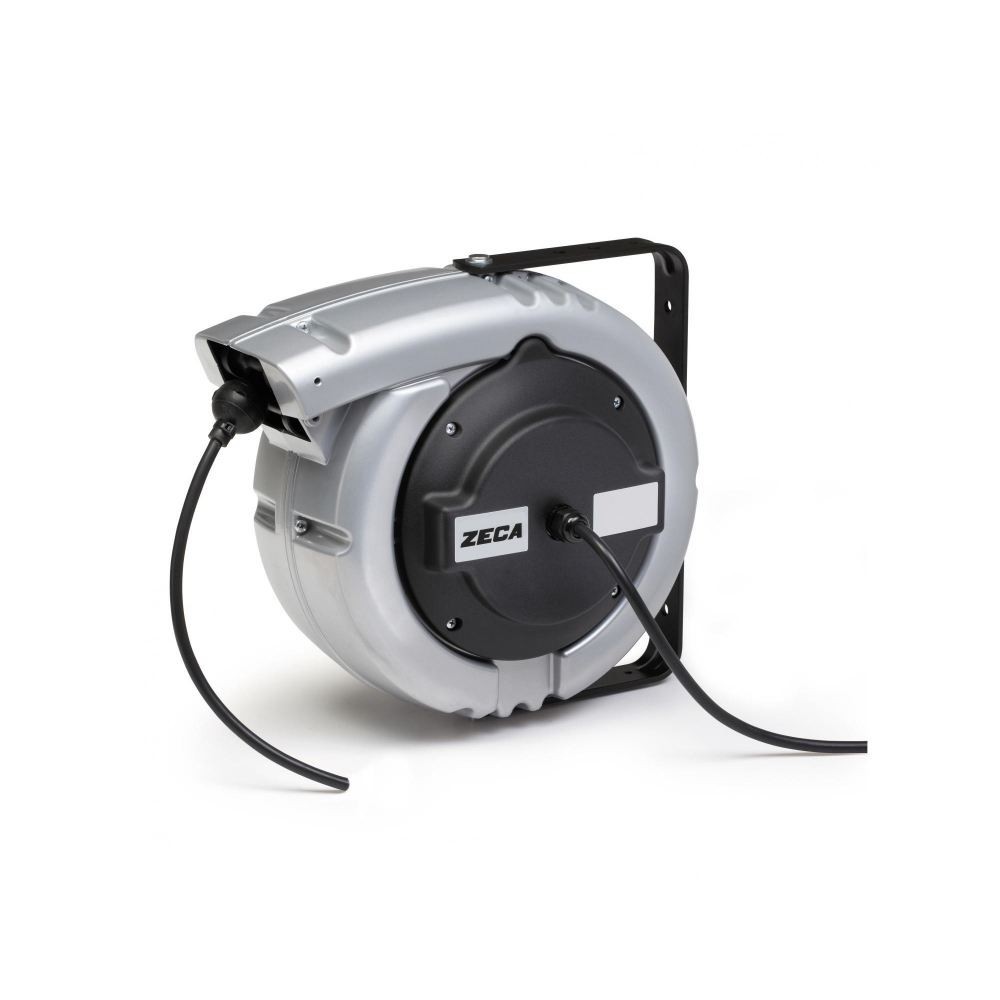

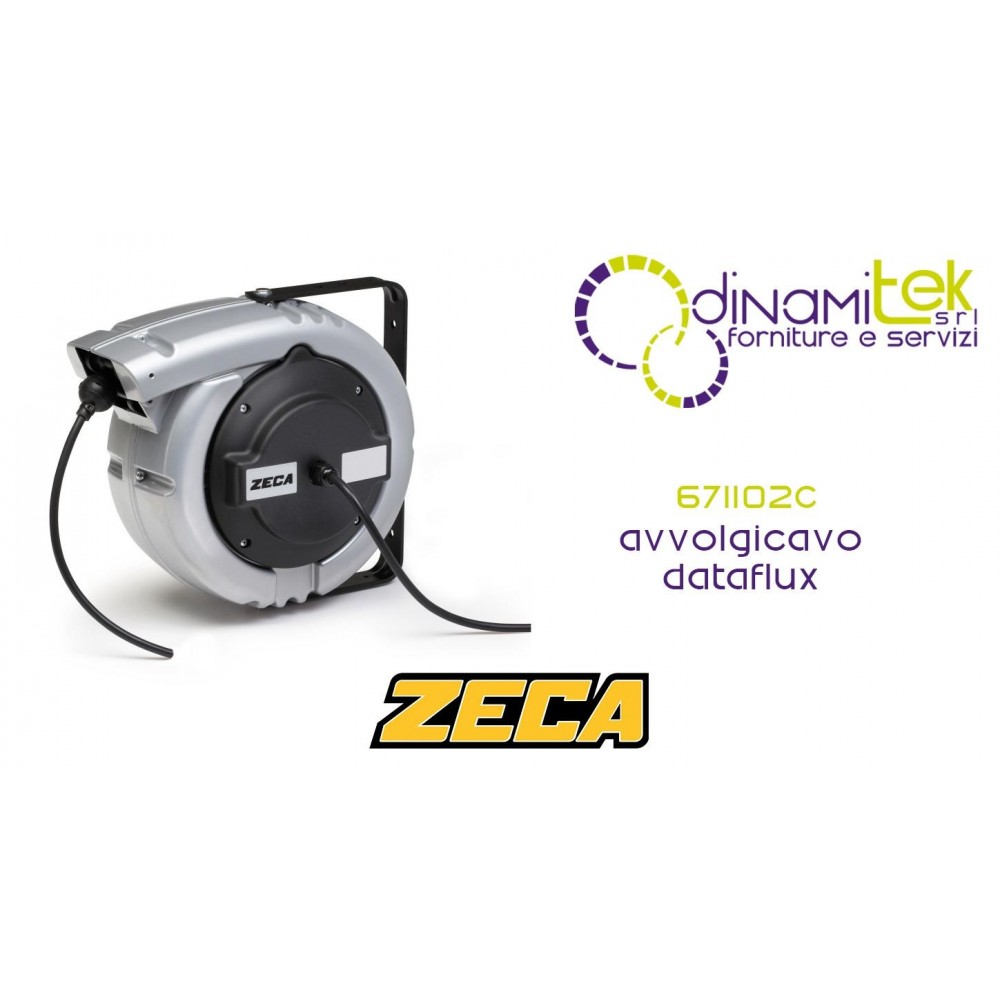

mint 671102C Dataflux Series 67 Cable Reel

The Dataflux 671102C Cable Reel is part of mint's 67 Series and is a high-performance solution for transmitting complex signals in environments where robustness is essential. It helps create a safer and more productive workspace by eliminating cable clutter and preventing damage.

Main Technical Features:

  • Series: Dataflux Series 67.
  • Cable Composition: Cable with (11 x 0.25) conductors.
  • Cable Length: 18 meters, with 2 meters of input cable.
  • Cable Type: Made of TPE (thermoplastic elastomer). The cable is sheathed with a highly flexible PUR/TPE compound, resistant to abrasion, oils, and coolants. It is free of silicone, halogens (compliant with EN 50267-2-1), and lead (compliant with 2011/65/EU ROHS-II). The conductors are bundled and stranded with short pitches, optimized for excellent torsional strength, ideal for dynamic installations.
  • Protection Rating (IP): IP65 , providing complete protection against dust ingress and against powerful jets of water from any direction.
  • Dataflux Collector: Equipped with a special collector with 6, 12, or 24 tracks, a maximum current rating of 2A, and a maximum voltage of 48V. The gold alloy rings and brushes ensure extremely high reliability and durability with very low friction. The dielectric strength is 500 VAC at 60 Hz, the insulation resistance is >1000 MΩ/500 VDC, and the noise is less than 100 mΩ. 1 GHz bandwidth.
  • Atex: This model is not Atex.
  • Cable Diameter: 9.5mm.

Advantages and Applications:

The 671102C is ideal for use in harsh industrial environments, such as in robotics, automation or industrial machinery, where the transmission of numerous signals must be guaranteed uninterrupted and safe, even in the presence of unfavorable environmental factors.
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



671102C
