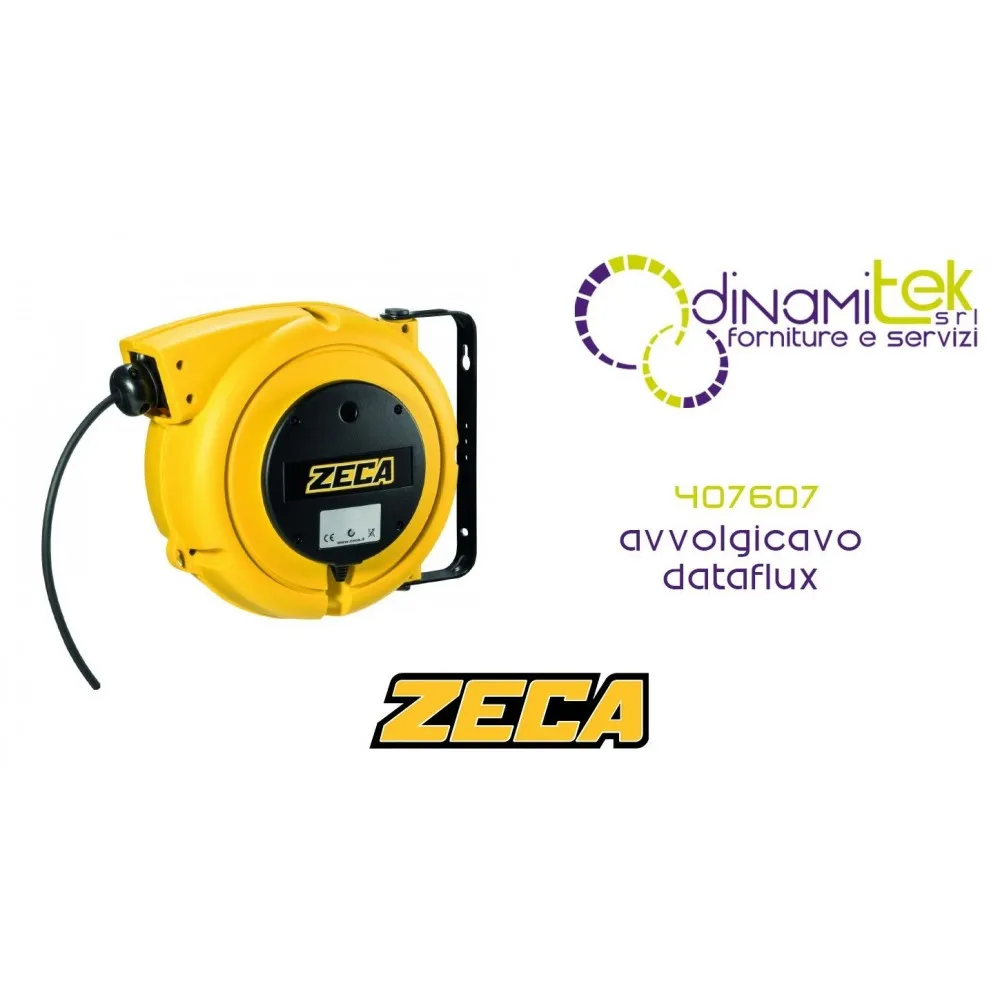

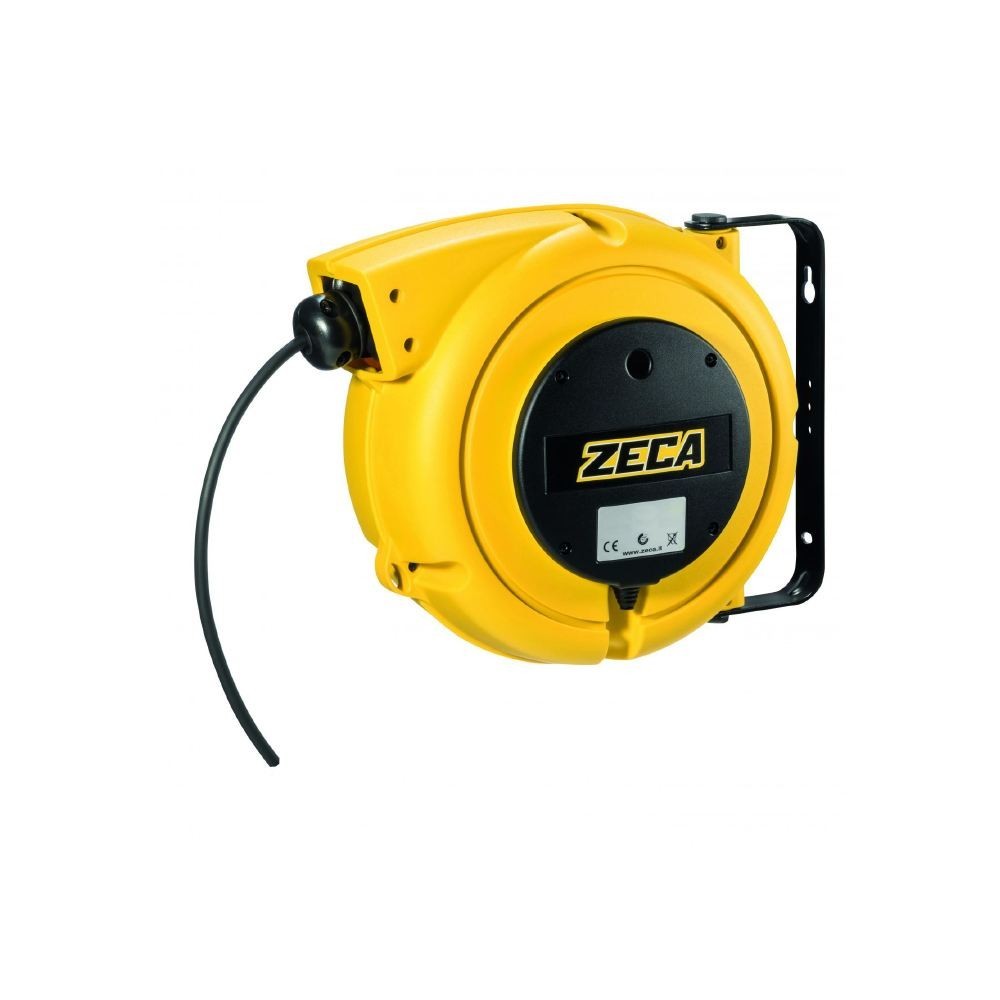

470607 ZECA DATAFLUX SERIES 47 CABLE REEL

The Zeca Dataflux 470607 cable reel, part of the 47 Series, is designed for the reliable transmission of signals in various industrial applications.

With a 6x0.75 TPE cable and an IP42 rating, it ensures solid performance and an organized working environment, minimizing the risk of cable damage and tripping.
Shipping cost: €70.00 for
596,91 €
Tax included

489,27 € Tax excluded

Quantity
Available product, order it now.

Zeca 470607 Dataflux Series 47 Cable Reel

The Dataflux 470607 cable reel is part of Zeca's 47 Series and offers an optimal solution for signal transmission , particularly suitable for maintaining order and safety in professional environments. Its design aims to prevent cable clutter and potential damage resulting from intensive use.

Main Technical Features:

  • Series: Dataflux Series 47.
  • Cable Composition: Cable with 6 conductors of 0.75 mm² each.
  • Cable Length: 15 meters, with 1 meter of input cable.
  • Cable Type: Made of TPE (thermoplastic elastomer). The cable features an external PUR/TPE blend that makes it highly flexible and resistant to abrasion, oils, and coolants. It is silicone-free, halogen-free (compliant with EN 50267-2-1), and lead-free (compliant with 2011/65/EU ROHS-II). The conductors are bundled, stranded with short pitches, and optimized for excellent torsional strength, ideal for dynamic installation.
  • Degree of Protection (IP): IP42 , providing protection against solid objects greater than 1 mm and against falling drops of water at a maximum inclination of 15°.
  • Dataflux Collector: Equipped with a special collector with 6, 12, or 24 tracks, a maximum current rating of 2A and a maximum voltage of 48V. The rings and brushes are made of gold alloy, ensuring high reliability, durability, and very low friction. The dielectric strength is 500 VAC at 60 Hz, the insulation resistance is >1000 MΩ/500 VDC, and the noise is less than 100 mΩ. Bandwidth of 1 GHz.
  • Atex: This model is not Atex.
  • Cable Diameter: 8mm.

Advantages and Applications:

The 470607 is particularly suitable for robotics, measurement and inspection systems, and industrial machinery applications where stable signal transmission and a clean work environment are required. Its robust construction and flexible cable ensure a long life even with frequent use.
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
