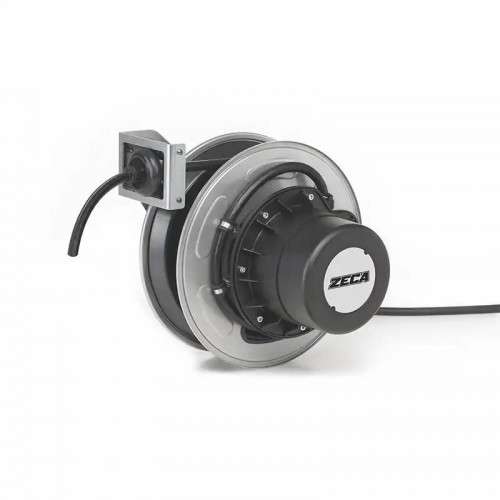

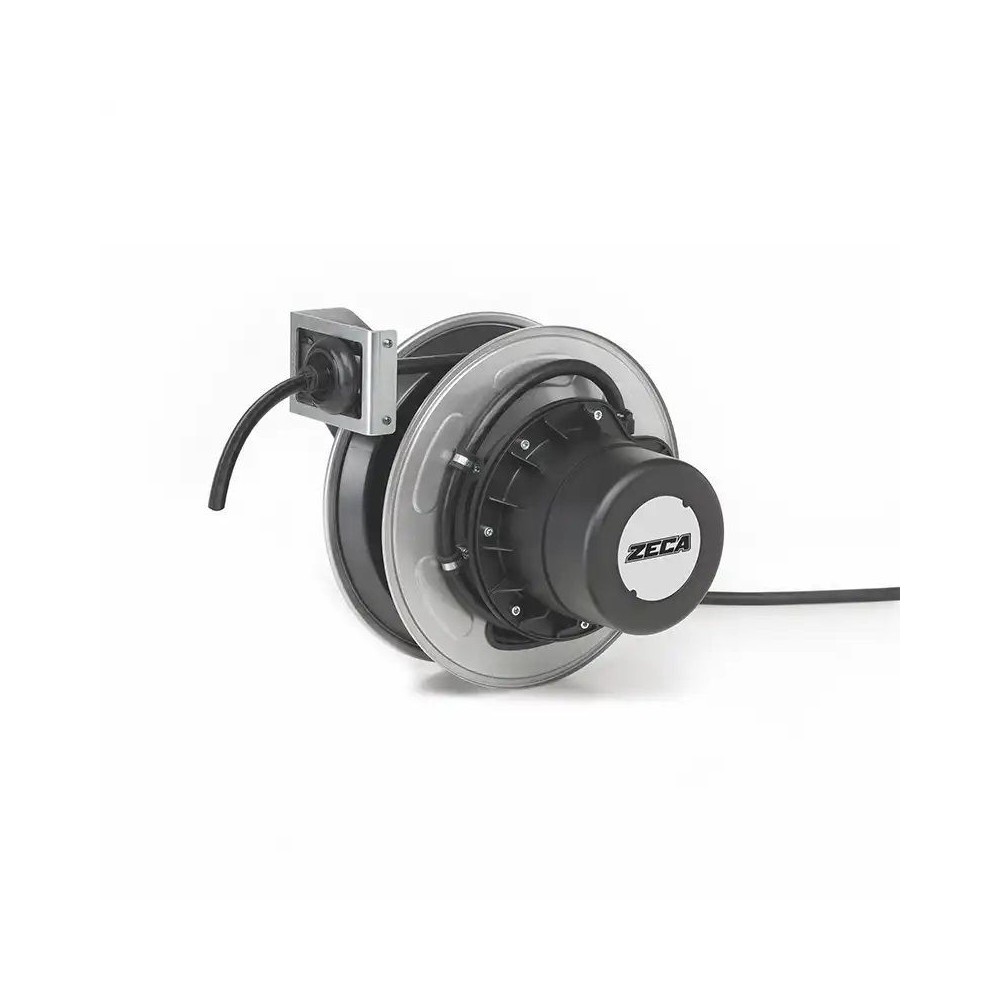

mint 1432 CT Cable Reel + Air Hose Twin Reels Series 1400

The mint Twin Reels 1400 Series Cable + Air Hose Reel, model 1432 CT , represents an integrated, highly reliable solution for the simultaneous management of electrical power and compressed air in demanding professional environments. This reel, part of mint's renowned Twin Reels series, was designed to optimize workspaces, maintain order, and increase operational safety.

General Technical Characteristics of the Winder (1400 Series)

• Robust Structure: The structural elements of the reel are made of steel with epoxy paint and technopolymer , guaranteeing notable resistance and durability over time.
• Fixing Flange: Equipped with an aluminum side fixing flange for secure installation.
• Spring: Equipped with a long-lasting steel spring that ensures efficient and consistent rewinding.
• Cable Guide Mouth: Includes a roller cable guide mouth , which makes it easy to unwind and rewind the cable and hose, preventing wear and tangles.
• Cable Stopper: Includes a ratchet cable stopper , which can be inserted every 50 cm. This mechanism can be easily disengaged if you want the cable to remain under constant tension.
• Electrical Safety: It features a double earth contact and a collector isolation voltage of 2.5 KV , ensuring high safety standards.
• Protection Rating: It boasts an IP65 protection rating, indicating complete protection against dust ingress and against powerful jets of water from any direction.
• Operating Temperature: It works effectively in an ambient temperature range of -5°C to +50°C .
• Compressed Air Performance: It supports a maximum operating pressure of 15 bar and a maximum vacuum of 0.95 bar , making it suitable for various pneumatic applications.
• Input Cable: Includes a 2-meter input cable for easy power connection.
• ATEX Certification: The 1432 CT model is NOT ATEX certified .
• Compliance: The reel complies with EN 61242, EN 60335-1, 2014/35/EU, 2011/65/EU, 2006/42/EU.

Detailed Specifications of the Model 1432 CT

• Cable/Tube Composition: The 1432 CT model is supplied with 4 conductors with a cross-section of 1.5 mm² , combined with a tube with an internal diameter of 4 mm .
• Cable/Hose Length: The total length of the cable and hose is 13 meters .
• Rated Power: It has a capacity of 1.5 KW at 20°C.
• Maximum Power: Reaches 2 KW at 20°C.
• Maximum Voltage: It is suitable for working with voltages up to 500 V.
• Rettbox Socket: The 1432 CT model does NOT include a Rettbox (Marechall) socket .

Cable and Tube Features (Common to Twin Reels)

• Tube Material: The tube is made of PA (Polyamide) .
• Tube Dimensions: It has an internal diameter of 4.00 mm and an external diameter of 6.00 mm.
• Conductor Insulation: The conductor insulation is PVC .
• Conductor Identification: Conductors are identified with the colors brown, black, gray and green/yellow .
• Outer Cable Jacket: The outer jacket of the cable is made of PVC and is black in color.
• Flame Retardant: The cable complies with the IEC 60332-1 standard for flame retardant.
• Rated and Test Voltage: It has a rated voltage of 300/500 V (50 Hz) and a test voltage of 2.5 kV .
• Cable/Tube Operating Temperature: The operating temperature for the cable and tube ranges from -5°C to +70°C .
• Bend Radius: The bend radius of the cable is 8 x D .

Advantages and Fields of Application

The mint 1432 CT cable reel is designed to improve working environments, offering concrete benefits:

• Improved Order and Safety: Helps eliminate cable and pipe clutter, significantly reducing the risk of tripping and accidental damage.
• Continuous Operation: Ensures that electrical power and compressed air are always available, which are essential for the continuous operation of machinery and vehicles.
• Versatile Use: It is ideal for a wide range of professional contexts, including emergency vehicles (such as those of firefighters), industrial machinery , process control systems and industrial automation . In these scenarios, it ensures that the vehicles always have the necessary electrical power and fully charged compressed air tanks.

Optional and Spare Parts (supplied disassembled)

• Swivel Bracket (ART. 1405): Suitable only for manual use, for wall mounting.
• Fixed Bracket (ART. 1403): For fixing to the wall, floor or ceiling.
• Rettbox flush-mounted plug (Marechall): Available as an accessory (Art. CTS 12V, Art. CTS 24V), with IP55 protection rating, 1P+N+T 20A 250V AC and 12V or 24V coil power supply for automatic ejection of the socket.
