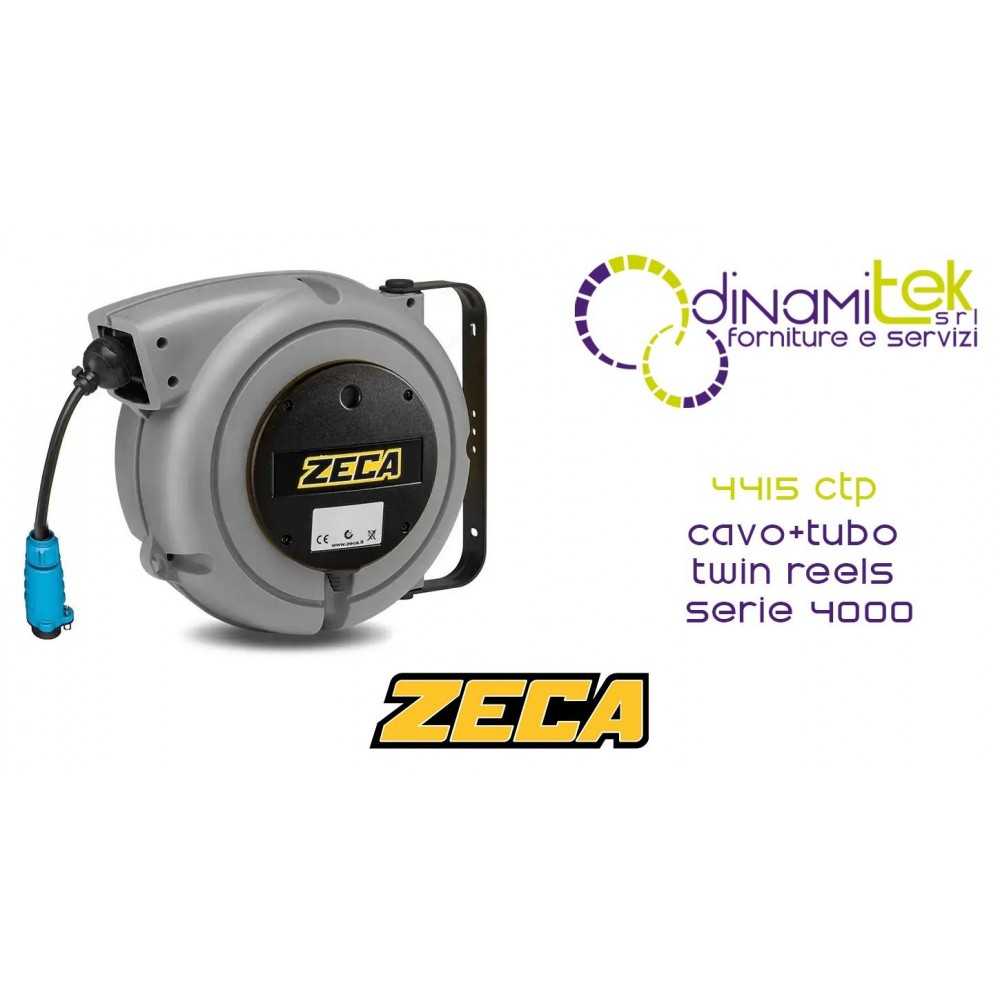

4415 CTP CABLE REEL CABLE + AIR HOSE TWIN REELS SERIES 4000 ZECA

The mint Twin Reels 4000 Series Cable + Air Hose Reel, model 4415 CTP , represents the ideal professional solution for businesses requiring a reliable power supply and a constant supply of compressed air, all in a single compact and functional system. This model stands out for the inclusion of a Marechall socket , making it immediately operational and maximizing efficiency in the workplace.

General Technical Characteristics of the Winder:

• Robust Structure: The structural elements of the reel are made of shock-resistant plastic, ensuring durability and resistance even in the most demanding work environments.
• Optimal Cable Management: Equipped with a roller cable guide mouth that ensures smooth and snag-free unwinding and rewinding of the cable.
• Cable Stopper: Includes a ratchet stopper, adjustable every 50 cm. This mechanism can be easily disengaged if you prefer to keep the cable under constant tension.
• High Electrical Safety: Features double ground contact and 2.5KV collector isolation voltage, ensuring maximum protection during use.
• Degree of Protection: With a degree of protection IP42, the reel is protected against the ingress of solid objects with a diameter greater than 1 mm and against vertically falling drops of water when tilted up to 15°.
• Operating Temperature Range: Works effectively in an ambient temperature range of -5°C to +50°C.
• Compressed Air Performance: It supports a maximum operating pressure of 15 bar and a maximum vacuum of 0.95 bar, making it extremely versatile for various pneumatic needs.

Detailed Specifications of the Model 4415 CTP:

• Cable/Tube Composition: The 4415 CTP model is supplied with 4 conductors with a cross-section of 1.5 mm², combined with a tube with an internal diameter of 4 mm.
• Cable/Hose Length: The total length of the cable and hose is 4 meters.
• Rated Power: It has a capacity of 1.5 KW and 2 KW at 230V.
• Maximum Voltage: It is suitable for working with voltages up to 500 V.
• Input Cable: Includes a 1 meter input cable for easy connection.
• Socket Included: This model includes a Marechall socket. Optional 12V or 24V Rettbox (Marechall) flush-mounted sockets with IP55 protection are available for automatic socket ejection.
• Non-Atex: This model is not Atex certified.

4415 CTP Cable and Tube Features:

• Tube Material: The tube is made of PA (Polyamide).
• Tube Dimensions: It has an internal diameter of 4.00 mm and an external diameter of 6.00 mm.
• Conductor Insulation: The conductor insulation is PVC.
• Conductor Identification: Conductors are identified with brown, black, gray and green/yellow colors.
• Outer Cable Jacket: The outer jacket of the cable is made of PVC and is black in color.
• Flame Retardant: The cable complies with the IEC 60332-1 standard for flame retardant.
• Environmental Compliance: It is silicone and halogen free (compliant with EN 50267-2-1), and lead free (compliant with 2011/65/EU ROHS-II).
• Rated and Test Voltage: It has a rated voltage of 300/500V (50Hz) and a test voltage of 2.5kV.
• Cable/Tube Operating Temperature: The operating temperature for the cable and tube ranges from -5°C to +70°C.
• Bending Radius: The bending radius of the cable is 8 x D.

Advantages and Fields of Application:

The mint 4415 CTP is designed to optimize working environments, offering tangible benefits:

• Improved Order and Safety: Helps eliminate cable and pipe clutter, significantly reducing the risk of tripping and accidental damage.
• Continuous Operation: Ensures that batteries are always charged and compressed air is always available, which are essential for operational continuity.
• Versatile Use: It is ideal for a wide range of professional settings, including emergency vehicles (such as fire engines), industrial machinery, process control systems, and industrial automation. In these scenarios, it ensures that the vehicles always have the necessary electrical power and fully charged compressed air tanks.
