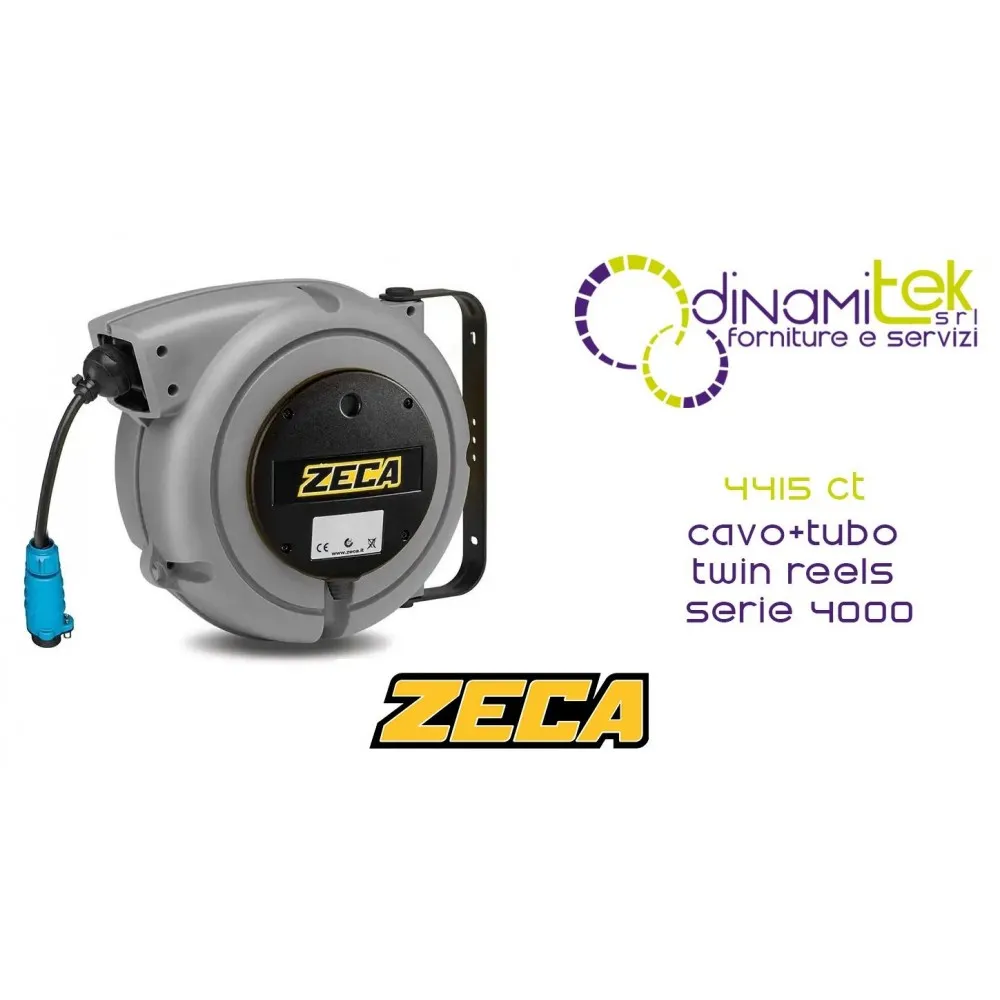

4415 CT CABLE REEL CABLE + AIR HOSE TWIN REELS SERIES 4000 ZECA

The mint Twin Reels 4000 Series Cable + Air Hose Reel, model 4415 CT , is the essential professional solution for environments requiring a reliable power supply and constant availability of compressed air. This cable reel is designed to maximize efficiency and safety, making it particularly suitable for a wide range of industrial and professional applications.

General Technical Characteristics:

• Robust Structure: Made with shockproof plastic structural elements, it guarantees durability and resistance even in the most demanding environments.
• Optimal Cable Management: Equipped with a roller cable guide mouth for smooth and snag-free unwinding and rewinding of the cable.
• Cable Stopper: Includes a handy ratchet stopper, which can be inserted every 50 cm. This can be easily disengaged if you want to keep the cable under constant tension.
• High Electrical Safety: Features double ground contact and 2.5KV collector isolation voltage, ensuring maximum protection during use.
• Degree of Protection: With a degree of protection IP42, the reel is protected against the ingress of solid objects with a diameter greater than 1 mm and against vertically falling drops of water when tilted up to 15°.
• Operating Temperature Range: Works effectively in an ambient temperature range of -5°C to +50°C.
• Compressed Air Performance: It supports a maximum operating pressure of 15 bar and a maximum vacuum of 0.95 bar, making it extremely versatile for various pneumatic needs.

Detailed Specifications of Model 4415 CT:

• Cable/Tube Composition: The 4415 CT model is supplied with 4 conductors with a cross-section of 1.5 mm², combined with a tube with an internal diameter of 4 mm.
• Cable/Hose Length: The total length of the cable and hose is 5 meters.
• Rated Power: It has a capacity of 1.5 KW and 2 KW at 230V, ensuring adequate power delivery for your applications.
• Maximum Voltage: It is suitable for working with voltages up to 500 V.
• Input Cable: Includes a 1 meter input cable for easy connection.
• Rettbox Plug: The Rettbox plug is not included as standard with the 4415 CT model. However, 12V or 24V Rettbox (Marechall) flush-mounted plugs, with IP55 protection rating, are available as an option for automatic socket ejection.
• Non-Atex: This model is not Atex certified.

4415 CT Cable and Tube Features:

• Tube Material: The tube is made of PA (Polyamide).
• Tube Dimensions: It has an internal diameter of 4.00 mm and an external diameter of 6.00 mm.
• Conductor Insulation: The conductor insulation is PVC.
• Conductor Identification: Conductors are identified with brown, black, gray and green/yellow colors.
• Outer Cable Jacket: The outer jacket of the cable is made of PVC and is black in color.
• Flame Retardant: The cable complies with the IEC 60332-1 standard for flame retardant.
• Environmental Compliance: It is silicone and halogen free (compliant with EN 50267-2-1), and lead free (compliant with 2011/65/EU ROHS-II).
• Rated and Test Voltage: It has a rated voltage of 300/500V (50Hz) and a test voltage of 2.5kV.
• Cable/Tube Operating Temperature: The operating temperature for the cable and tube ranges from -5°C to +70°C.
• Bending Radius: The bending radius of the cable is 8 x D.

Advantages and Fields of Application:

The 4415 CT is designed to optimize working environments, offering tangible benefits:

• Improved Order and Safety: Helps eliminate cable and pipe clutter, significantly reducing the risk of tripping and accidental damage.
• Continuous Operation: Ensures that batteries are always charged and compressed air is always available, which are essential for operational continuity.
• Versatile Use: It is ideal for a wide range of professional settings, including emergency vehicles (such as fire engines), industrial machinery, process control systems, and industrial automation. In these scenarios, it ensures that the vehicles always have the necessary electrical power and fully charged compressed air tanks.
