18-33000-120 ATEX CABLE REEL FOR GROUNDING WITH ZECA CLAMP

Extended protection, maximum reliability! The mint 18-33000-120 explosion-proof cable reel takes safety to a new level with 20 meters of cable . Perfect for ensuring impeccable grounding in potentially explosive areas, preventing electrostatic discharges in critical sectors such as refineries and fuel logistics. An essential investment for the peace of mind of your operations.

Shipping cost: Free for
1757,88 €
Tax included

1.440,89 € Tax excluded

Quantity
Available product, order it now.

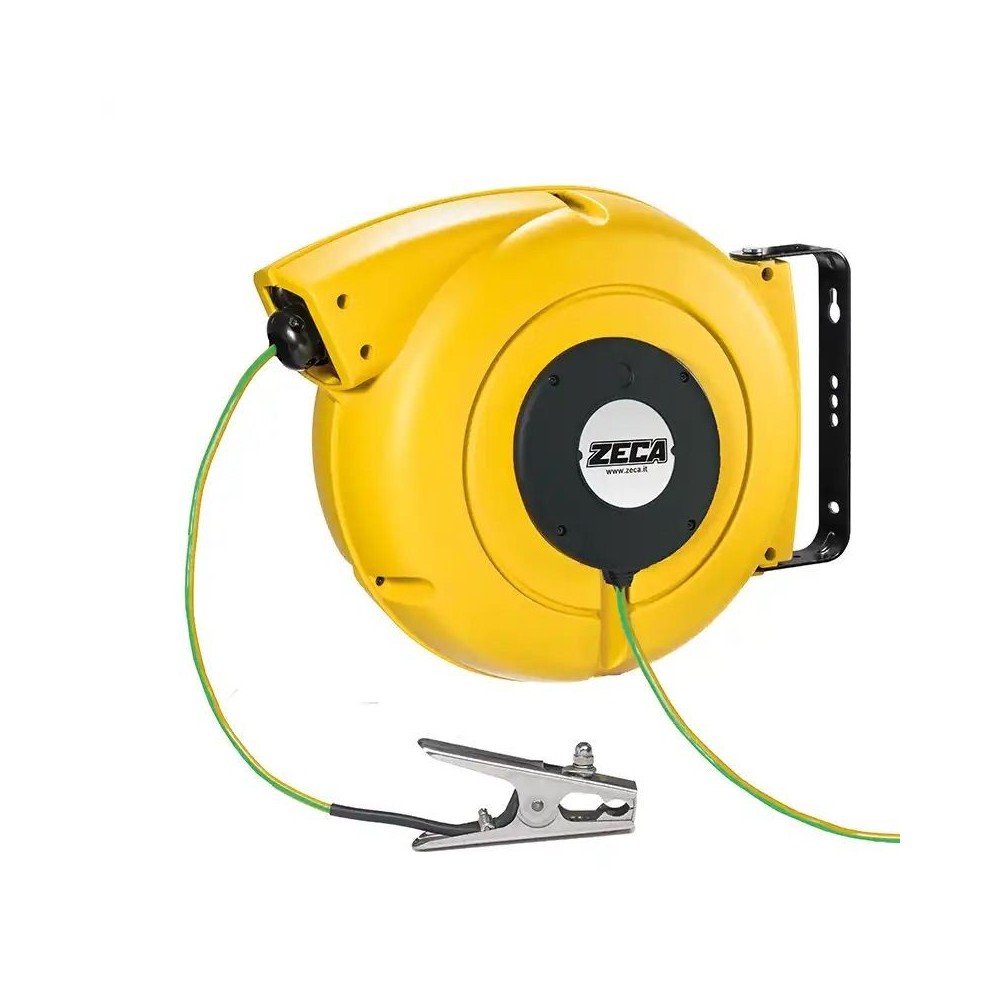

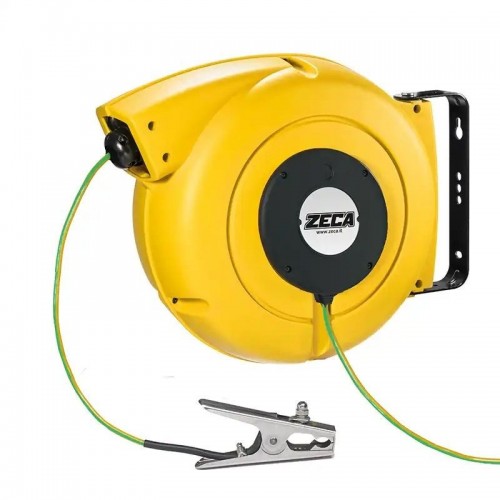

Explosion-Proof Cable Reel for Grounding with Clamp - ART. 18-33000-120

The ZECA ART. 18-33000-120 cable reel is a professional grounding device, specifically designed for applications in potentially explosive environments. This model, featuring a plastic construction, includes a cable reel and clamp, providing a complete solution for operational safety.

Main Technical Features:

  • Directive Compliance: The product complies with directives 2014/34/EU and 2014/30/EU.
  • ATEX marking: Its marking indicates suitability for environments with the presence of gas (II 2G Ex h IIC T6 Gb) and flammable dust (II 2D Ex h IIIC T80°C Db).
  • Certification: It is accompanied by the EC Type Examination Certificate BVS 19 ATEX E 028, attesting to its safety and reliability in explosive environments.
  • Cable Length: Supplied with a 20-meter cable, ideal for reaching distant points.
  • Cable Specifications: The single-core cable has a cross-section of 10 mm² and a diameter of 10 mm.
  • Structure: The sturdy structure of the cable reel is made of plastic material.

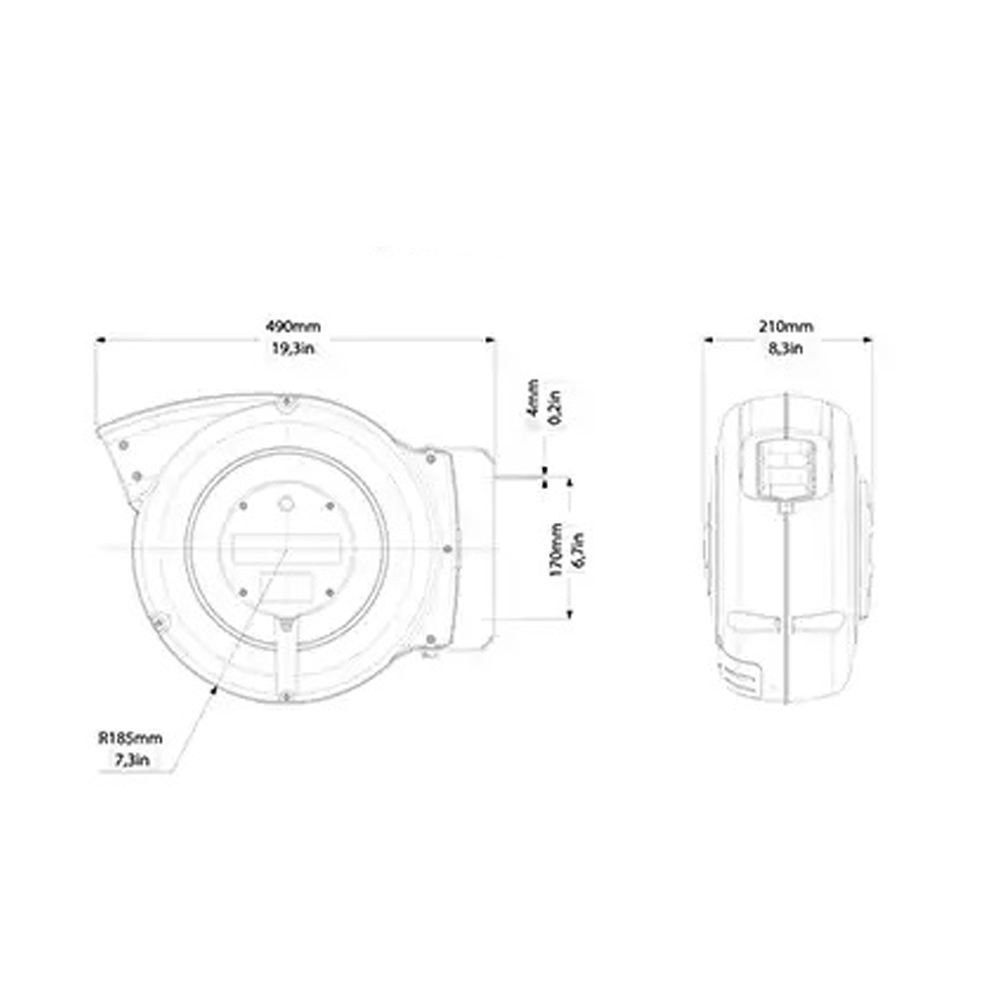

  • Dimensions: The overall dimensions of the device are 490mm (length) x 170mm (height) x 210mm (depth).

Applications and Benefits:

This cable reel is essential for transferring and handling flammable substances, such as fuels and electrocarbons, preventing the buildup of electrostatic charges that could trigger explosions. It is used in high-risk sectors such as aviation, refineries, shipbuilding, and tanker operations. Its flexible installation allows it to be mounted either on the grounding pole or directly on the vehicle. ZECA assures that these ATEX products have been specifically designed and tested to ensure maximum safety. It is essential that installation is performed in compliance with current regulations and that product selection is carried out by a certified specialist.
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



18-33000-120
