EV4162T EV4 CABLE REEL FOR CHARGING ELECTRIC VEHICLES ZECA

The mint EV4162T cable reel is a cutting-edge product from mint's EV4 Series , developed to meet the growing needs of the electric vehicle market. This cable reel represents a practical and efficient charging solution, both in domestic and professional settings, and is designed to be connected to an existing wallbox . Its use transforms the charging operation into a faster, cleaner, and safer process.

Specific Technical Features of the EV4162T Model:

• Item Code : EV4162T.
• Series : EV4.
• Product Type : Electric Car Cable Reel.
• Cable Length : 6 meters.
• Entrance Section Length : 1.5 meters.
• Cable Type : 5G2.5 + 1x0.5.
• Charging Type : Three-phase 16A (11 Kw).
• Integrated Wallbox : Does not include an integrated wallbox.
• Output Plug : Type 2.
• Wallbox side input socket : Type 2.
• Wi-Fi Connectivity : Does not have Wi-Fi connectivity; this feature is only available for the EV3161WB+ and EV3162WB+ models.
• Cable reel protection rating : IP42.
• Atex : NO (it is not an Atex certified product for explosive atmospheres).

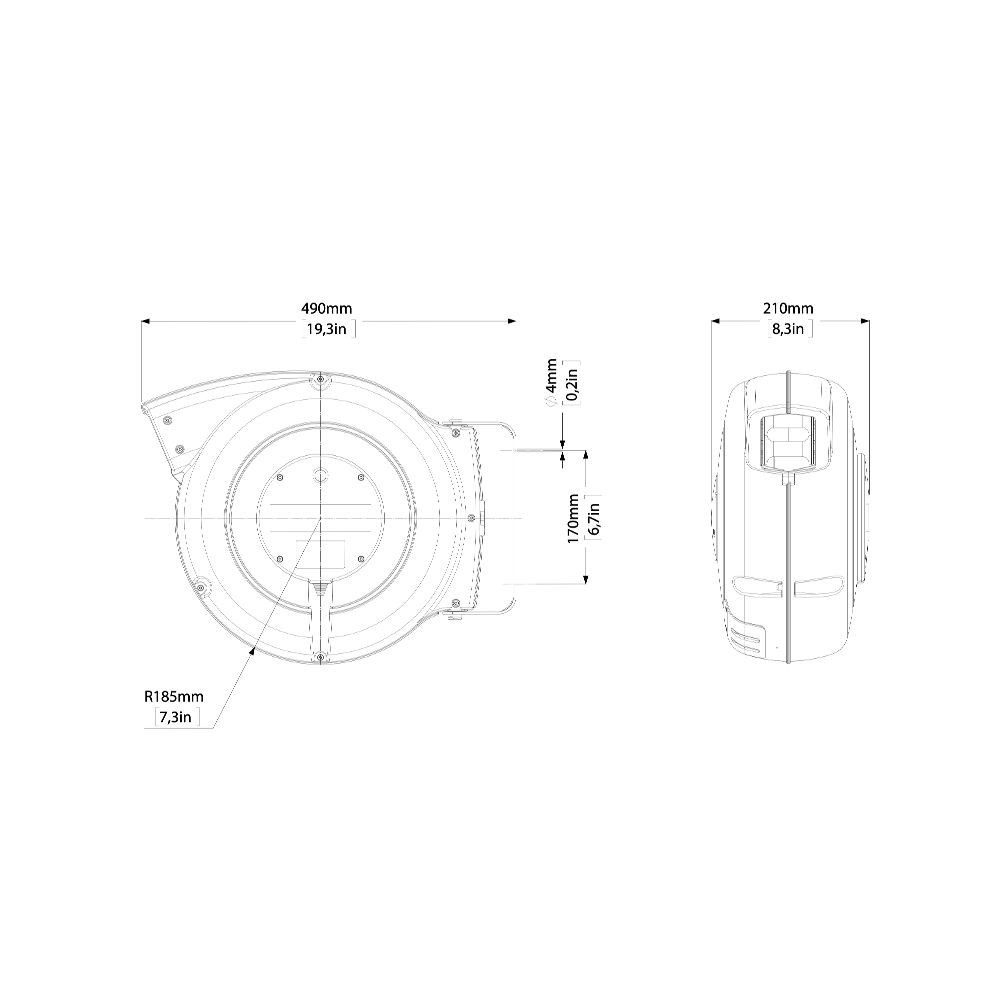

• Dimensions (Cable Reel Body) : Approx. 490mm (Width) x 210mm (Height) x 170mm (Depth).
• Weight : Approximately 8.0 kg for the EV4 series.

Type 2 Connector Details:

The Type 2 connector, also known as VDE-AR-E 2623-2-2, is the predominant European standard for alternating current (AC) charging stations and is widely used by European manufacturers of electric vehicles.

• It has 7 contacts :
  • 5 power contacts: L1, L2, L3, N, PE.
  • 2 communication contacts: PP (proximity) and CP (pilot control).
• This connector is versatile and can be used for both single-phase and three-phase charging.

Advantages of mint EV Cable Reels:

The adoption of mint EV cable reels offers numerous practical and safety benefits for optimal management of electric vehicle charging:

• More Order in the Garage : Eliminates the clutter of tangled charging cables and keeps them better protected from dirt.
• Cable Protection : Cables are safeguarded from wear and tear caused by trampling or improper exposure, significantly extending their useful life.
• Increased Safety : Reduces the risk of tripping and prevents direct contact between hands and cable during collection, improving the overall safety of the charging environment.
• Improved User Experience : Charging your vehicle becomes easier, faster and more comfortable, avoiding dirty or wet hands and optimizing your time.

Optional and Installation Notes:

• An optional device called **Safety Return** (Art. 7000/SR) is available. This accessory allows for slow rewinding of the cable, preventing dangerous kickbacks if the cable slips from the operator's hand.
• When installing the product, it is essential to remember to connect the thermal protection following one of the two diagrams provided inside the package.

Choose the mint EV4162T for efficient, safe, and organized three-phase charging, benefiting from the Italian technical excellence that mint has been offering since 1929. mint's mission is to create tidier, safer, and more efficient professional environments through innovation and expertise.
