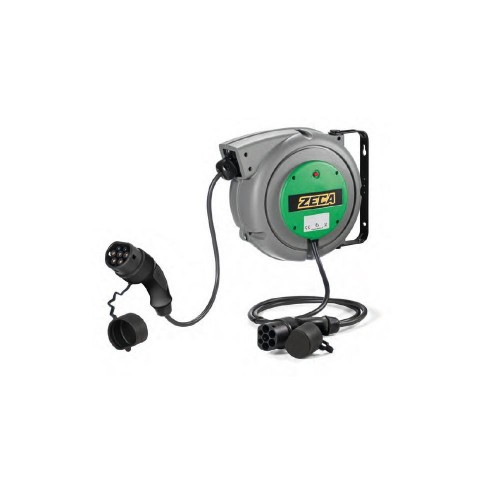

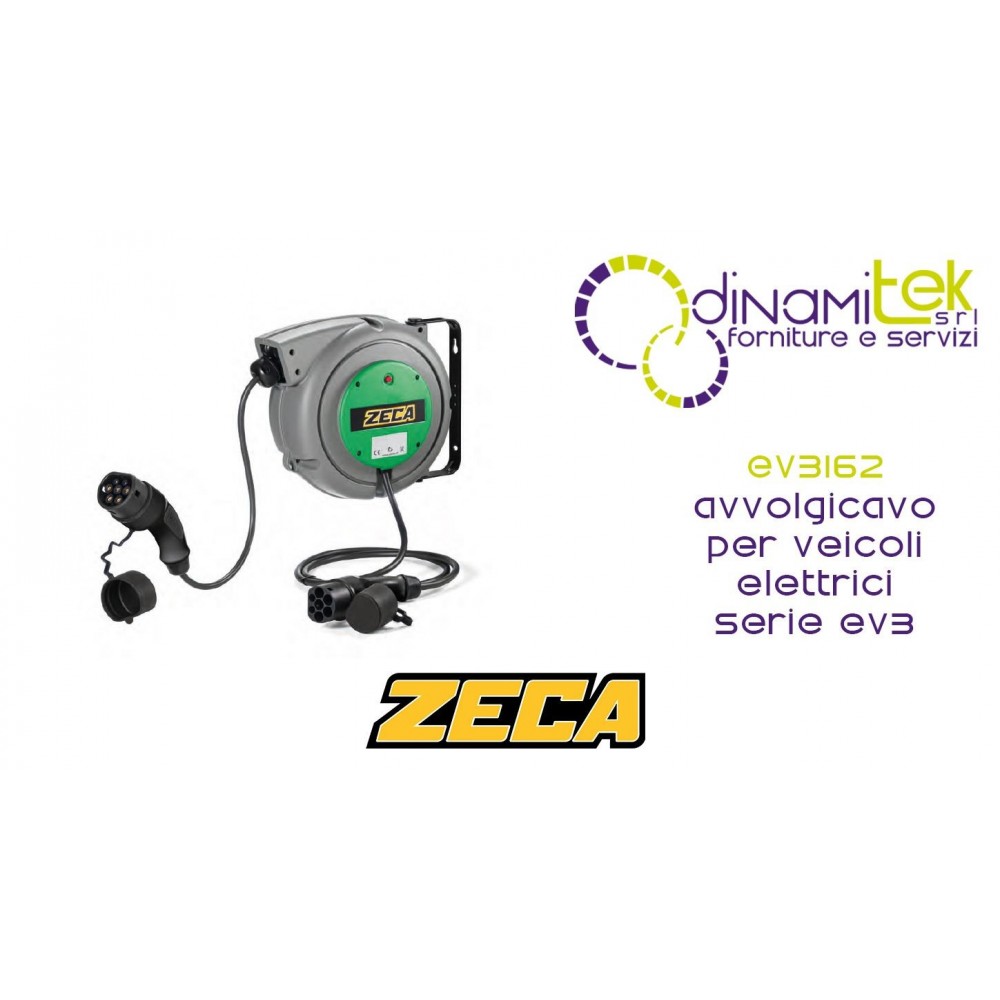

EV3162 EV3 CABLE REEL FOR CHARGING ELECTRIC VEHICLES ZECA

The Zeca EV3162 cable reel is part of Zeca's innovative EV3 Series , specifically designed to meet the needs of the rapidly growing electric vehicle industry. This cable reel is a practical and efficient solution for home or professional charging, designed to connect to an existing wallbox and transform a sometimes inconvenient operation into a quick and clean solution.

Specific Technical Features of the EV3162 Model:

• Item Code : EV3162.
• Series : EV3.
• Product Type : Electric Car Cable Reel.
• Cable Length : 5 meters.
• Entrance Section Length : 1.5 meters.
• Cable Type : 3G2.5 + 1X0.5.
• Charging Type : Single-phase 16A (3.8 kW) at 230V.
• Integrated Wallbox : Does not include an integrated wallbox.
• Output Plug : Type 2.
• Wallbox side input socket : Type 2.
• Wi-Fi Connectivity : It does not have Wi-Fi connectivity.
• Cable reel protection rating : IP42.
• Atex : NO.
• Dimensions : The cable reel has dimensions of 310x310x170 mm.
• Weight : The weight is listed as "12mm" in the specific datasheet, which is presumably a typo, as the general catalog lists around 4.0kg for the EV3 series.

Output Plug Details (Type 2):

The Type 2 connector (also known as VDE-AR-E 2623-2-2) is the European standard for AC charging stations and is the most widely used connector on electric cars by European electric vehicle manufacturers.

• It is equipped with 7 contacts :
  • 5 power contacts: L1, L2, L3, N, PE.
  • 2 communication contacts: PP (proximity) and CP (pilot control).
• This connector can be used for both single-phase and three-phase charging . Its maximum capacity is 32A at 230V or 32A at 400V.

Advantages of Zeca EV Cable Reels:

The adoption of Zeca EV cable reels offers multiple practical and safety benefits for managing electric vehicle charging:

• More Order in the Garage : Eliminates the clutter of tangled charging cables and keeps them better protected from dirt.
• Cable Protection : Cables are protected from wear and tear caused by trampling or improper exposure, extending their useful life.
• Increased Safety : Reduces tripping hazards and prevents direct contact between hands and cable during collection, improving overall environmental safety.
• Improved User Experience : Charging your vehicle becomes easier, faster and more comfortable, avoiding dirty or wet hands and saving time.

Choose the Zeca EV3162 for efficient, safe, and tidy charging, faithful to the Italian technical excellence that Zeca has been offering since 1929.
