EV6321 EV6 CABLE REEL FOR CHARGING ELECTRIC VEHICLES ZECA EV6 SERIES

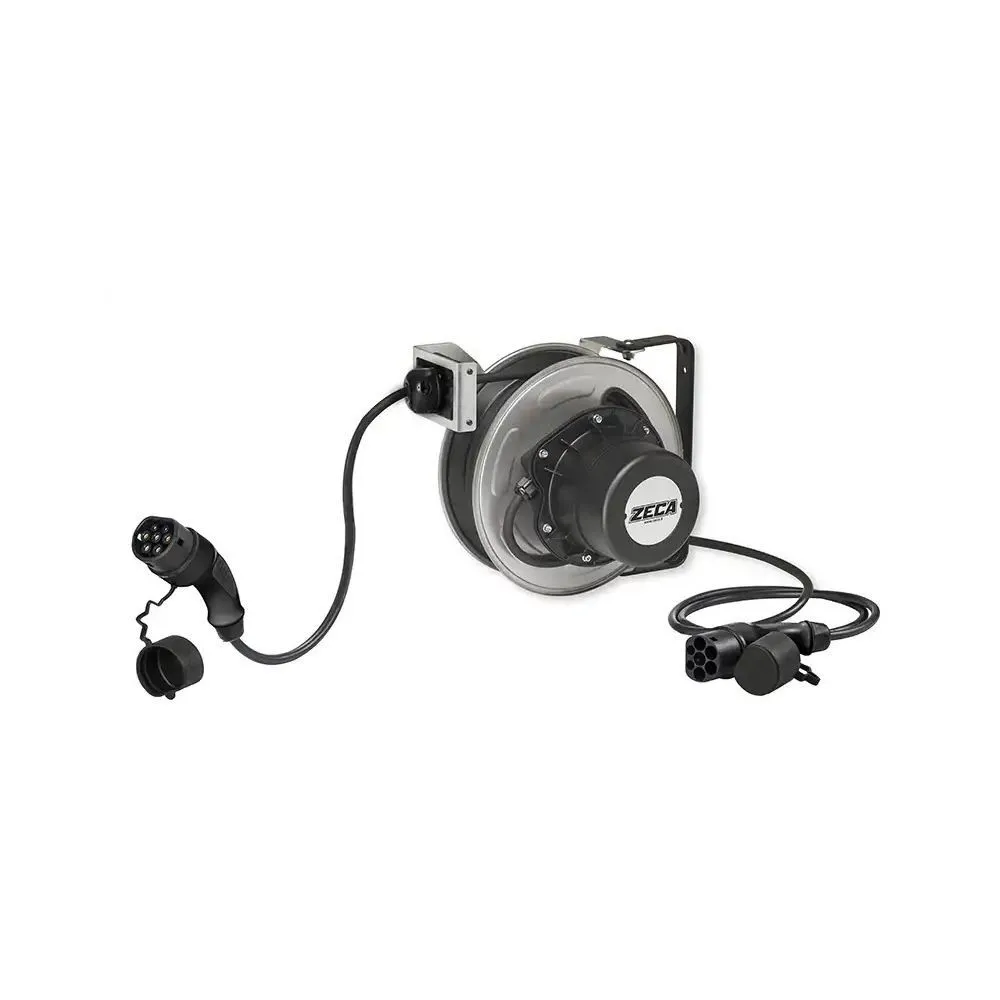

ZECA EV6321 Electric Car Cable Reel

The ZECA EV6321 cable reel was specifically designed to optimize the management of electric vehicle charging cables, offering a practical and efficient solution for maintaining order, cleanliness, and safety in environments such as garages or workshops. Combining advanced features with a robust construction, this cable reel significantly improves the charging experience.

Main advantages of the ZECA EV6321:

• More Order in the Garage: Permanently eliminate tangled and messy charging cables, contributing to a more organized and functional work or home environment.
• Superior Cable Protection: The cable is protected from dirt and wear and tear caused by trampling or misuse, greatly extending the life of an expensive component.
• Increased Safety: Reduces tripping hazards from loose cables and prevents direct hand contact with potentially dirty cables, ensuring a safer environment.
• Comfortable Charging Experience: The ease of use avoids getting your hands dirty or wet after rewinding the cable and optimizes the time needed to connect the car to the charging station.
• Maximum Versatility: This model is a simple and versatile solution, compatible with all wallbox brands and any type of EV cable. It is also suitable for outdoor use and withstands adverse weather conditions.

Detailed Technical Features:

• Item Model: EV6321
• Cable Length: 8 meters.
• Length of the Entrance Piece: 1.5 meters.
• Cable Type: 3G6 + 1x0.5.
• Charging Type: Single-phase, 7.4 kW (32 A @ 230V).
• Output Plug (vehicle side): Type 1 (SAE J1772-2009). This connector is common on Japanese and North American vehicles and allows single-phase charging only.
• Input socket (wallbox side): Type 2 (VDE-AR-E-2623-2-2). This is the European standard for AC charging stations and can be used for single-phase and three-phase charging.
• Integrated Wallbox: No, this cable reel is designed to be connected to an existing wallbox.
• Wi-Fi: Does not have Wi-Fi connectivity.
• The reel's IP rating ( IP65) indicates total protection against dust and water jets from any direction.
• Buffer: Included, available for cable diameters of 10, 13 and 16 mm.
• Non-ATEX: This model is not certified for explosive environments.

Optional Accessories:

• Rotating Bracket ART. 1405: Suitable for manual use and allows wall mounting.
• Fixed Bracket ART. 1403: Allows the cable reel to be fixed to the wall, floor or ceiling.

The ZECA EV6321 has embodied Italian technical excellence since 1929. For detailed dimensions and installation diagrams, please request the complete technical documentation.
